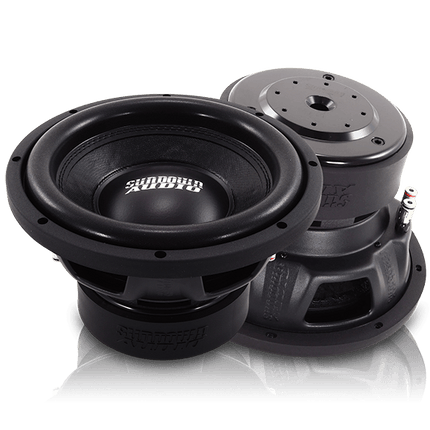

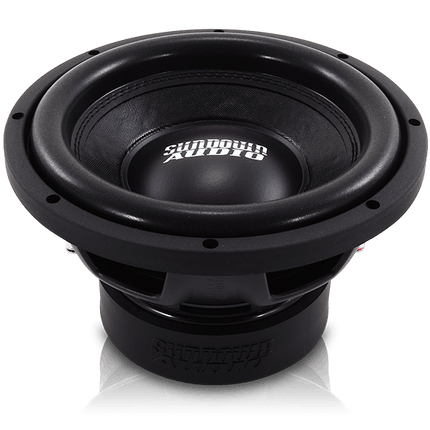

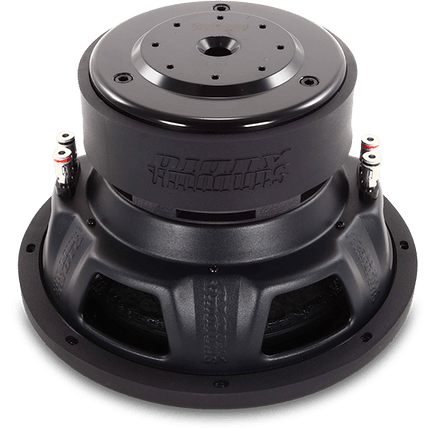

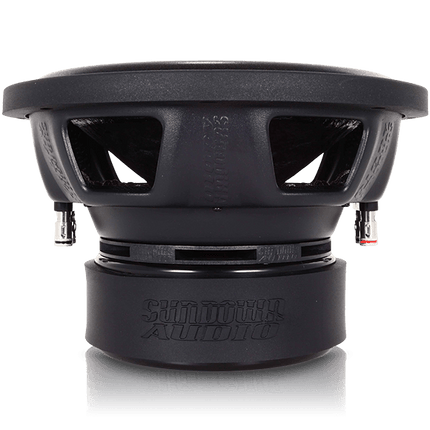

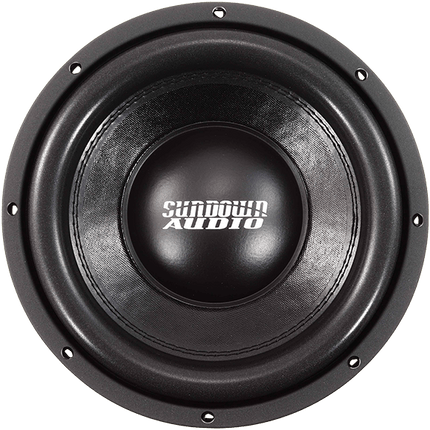

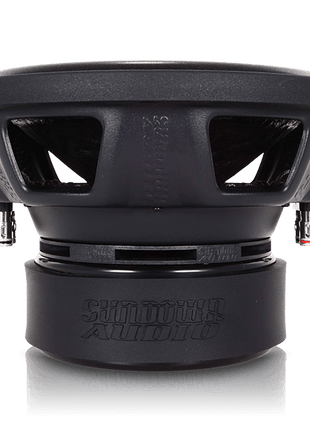

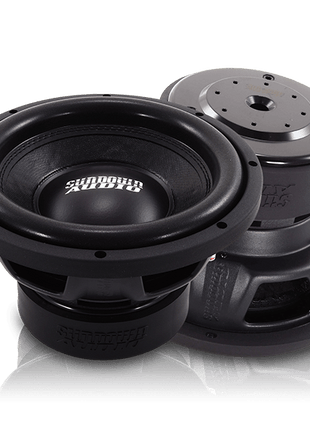

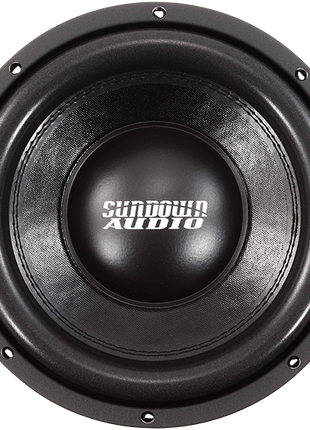

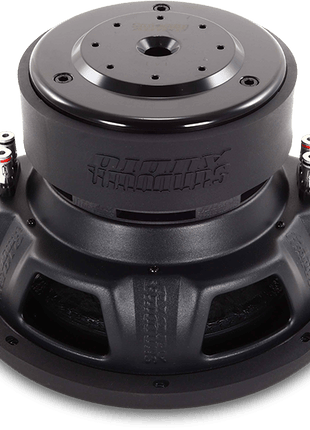

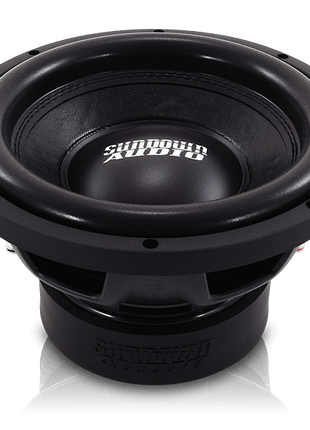

Sundown Audio E-Series V.4 10” Subwoofer
- Sundown Audio
Sundown Audio E-Series V.4 10” Subwoofer
- Sundown Audio
750 Watts RMS / 1500 Watts Peak Dual 2 or 4 ohm voice coils Optimized for ported enclosures Class-leading 14mm... Read more
$224.99
- Free shipping in the contiguous USA on all orders above $99
- Full Manufacturer Warranty On All Items
- No Hassle, Easy 30 Day Returns
- Price Match Guarantee. Lowest Prices Anywhere.
- REAL Audio Enthusiasts, Expert Support
| Specification | E-10v3 D2 | E-10v3 D4 |
|---|---|---|
| Fs | 32.2 Hz | 33.5 Hz |
| Re | 4.00 Ω | 6.10 Ω |
| Qms | 4.7600 | 4.3900 |
| Qes | 0.3800 | 0.0430 |
| Qts | 0.3500 | 0.3900 |
| Mms | 192.00 g | 183.70 g |
| Cms | 0.13 µm/N | 0.12 µm/N |
| Sd | 506.6 cm² | 506.6 cm² |
| Vas | 19.4 L | 18.8 L |
| Sensitivity | 84.2 dB | 84.0 dB |
| BL | 20.200 T·m | 23.500 T·m |
| Le | 2.55 mH | 3.59 mH |
| X-Max | 14 mm | 14 mm |
| RMS Power | 750 W | 750 W |
| Peak Power | 1500 W | 1500 W |
| Specification | E-10v3 D2/D4 |
|---|---|
| Overall Diameter | 10" |
| Cutout Diameter | 9.212" |
| Motor Diameter | 6.37" |
| Mounting Depth | 5.625" |
| Displacement | 0.06 Cu. Ft. |
| Sealed Volume | Not Recommended |
| Ported Volume | 1.0 cu ft |
| Port Tuning | 35 Hz |
| Port Area | 15 sq in |
| 4th Order Sealed | 0.4 cu ft |
| 4th Order Ported | 1.2 cu ft |
| 4th Order Port Area | 24 sq in |
| 4th Order Port Length | 6" |
