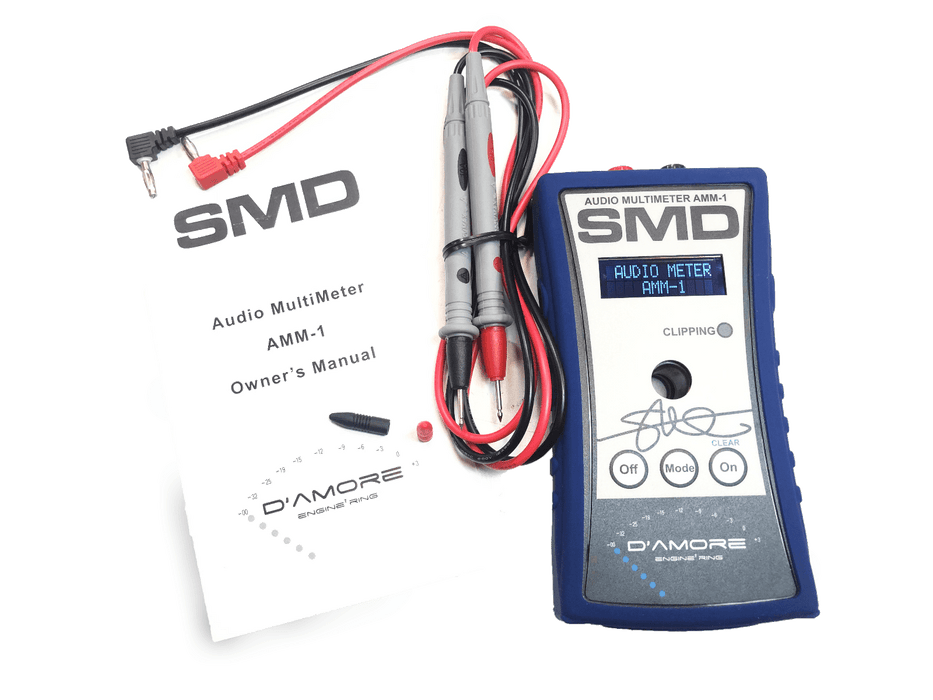

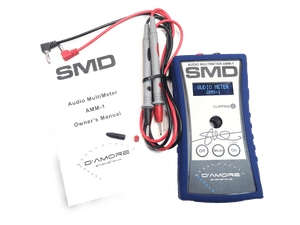

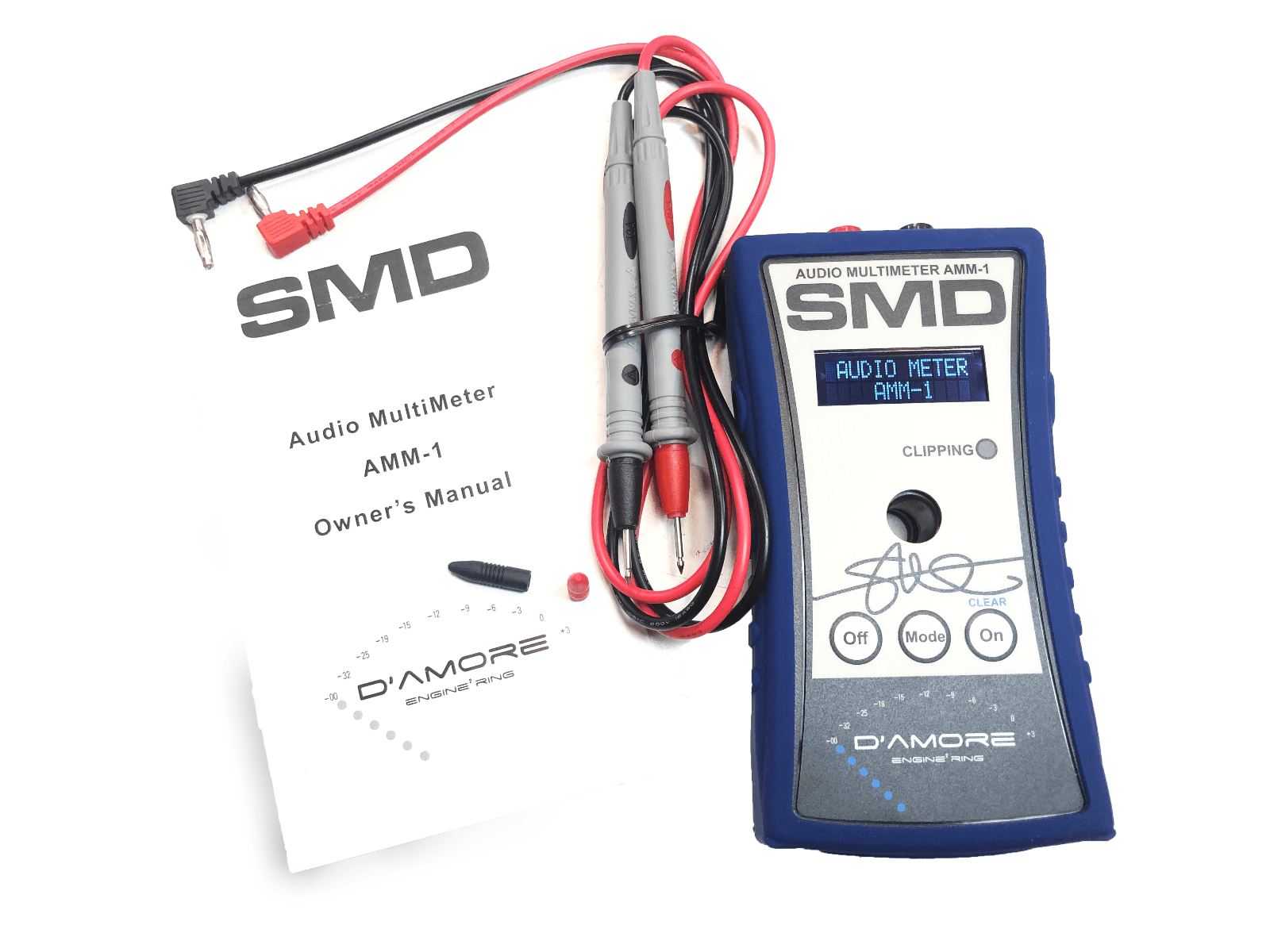

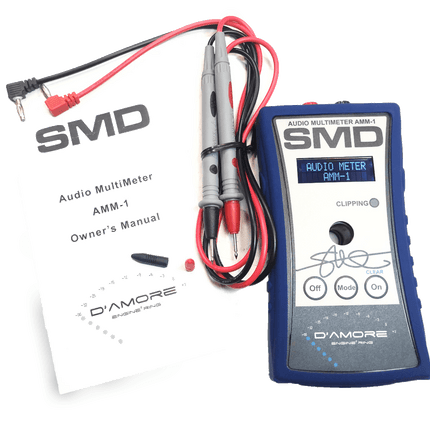

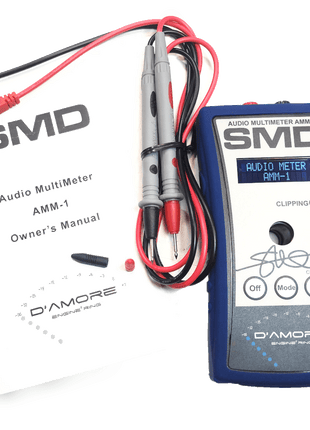

Steve Meade SMD AMM-1 Car Audio Amplifier Multimeter AMM1

Description

The purpose of this tool is to enable the user to:

  • Measure True Amplifier Power output into any load reactive or resistive
  • Measure Common DC voltages
  • Measure DC voltage drops during quick transients on cable runs or battery / charging systems
  • Measure Impedance of speakers at any power or frequency from 20Hz - 1kHz (box rise)
  • Measure Phase Difference between Voltage and Current into reactive loads (Power Factor)
  • Find Tuning Frequency of subwoofer enclosures
  • Tune subwoofer enclosures for maximum power transfer
  • Measure AC Volts (amplifier output)
  • Measure AC Amps (amplifier output)
  • Measure apparent power (VA) output, Phase Angle, and Real Power (Watts) of audio amplifier, or consumption of appliances that run on AC power
  • Measure Frequency of a Sine Wave

What is included?

  • The AMM-1 tool
  • Protective silicon rubber boot
  • Harness
  • This manual
  • Pride of ownership

Specifications

  • DC Voltmeter: -100 Volts to +100 Volts
  • AC Voltmeter: 0 - 150 VRMS
  • AC Ammeter: 0 - 100 ARMS
  • AC Apparent Power: 0 - 15,000 VA
  • Power Factor: 50 - 100%
  • Frequency: 10 - 20,000 Hz
  • AC Impedance: 0 - 200 Ohms
  • True Power Dyno: 0 - 15,000 Watts
  • Auto-shut off timer: 8 - 10 minutes after ON button is pressed
  • Battery self-test and display of condition when AMM-1 is initialized

Steve Meade SMD AMM-1 Car Audio Amplifier Multimeter AMM1

Product form

The purpose of this tool is to enable the user to: Measure True Amplifier Power output into any load reactive... Read more

$458.98

    • Free shipping in the contiguous USA on all orders above $99
    • Full Manufacturer Warranty On All Items
    • No Hassle, Easy 30 Day Returns
    • Price Match Guarantee. Lowest Prices Anywhere.
    • REAL Audio Enthusiasts, Expert Support

    Description

    The purpose of this tool is to enable the user to:

    • Measure True Amplifier Power output into any load reactive or resistive
    • Measure Common DC voltages
    • Measure DC voltage drops during quick transients on cable runs or battery / charging systems
    • Measure Impedance of speakers at any power or frequency from 20Hz - 1kHz (box rise)
    • Measure Phase Difference between Voltage and Current into reactive loads (Power Factor)
    • Find Tuning Frequency of subwoofer enclosures
    • Tune subwoofer enclosures for maximum power transfer
    • Measure AC Volts (amplifier output)
    • Measure AC Amps (amplifier output)
    • Measure apparent power (VA) output, Phase Angle, and Real Power (Watts) of audio amplifier, or consumption of appliances that run on AC power
    • Measure Frequency of a Sine Wave

    What is included?

    • The AMM-1 tool
    • Protective silicon rubber boot
    • Harness
    • This manual
    • Pride of ownership

    Specifications

    • DC Voltmeter: -100 Volts to +100 Volts
    • AC Voltmeter: 0 - 150 VRMS
    • AC Ammeter: 0 - 100 ARMS
    • AC Apparent Power: 0 - 15,000 VA
    • Power Factor: 50 - 100%
    • Frequency: 10 - 20,000 Hz
    • AC Impedance: 0 - 200 Ohms
    • True Power Dyno: 0 - 15,000 Watts
    • Auto-shut off timer: 8 - 10 minutes after ON button is pressed
    • Battery self-test and display of condition when AMM-1 is initialized
