Description
Versatile Power for BASS and SUB BASS

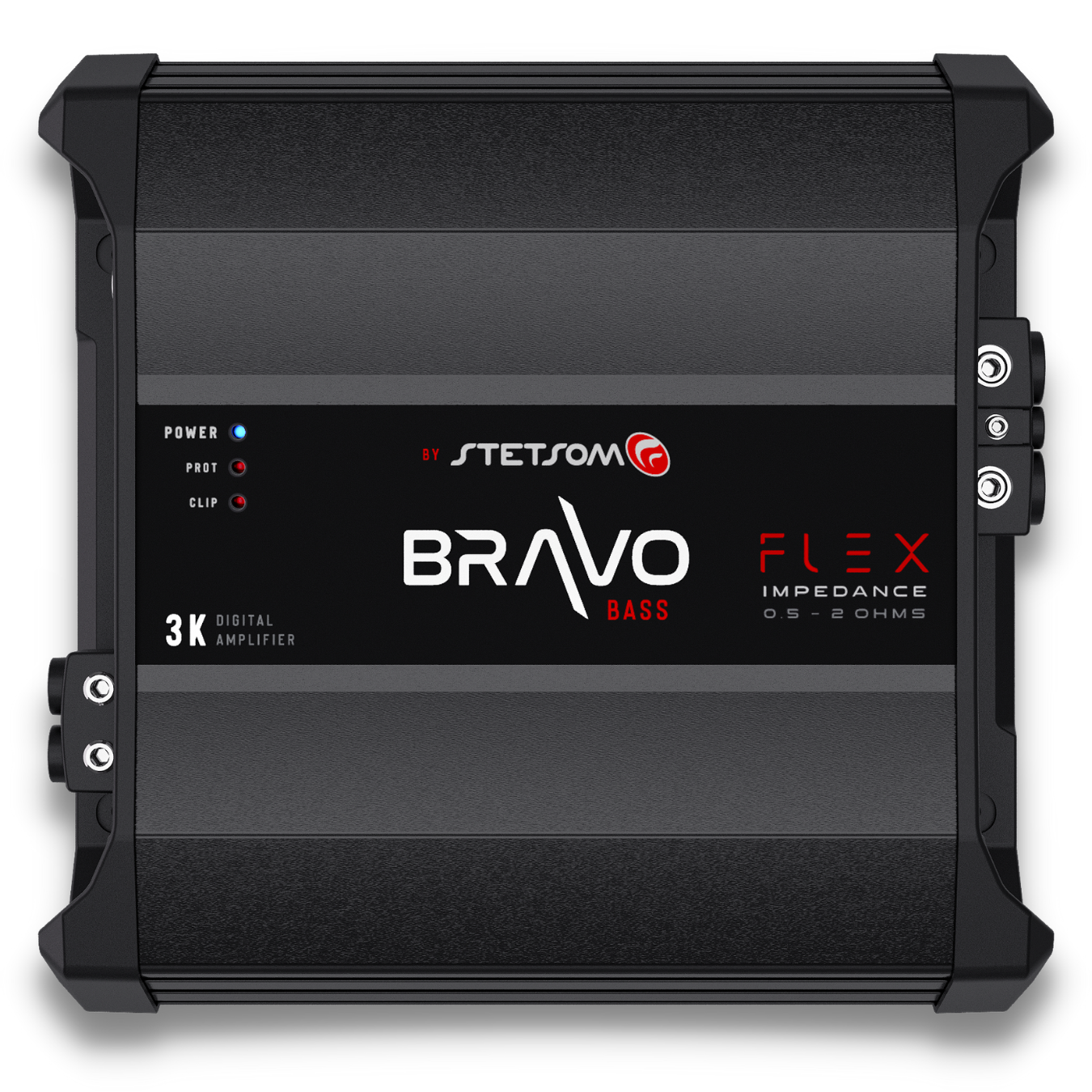

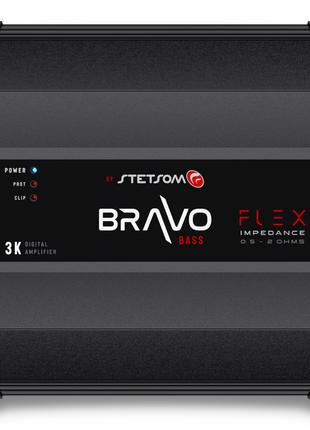

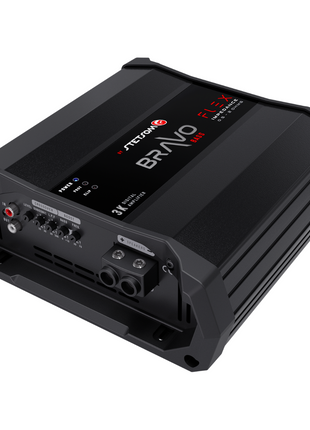

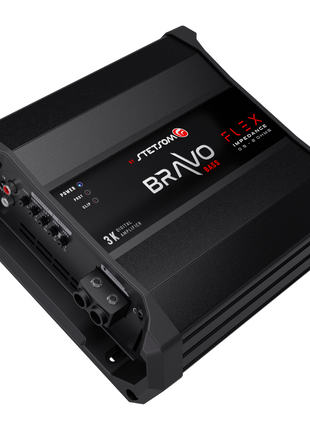

The Stetsom BRAVO BASS FLEX 3K is engineered for automotive sound enthusiasts who demand both high performance and exceptional versatility. Its defining feature is the FLEX Automatic Impedance System, which intelligently adjusts the amplifier’s output impedance from 0.5 Ohm up to 2 Ohms to match the connected speakers. This optimization maximizes efficiency and power output, making speaker configuration simpler and ensuring high-quality audio reproduction.
Delivering up to 3500W RMS (at 1 Ohm), the amplifier is built exclusively for powerful BASS and SUB BASS frequencies, with a response of 5Hz to 200Hz. It includes built-in EQ controls (Subsonic Filter, Low Pass Filter, and Bass Boost) for precision tuning, along with Smart and Silent Coolers and a robust Smart Protection System for reliable, long-term performance.
Key Features & Audio Controls
-

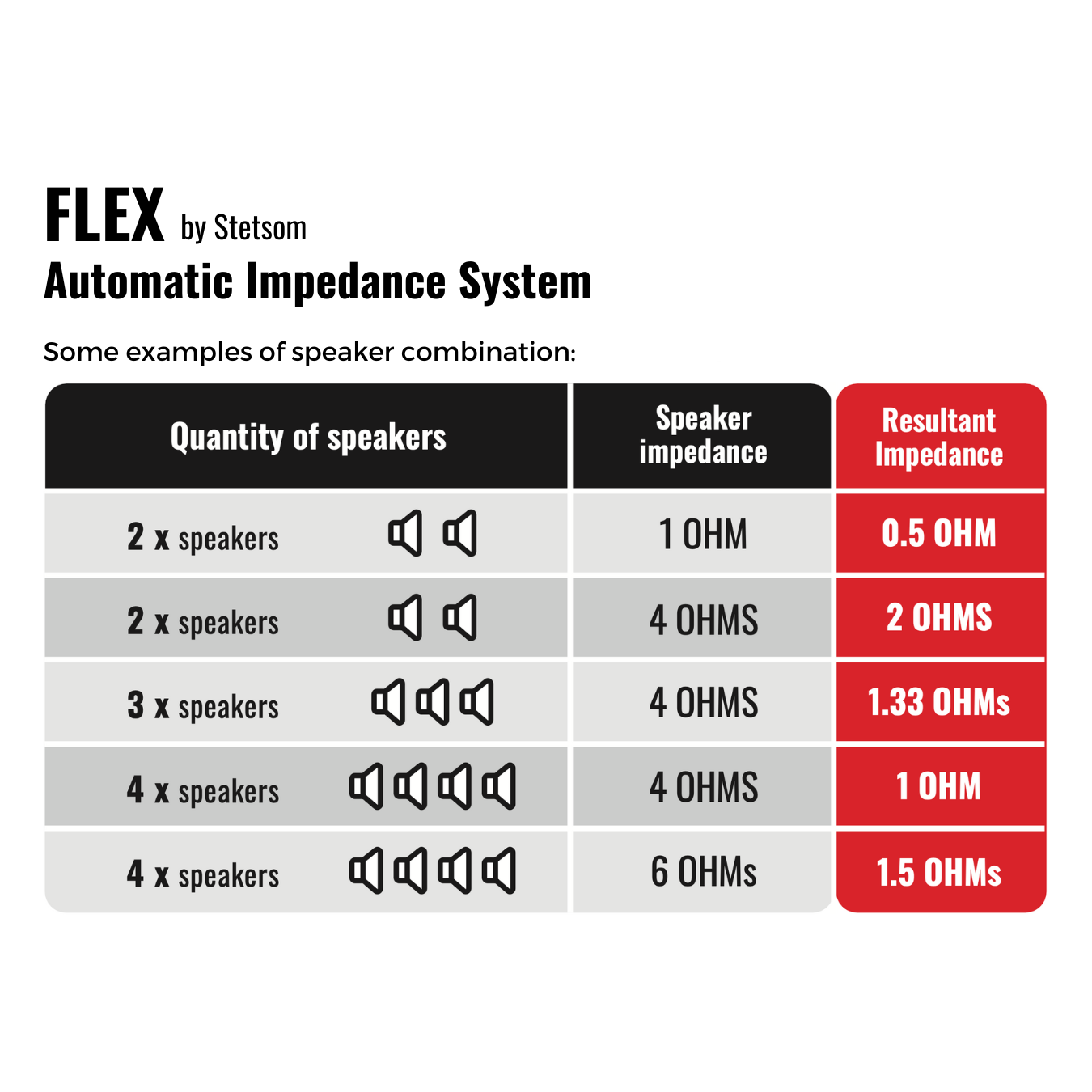

FLEX Automatic Impedance System: Automatically adjusts the output for optimal power delivery across a wide range of load impedances (0.5 Ohm to 2 Ohms).
-

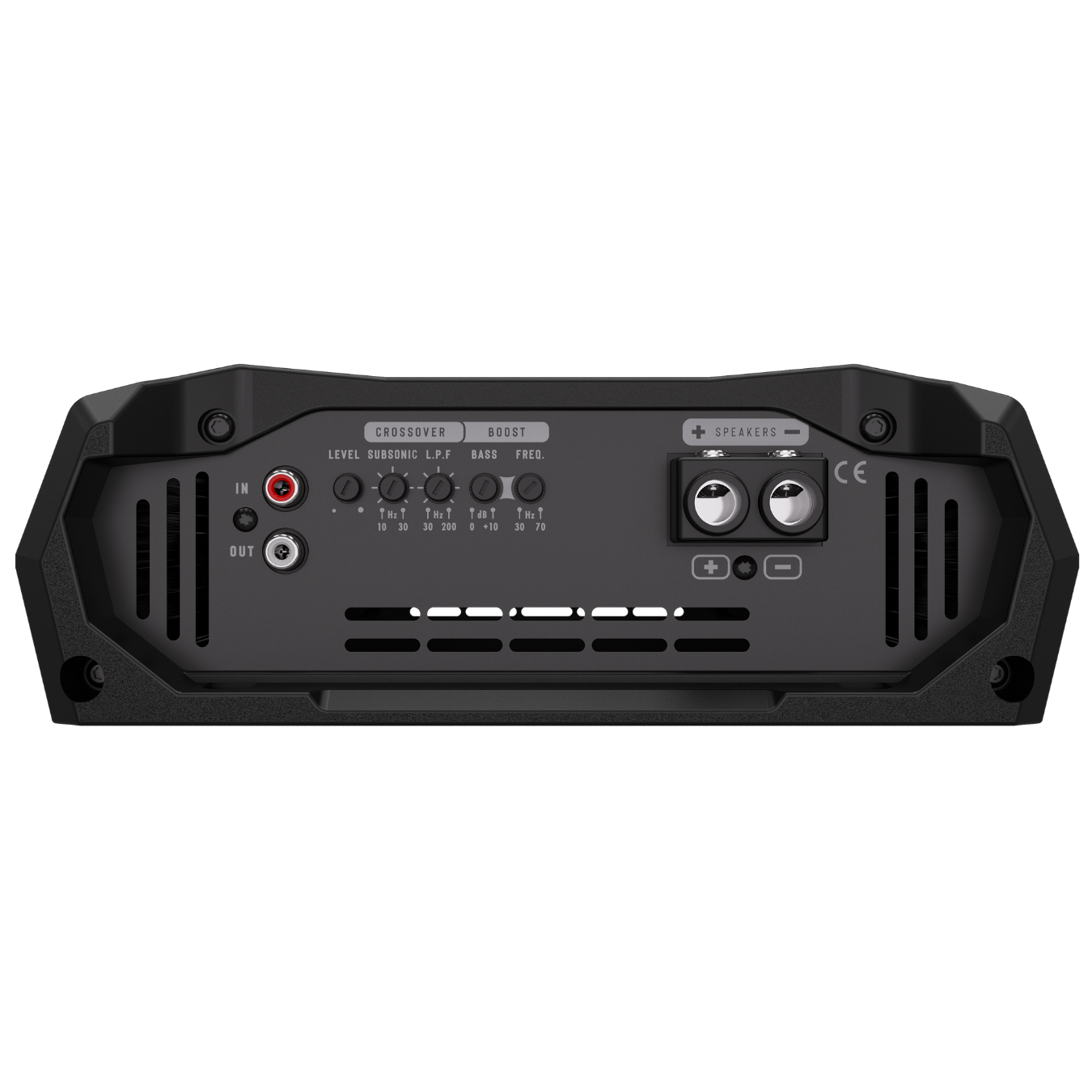

Precision Filtering: Features a variable Subsonic Filter (5Hz to 40Hz) to protect speakers and a variable Low Pass Filter (30Hz to 200Hz) for seamless system integration.
-
Adjustable Bass Boost: Offers up to +10dB of boost at a selectable frequency, allowing for customized bass punch.
-

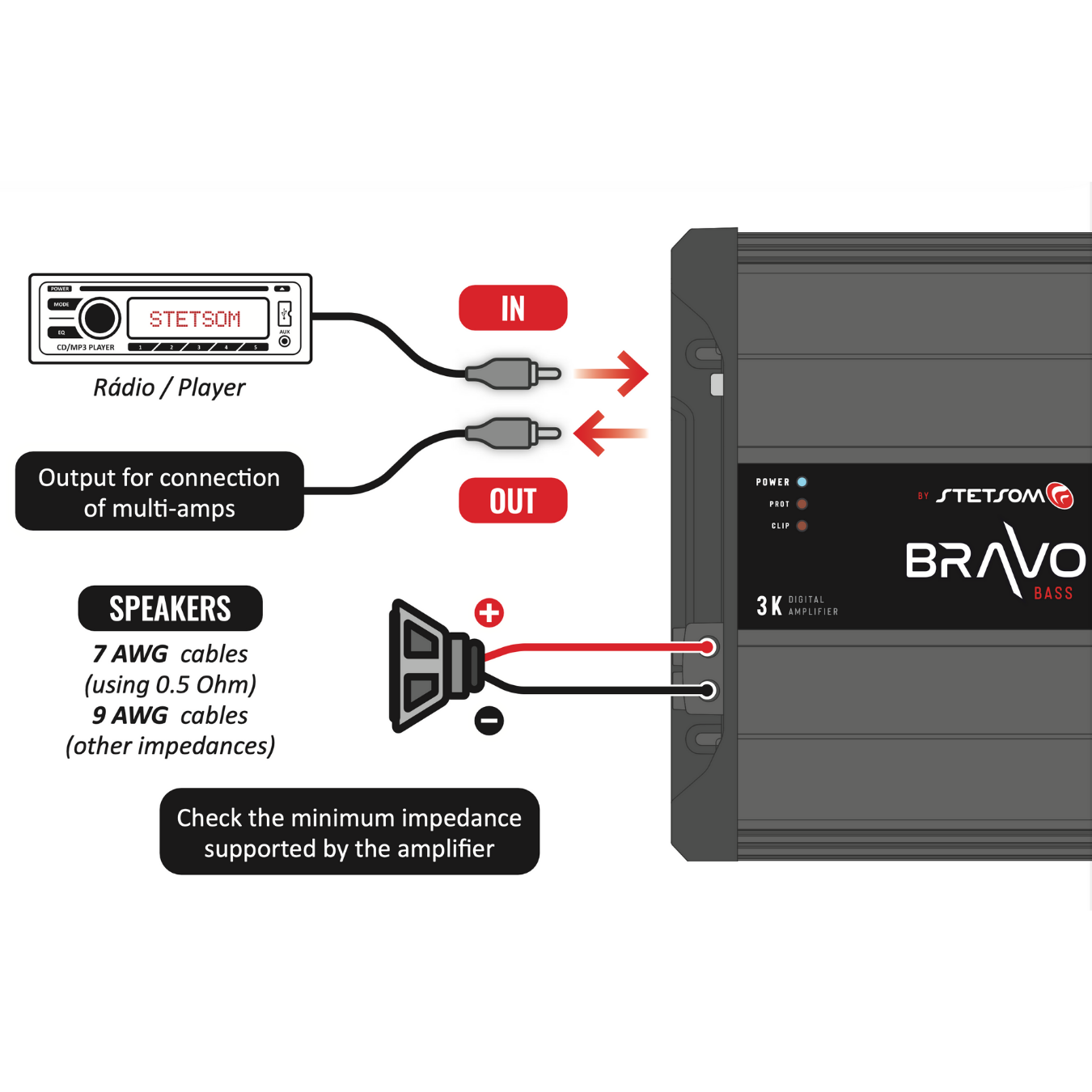

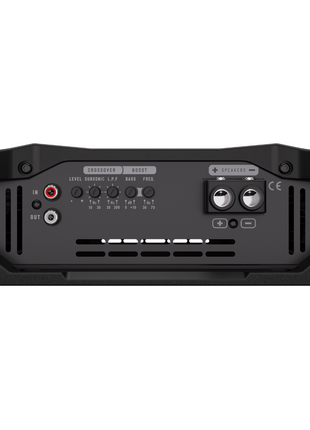

System Integration: Includes In/Out Audio RCA for chaining the signal to other amplifiers and a Smart Protection System with LED diagnosis.
-

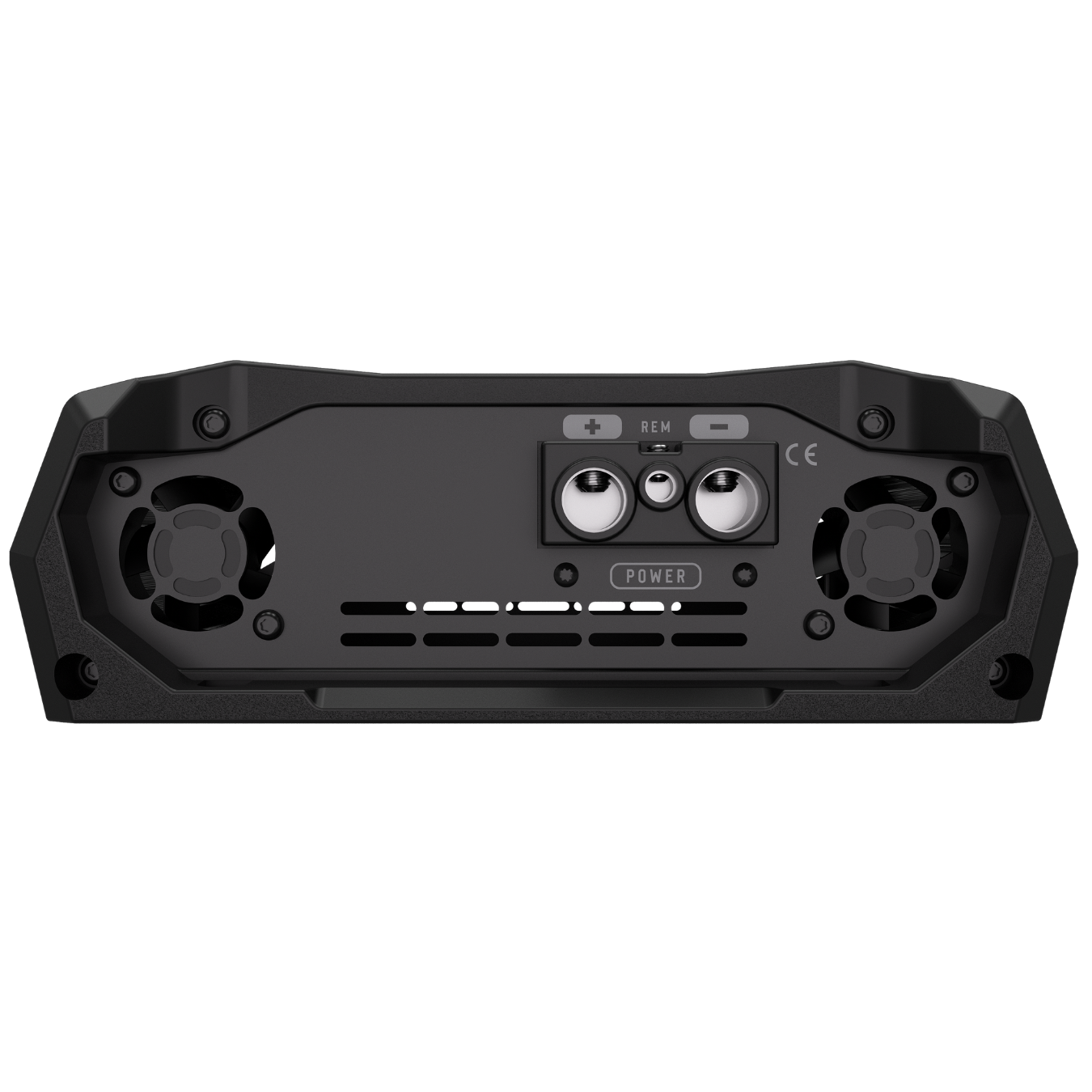

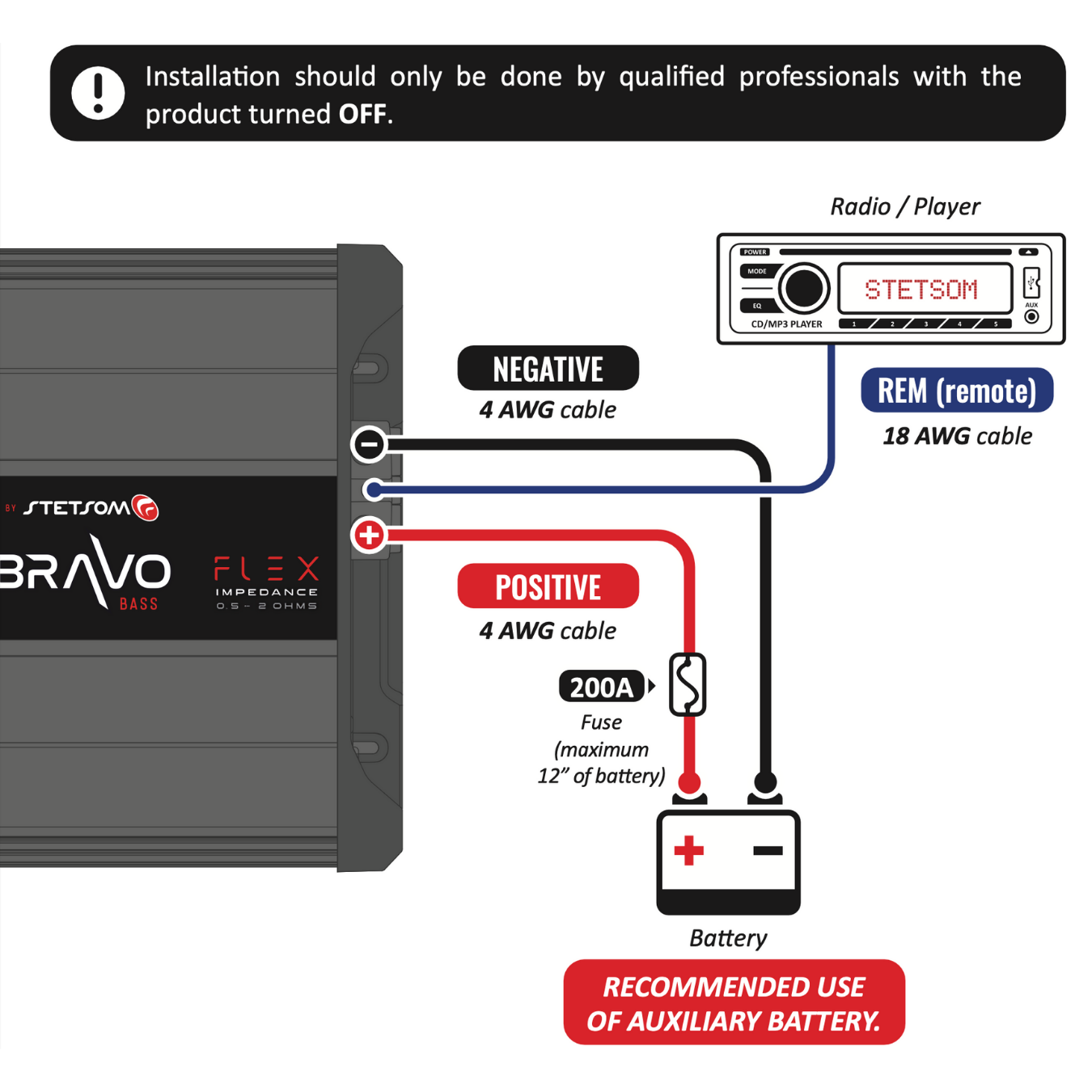

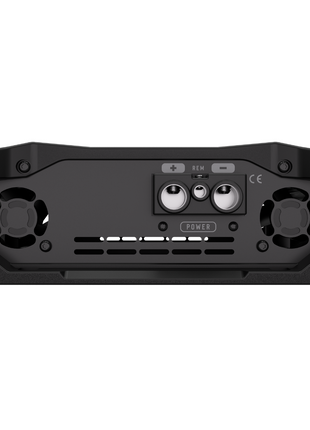

Durable Terminals: Supports up to 4 AWG for power/ground and 7 AWG for speaker connectors (for 0.5 Ohm load) for stable, high-current operation.
Technical Specifications
| Specification |
Detail |
| Minimum Output Impedance |
0.5 OHM ~ 2 OHMS (AUTO) |
| Number of Channels |
1 |
| RMS Power |
3000W |
| RMS Power at 0.5 Ohm (14.4V) |
3000W |
| RMS Power at 1 Ohm (14.4V) |
3500W |
| RMS Power at 2 Ohm (14.4V) |
3000W |
| Supply Voltage |
9V ~ 17V DC |
| Frequency Response |
5Hz ~ 200Hz |
| Crossover Low Pass (LPF) |
30Hz ~ 200Hz (Variable) |
| Crossover Subsonic Filter (HPF) |
5Hz ~ 40Hz (Variable) |
| Bass Boost |
0dB ~ +10dB (30Hz ~ 70Hz selectable) |
| Signal to Noise |
>90dB |
| Input Sensitivity |
0.2V ~ 3V |
| Input Impedance |
7K Ohms |
| Musical Consumption |
160A |
| BASS Consumption |
320A |

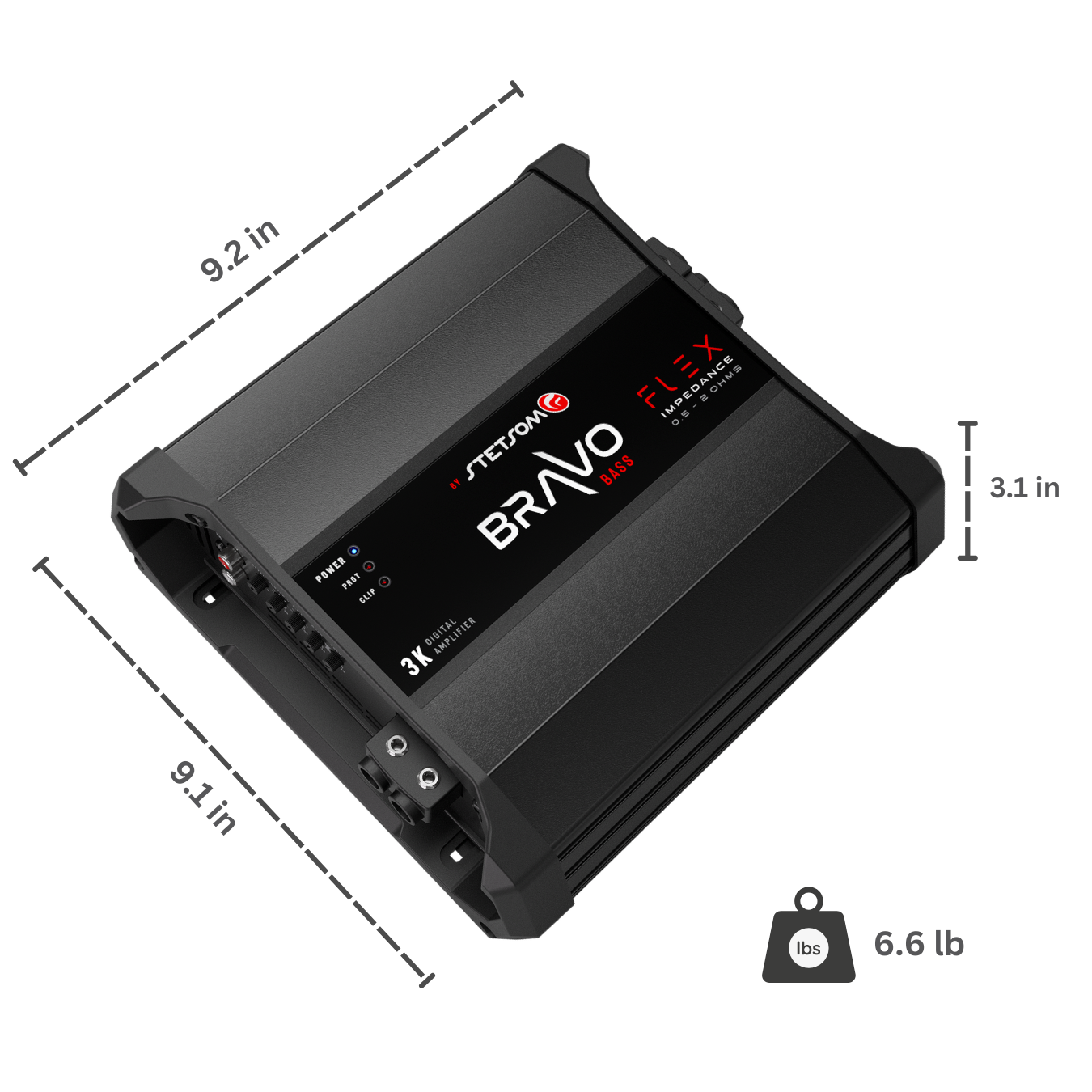

| Dimensions (H x W x D) mm |
80 x 236 x 231.5 mm |
| Weight Kg |
3 Kg (6.6 lbs) |
