Description
Performance Focused on BASS and SUB BASS

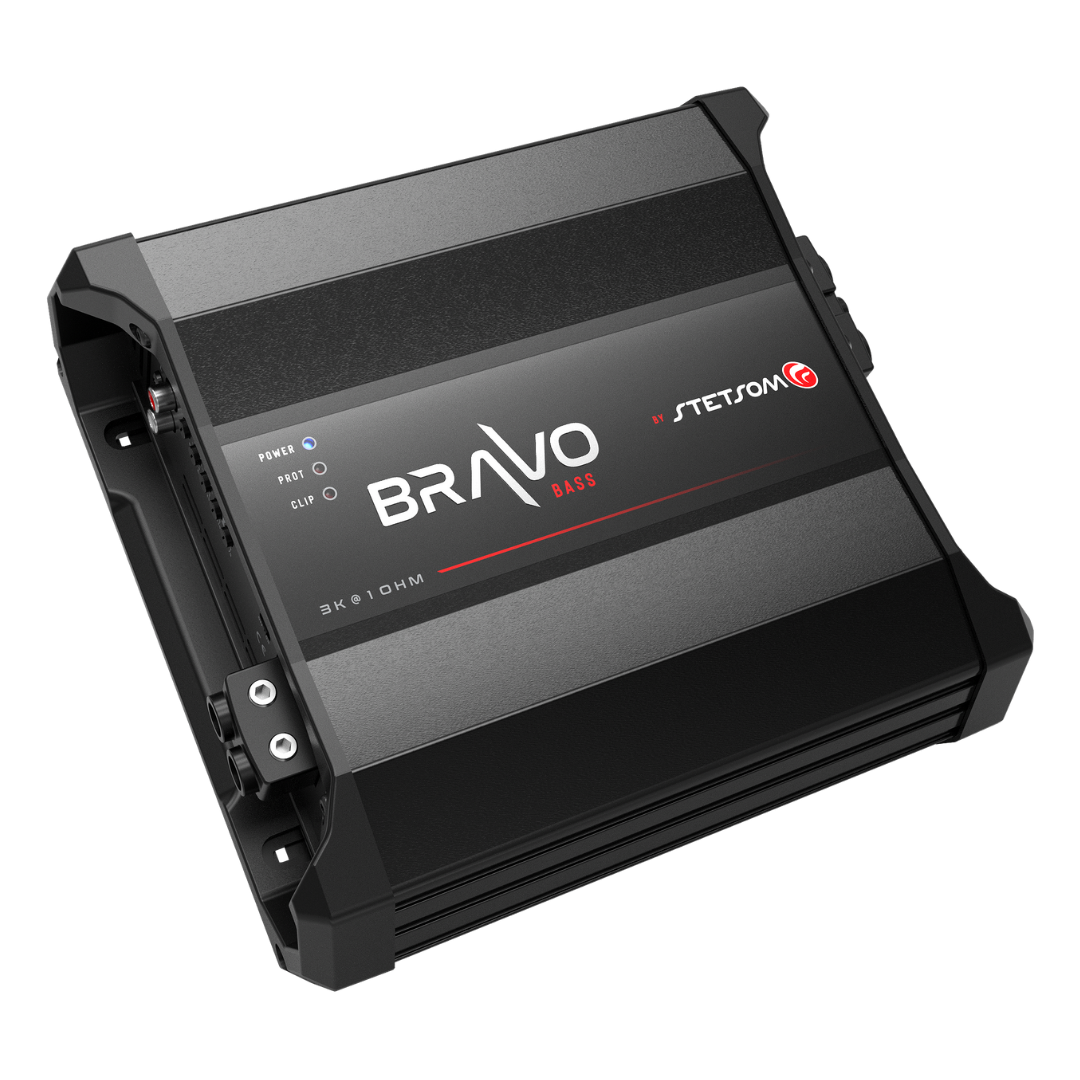

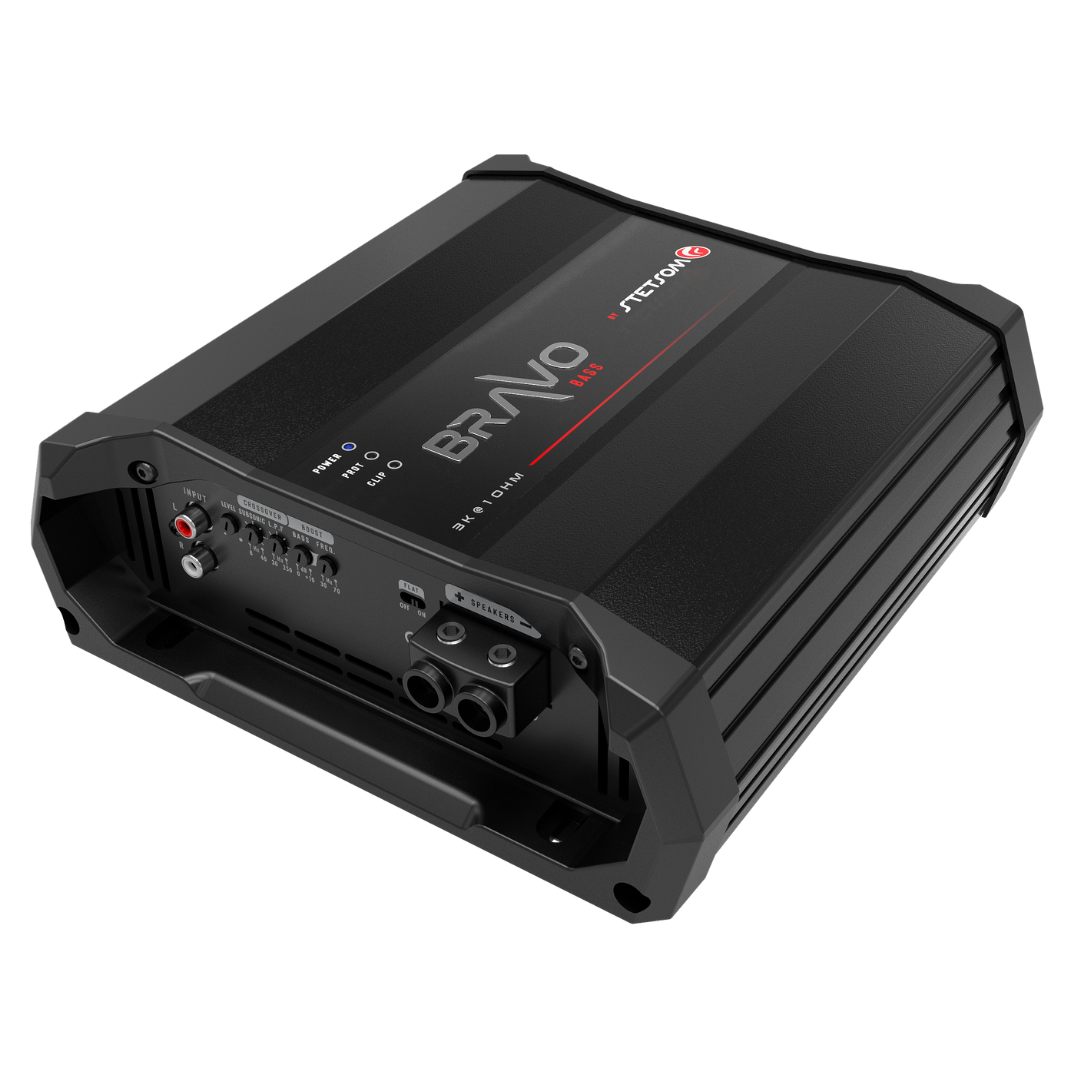

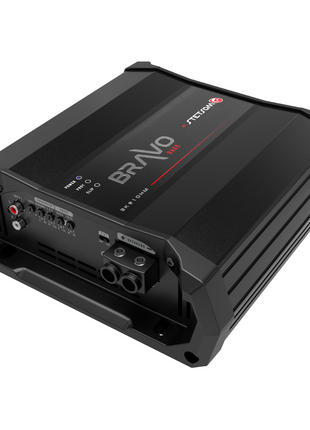

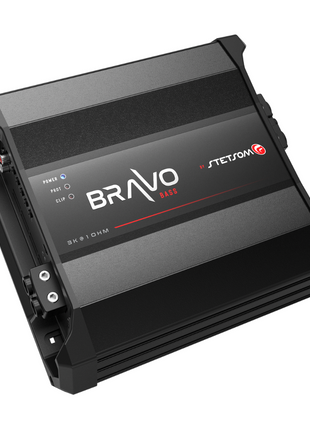

The Stetsom BRAVO BASS 3K is engineered for automotive sound lovers demanding maximum performance in BASS and SUB BASS frequencies. This Class D Mono Amplifier delivers a powerful 3000 Watts RMS at 1 Ohm (14.4V), providing the massive low-frequency power required for competition-level sound systems.

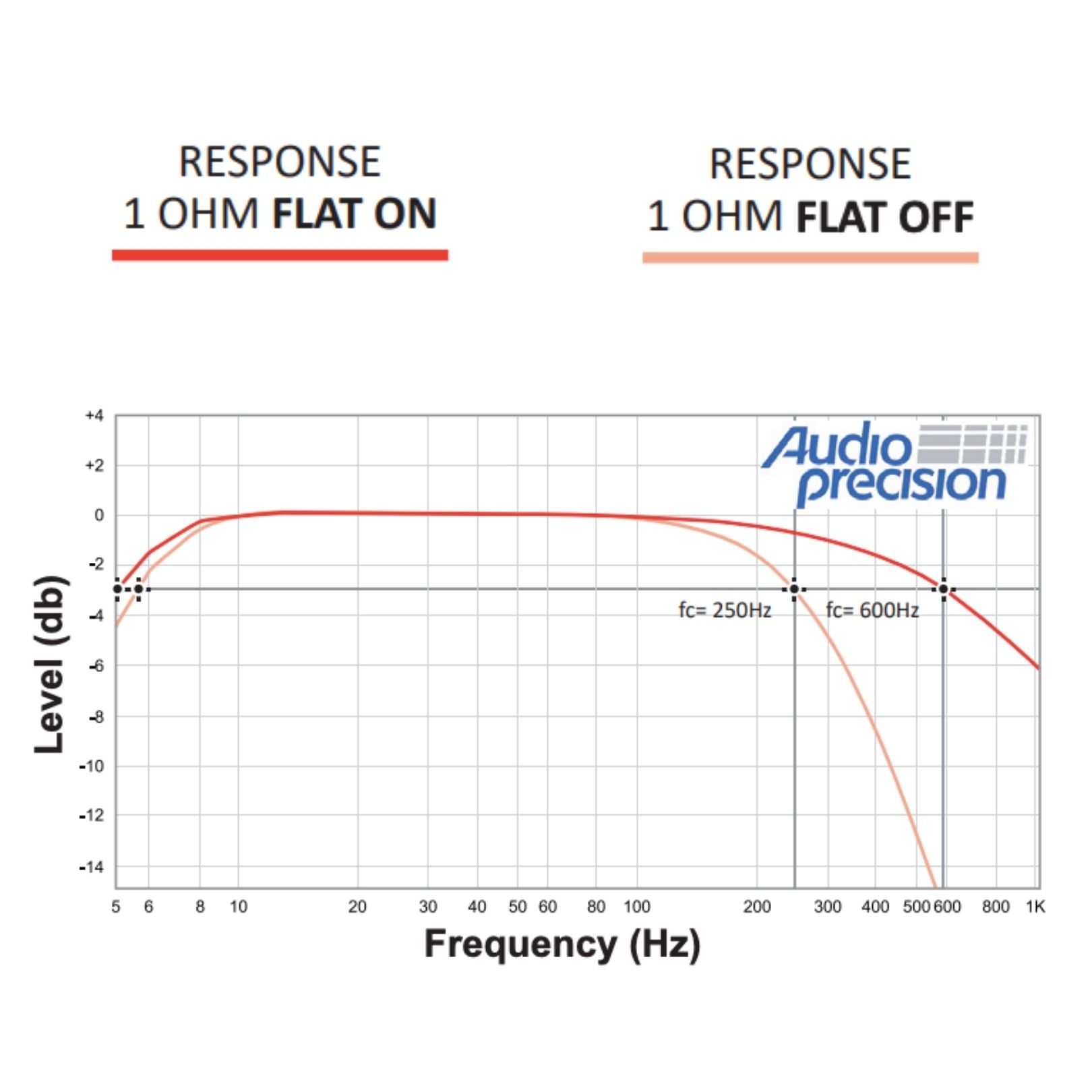

Its exceptional frequency response, optimized from 8Hz to 600Hz (when FLAT mode is active), ensures powerful bass with clarity and definition for use with subwoofers and woofers. The unit features sophisticated audio controls, including a variable Subsonic Filter and a customizable Bass Boost, allowing for precision tuning and maximum speaker protection. Built with a compact design, the BRAVO BASS 3K offers high efficiency and a reliable Smart Protection System for long-lasting, high-impact performance.

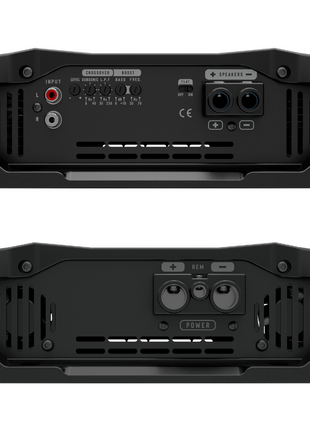

Key Features & Audio Controls
-

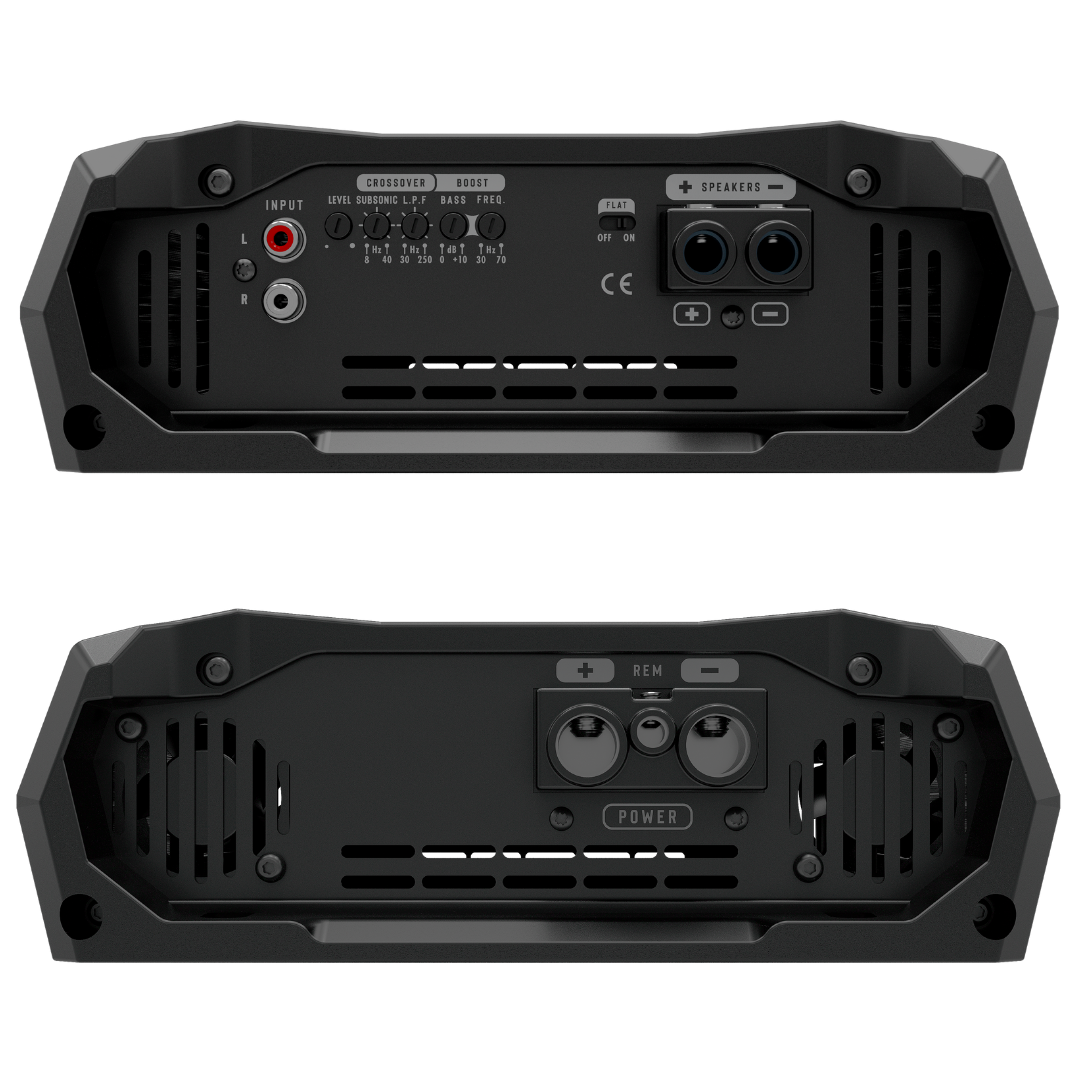

Precision Crossover: Includes both a Low Pass Filter (30Hz ~ 250Hz) and a Subsonic Filter (8Hz ~ 40Hz) to perfectly match the amplifier to your subwoofers and protect them from damaging ultra-low frequencies.
-
Customizable Bass: The BASS BOOST function offers variable gain from 0dB to +10dB at a selectable frequency between 30Hz and 70Hz, allowing you to dial in your preferred bass impact.
-
FLAT Mode Switch: A convenient switch to instantly bypass all Crossover and BASS BOOST settings for quick configuration or maximum frequency output.
-

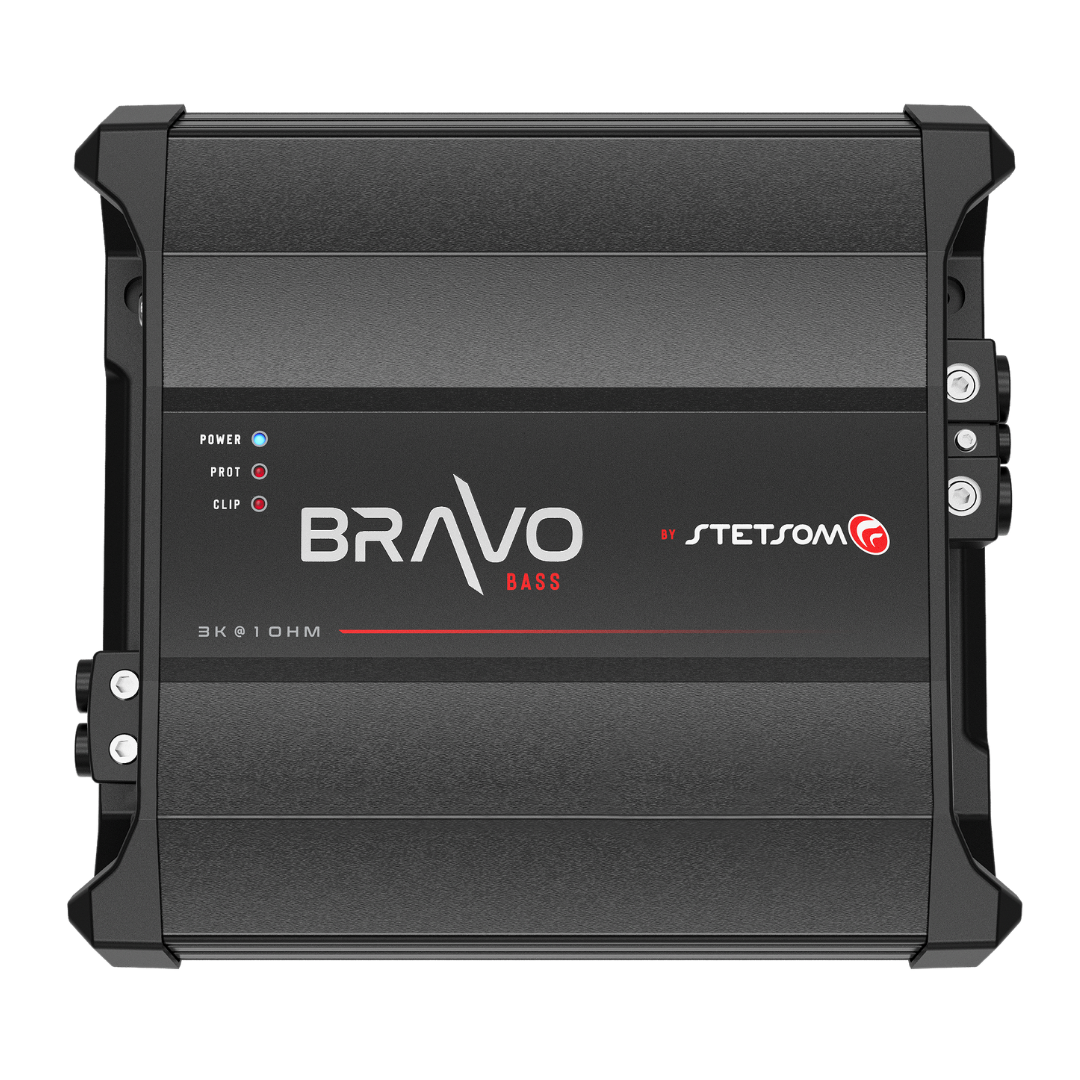

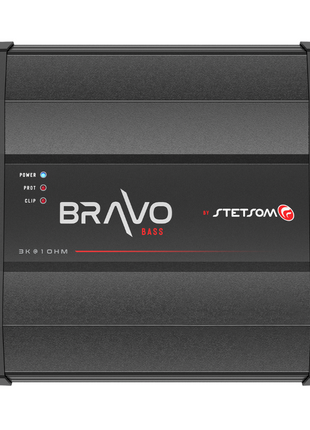

Advanced Protection: Features a PROT (Protection) LED and a CLIP LED for quick diagnosis, monitoring for faults like overheating, short circuits, and signal saturation.
-
Optimized Connections: Recommended wiring includes minimum 4 AWG for power and 8 AWG for speaker output (for 1 ohm load), ensuring maximum power transfer and safety.
TECHNICAL SPECIFICATIONS
| CHARACTERISTIC |
Detail |
| Number of Channels |
1 |
| RMS Power @ 1 Ohm (14.4V) |
3000W |
| RMS Power @ 2 Ohm (14.4V) |
1800W |
| Minimum Output Impedance |
1 Ohm |
| Supply Voltage |
9V ~ 17V DC |
| Frequency Response (-3dB) FLAT ON |
8Hz ~ 600Hz |
| Frequency Response (-3dB) FLAT OFF |
8Hz ~ 250Hz |
| Crossover Low Pass (LPF) |
30Hz ~ 250Hz (Variable) |
| Crossover Subsonic Filter |
8Hz ~ 40Hz (Variable) |
| Bass Boost |
0 +10{dB} (30Hz ~ 70Hz) |
| Signal to Noise |
>90 dB |
| Input Sensitivity |
200mV |
| Input Impedance |
5K Ohms |
| Musical Consumption |
132A |
| BASS Consumption |
265A |
| Dimensions (H x W x L) |
3.14" x 9.11" x 9.29" |
| Weight |
6.3 lbs |
