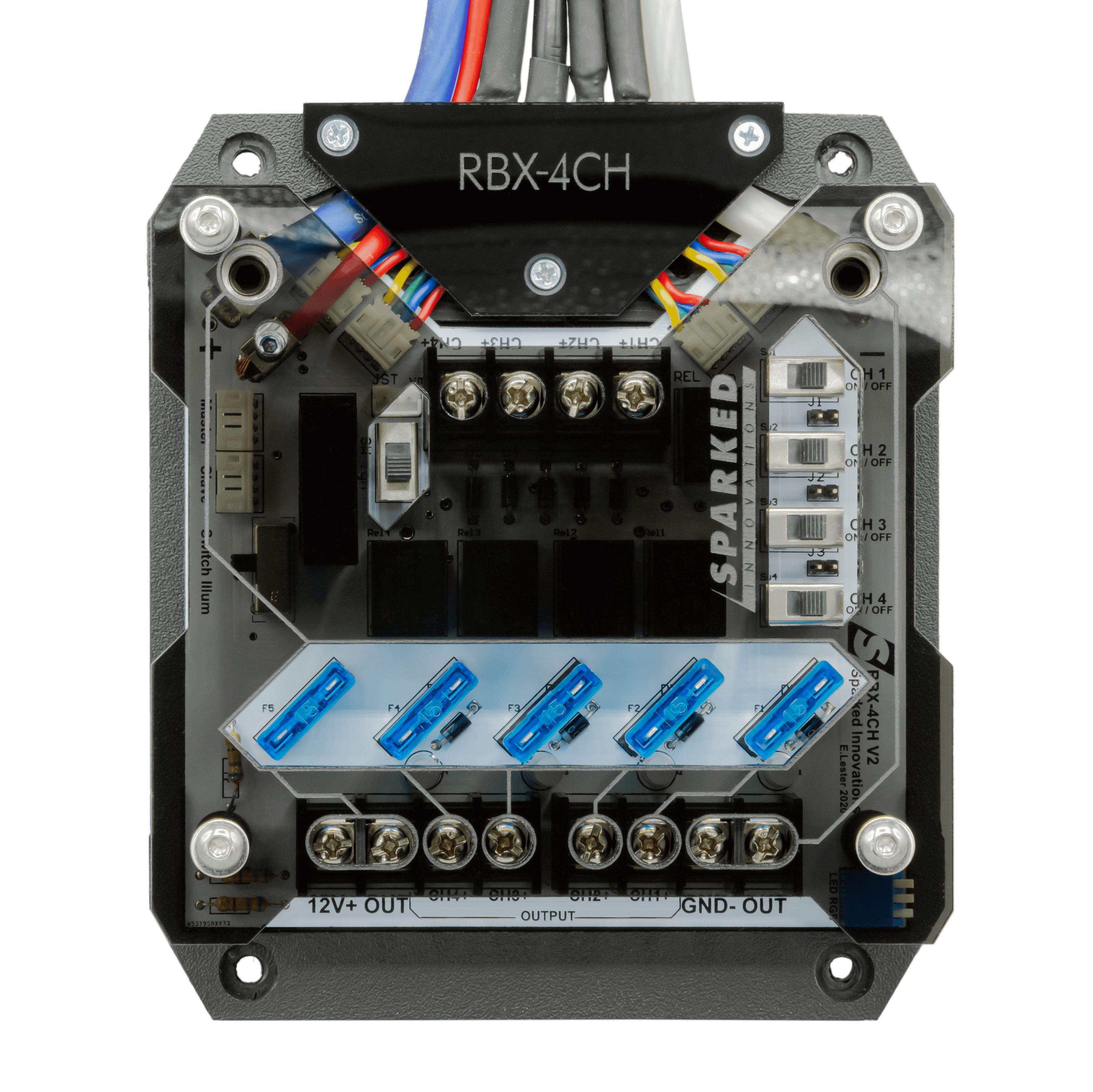

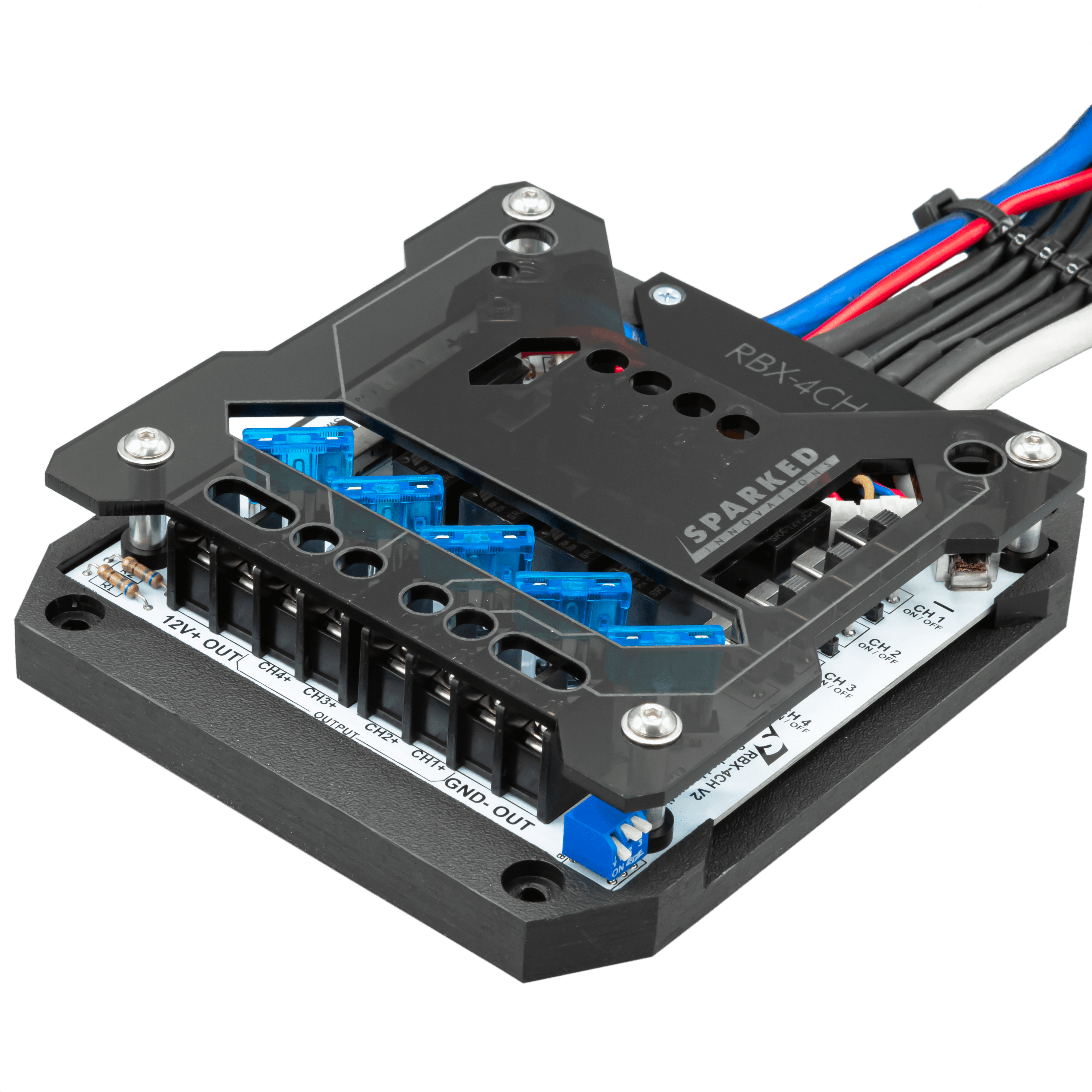

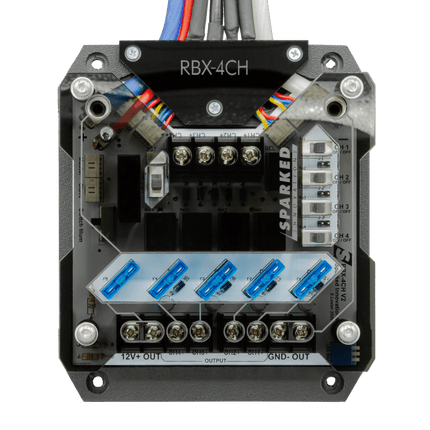

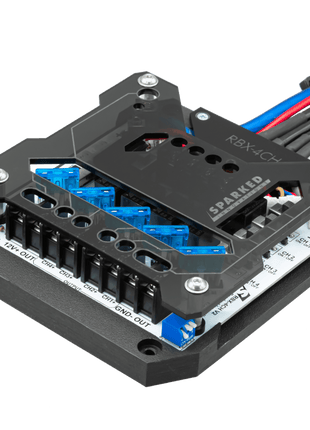

Sparked Innovations RBX-4CH 12VDC 4-Channel Relay Box

Original price $139.99 - Original price $149.99
Original price
$139.99
$139.99 - $149.99
Current price $139.99

FREE GIFT WITH EVERY PURCHASE AUTOMATICALLY ADDED TO CART!

Color: Black Transparent

Self-contained four-channel 12VDC relay box



Brand

Sparked Innovations

12VDC voltage range

9~18VDC

Dimensions

1.20"H, 5.20"W, 6.00"L

Remote Input

Positive (+)

Switched Channels

4

Non-Switched Channels

1

Total Peak Current Capacity

90A

Total Continuous Current Capacity

75A

Current Capacity Per Channel

15A

Fuses

5 x 15A ATC

Power Wire Input Gauge

4~10 AWG

Remote Input Terminals

10~22 AWG Fork Terminals or Bare Wire

Output Terminals

10~22 AWG Fork Terminals or Bare Wire

Weight

12.2 oz

Manufacturer

Sparked Innovations, LLC
