Description
Built upon the proven, World-Class, performance of The Bass Blaster, the SQL-2000 sets itself among some of the best sounding, most versatile, and durable woofers in it's class.
The four (4) inch copper coil comes immersed in a Jacob Fuller designed motor assembly complete with aluminum shorting pole cap, flared velocity heat-vents, and plenty of ferrite in it's dual 9.25"" diameter slugs which gives it one of the highest motor forces in a woofer of it's size.

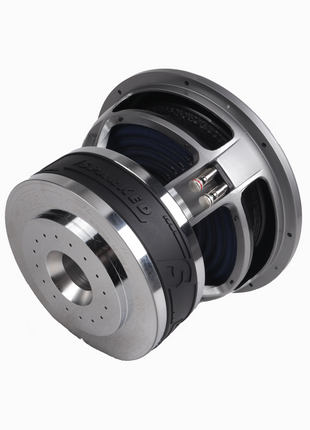

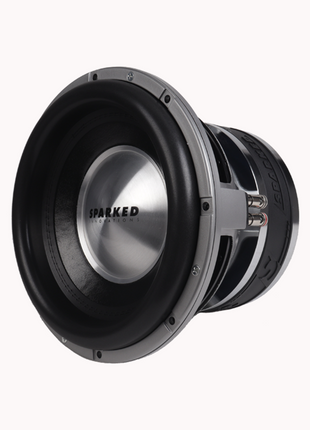

New styling gives the SQL-2000 a sleek look. A molded rubber magnet boot, laser engraved and polished backplate, and heavy aluminum dust cap add to the modern aesthetics and a classy style that's sure to blend well with almost any install.
General Specifications
| Power handling |
2000W RMS |
| Dual voice coil |
D2 or D4 |
| Xmax (mm one way) |
25 |
| Xmech (mm one way)  |
50 |
| Heat-treated 4-layer 4-inch coil |
| Quad braided tinsel leads |
| Multi-layer foam surround in Sparked Blue |
| Aluminum dust cap |
| Cast aluminum frame |
| High-velocity motor cooling |
Measurements
| Parameter |
Metric (mm) |
Imperial (in) |
| Outer Diameter |
313.7 |
12.35 |
| Mounting Diameter |
283.0 |
11.14 |
| Overall Depth |
250.2 |
9.85 |
| Mounting Depth |
220.2 |
8.67 |
T/S Parameters
| Parameter |
D2 |
D4 |
| RE (Ohms) |
3.97 |
5.99 |
| Fs (Hz) |
29.44 |
30.82 |
| VAS (L) |
13.35 |
12.28 |
| Qes |
0.53 |
0.61 |
| Qms |
5.82 |
6.46 |
| Qts |
0.48 |
0.55 |
| BL |
30.12 |
35.19 |
| Mms (Grams) |
650.19 |
645.01 |
| Cms (uM/N) |
44.95 |
41.34 |
| Sensitivity (dB @2.83Vrms/1m) |
82.90 @ 1 kHz |
80.74 @ 1 kHz |
ENCLOSURE RECOMMENDATIONS
| Size |
Enclosure Type |
Volume (ft³) |
Port |
Tuning (Hz) |
Details |
| Type |
Dia. (in) |
Length (in) |
| 12" |
QB3 - Flat Response |
0.90-1.15 |
Round |
3 |
36"" @ 0.95ft^3
29"" @ 1.15ft^3 |
23 |
|
| 12" |
QB3 - Low-Frequency Peak |
1.25-2.00 |
Round |
3 |
20"" @ 1.25ft^3
11"" @ 2.00ft^3 |
26 |
|
| 12" |
SBB4 - Flat Response |
0.50-0.75 |
Round |
3 |
35"" @ 0.50ft^3
22"" @ 0.75ft^3 |
32 |
|
| 12" |
SBB4 - Loud Bass Response |
1.25-2.00 |
Round |
4 |
23"" @ 1.25ft^3
14"" @ 2.00ft^3 |
32 |
|
