Description
Built upon the proven, World-Class, performance of The Bass Blaster, the SQL-2000 sets itself among some of the best sounding, most versatile, and durable woofers in it's class.
The four (4) inch copper coil comes immersed in a Jacob Fuller designed motor assembly complete with aluminum shorting pole cap, flared velocity heat-vents, and plenty of ferrite in it's dual 9.25"" diameter slugs which gives it one of the highest motor forces in a woofer of it's size.

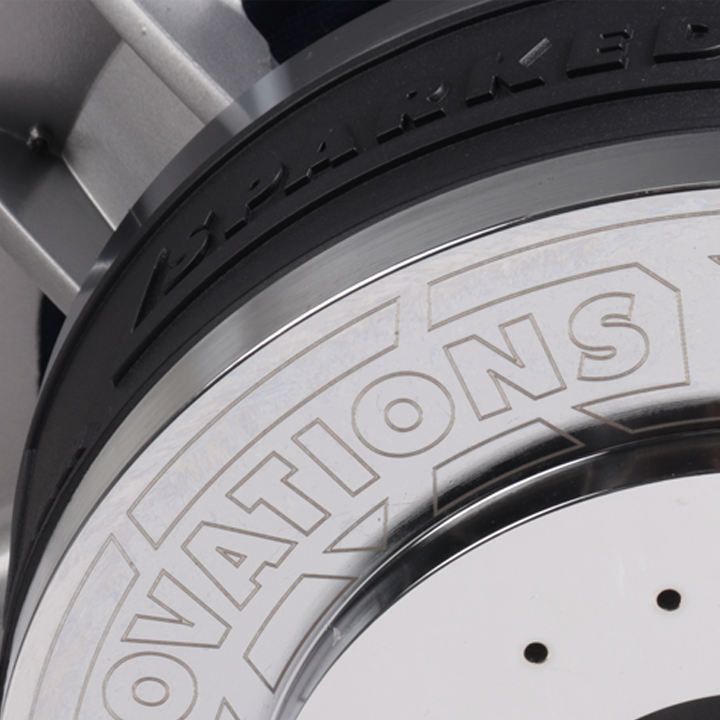

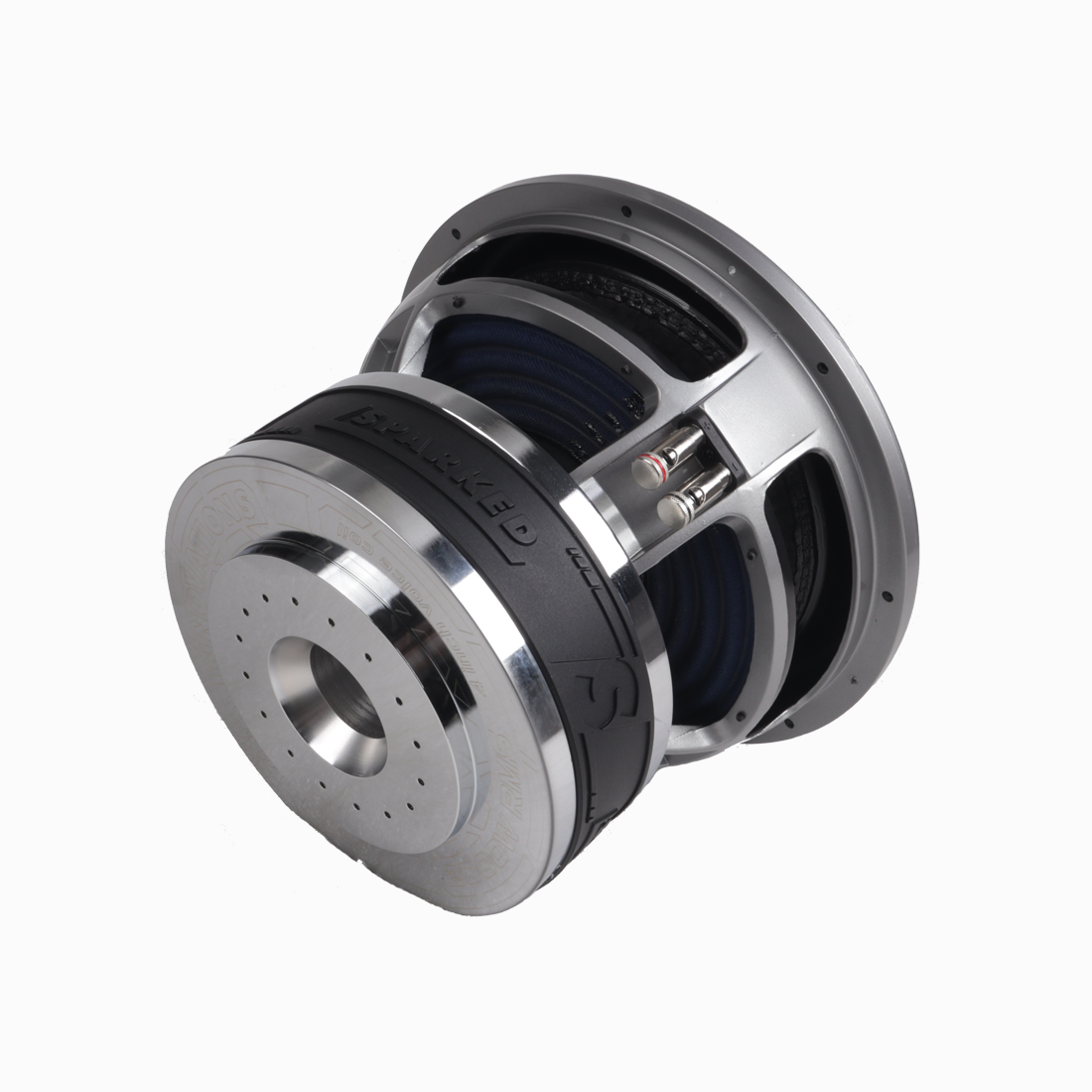

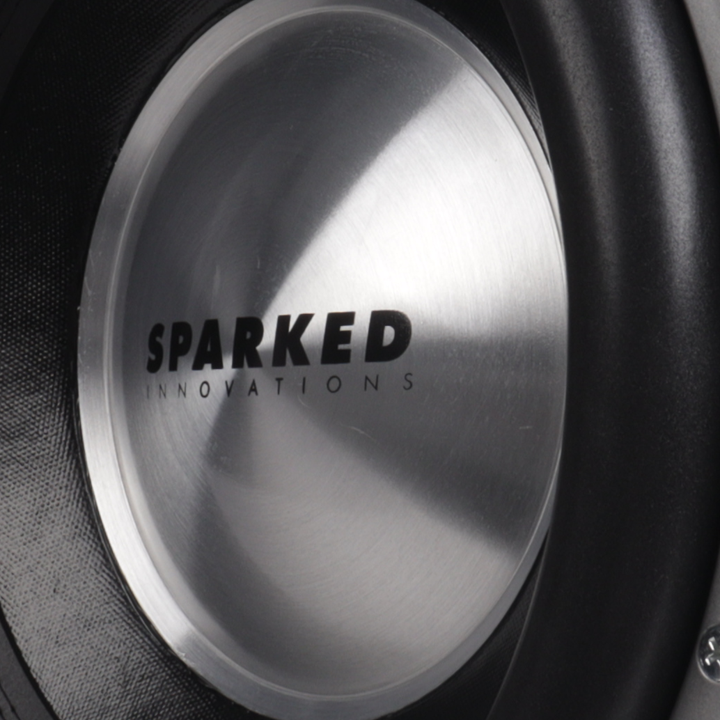

New styling gives the SQL-2000 a sleek look. A molded rubber magnet boot, laser engraved and polished backplate, and heavy aluminum dust cap add to the modern aesthetics and a classy style that's sure to blend well with almost any install.
General Specifications
| Power handling |
2000W RMS |
| Dual voice coil |
D2 or D4 |
| Xmax (mm one way) |
25 |
| Xmech (mm one way)  |
50 |
| Heat-treated 4-layer 4-inch coil |
| Quad braided tinsel leads |
| Multi-layer foam surround in Sparked Blue |
| Aluminum dust cap |
| Cast aluminum frame |
| High-velocity motor cooling |
Measurements
| Parameter |
Metric (mm) |
Imperial (in) |
| Outer Diameter |
272 |
10.71 |
| Mounting Diameter |
240 |
9.46 |
| Overall Depth |
221 |
8.70 |
| Mounting Depth |
191 |
7.52 |
T/S Parameters
| Parameter |
D2 |
D4 |
| RE (Ohms) |
3.97 |
6.9 |
| Fs (Hz) |
34.25 |
35.60 |
| VAS (L) |
6.23 |
6.41 |
| Qes |
0.46 |
0.55 |
| Qms |
4.97 |
4.97 |
| Qts |
0.43 |
0.50 |
| BL |
30.86 |
36.01 |
| Mms (Grams) |
517.84 |
465.72 |
| Cms (uM/N) |
41.69 |
42.92 |
| Sensitivity (dB @2.83Vrms/1m) |
82.10 @ 1 kHz |
79.57 @ 1 kHz |
