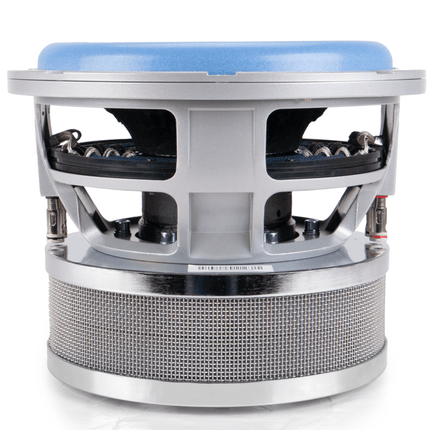

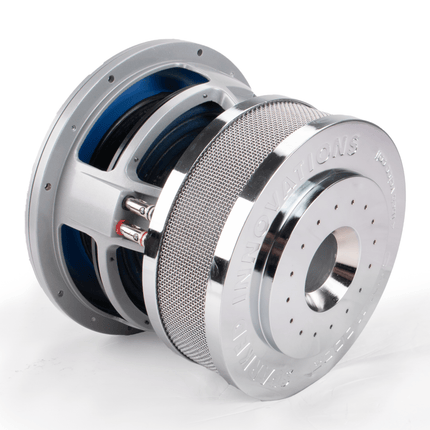

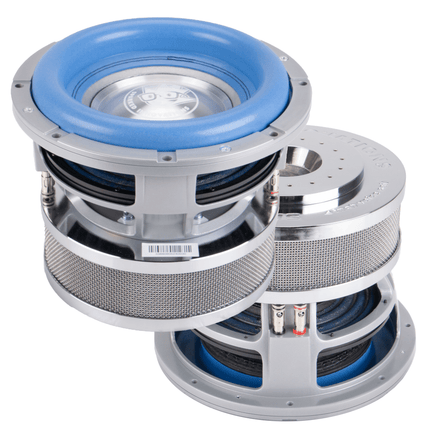

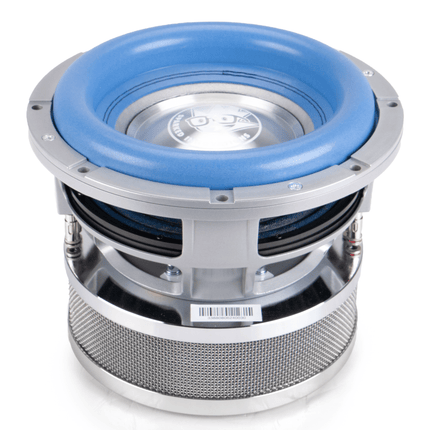

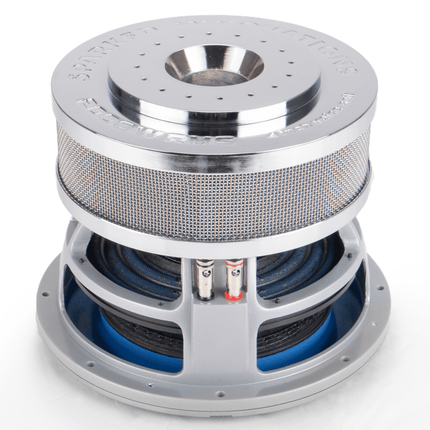

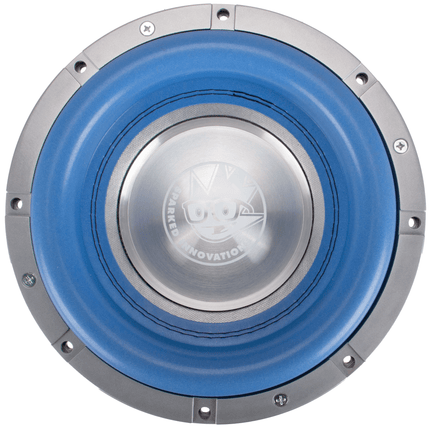

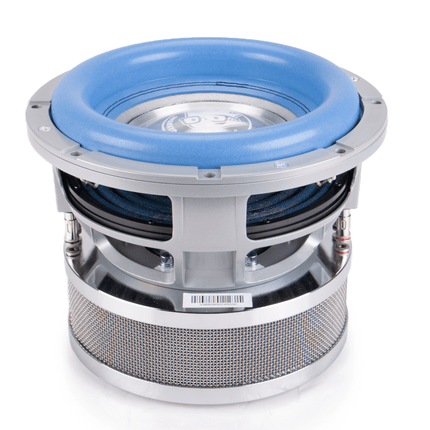

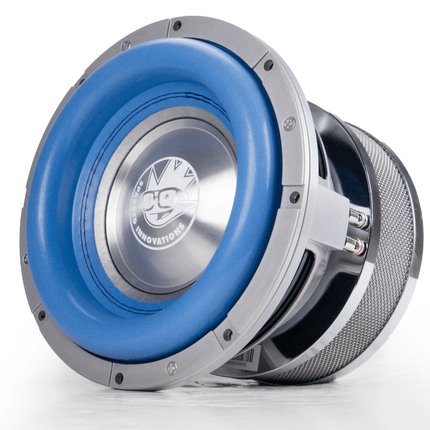

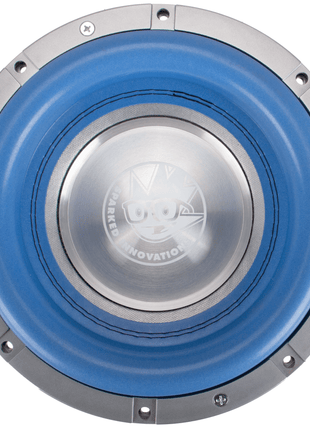

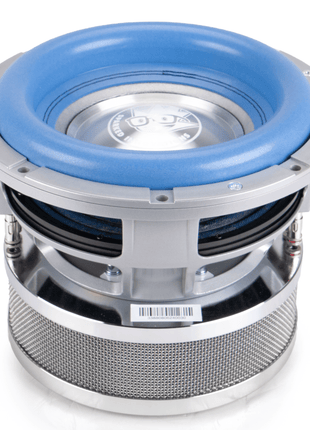

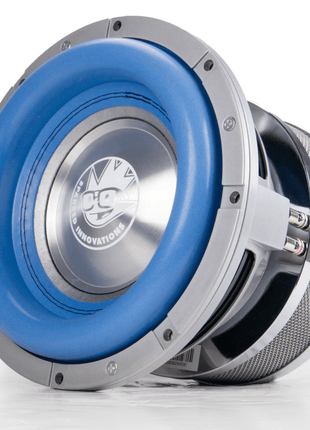

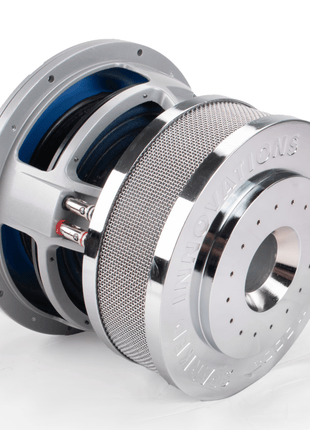

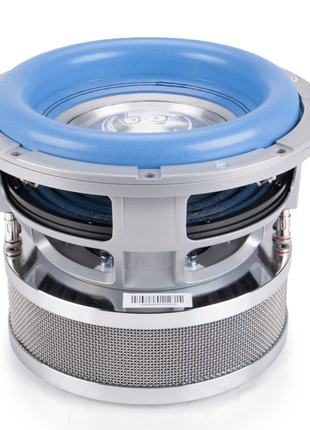

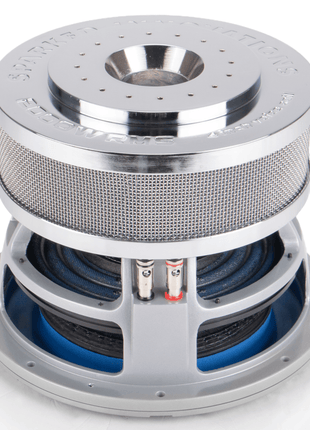

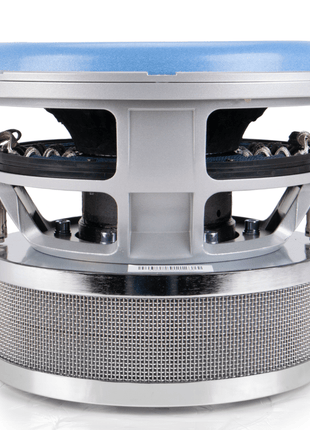

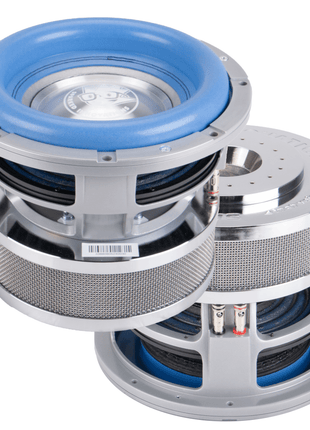

Sparked Innovations 10" Bass Blaster Car Audio Subwoofer 2000W DVC
Sparked Innovations 10" Bass Blaster Car Audio Subwoofer 2000W DVC
The Bass Blaster subwoofer series is a truly unique blend of car audio nostalgia and modern technology. Designed and built... Read more
$389.99
- Free shipping in the contiguous USA on all orders above $99
- Full Manufacturer Warranty On All Items
- No Hassle, Easy 30 Day Returns
- Price Match Guarantee. Lowest Prices Anywhere.
- REAL Audio Enthusiasts, Expert Support
| Specifications | D2 | D4 |
|---|---|---|
| Resonant Frequency (Fs) | 34.25 Hz | 35.60 Hz |
| DC Resistance (Re) | 3.97 Ω | 6.90 Ω |
| Mechanical Q (Qms) | 4.97 | 4.97 |
| Electrical Q (Qes) | 0.46 | 0.55 |
| Total Q (Qts) | 0.43 | 0.50 |
| Equivalent Compliance Volume (Vas) | 6.23 L | 6.41 L |
| Compliance (Cms) | 41.69 mm/N | 42.92 mm/N |
| Moving Mass (Mms) | 517.84 g | 465.72 g |
| Force Factor (BL) | 30.86 T·m | 36.01 T·m |
| Linear Excursion (Xmax) | 25 (one way) mm | 25 (one way) mm |
| Mechanical Excursion (Xmech) | 50 (one way) mm | 50 (one way) mm |
| Sensitivity | 82.10 dB 1W/1m | 79.57 dB 1W/1m |
| Woofer Size | 10 in | 10 in |
| Nominal Impedance | Dual 2 Ω | Dual 4 Ω |
| Voice Coil | 4 in, 4-layer heat-treated | 4 in, 4-layer heat-treated |
| Mounting Depth | 7.52 (191.00 mm) in | 7.52 (191.00 mm) in |
| Mounting Diameter | 9.45 (240.00 mm) in | 9.45 (240.00 mm) in |
| Outside Diameter | 10.71 (272.00 mm) in | 10.71 (272.00 mm) in |
| Overall Depth | 8.70 (221.00 mm) in | 8.70 (221.00 mm) in |
| Motor Structure | High-velocity cooled, vented pole with cap | High-velocity cooled, vented pole with cap |
| Frame / Basket | Cast aluminum | Cast aluminum |
| Surround | Multi-layer foam, Sparked Blue | Multi-layer foam, Sparked Blue |
| Terminals | Quad braided tinsel leads | Quad braided tinsel leads |
| RMS Power Handling | 2000 W | 2000 W |
| Enclosure Specs | D2 | D4 |
|---|---|---|
| QB3 — Flat Response | 0.40 – 0.75 ft³ @ 25 Hz · 2 in round port | 0.40 – 0.75 ft³ @ 25 Hz · 2 in round port |
| QB3 — Low-Frequency Peak | 0.80 – 1.50 ft³ @ 28 Hz · 2 in round port | 0.80 – 1.50 ft³ @ 28 Hz · 2 in round port |
| SBB4 — Flat Response | 0.35 – 0.60 ft³ @ 32 Hz · 2 in round port | 0.35 – 0.60 ft³ @ 32 Hz · 2 in round port |
| SBB4 — Loud Bass Response | 1.00 – 1.75 ft³ @ 32 Hz · 4 in round port | 1.00 – 1.75 ft³ @ 32 Hz · 4 in round port |
