SMD QR1ALM Qr-1 Terminal Cup Dolphin Grey

SMD QR-1 Heavy Duty Quick Release Terminal Cup

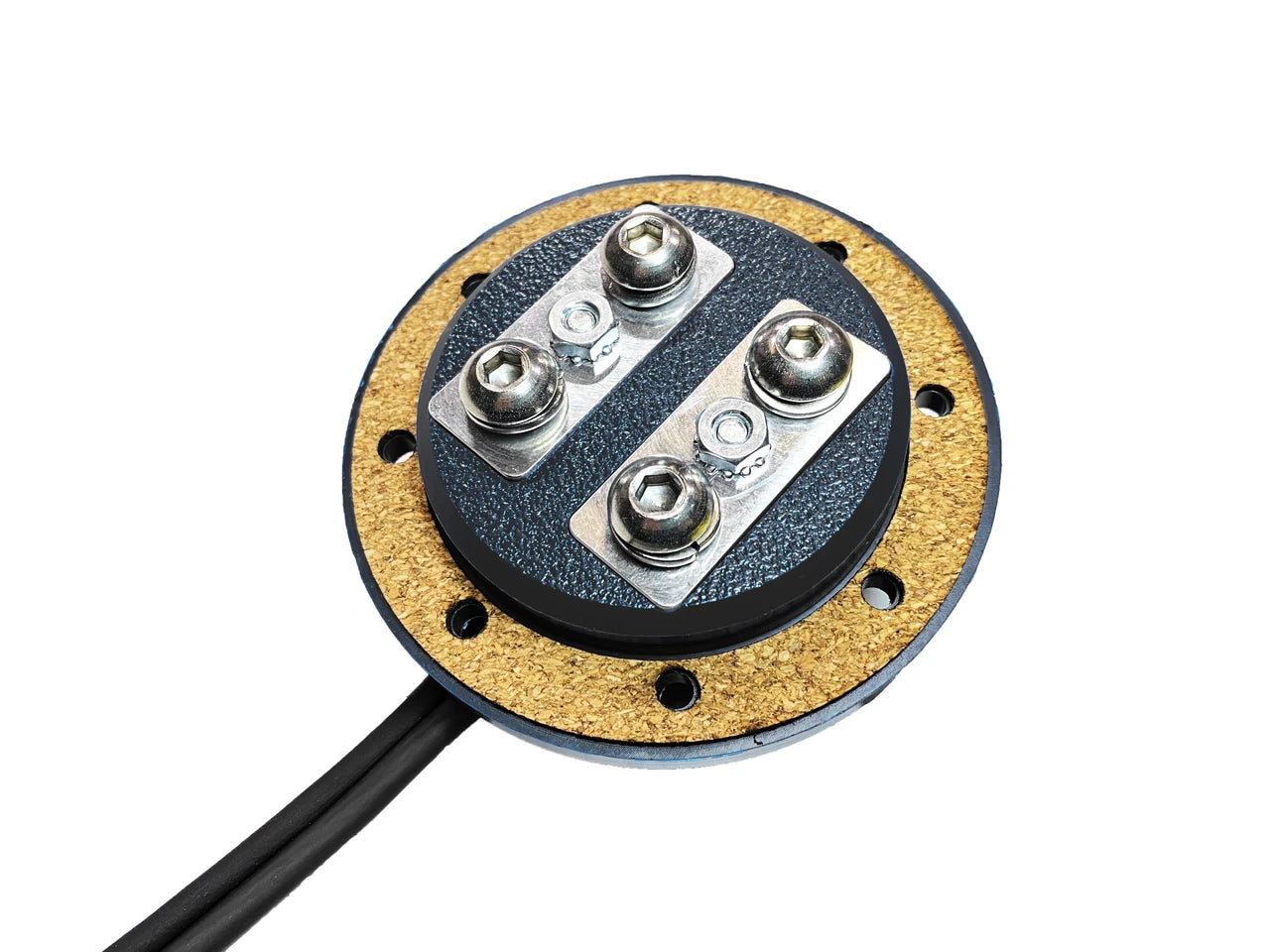

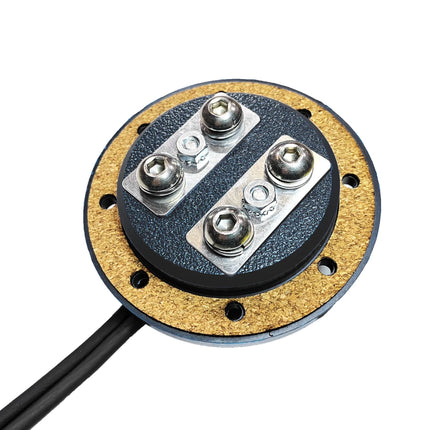

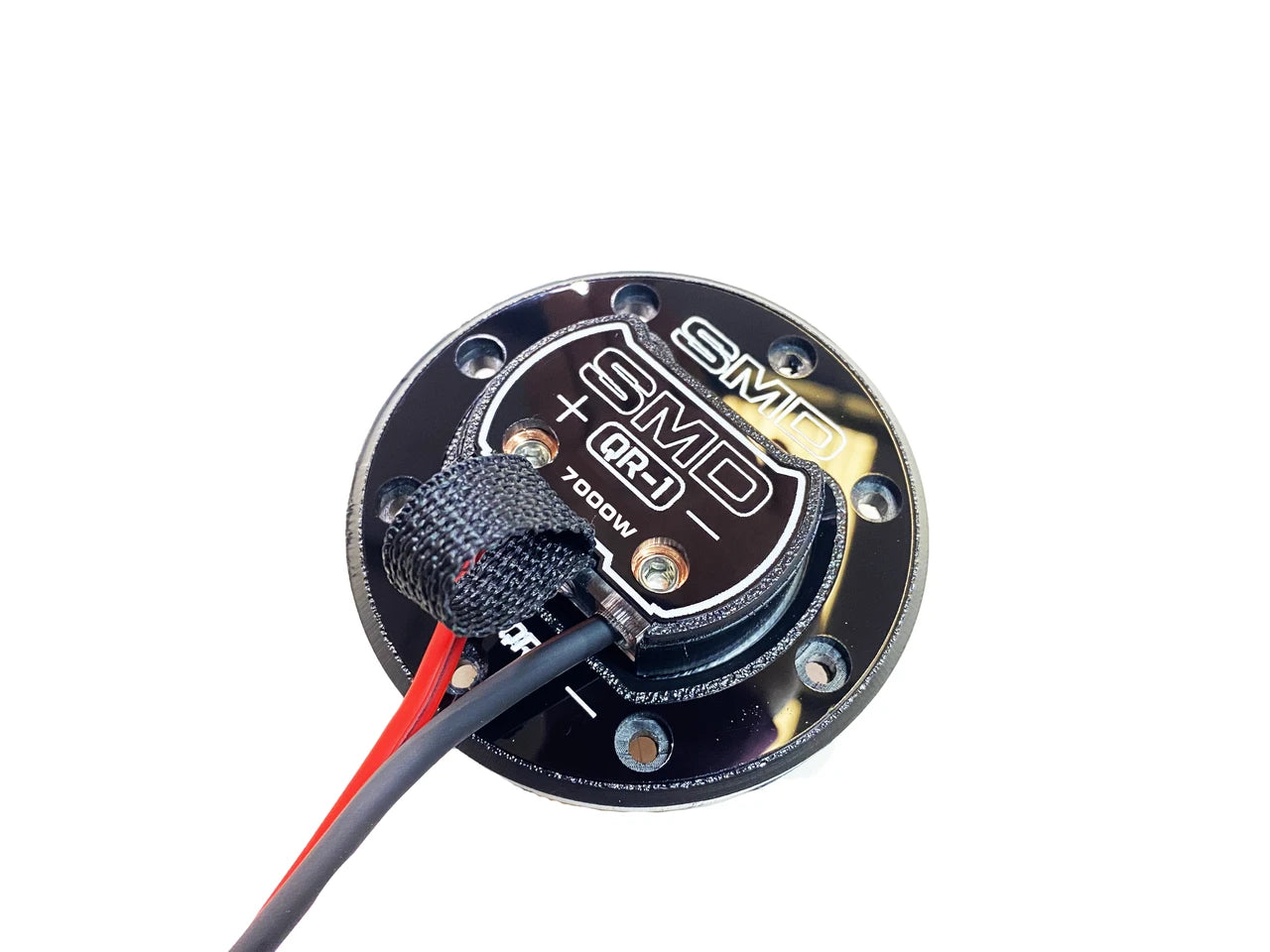

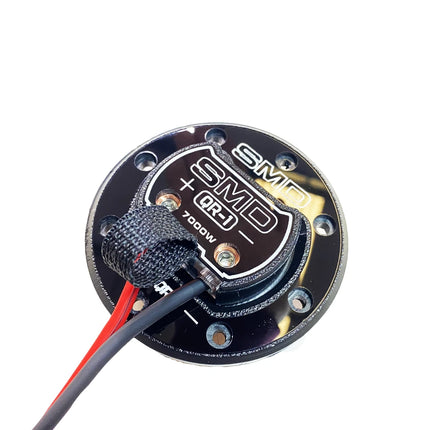

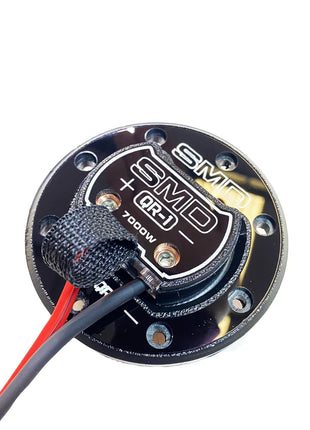

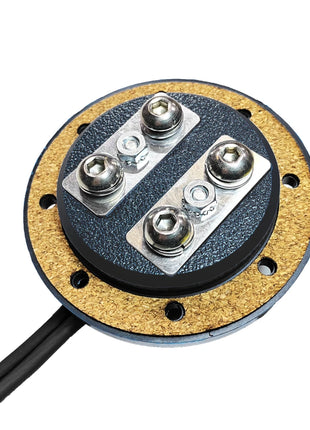

The SMD QR-1 is a heavy-duty solution designed to address common points of failure in speaker enclosures. Precision-milled from 3/4" HDPE with a 1/2" body and 1/4" flange, this terminal cup is engineered to withstand high pressure without cracking, warping, or deforming.

Functional Design:

• Magnetic Quick Release: Uses nickel-plated N52 Neodymium magnets to create a secure, vibration-proof connection that allows the enclosure to be removed "in a snap" without tools.
• Airtight Seal: The magnetic terminals are designed to prevent air leaks, and the unit comes with a pre-installed cork gasket for a reliable mount.
• Premium Internals: Equipped with 5ft of Dual 10ga 100% OFC speaker wire for maximum conductivity.
• High-Capacity Blocks: Features 1/2" Aluminum or Copper terminal blocks with 5/16" x 18 set screws, capable of accepting up to 8ga wire.

Technical Specifications:

• Material: CNC Milled 3/4" HDPE
• Magnet Grade: N52 Neodymium
• Wire Specs: 5ft 10ga 100% OFC (Fits up to 8ga)
• Dimensions: 3.825" x 3.825" x 1" (LxWxH)
• Origin: Made in California, USA
• Warranty: Lifetime Warranty
