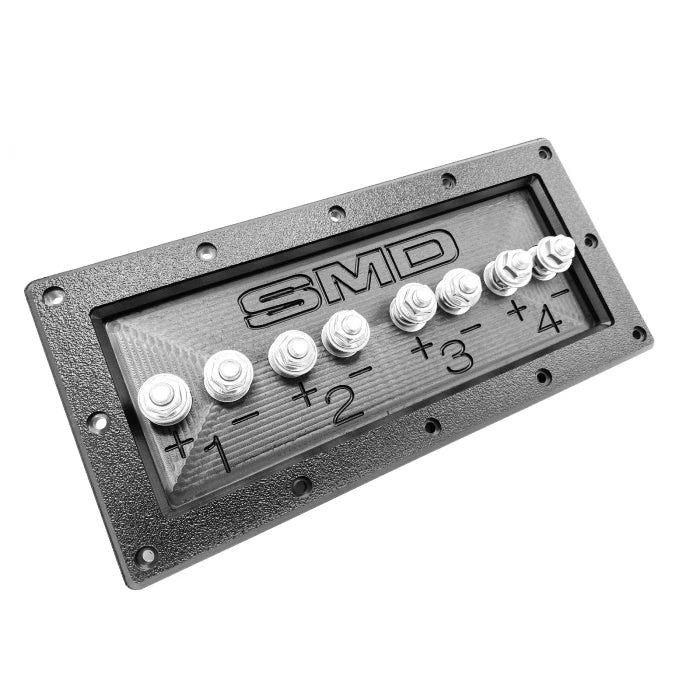

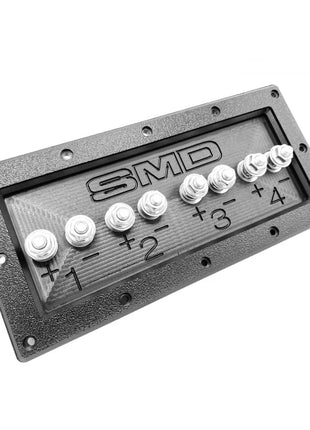

SMD 4-Channel Heavy Duty Terminal Cup (Grade 8 Black)
The SMD 4CHG8 provides a high-strength, multi-channel solution for complex speaker enclosures. Precision-milled from 3/4" HDPE, this 4-channel terminal cup is designed to maintain an airtight seal and structural integrity under extreme internal air pressure, offering a significant upgrade over standard plastic terminals.
Key Features:
-
4-Channel Configuration: Allows for organized wiring of multiple coils or drivers through a single centralized location.
-
Milled HDPE Construction: Features a 1/2" body and 1/4" flange milled from solid 3/4" HDPE to prevent cracking or leaking.
-
Grade 8 Hardware: Equipped with high-strength Grade 8 hardware for maximum durability and secure electrical contact.
-
Industrial Terminals: Uses 5/16" bolt terminals compatible with standard heavy-duty ring terminals.
-
Reusable Performance: The rugged design allows the terminal cup to be removed and reinstalled in new enclosures as your system evolves.
Technical Specifications:
-
Model: 4CHG8
-
Material: 3/4" Milled HDPE
-
Hardware Type: Grade 8 Steel
-
Terminal Size: 5/16" Bolt
-
Dimensions: 4.82" x 10.187" x 1.5" (LxWxH)
-
Origin: Made in the USA
