Description

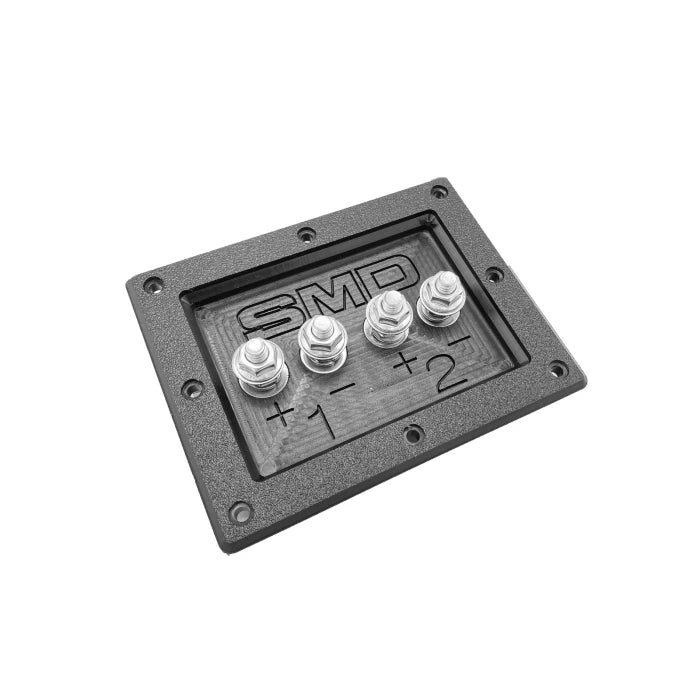

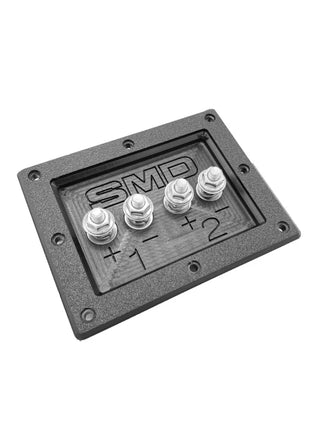

SMD 2-Channel Heavy Duty Terminal Cup (Grade 8 Black)
The SMD 2CHG8 is a high-strength 2-channel terminal cup designed for high-pressure subwoofer enclosures. Precision-milled from 3/4" HDPE, this unit provides a rigid, airtight alternative to standard plastic terminal cups that often crack or leak under heavy excursion.
Key Features:
-
High-Pressure Performance: Milled from solid 3/4" HDPE with a 1/2" body and 1/4" flange to ensure structural integrity in the most demanding enclosures.
-
Grade 8 Hardware: Equipped with high-strength Grade 8 hardware for maximum durability and secure electrical contact.
-
2-Channel Configuration: Allows for independent wiring of multiple voice coils or drivers through a single terminal location.
-
Industrial Terminals: Features 5/16" bolt terminals compatible with heavy-duty ring terminals.
-
Reusable Design: Built to last a lifetime, this terminal cup can be moved and reinstalled in new enclosures as you upgrade your system.
Technical Specifications:
-
Model: 2CHG8
-
Material: 3/4" Milled HDPE
-
Hardware Type: Grade 8 Steel
-
Terminal Size: 5/16" Bolt
-
Dimensions: 4.625" x 5.857" x 1.5" (LxWxH)
-
Origin: Made in the USA
