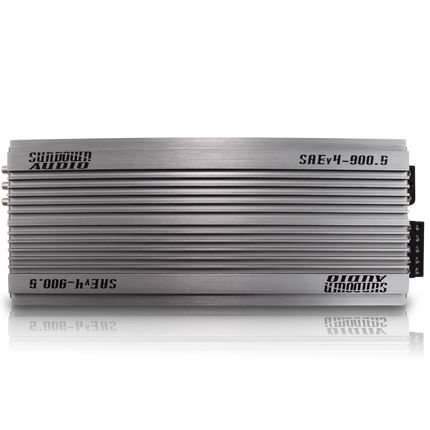

Sundown Audio SAEv4-900.5 5-Channel Amplifier
- Sundown Audio
Sundown Audio SAEv4-900.5 5-Channel Amplifier
- Sundown Audio
120 x 4 (Ch. 1-4) + 325 x 1 @ 2 ohms RMS (Ch. 5) 80 x 4 (Ch.... Read more
$459.99
- Free shipping in the contiguous USA on all orders above $99
- Full Manufacturer Warranty On All Items
- No Hassle, Easy 30 Day Returns
- Price Match Guarantee. Lowest Prices Anywhere.
- REAL Audio Enthusiasts, Expert Support
| Specification | SAEv4-900.5 |
|---|---|
| Power CH 1–4 @ 2Ω | 120W × 4 |
| Power CH 1–4 @ 4Ω | 80W × 4 |
| Sub Channel (CH 5) @ 1Ω | 500W |
| Sub Channel (CH 5) @ 2Ω | 325W |
| Amplifier Class | A/B+D |
| Operating Voltage | 10.5V – 15.5V |
| Signal-to-Noise Ratio | 92 dB |
| Input Sensitivity | 6V max |
| High/Low Pass Filter (CH 1–4) | 40 Hz – 5 kHz (12 dB variable) |
| Low Pass Filter (CH 5) | 40 Hz – 250 Hz (12 dB variable) |
| Subsonic Filter (CH 5) | 10 Hz – 40 Hz (12 dB) |
| Fuse Rating | 100A |
| Input Wire Size | 4 Ga |
| Dimensions (L × W × H) | 17.36" × 6.3" × 2.75" |
