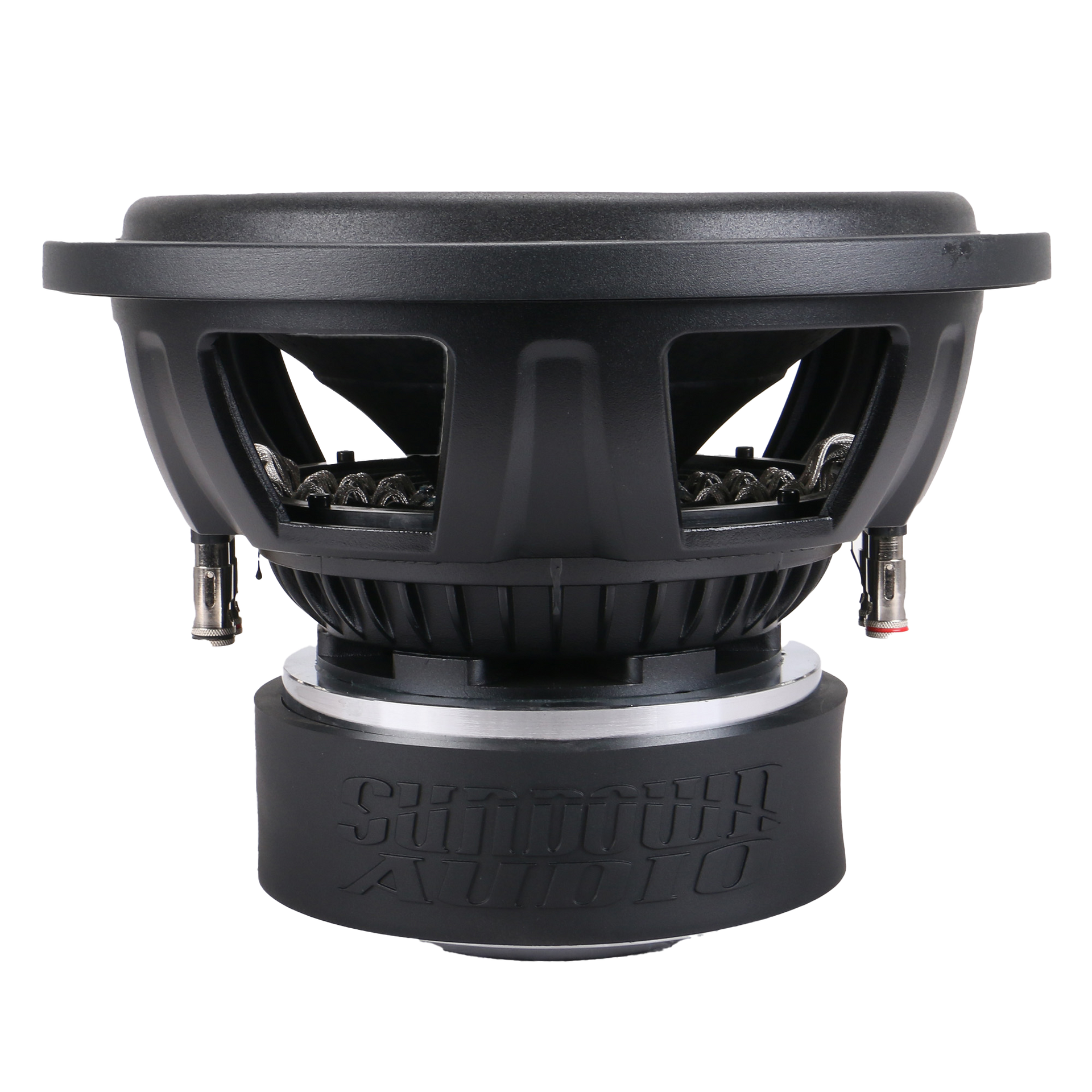

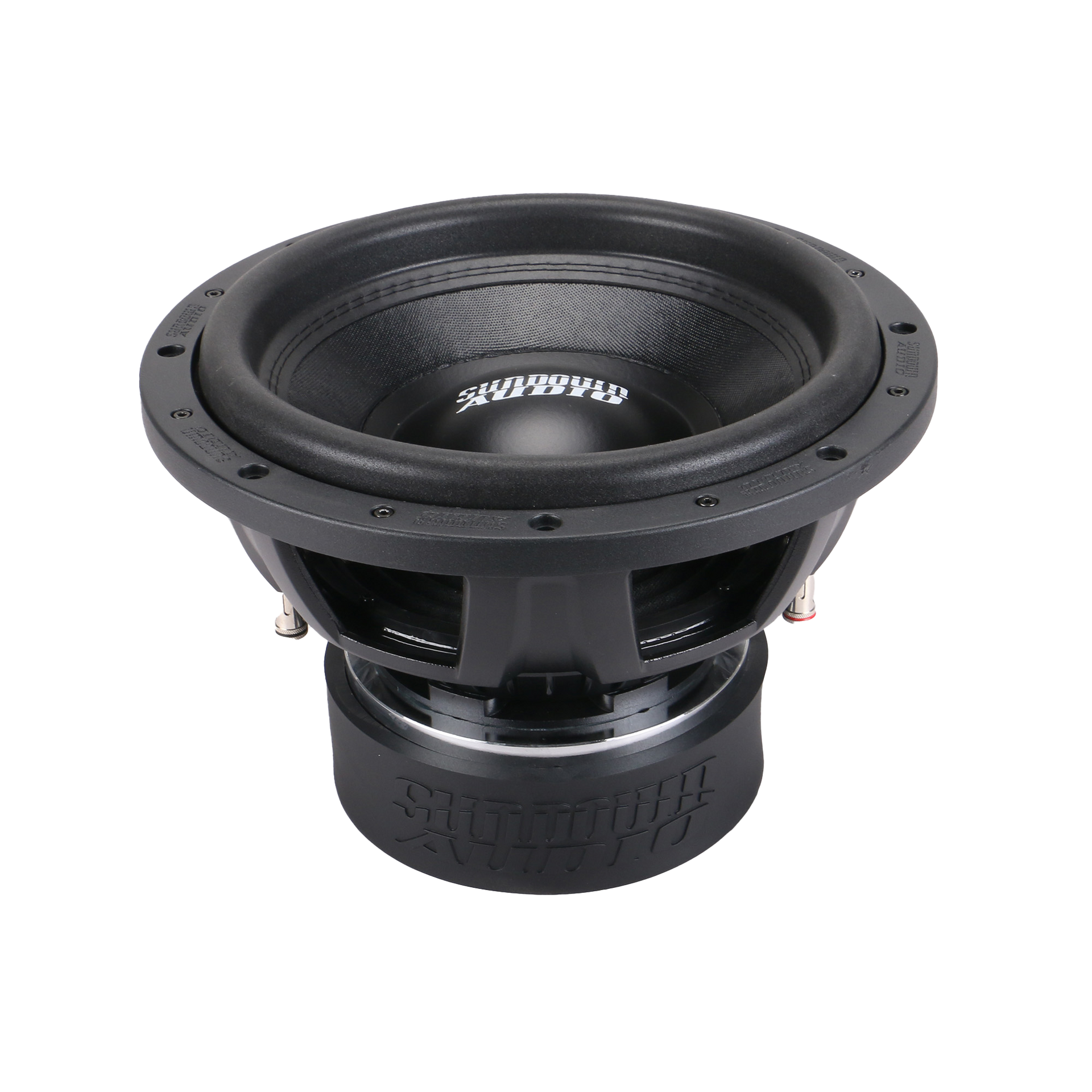

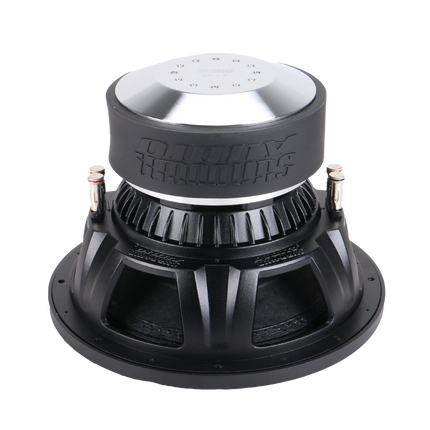

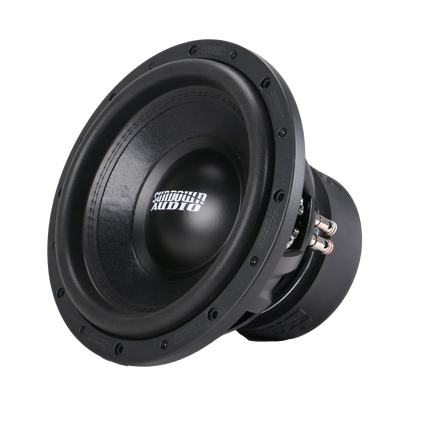

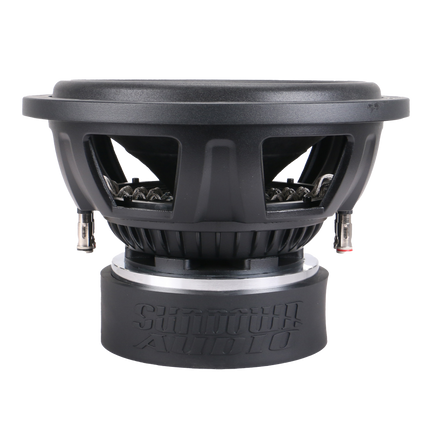

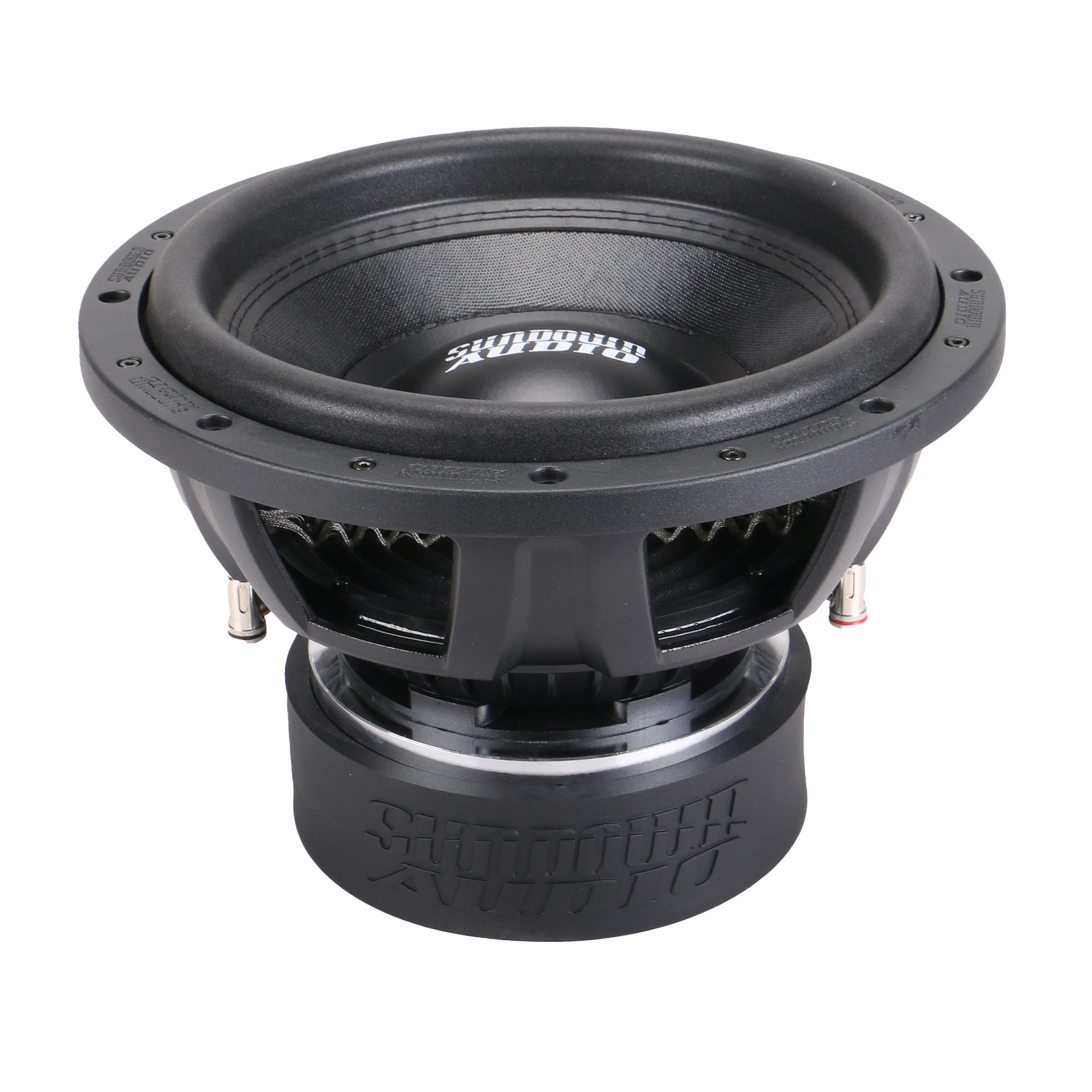

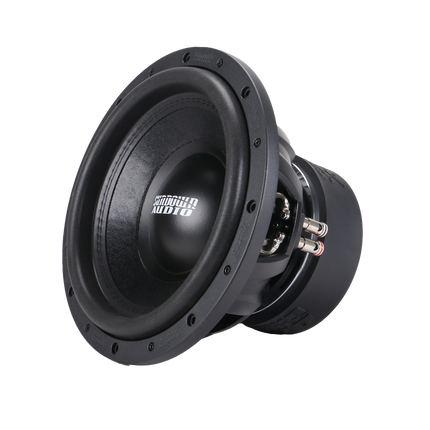

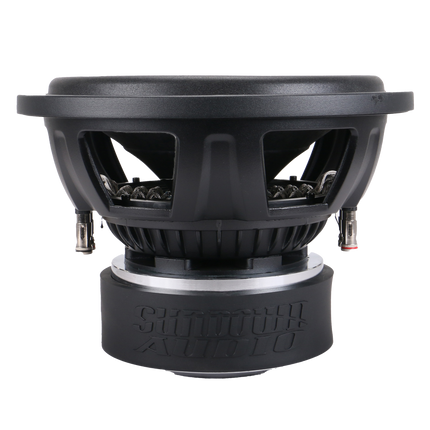

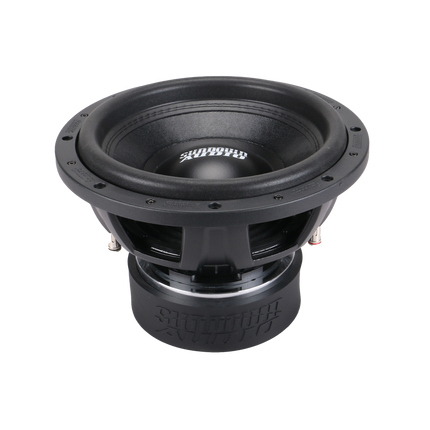

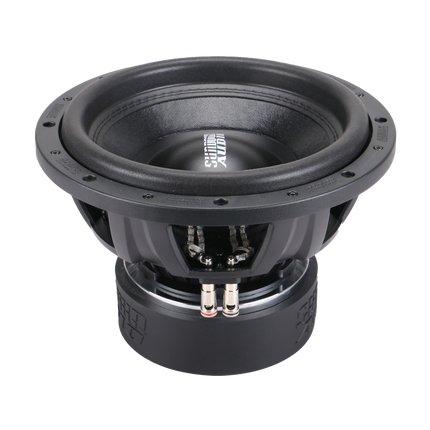

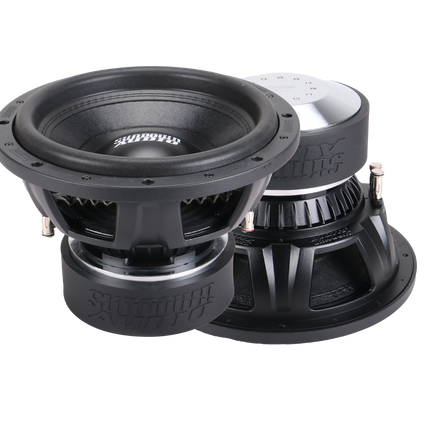

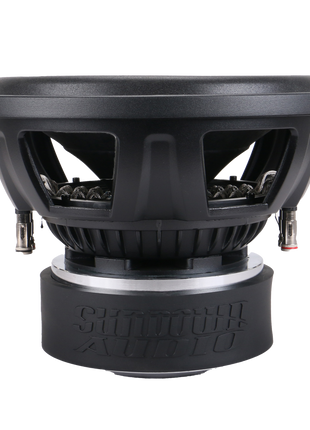

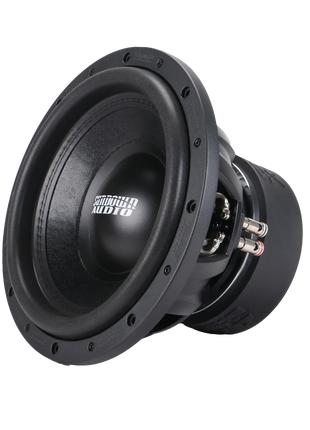

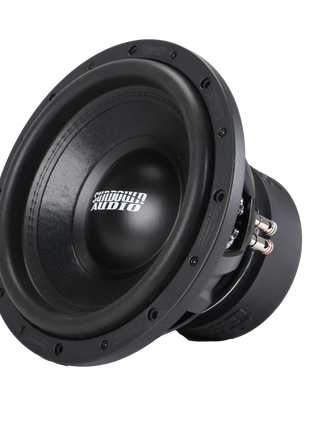

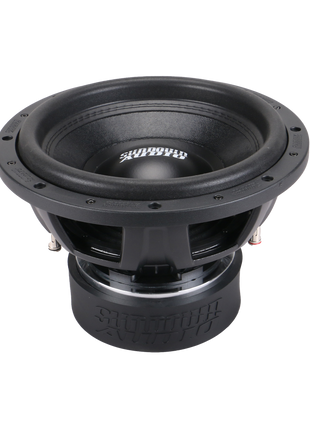

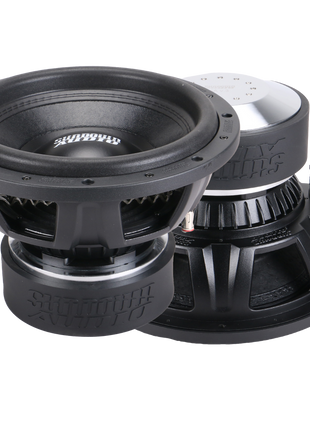

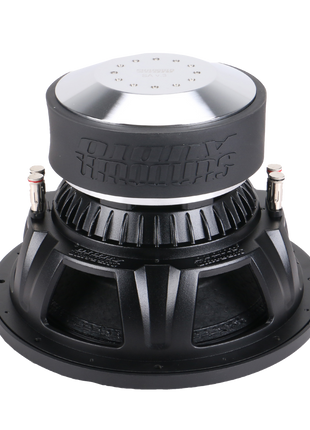

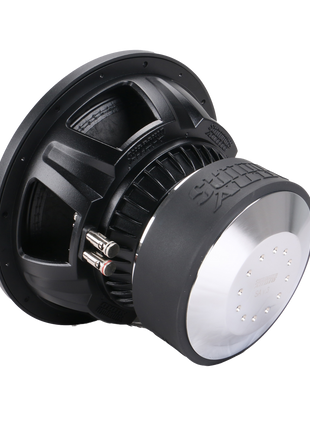

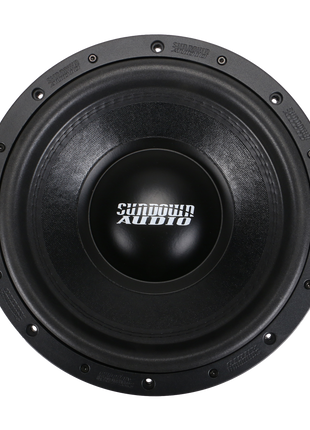

SA-Series v.3 15" Subwoofer
- Sundown Audio

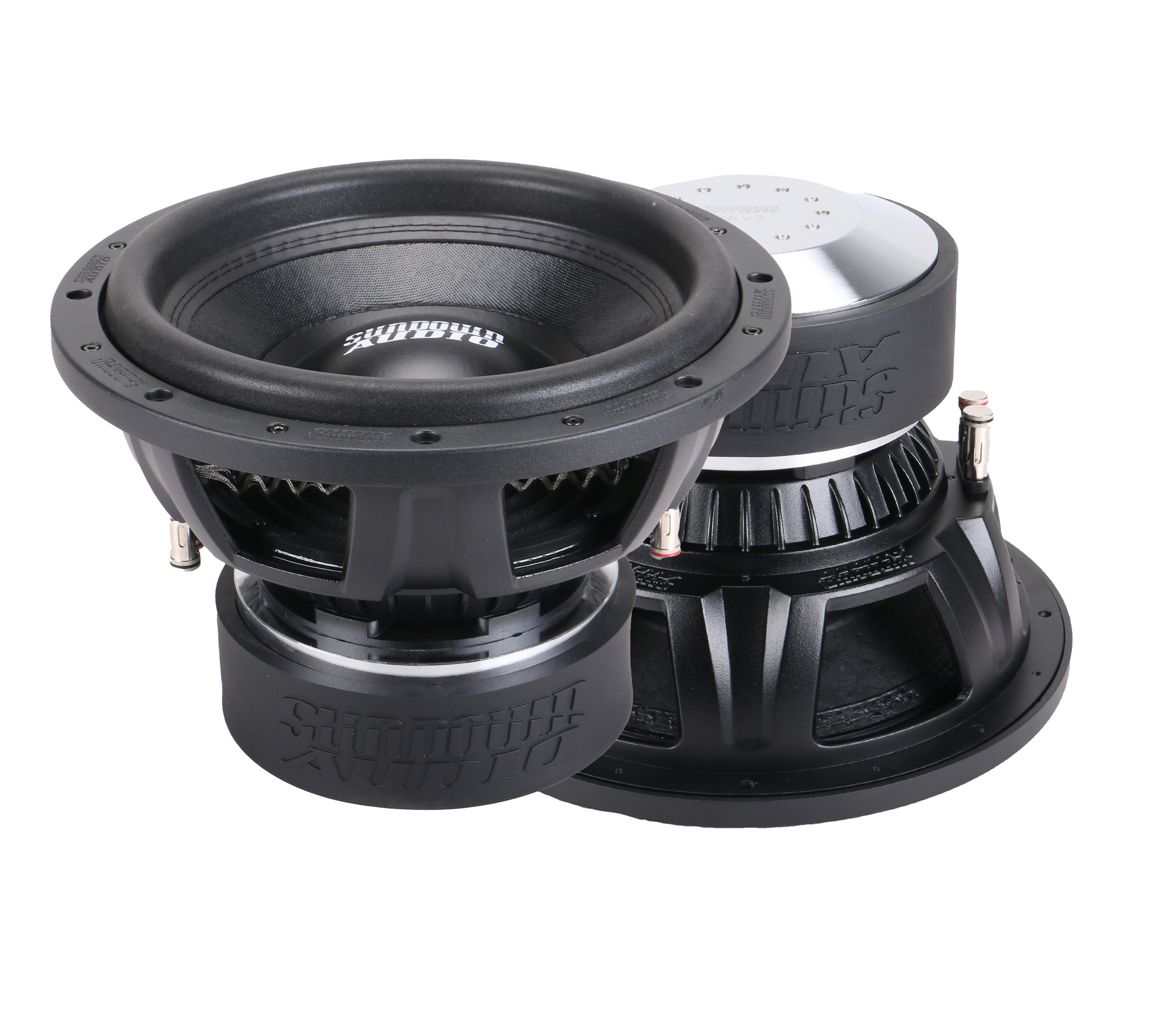

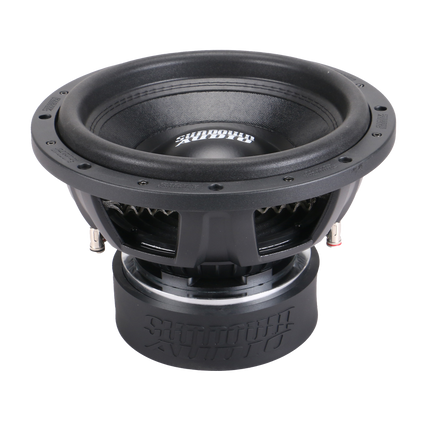

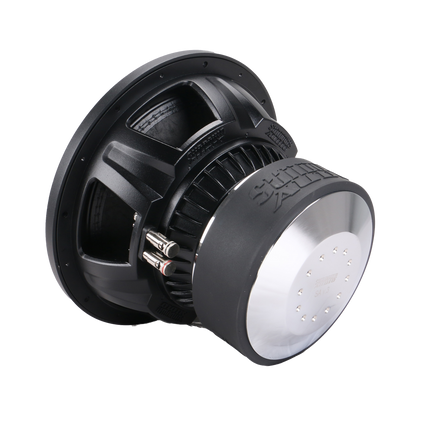

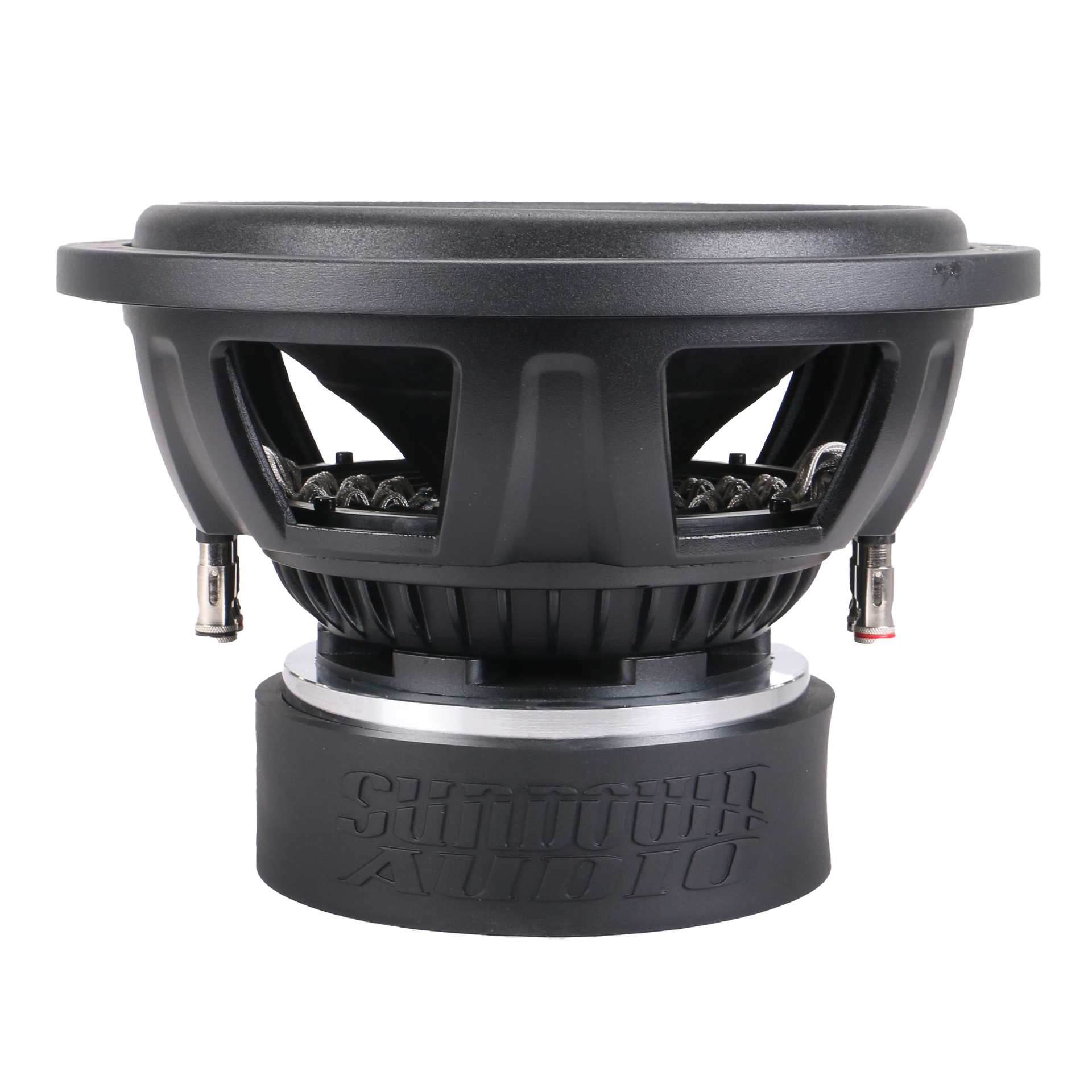

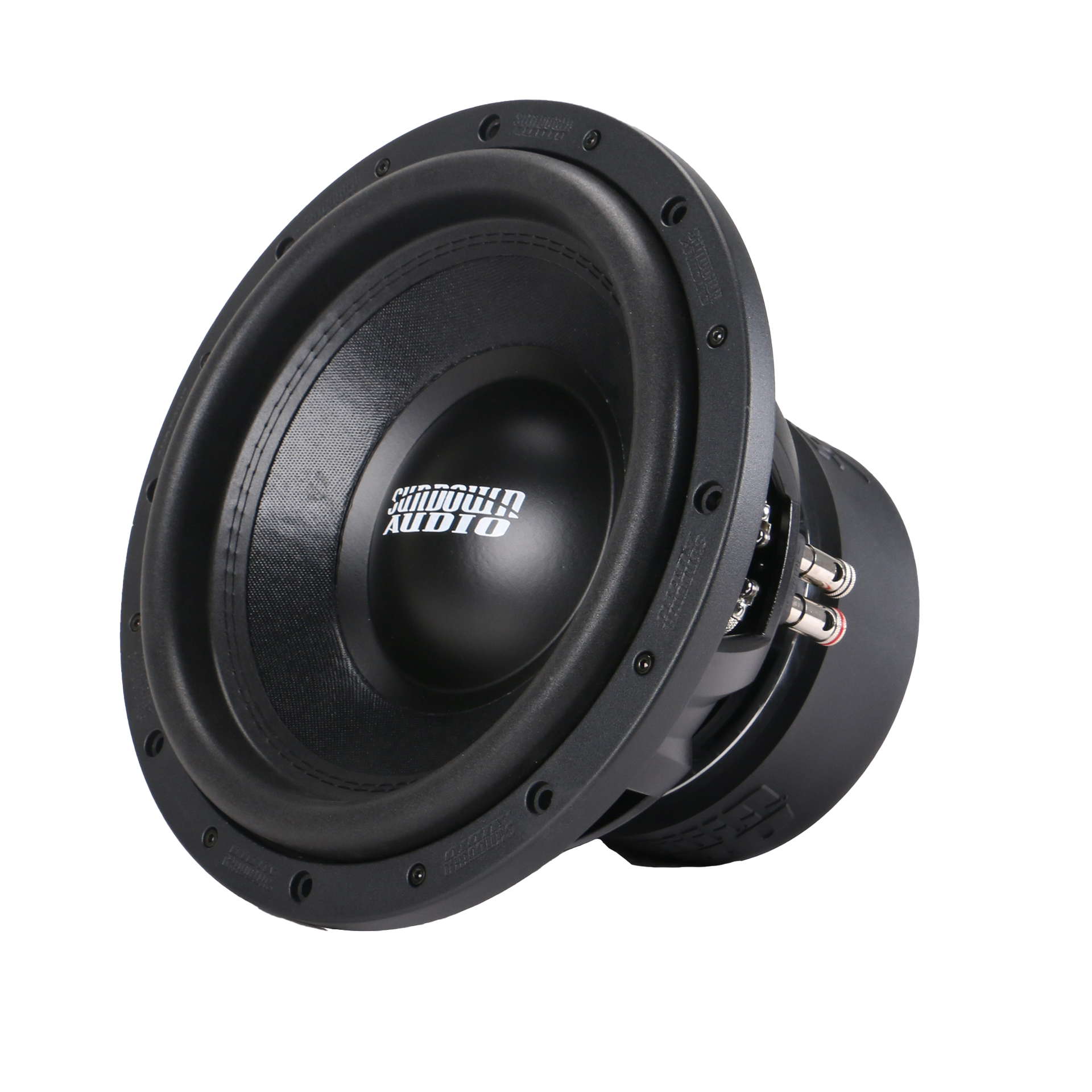

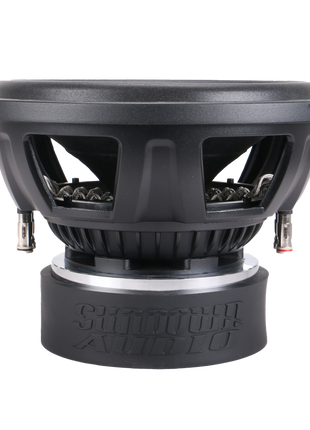

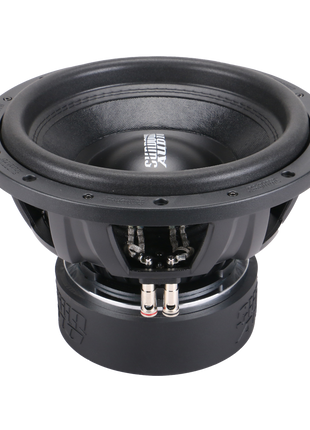

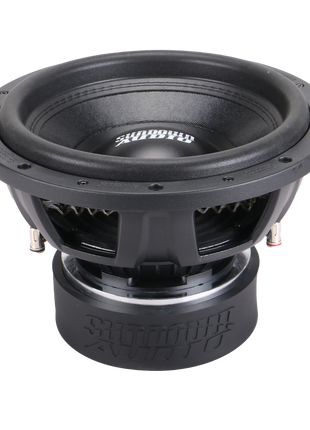

SA-Series v.3 15" Subwoofer
- Sundown Audio
1500 Watts / 3000 Watts Peak Dual 2 or 4 ohm voice coils Enclosure Specifications Sealed Enclosure 2.0 cu ft... Read more
$449.99
- Free shipping in the contiguous USA on all orders above $99
- Full Manufacturer Warranty On All Items
- No Hassle, Easy 30 Day Returns
- Price Match Guarantee. Lowest Prices Anywhere.
- REAL Audio Enthusiasts, Expert Support
| Parameter | D2 Model | D4 Model |
|---|---|---|
| Re | 3.40 Ω | 6.06 Ω |
| Fs | 35 Hz | 35 Hz |
| Qms | 2.7300 | 2.7910 |
| Qes | 0.6250 | 0.5690 |
| Qts | 0.5090 | 0.4730 |
| Vas | 44.002 L | 50.353 L |
| Mms | 458.73 g | 463.04 g |
| Cms | 0.04 mm/N | 0.05 mm/N |
| BL | 24.002 T·m | 32.560 T·m |
| Le | 3.63 mH | 4.79 mH |
| Sd | 1141.9 cm² | 1141.9 cm² |
| Xmax | 22mm | 22mm |
| Xmech | 40mm | 40mm |
| SPL (1W/1m) | 87.3 dB | 87.4 dB |
| Specification | D2 Model | D4 Model |
|---|---|---|
| RMS Power | 1500 W | 1500 W |
| Peak Power | 3000 W | 3000 W |
| Displacement | 0.22 | 0.22 |
| Mounting Depth | 8.65" | 8.65" |
| Outside Diameter | 15.6" | 15.6" |
| Cutout Diameter | 14.1" | 14.1" |
| Motor Diameter | 7.8" | 7.8" |
| Sealed Enclosure | 1.5cu ft | 1.5cu ft |
| Ported Enclosure | 3.0cu ft | 3.0cu ft |
| Recommended Port Tuning | 35hz | 35hz |
| Recommended Port Area | 44sq in | 44sq in |
| Xmax | 22mm | 22mm |
| Xmech | 40mm | 40mm |
| 4th Order Sealed | 1.5cu ft | 1.5cu ft |
| 4th Order Ported | 4.5cu ft | 4.5cu ft |
| 4th Order Port Area | 90sq in | 90sq in |
| 4th Order Port Length | 6" | 6" |
