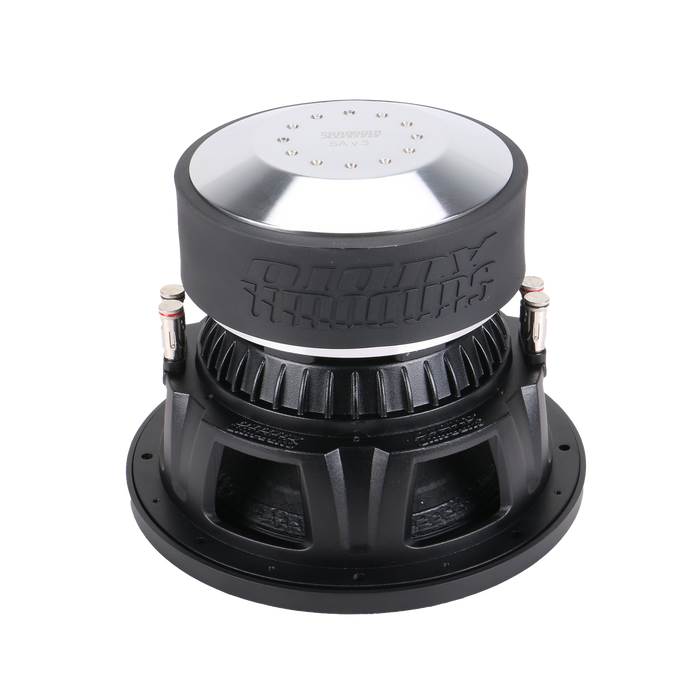

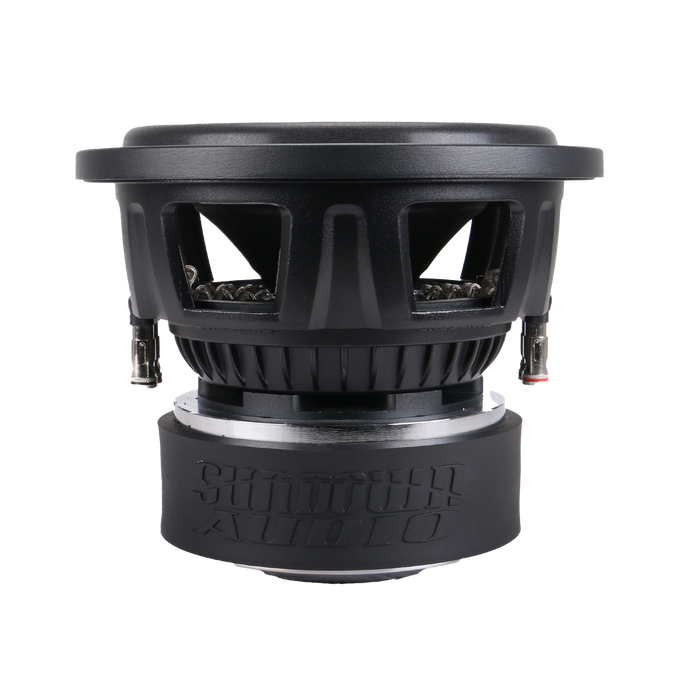

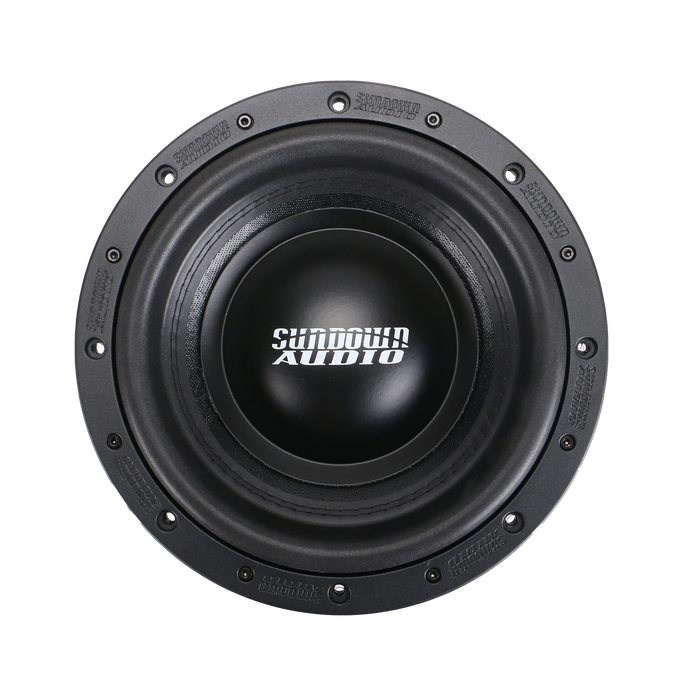

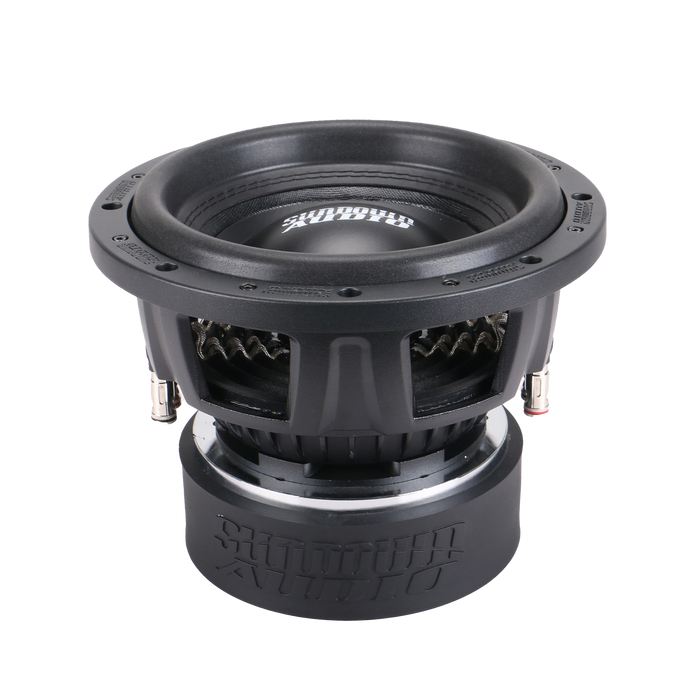

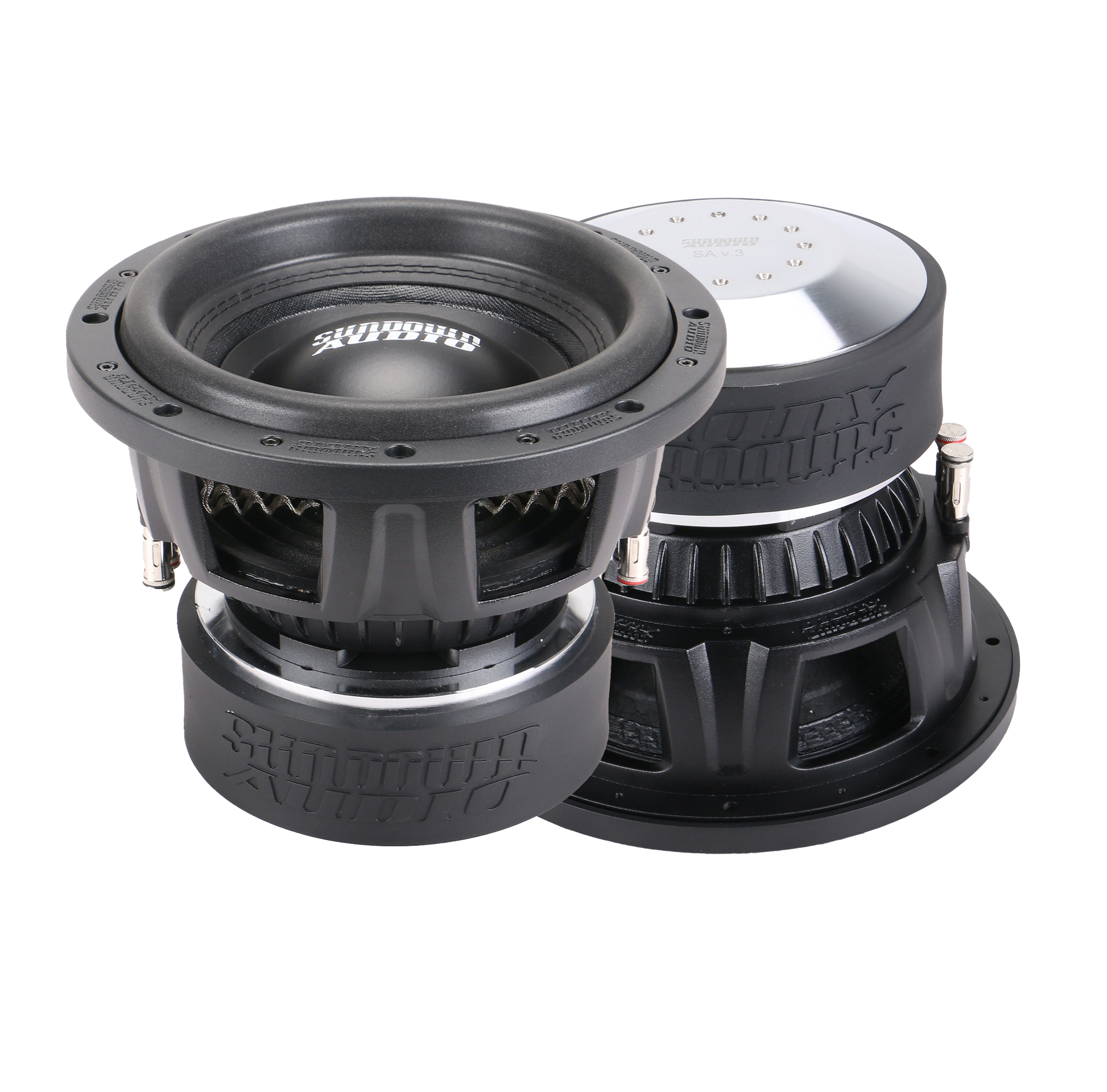

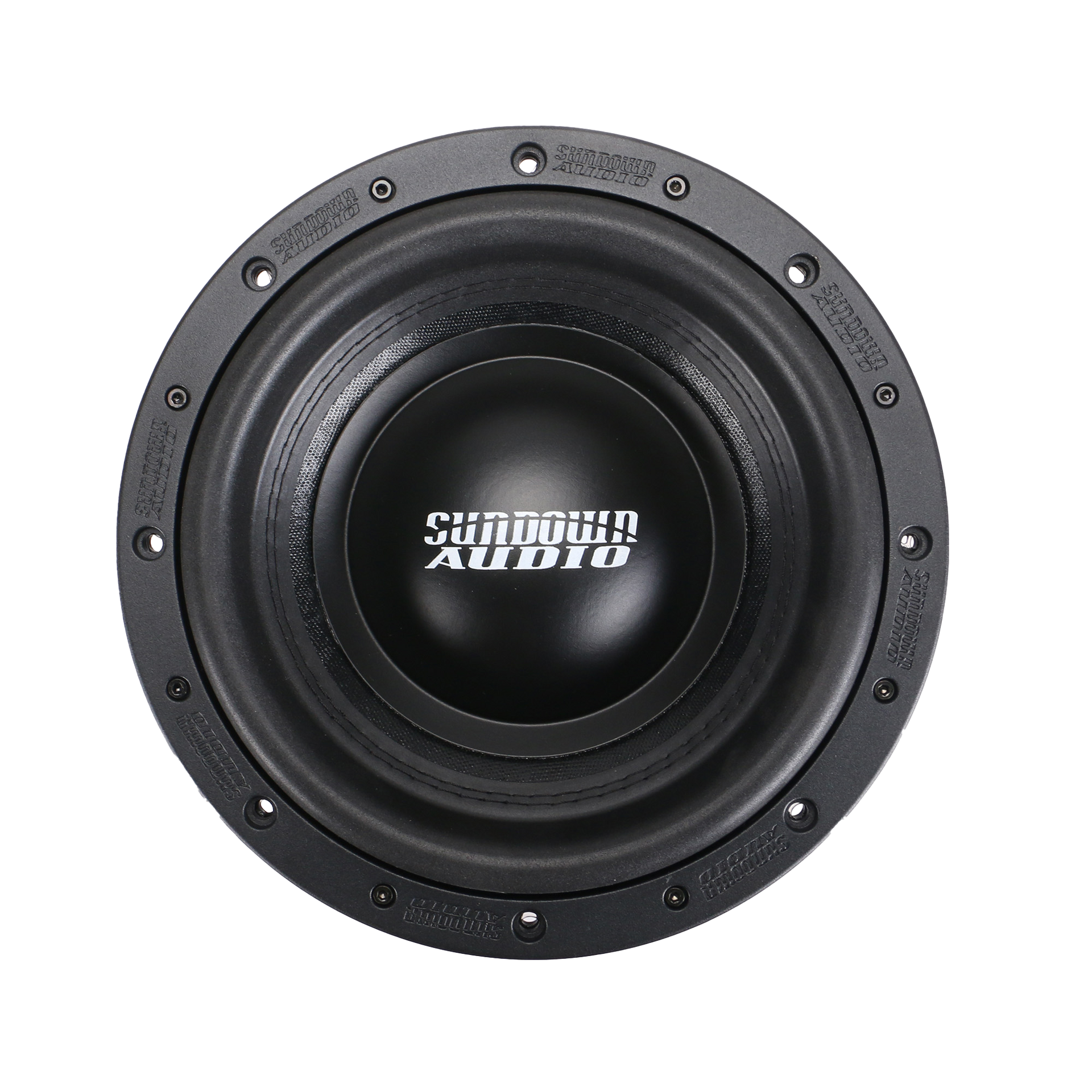

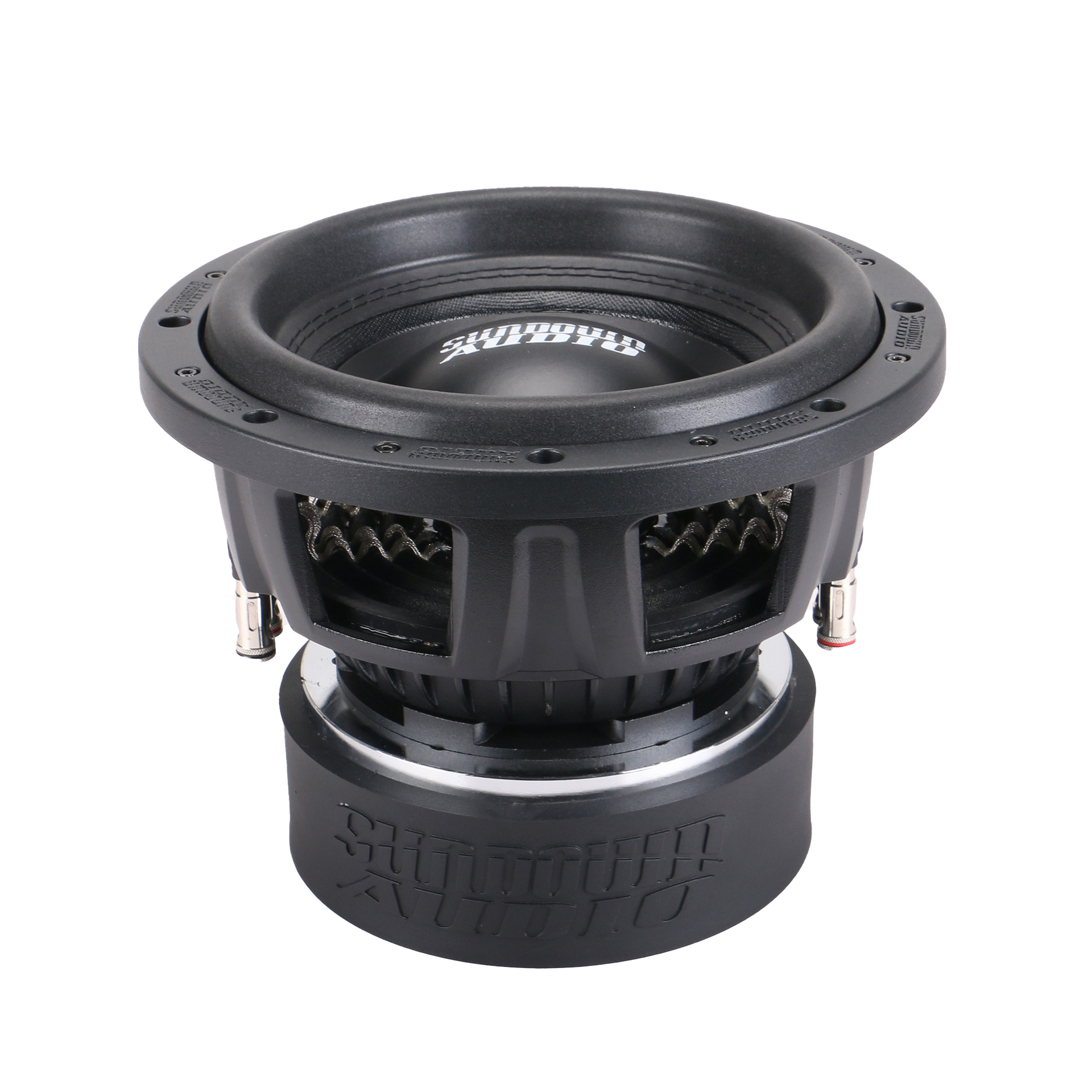

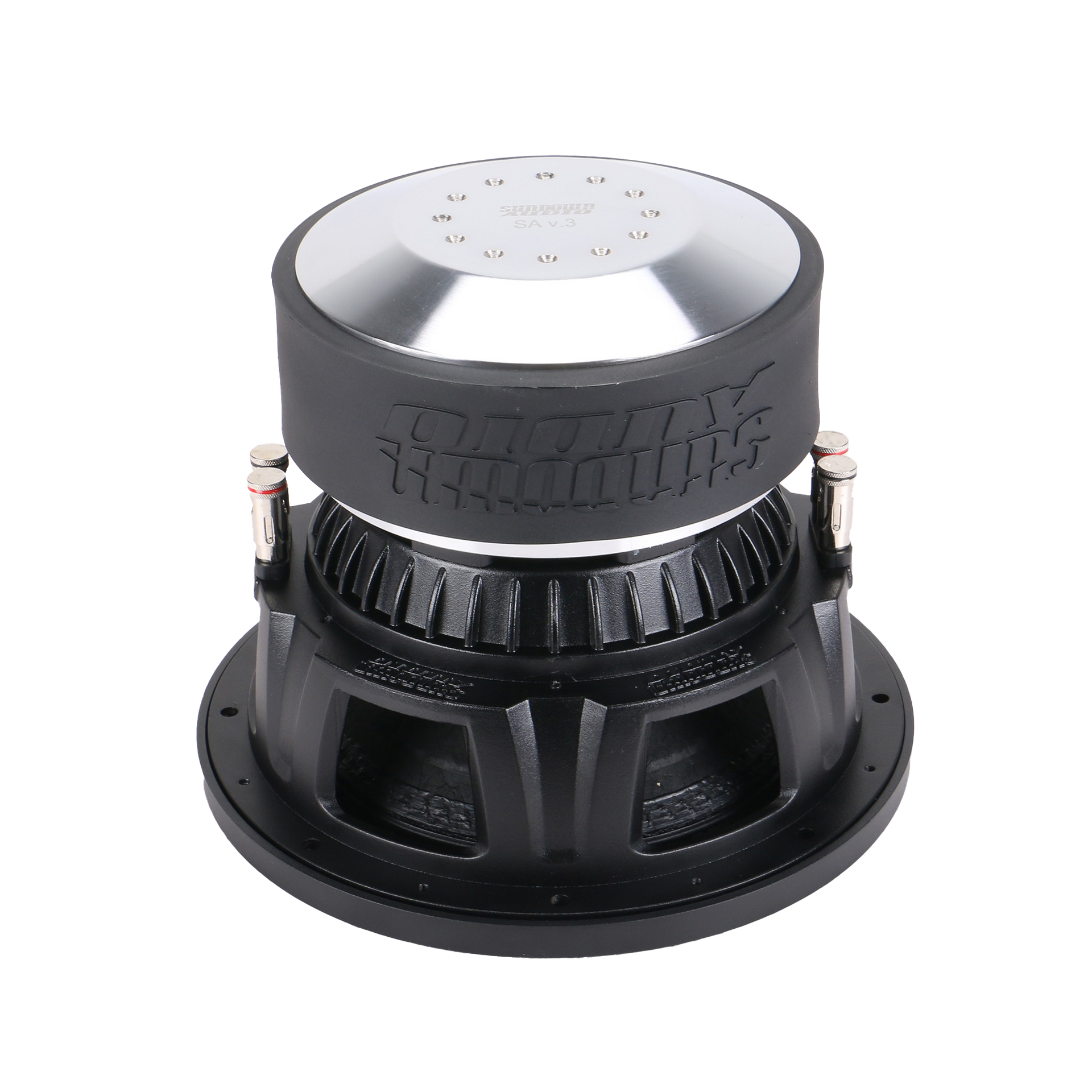

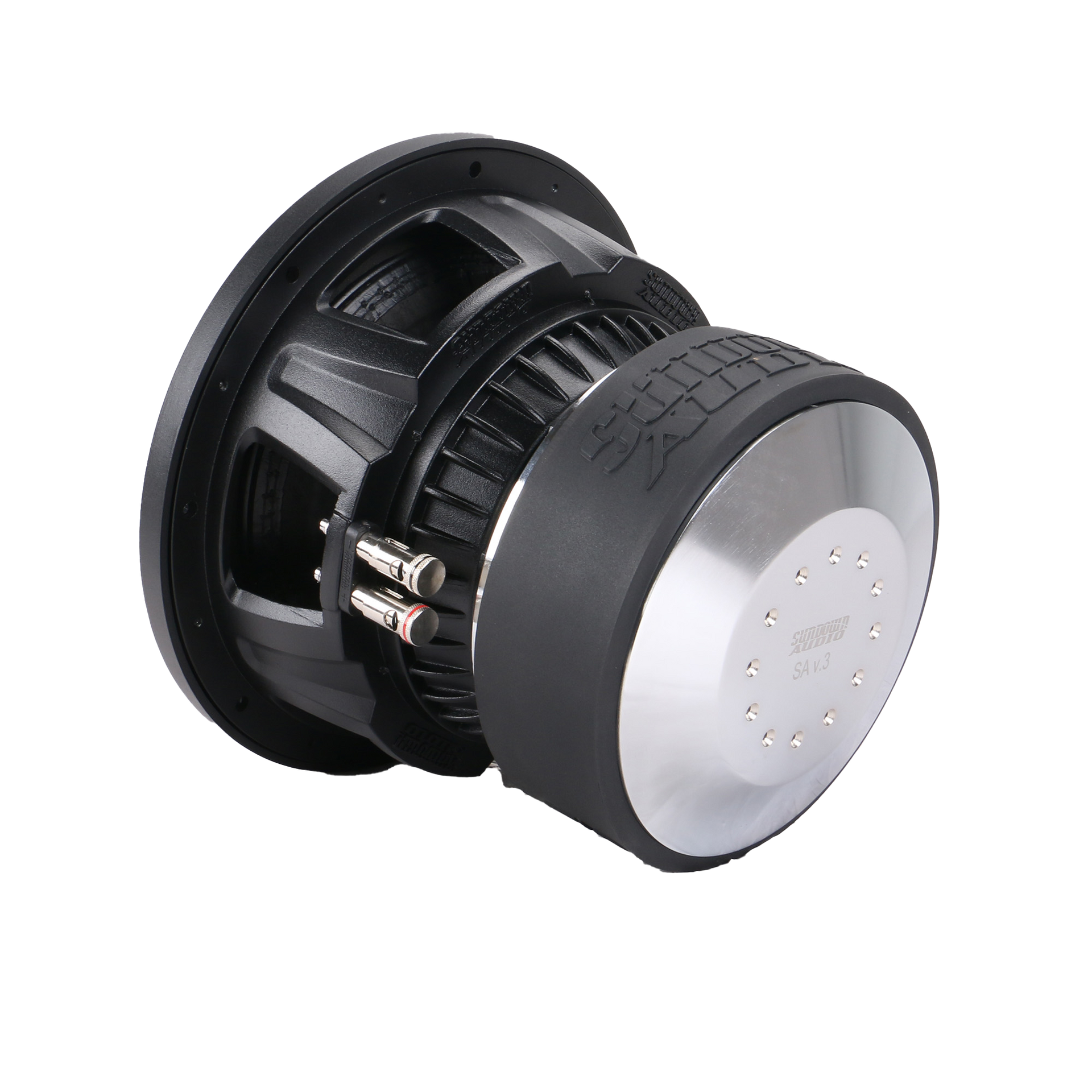

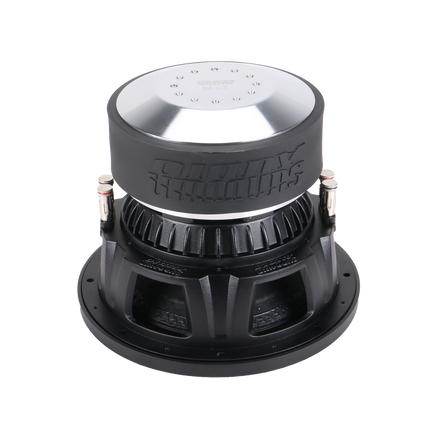

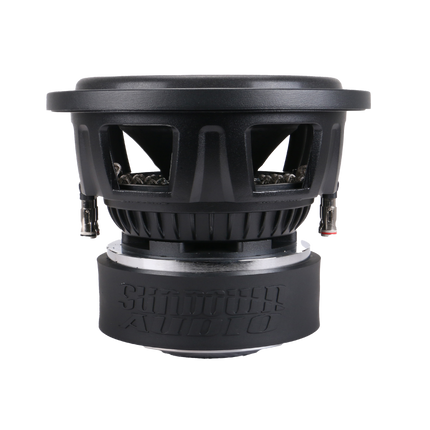

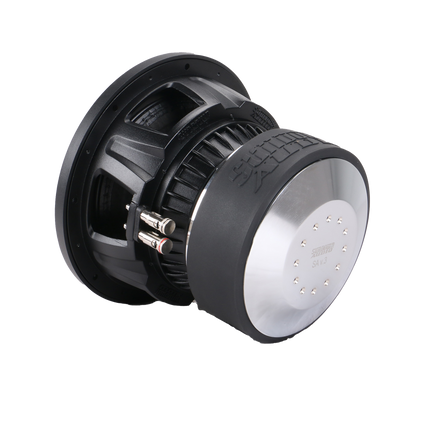

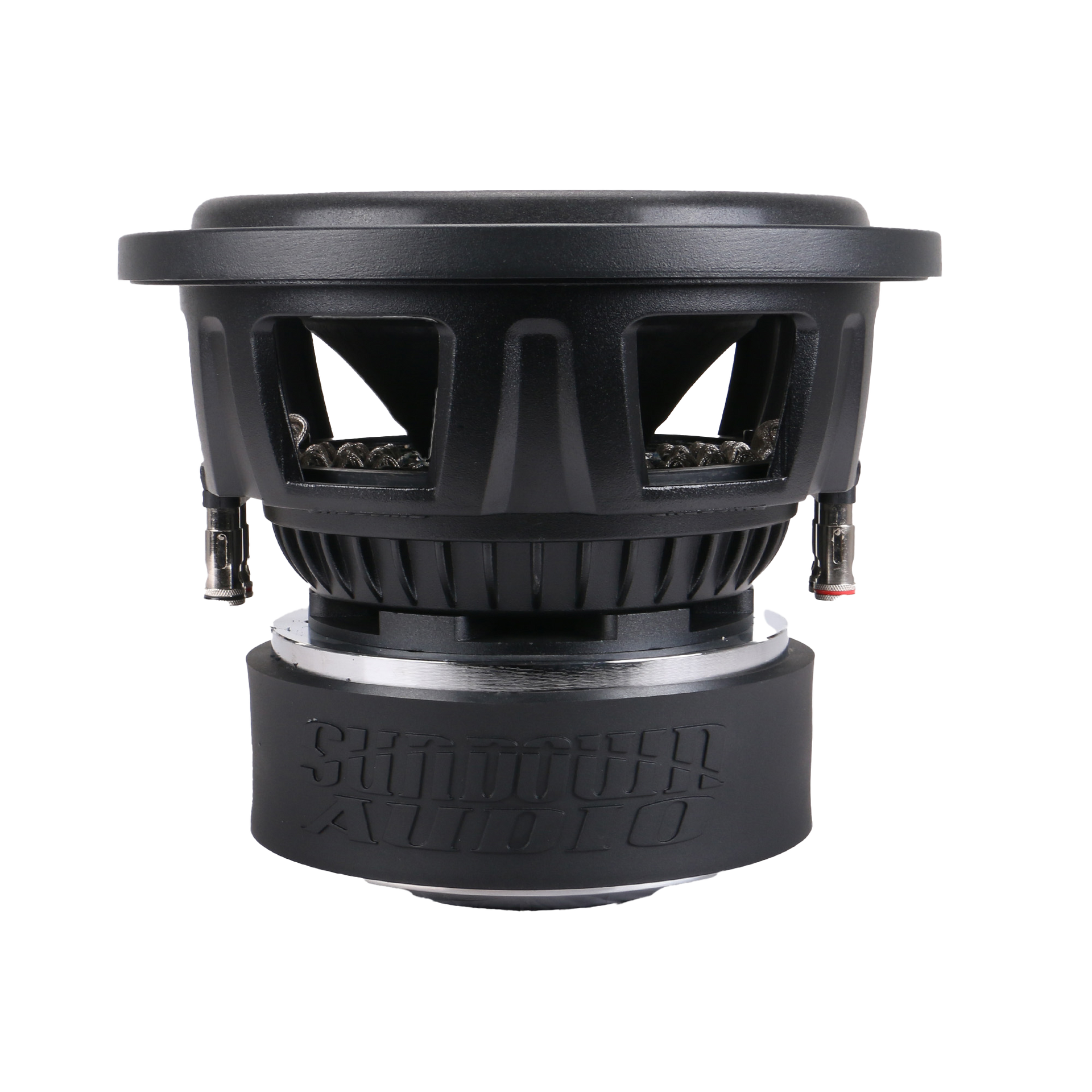

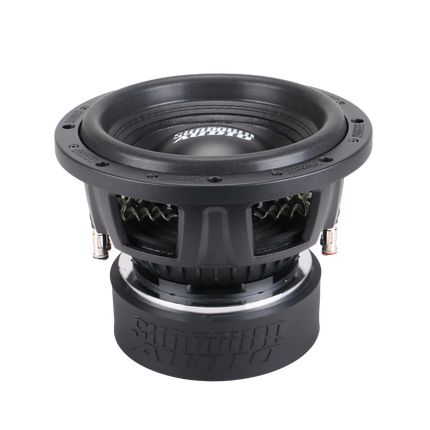

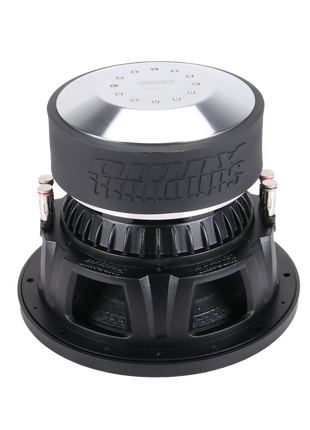

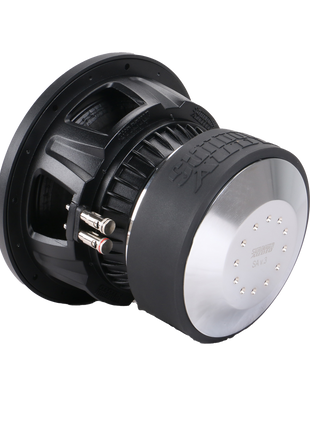

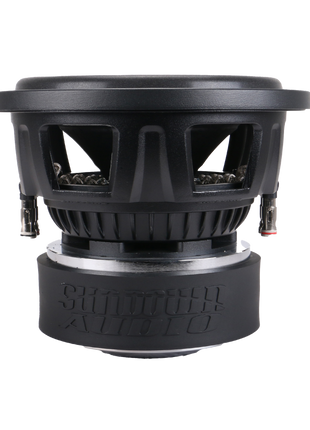

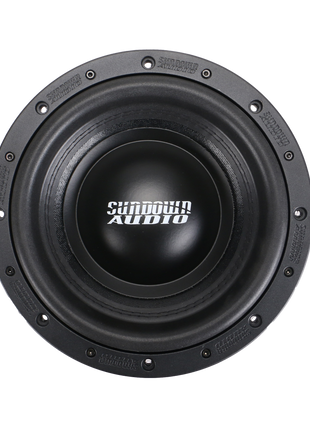

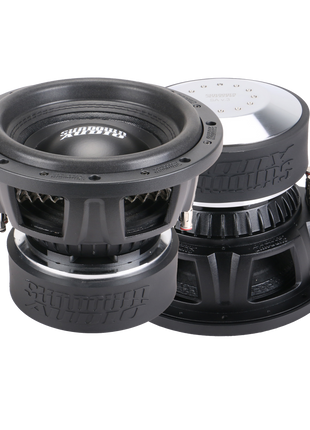

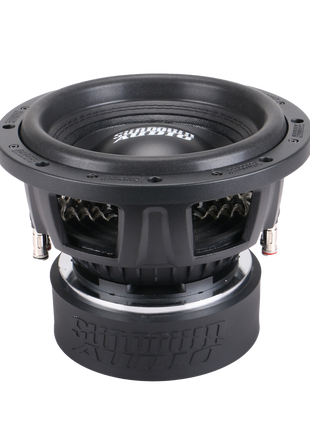

SA-Series v.3 10" Subwoofer

Description

  • 1500 Watts RMS / 3000 Watts Peak
  • Dual 2 or 4 ohm voice coils
  • Vented magnetic gap & solid pole piece with vent channels
  • Aluminum 2.75” voice coil former for superior heat dissipation
  • Innovative high velocity, cast aluminum vented frame spacer ring
  • Magnet ID faraday ring & pole cap faraday ring for smooth acoustic response
  • High-temperature copper voice coil wire
  • Spring-loaded terminals
  • Stitched-on double “XL” tinsel leads

This SA-10/12 v.3 series is the next generation upgrade to the v.2 series. We stuck with the 2.75” coil diameter and added another 5mm of length for additional linear x-max (22mm now). We are able to perfectly balance the mass, motor force, and suspension stiffness for the intended power level. Compared to the v.2 the v.3 features taller cones and wider spiders to enhanced linearity and coil stability to the next level. We also utilized full 3D FEA to further optimize the spider packs for this generation.
The motor also features a large magnet shorting ring (faraday ring) & pole cap faraday ring to reduce distortion and deliver smoother response across the entire acoustic spectrum. With the v.3 upgrade we integrated a completely "locked-in" faraday ring that is physically held in place by the T-Yoke. The motor & coil setup is mated to an extremely robust multi-layer spider with fully tied-on & doubled-up “XL” tinsel leads. A competition-grade paper cone, strong foam surround, and custom-tooled aluminum frame (same frame as the bigger brother U v.2 series) are used to complete this masterpiece. On top of the ~22mm of one-way linear excursion we have an x-mech limit of 41mm one-way before coil bottom making it nearly "bottomless." The new motor was designed as a "little brother" to the U v.2 series so you will also note the updated venting system with a solid pole piece from the back and channeled pole on the inside.

Enclosure Designs
.Zip File

SA-Series v.3 10" Subwoofer

Product form

1500 Watts RMS / 3000 Watts Peak Dual 2 or 4 ohm voice coils Vented magnetic gap & solid pole... Read more

$399.99

    • Free shipping in the contiguous USA on all orders above $99
    • Full Manufacturer Warranty On All Items
    • No Hassle, Easy 30 Day Returns
    • Price Match Guarantee. Lowest Prices Anywhere.
    • REAL Audio Enthusiasts, Expert Support
    ParameterD2 ModelD4 Model
    Re3.40 Ω6.06 Ω
    Fs36 Hz36 Hz
    Qms2.34102.4450
    Qes0.50100.5090
    Qts0.41300.4210
    Vas10.286 L8.497 L
    Mms304.45 g337.65 g
    Cms0.06 mm/N0.05 mm/N
    BL22.267 T·m31.742 T·m
    Le3.52 mH4.46 mH
    Sd506.6 cm²506.6 cm²
    Xmax22mm22mm
    Xmech40mm40mm
    SPL (1W/1m)82.5 dB82.1 dB
    SpecificationD2 ModelD4 Model
    RMS Power1500 W1500 W
    Peak Power3000 W3000 W
    Displacement0.170.17
    Mounting Depth8.11"8.11"
    Outside Diameter11"11"
    Cutout Diameter9.5"9.5"
    Motor Diameter7.8"7.8"
    Sealed Enclosure0.5cu ft0.5cu ft
    Ported Enclosure1.0cu ft1.0cu ft
    Recommended Port Tuning35hz35hz
    Recommended Port Area15sq in15sq in
    Xmax22mm22mm
    Xmech40mm40mm
    4th Order Sealed.4cu ft.4cu ft
    4th Order Ported1.2cu ft1.2cu ft
    4th Order Port Area24sq in24sq in
    4th Order Port Length6"6"

    Description

    • 1500 Watts RMS / 3000 Watts Peak
    • Dual 2 or 4 ohm voice coils
    • Vented magnetic gap & solid pole piece with vent channels
    • Aluminum 2.75” voice coil former for superior heat dissipation
    • Innovative high velocity, cast aluminum vented frame spacer ring
    • Magnet ID faraday ring & pole cap faraday ring for smooth acoustic response
    • High-temperature copper voice coil wire
    • Spring-loaded terminals
    • Stitched-on double “XL” tinsel leads

    This SA-10/12 v.3 series is the next generation upgrade to the v.2 series. We stuck with the 2.75” coil diameter and added another 5mm of length for additional linear x-max (22mm now). We are able to perfectly balance the mass, motor force, and suspension stiffness for the intended power level. Compared to the v.2 the v.3 features taller cones and wider spiders to enhanced linearity and coil stability to the next level. We also utilized full 3D FEA to further optimize the spider packs for this generation.
    The motor also features a large magnet shorting ring (faraday ring) & pole cap faraday ring to reduce distortion and deliver smoother response across the entire acoustic spectrum. With the v.3 upgrade we integrated a completely "locked-in" faraday ring that is physically held in place by the T-Yoke. The motor & coil setup is mated to an extremely robust multi-layer spider with fully tied-on & doubled-up “XL” tinsel leads. A competition-grade paper cone, strong foam surround, and custom-tooled aluminum frame (same frame as the bigger brother U v.2 series) are used to complete this masterpiece. On top of the ~22mm of one-way linear excursion we have an x-mech limit of 41mm one-way before coil bottom making it nearly "bottomless." The new motor was designed as a "little brother" to the U v.2 series so you will also note the updated venting system with a solid pole piece from the back and channeled pole on the inside.

    Enclosure Designs
    .Zip File
