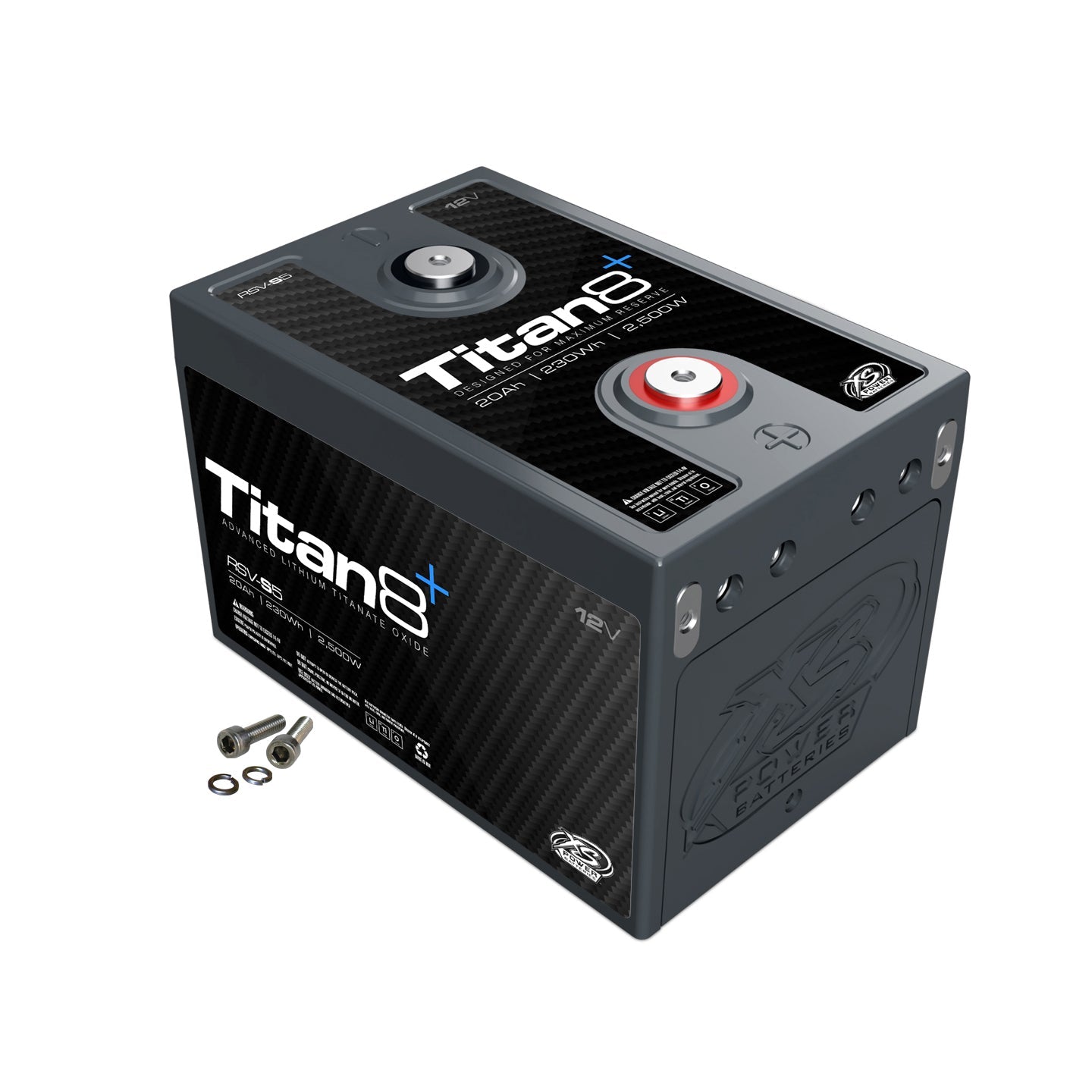

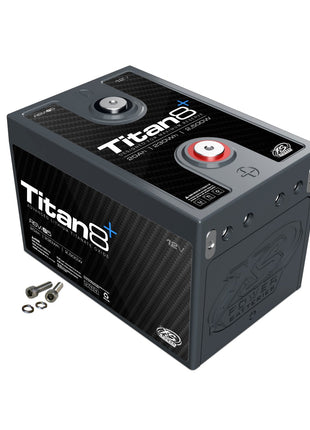

XS Power RSV-S5 Titan8 12V Lithium 1000A 230 Energy Wh Battery for 2500 Watts

Description

  • 12 Volt LTO Battery
  • Equivalent AGM Amp Hours: 60
  • Cranking Amps: 750
  • Max Amps: 1,000
  • Wattage: 2,500
  • Amp Hours: 20
  • Four Inputs
  • Two Side Terminals can be used either/or in conjunction with each other
  • M6 Terminal Hardware Included
  • 8 lbs.

XS Power Titan8 lithium batteries are designed for unbeatable cranking power. This Lithium Titanate Oxide (LTO) Series uses a high-power lithium cell that is designed for high-burst output (5,000 watts for five seconds) and higher reserve capacity. The built-in 2/0 AWG bussing allows up to four positive and four negative hidden direct connections to each module without the need for any externally exposed bussing, while still leaving two easily accessible top terminals and four series or parallel expansion terminals to easily build a bank of batteries of nearly any size imaginable.

Our Modular Titan8 models are not suitable for under-hood use. XS Power Titan8 lithium batteries are also offered in BCI direct fit models that are fully insulated with temperature monitoring built in and are suitable for use in the factory under-hood position. Please check out our BCI models here for under-hood plug-and-play usage.

See specifications below.

Lithium Titanate Battery Reserve Module

XS Power RSV-S5 Titan8 12V Lithium 1000A 230 Energy Wh Battery for 2500 Watts

Product form

12 Volt LTO Battery Equivalent AGM Amp Hours: 60 Cranking Amps: 750 Max Amps: 1,000 Wattage: 2,500 Amp Hours: 20... Read more

$749.99

    • Free shipping in the contiguous USA on all orders above $99
    • Full Manufacturer Warranty On All Items
    • No Hassle, Easy 30 Day Returns
    • Price Match Guarantee. Lowest Prices Anywhere.
    • REAL Audio Enthusiasts, Expert Support
    SpecificationsRSV-S5
    Volts12 V
    Ah20 Ah
    Ah Pb Eq60 Ah
    CA500 A
    CA Pb Eq750 A
    Max Amps1000 A
    Energy230 Wh
    Wattage Support2500 W
    PolarityL/R
    Length7.4 in
    Width4.85 in
    Height5 in
    Weight8 lbs
    Weight (kg)3.63 kg
    Included HardwareM6 Terminal Hardware Included

    Description

    • 12 Volt LTO Battery
    • Equivalent AGM Amp Hours: 60
    • Cranking Amps: 750
    • Max Amps: 1,000
    • Wattage: 2,500
    • Amp Hours: 20
    • Four Inputs
    • Two Side Terminals can be used either/or in conjunction with each other
    • M6 Terminal Hardware Included
    • 8 lbs.

    XS Power Titan8 lithium batteries are designed for unbeatable cranking power. This Lithium Titanate Oxide (LTO) Series uses a high-power lithium cell that is designed for high-burst output (5,000 watts for five seconds) and higher reserve capacity. The built-in 2/0 AWG bussing allows up to four positive and four negative hidden direct connections to each module without the need for any externally exposed bussing, while still leaving two easily accessible top terminals and four series or parallel expansion terminals to easily build a bank of batteries of nearly any size imaginable.

    Our Modular Titan8 models are not suitable for under-hood use. XS Power Titan8 lithium batteries are also offered in BCI direct fit models that are fully insulated with temperature monitoring built in and are suitable for use in the factory under-hood position. Please check out our BCI models here for under-hood plug-and-play usage.

    See specifications below.

    Lithium Titanate Battery Reserve Module
