Description
Unmatched Scale and Sheer Power in an 18-Inch Driver

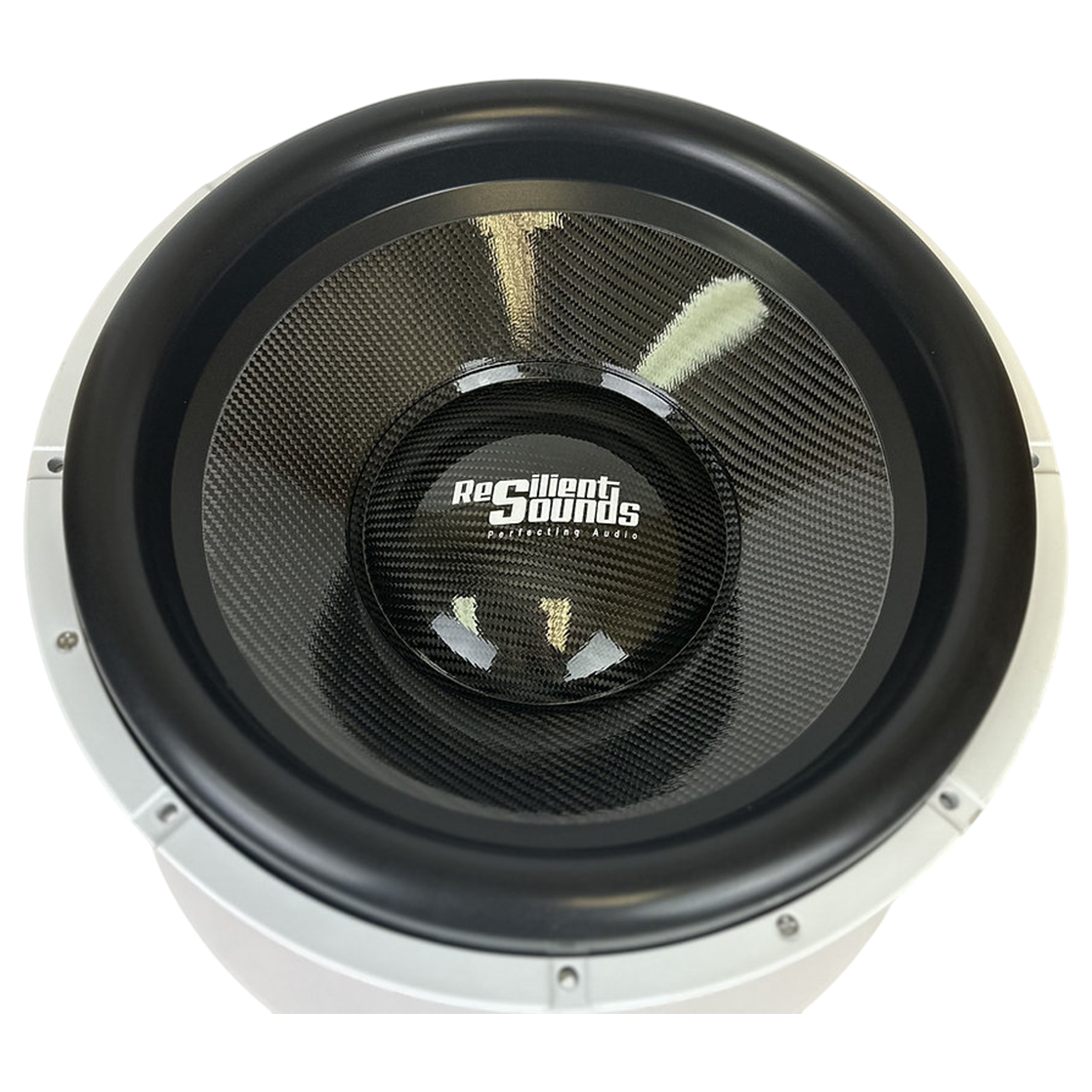

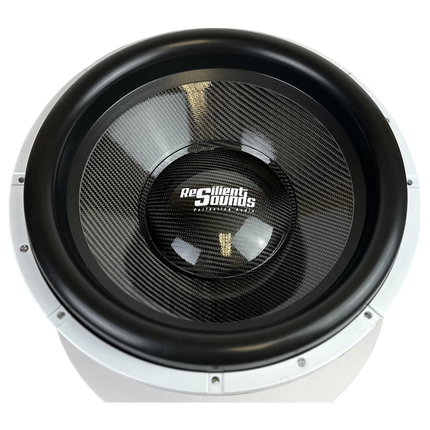

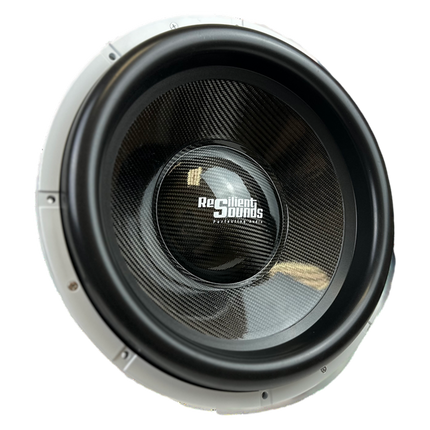

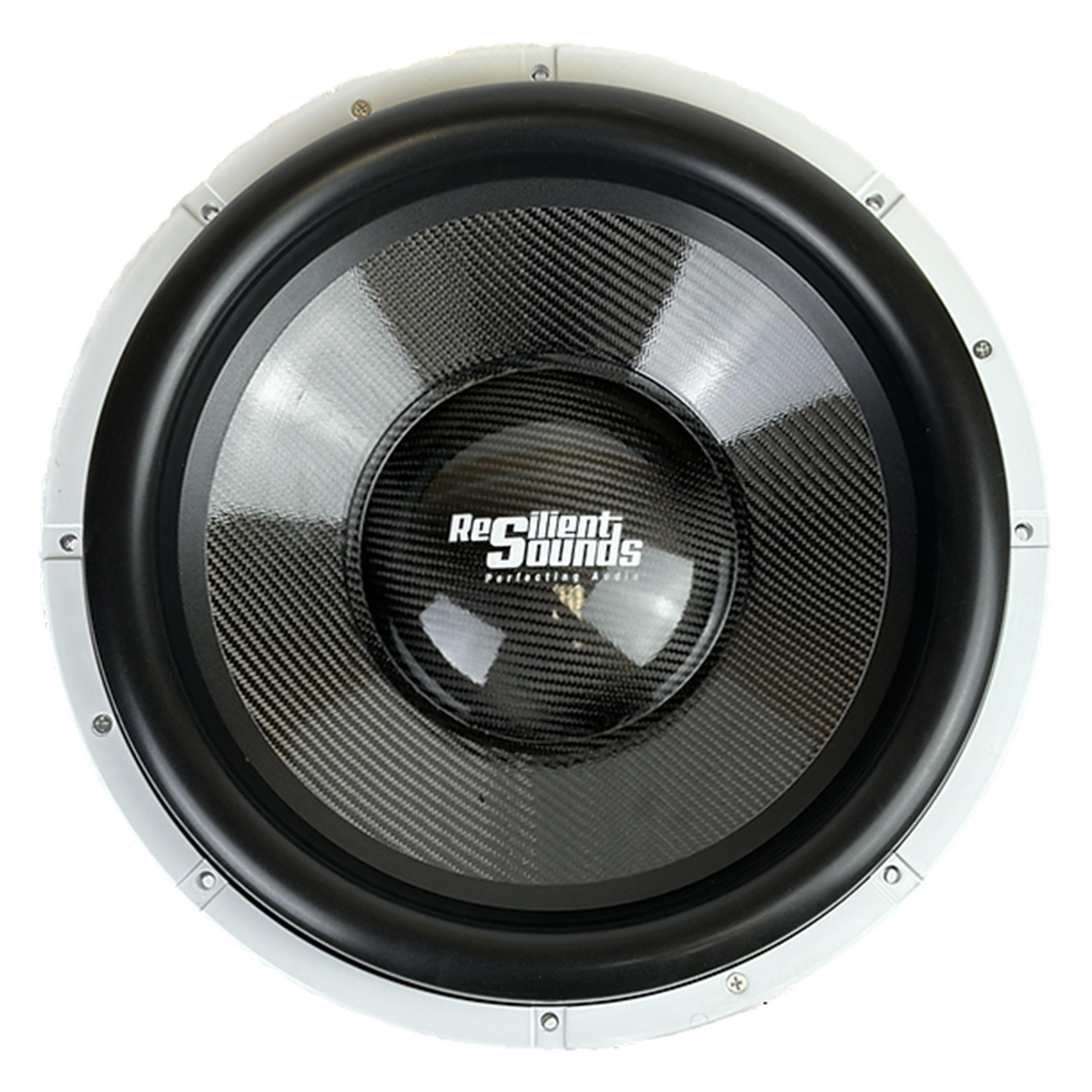

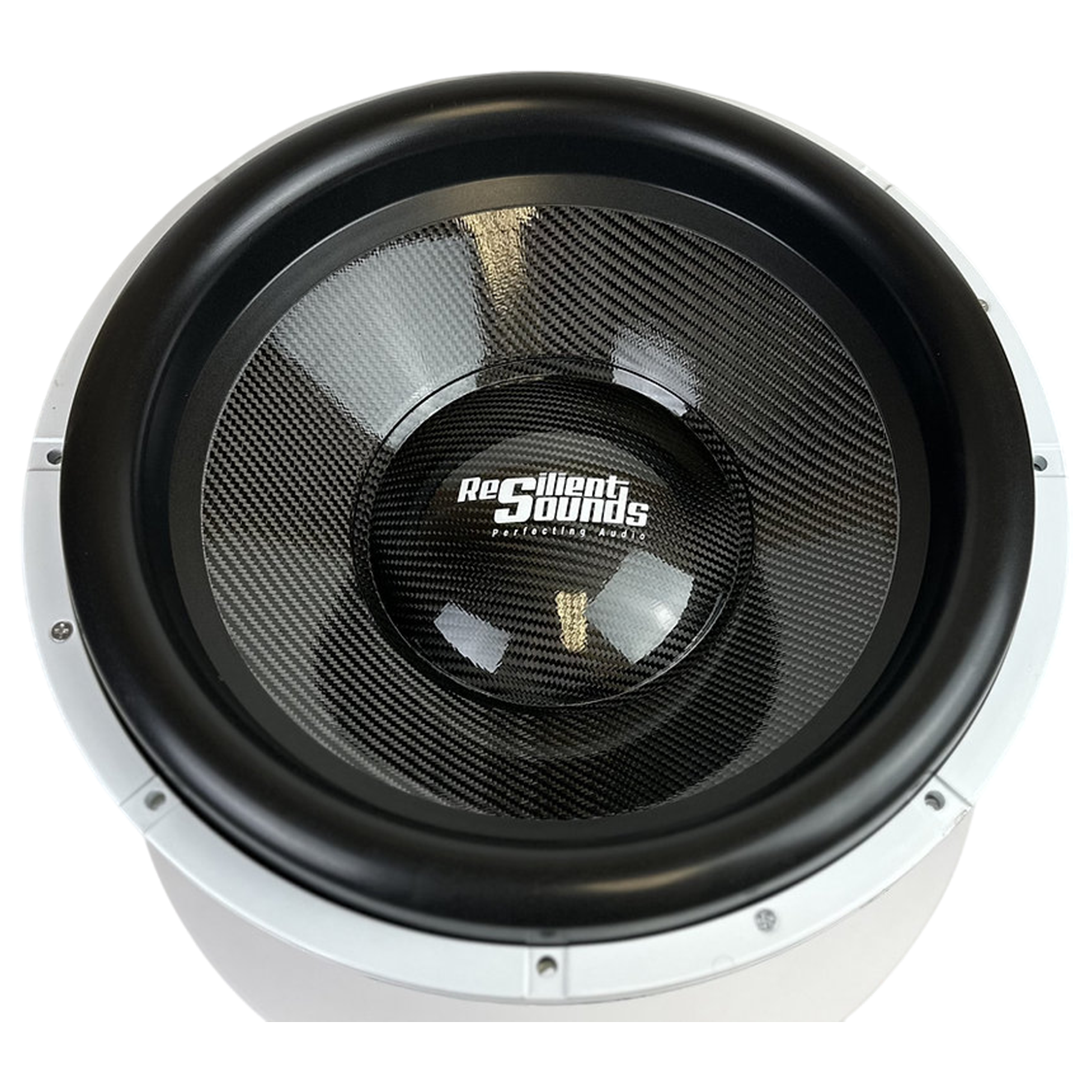

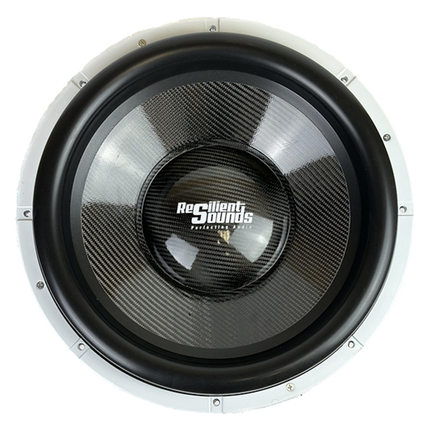

The Resilient Sounds PLATINUM V2 18" D2 is the ultimate subwoofer for maximum scale and output, combining an extreme 18-inch cone area with top-tier motor technology. Conservatively rated at a crushing 2,500W RMS (5,000 Watts Peak), this driver is built around a 13% larger motor assembly and a 20% longer 3-inch 8-layer voice coil, resulting in a dramatic increase in motor force (up to 50% more BL²/Re than the V1). The Dual 2 Ohm impedance allows for flexible wiring to 1 Ohm or 4 Ohm final loads. With a massive 35mm XMAX, a durable 10-inch spider pack, and a stiff carbon fiber cone, this 18-inch Platinum V2 is engineered for the highest demands of output and clarity.
TECHNICAL SPECIFICATIONS
| Specification |
Detail |
| Model |
Platinum 18 V2 |
| Nominal Impedance |
Dual 2 Ohm (D2) |
| RMS Power Handling (Conservative) |
2,500 Watts |
| Peak Power Handling |
5,000 Watts |
| Maximum Excursion (XMAX) |
35MM |
| Voice Coil |
3-inch 8 Layer (20% Longer than V1) |

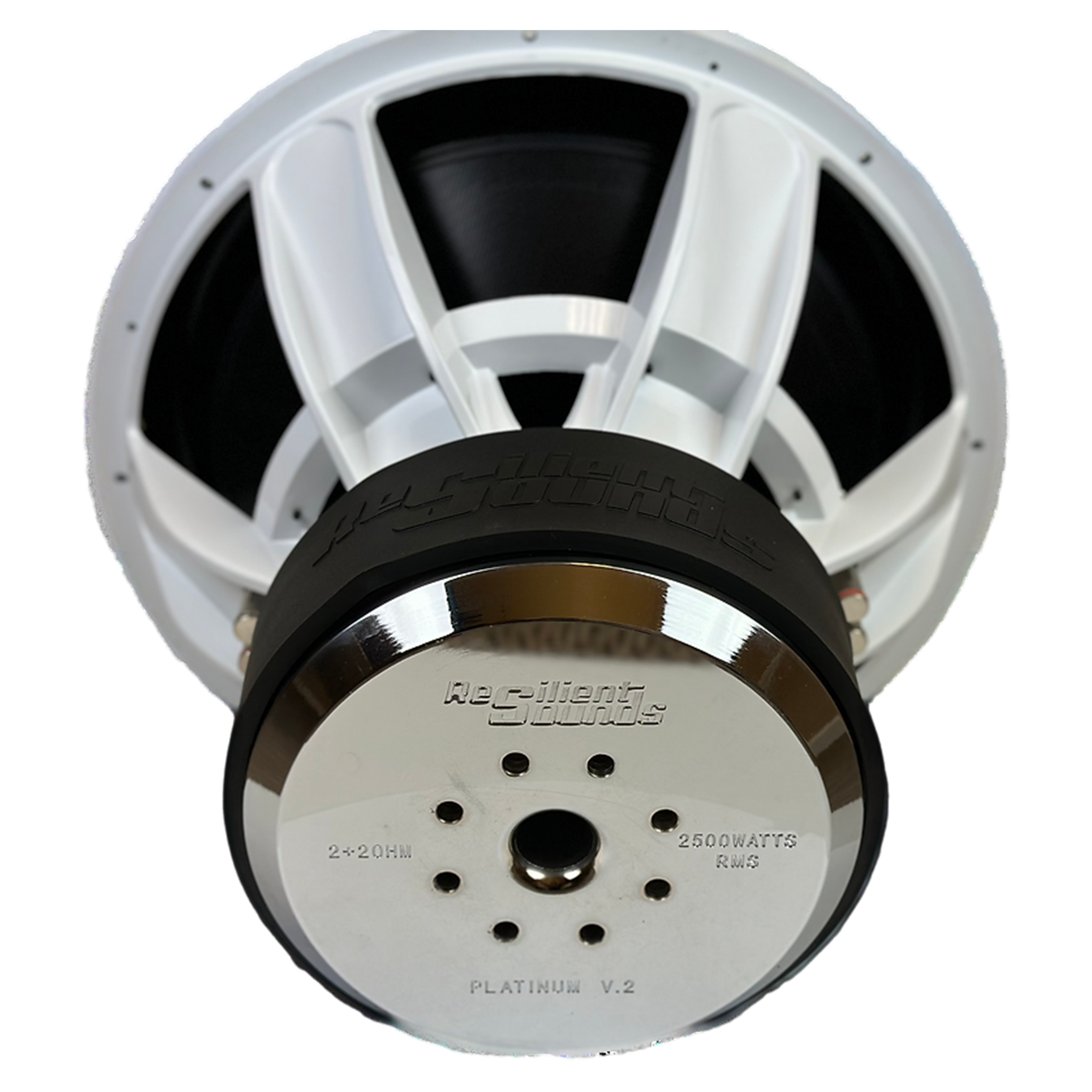

| Motor Structure |

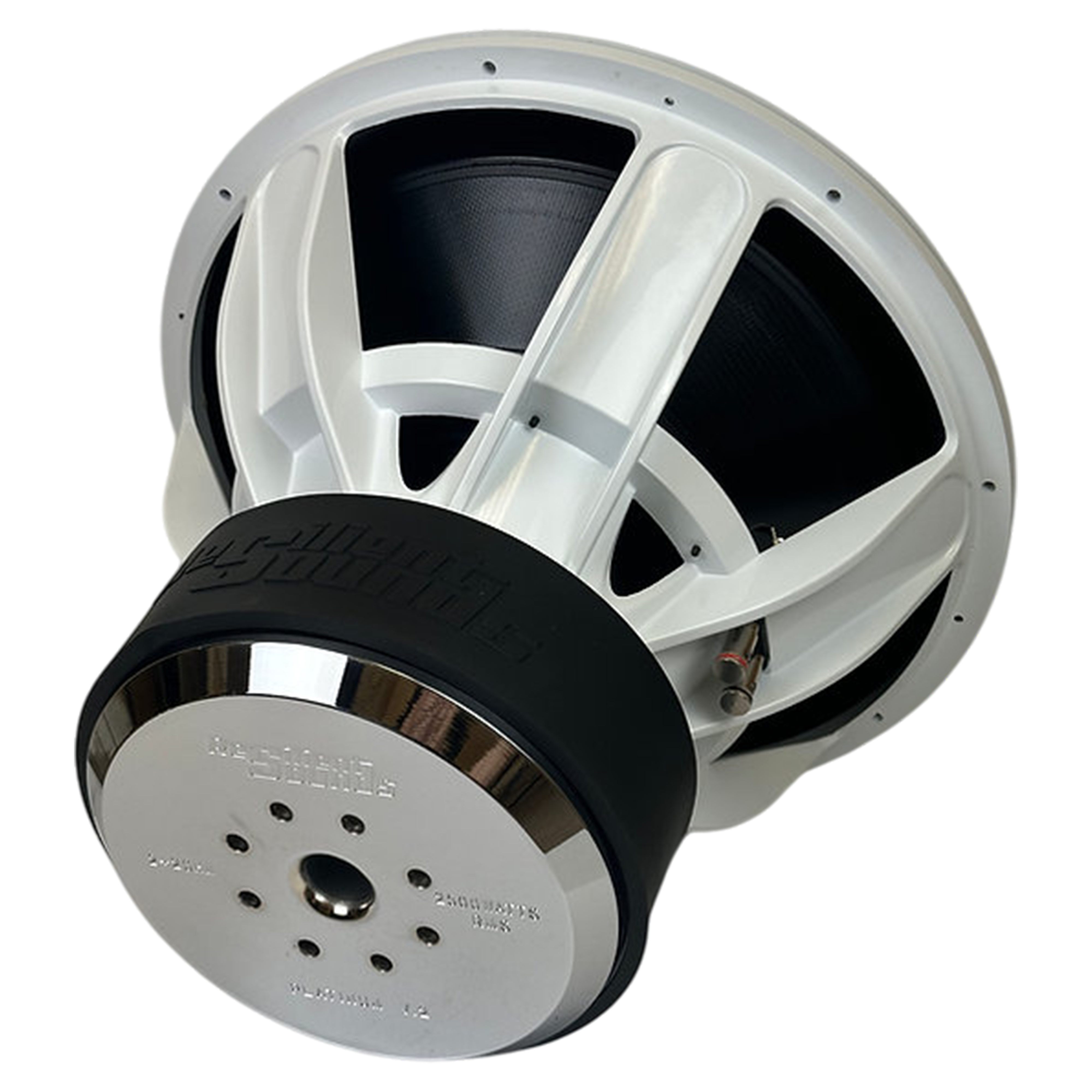

13% Larger Motor, XL Triple Stacked |
| Cone / Dust Cap |
Carbon Fiber |
| Surround |
New High Roll Tooled Surround |
| Spider / Leads |

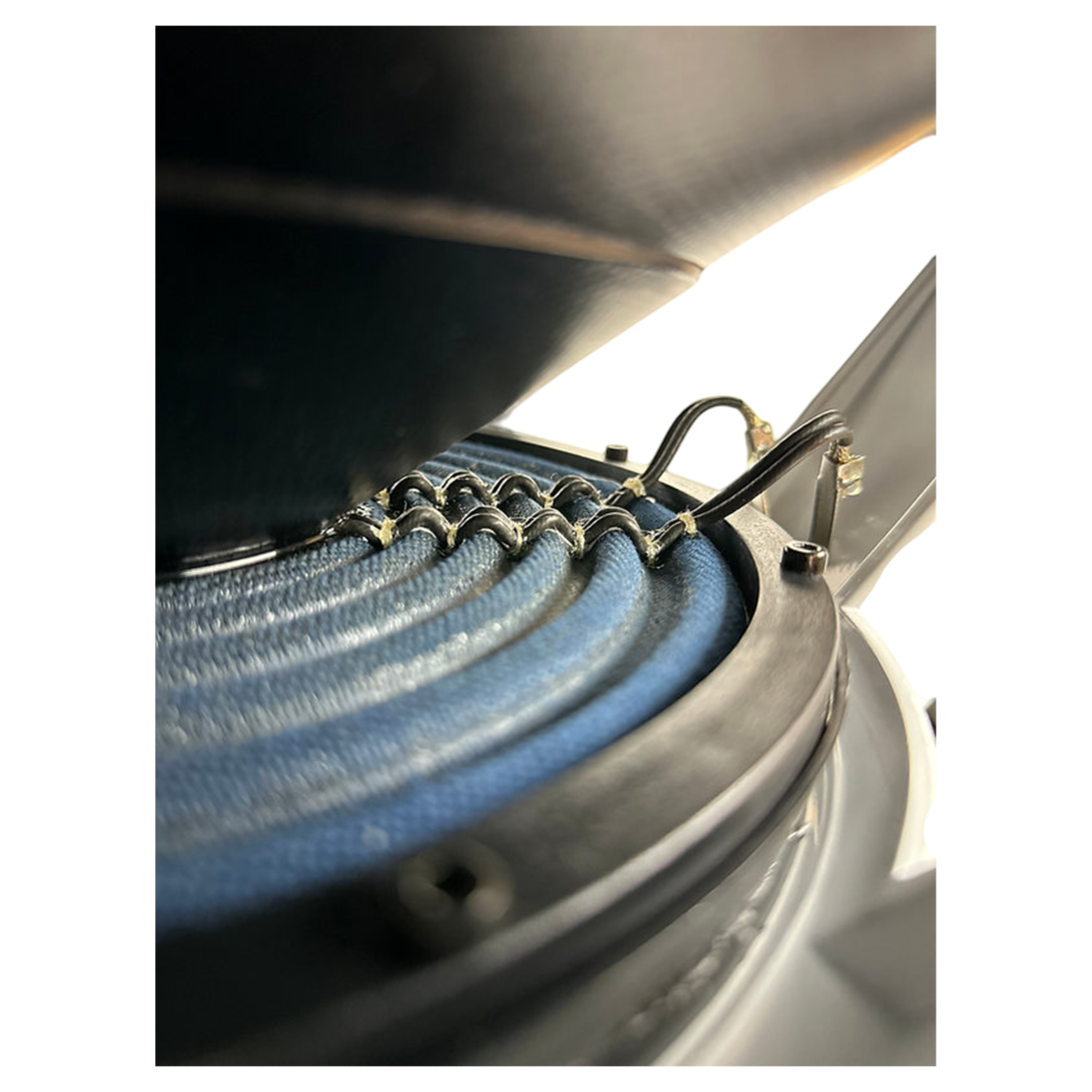

10" Spider Pack with Insulated Dual Leads |
| Frame/Basket |

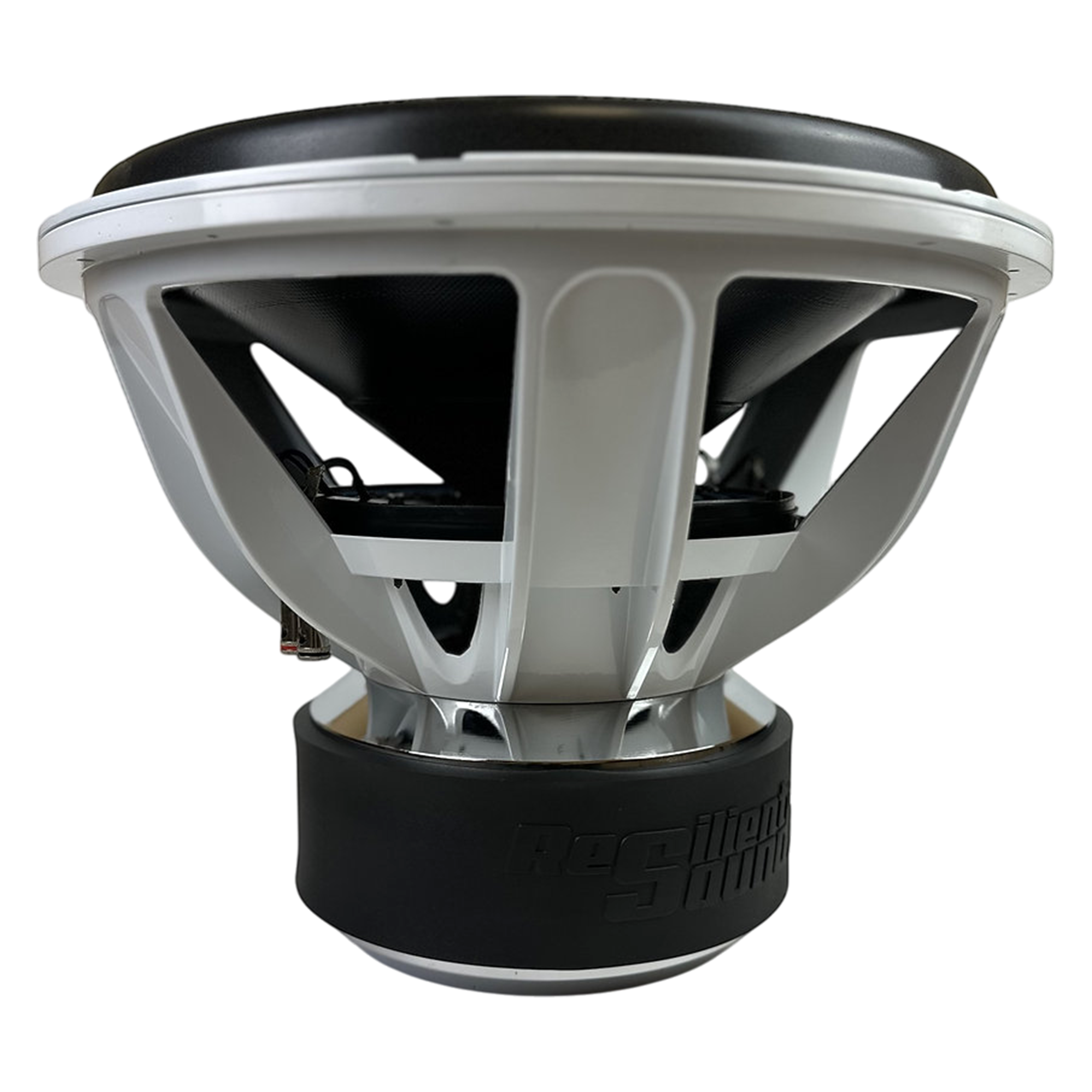

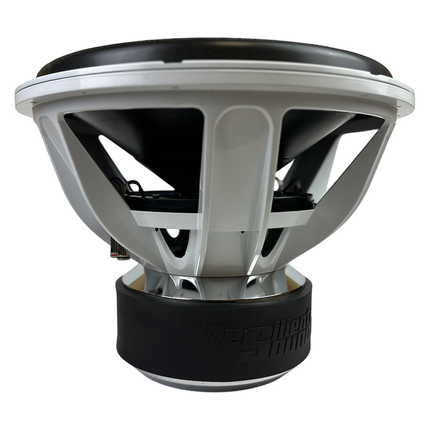

Cast Aluminum Frame |
RECOMMENDED ENCLOSURE SPECIFICATIONS
| Internal Volume (Cubic Ft) |
4 - 6 CU FT |
| Tuning Frequency |
28 - 33 HERTZ |
| Port Area |
12 - 16 SQ INCHES OF PORT AREA PER CUBIC FT |
| Mounting Depth |
12.5 INCHES |
| Cutout Diameter |
16.93 INCHES |
| Displacement |
0.33 CUBIC FT |
