The Ultimate Low-Impedance Subwoofer for Extreme Systems

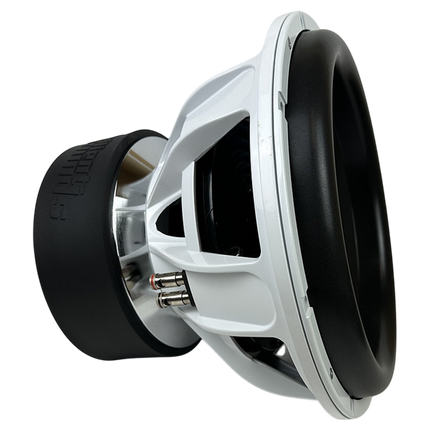

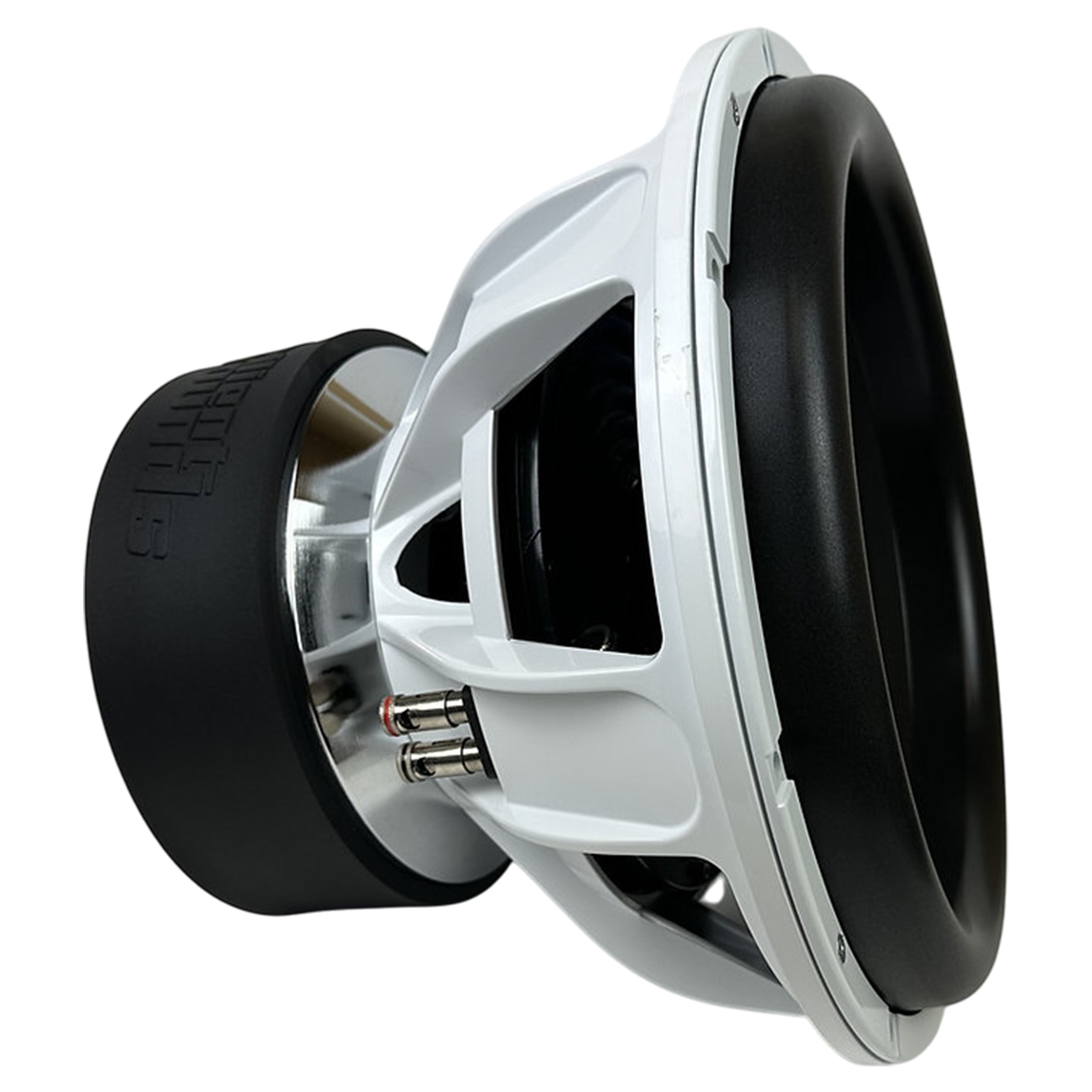

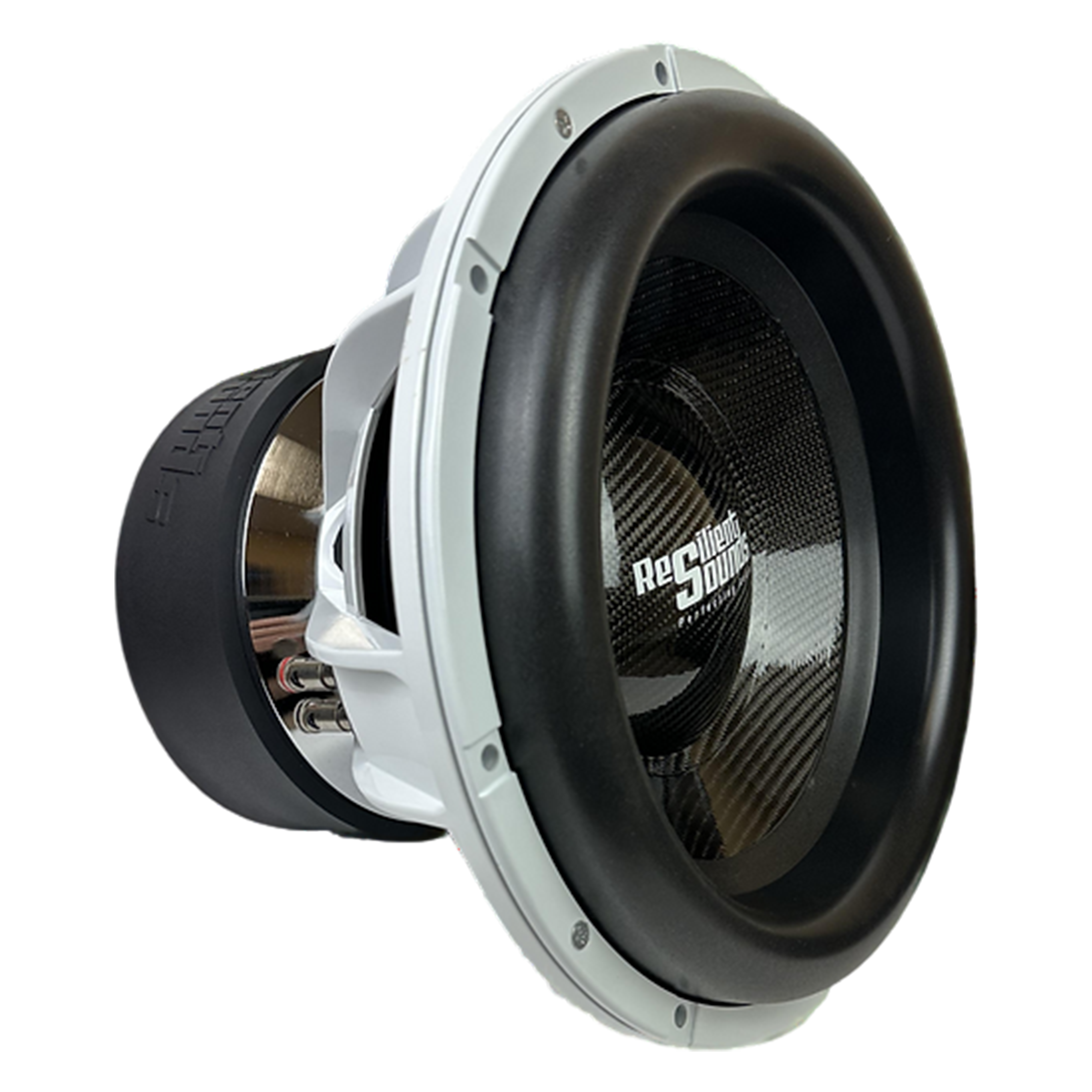

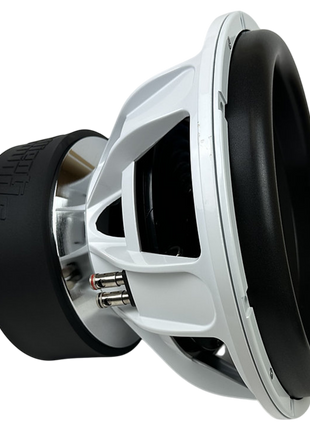

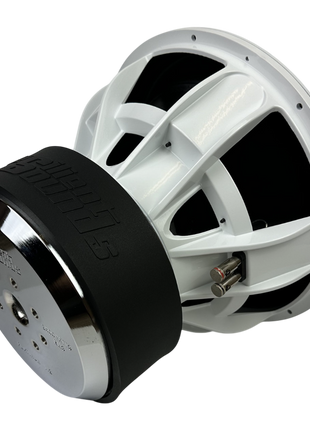

The Resilient Sounds PLATINUM V2 15" D1 is the choice for serious bass enthusiasts and competitors seeking to run ultra-low impedance loads. Built to handle a conservative 2,500W RMS, this 15-inch driver is optimized for maximum thermal and magnetic performance with its 13% larger motor and 20% longer 3-inch 8-layer voice coil. The Dual 1 Ohm impedance allows for wiring in parallel to achieve an extremely low 0.5 Ohm final load, unlocking the full potential of 0.5 Ohm-stable competition-grade amplifiers. The combination of 35mm XMAX, carbon fiber cone, and heavy-duty suspension ensures this subwoofer moves huge amounts of air with unmatched authority and control.
TECHNICAL SPECIFICATIONS
| Specification |
Detail |
| Model |
Platinum 15 V2 |
| Nominal Impedance |
Dual 1 Ohm (D1) |
| RMS Power Handling (Conservative) |
2,500 Watts |
| Peak Power Handling |
5,000 Watts |
| Maximum Excursion (XMAX) |
35MM |
| Voice Coil |
3-inch 8 Layer (20% Longer than V1) |

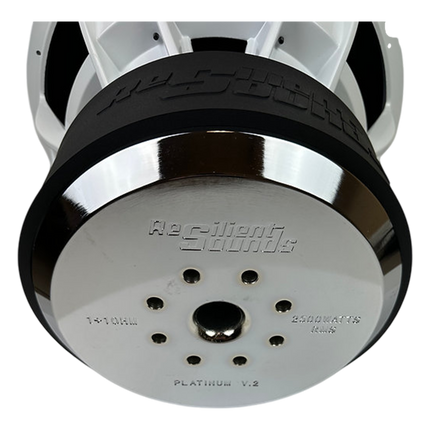

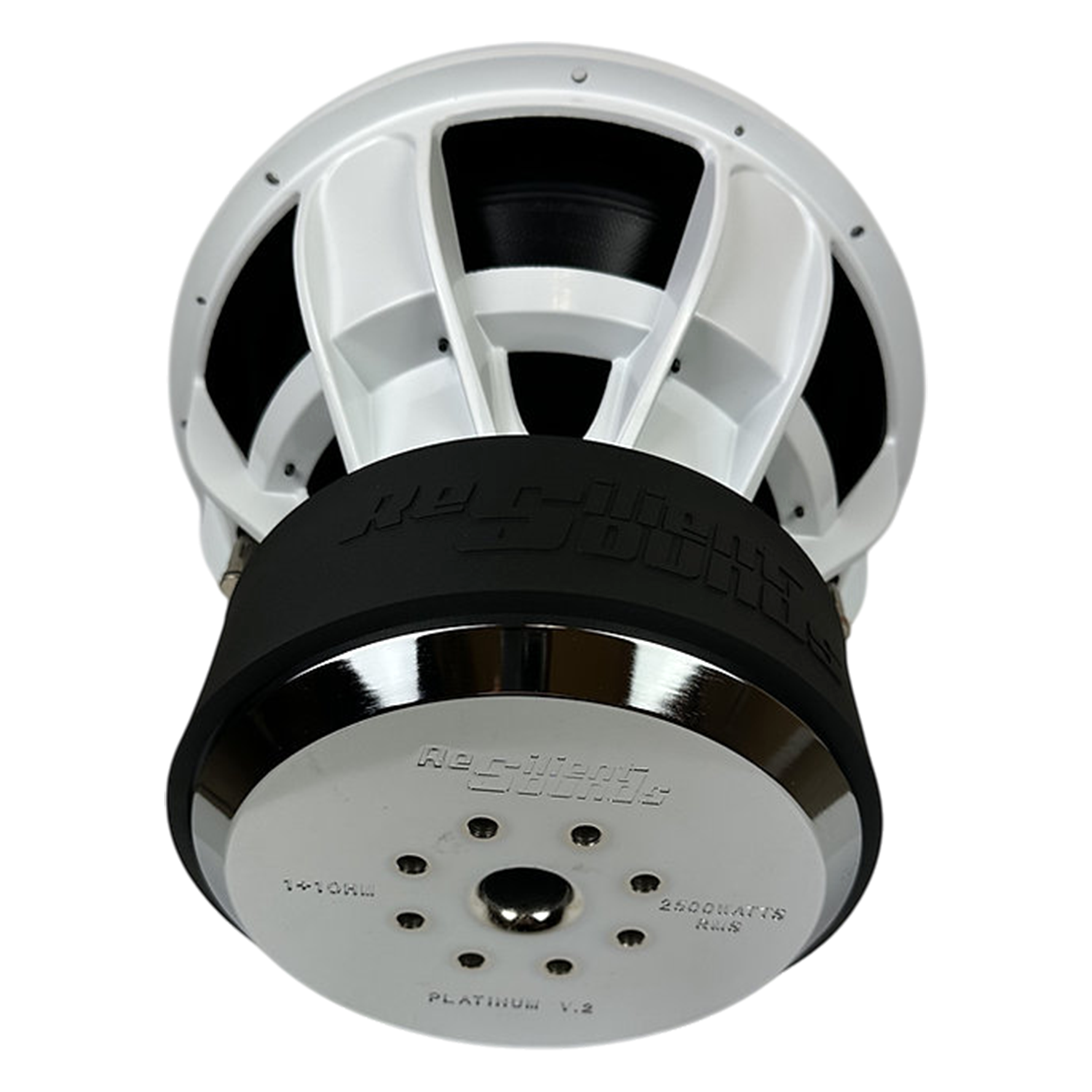

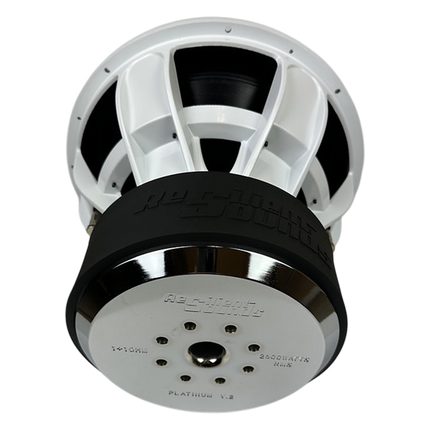

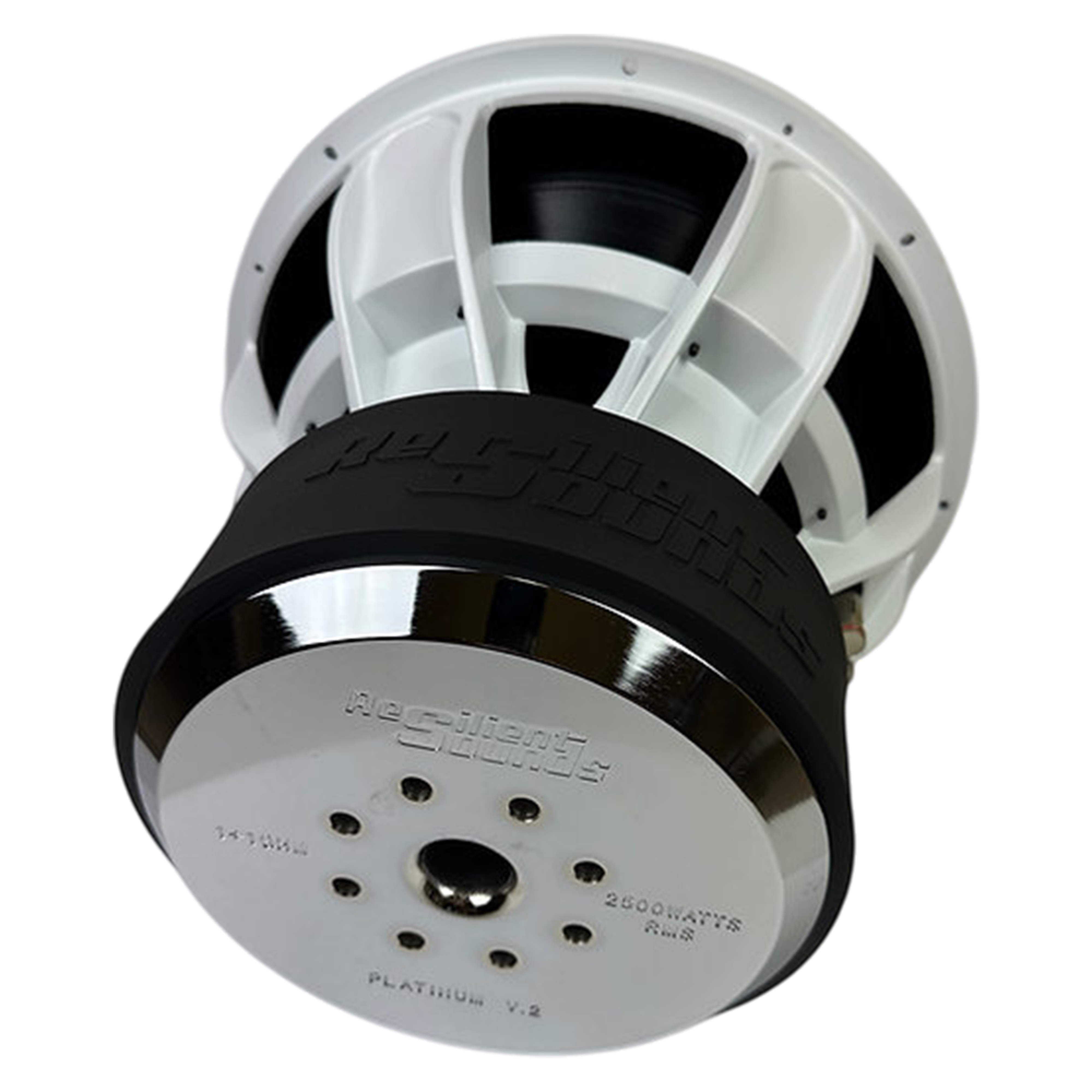

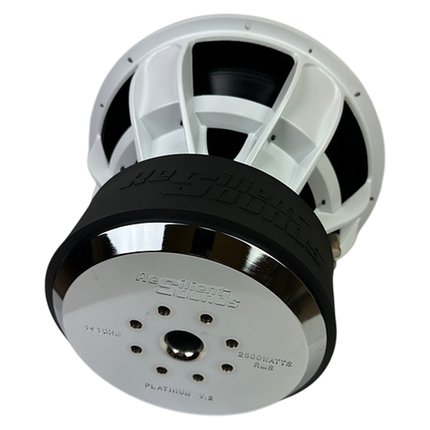

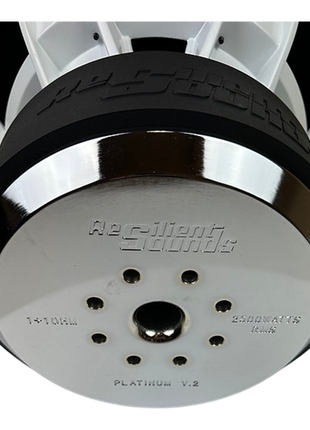

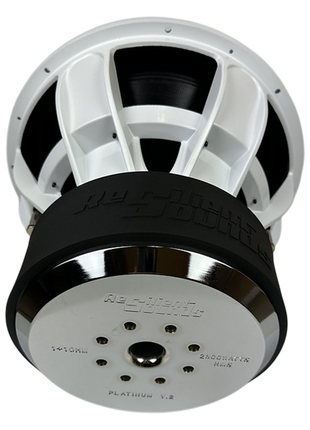

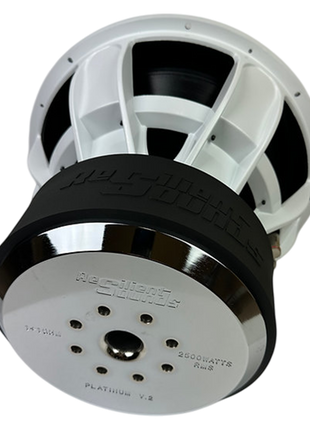

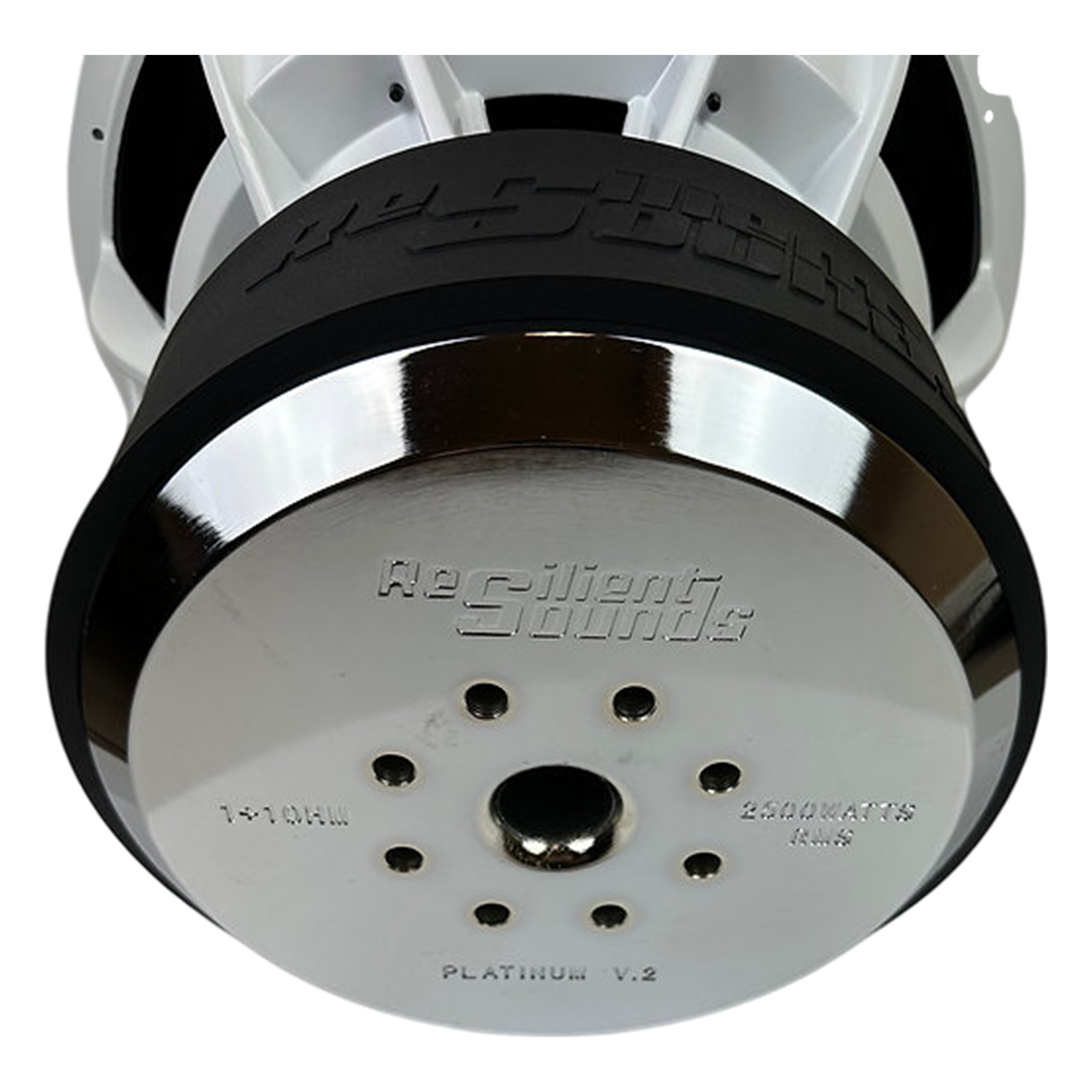

| Motor Structure |
13% Larger Motor, XL Triple Stacked |

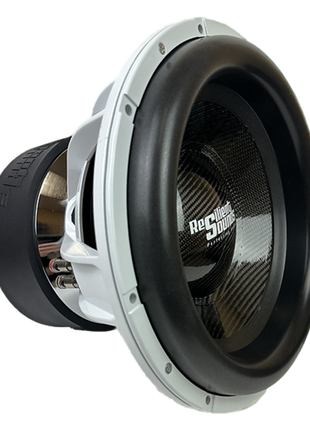

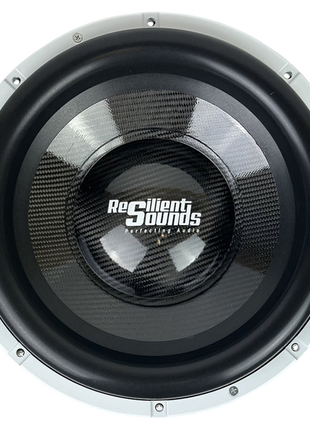

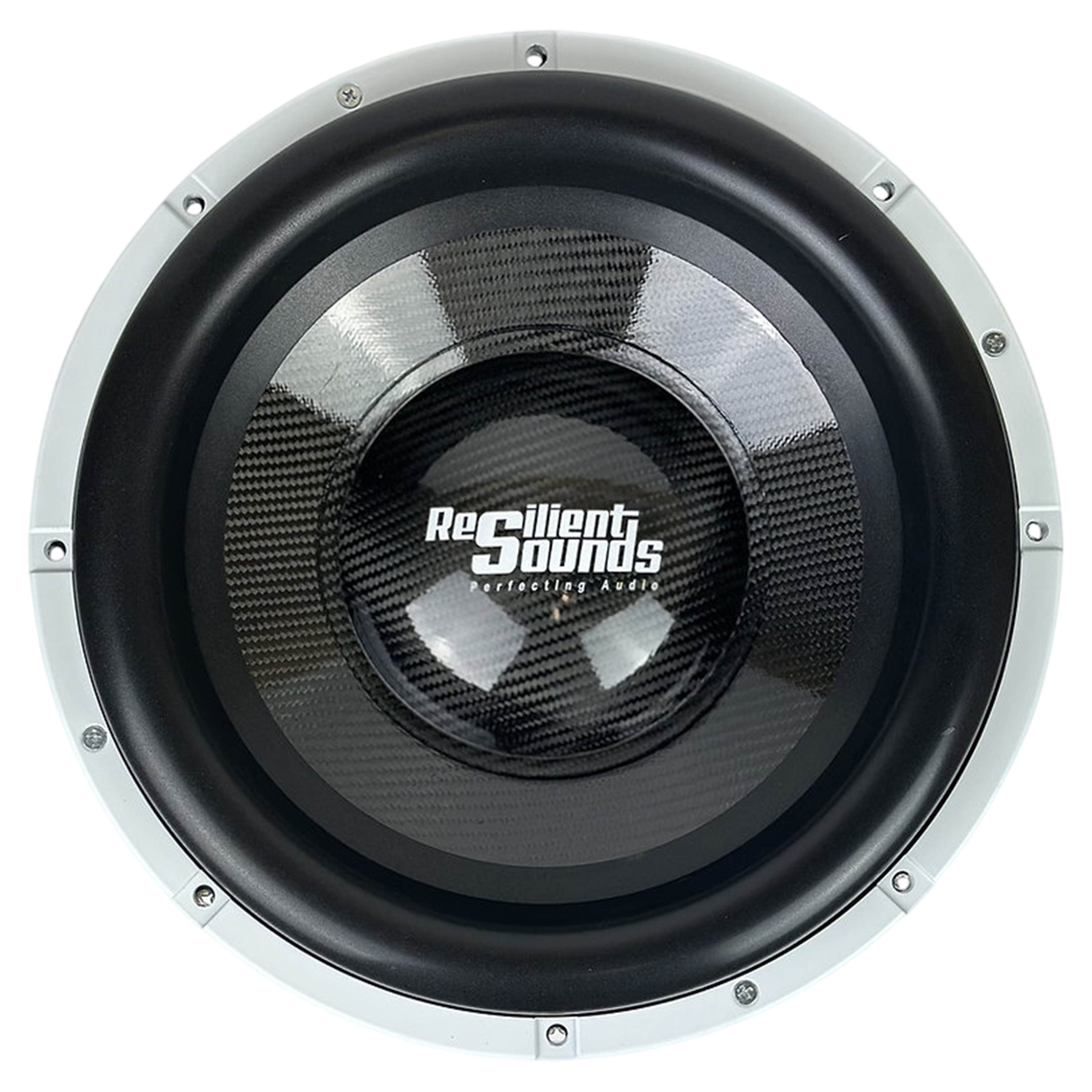

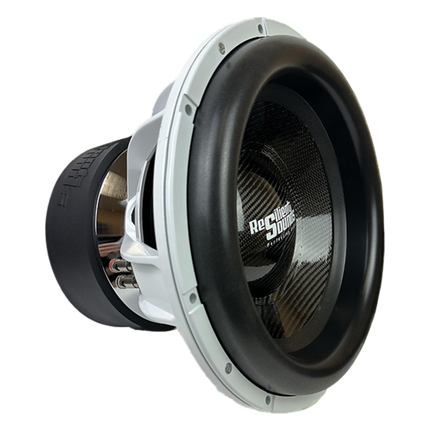

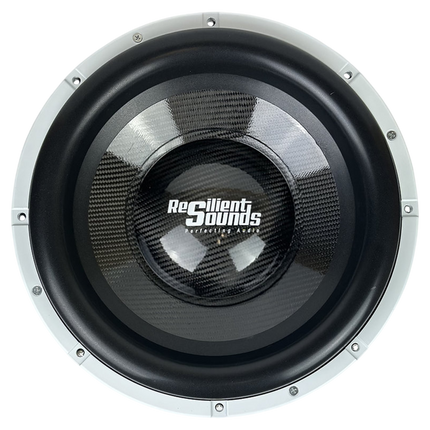

| Cone / Dust Cap |
Carbon Fiber |

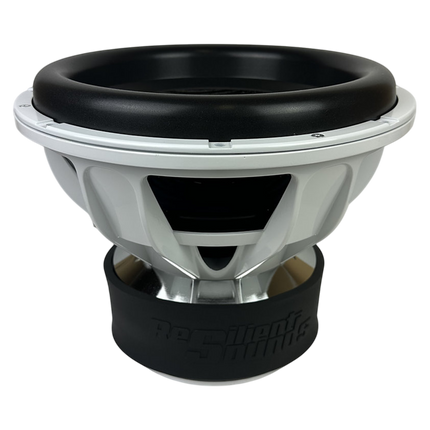

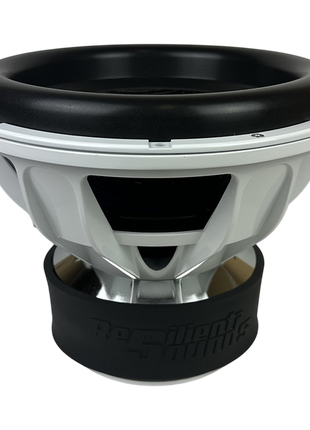

| Surround |
New High Roll Tooled Surround |

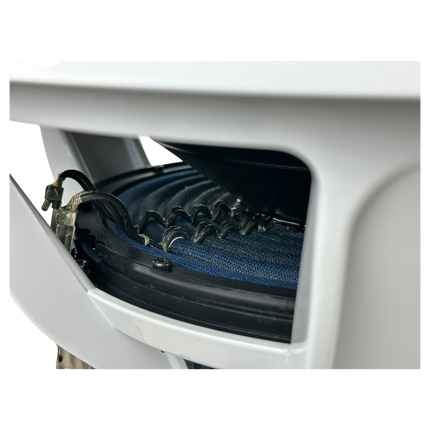

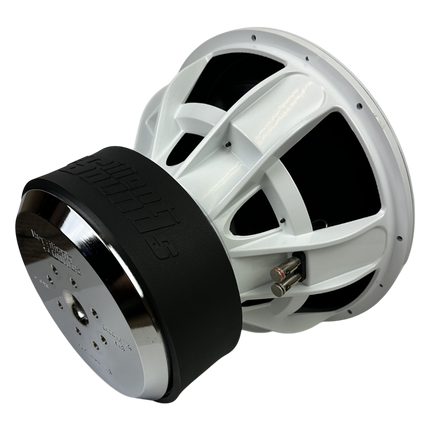

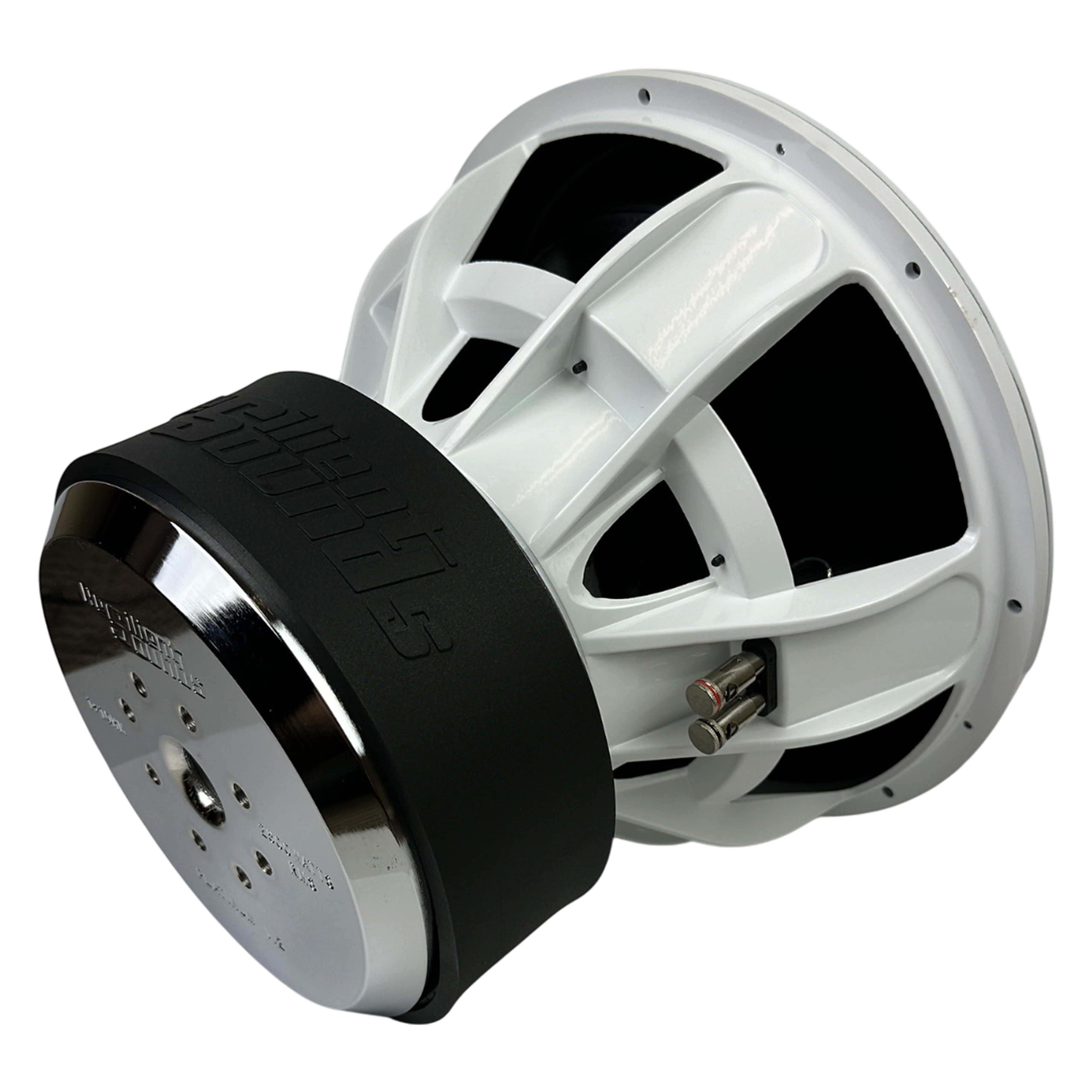

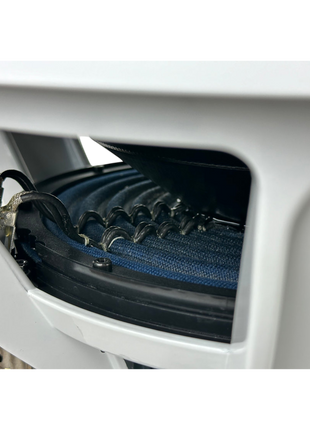

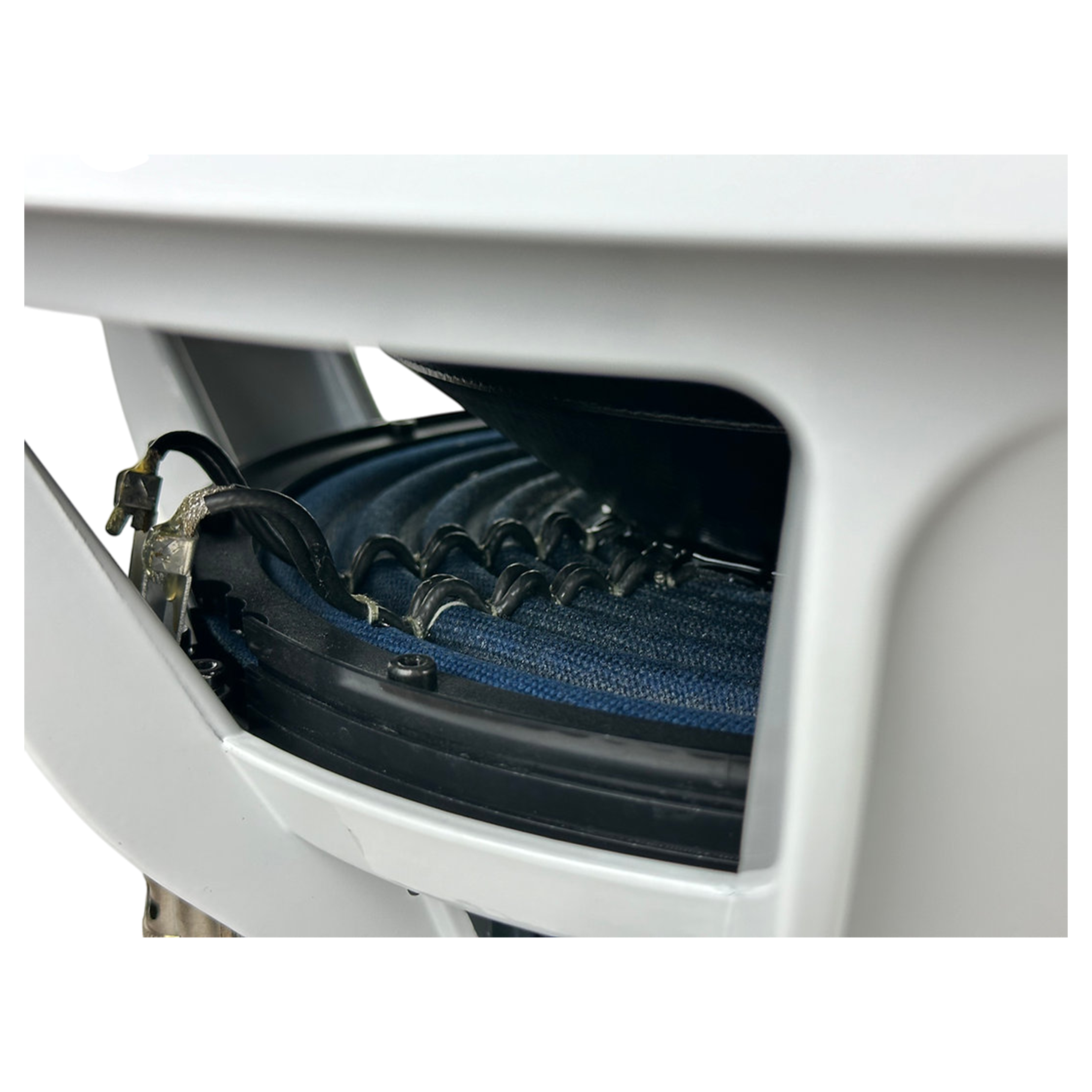

| Spider / Leads |
10" Spider Pack with Insulated Dual Leads |

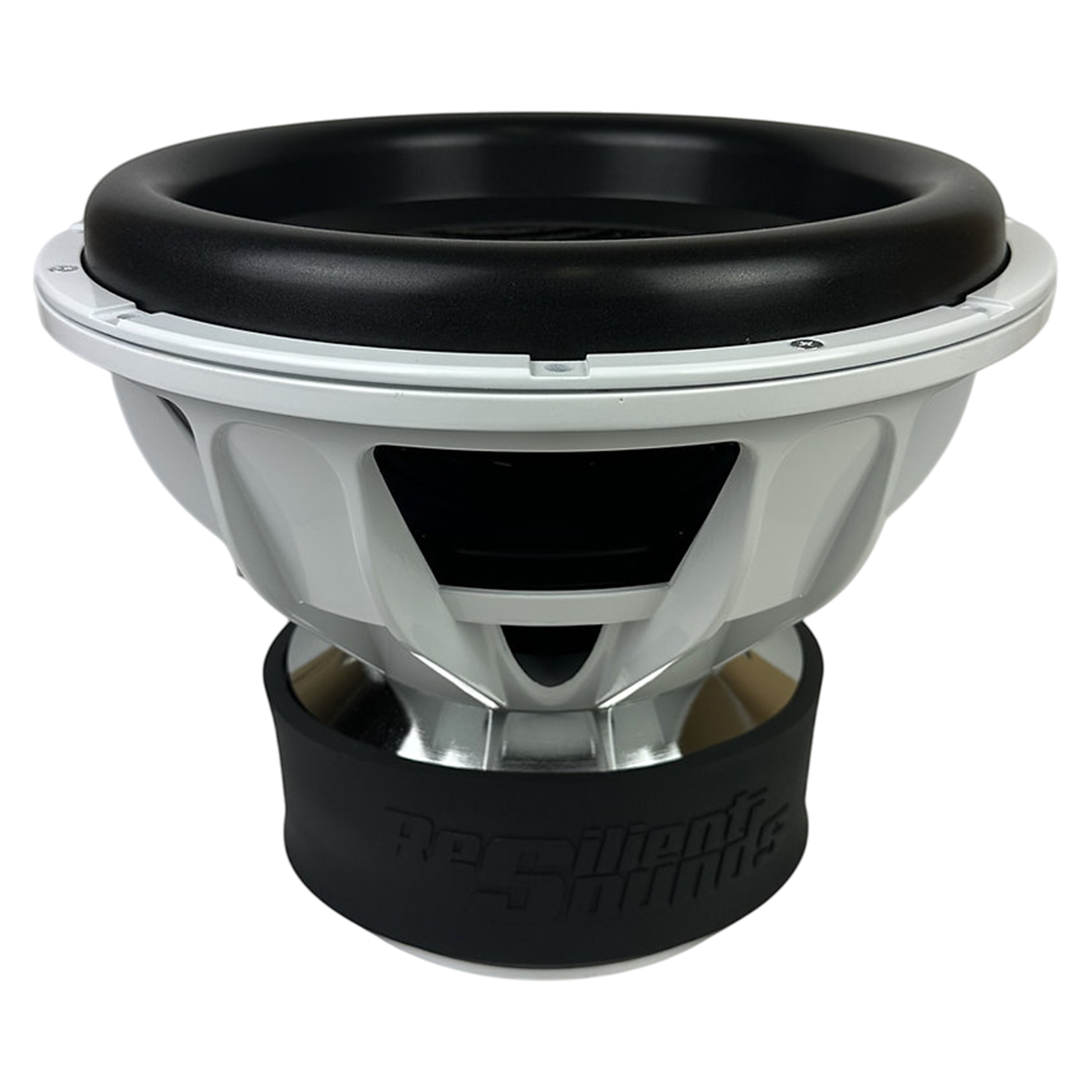

| Frame/Basket |
Cast Aluminum Frame |
RECOMMENDED ENCLOSURE SPECIFICATIONS
| Internal Volume (Cubic Ft) |
2.5 - 3.5 CU FT |
| Tuning Frequency |
28 - 33 HERTZ |
| Port Area |
12 - 16 SQ INCHES OF PORT AREA PER CUBIC FT |
| Mounting Depth |
11.25 INCHES |
| Cutout Diameter |
14.2363 INCHES |
| Displacement |
0.28 CUBIC FT |
