Description
Extreme Power and Precision in a Compact Design

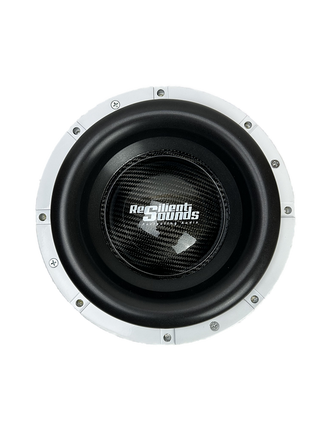

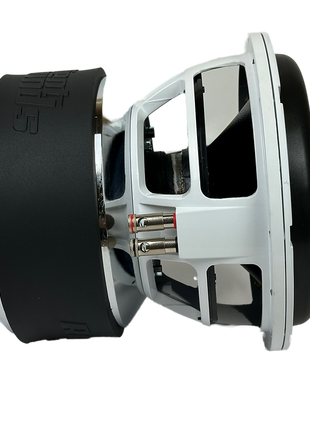

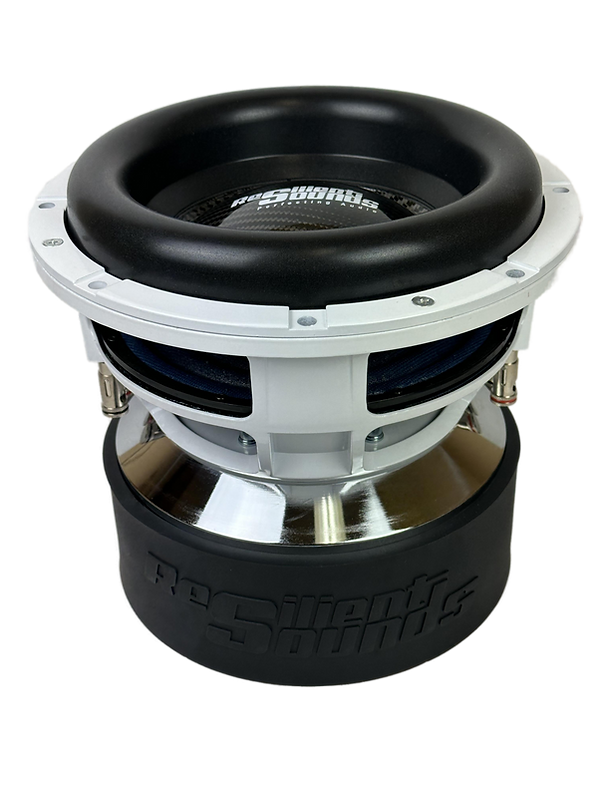

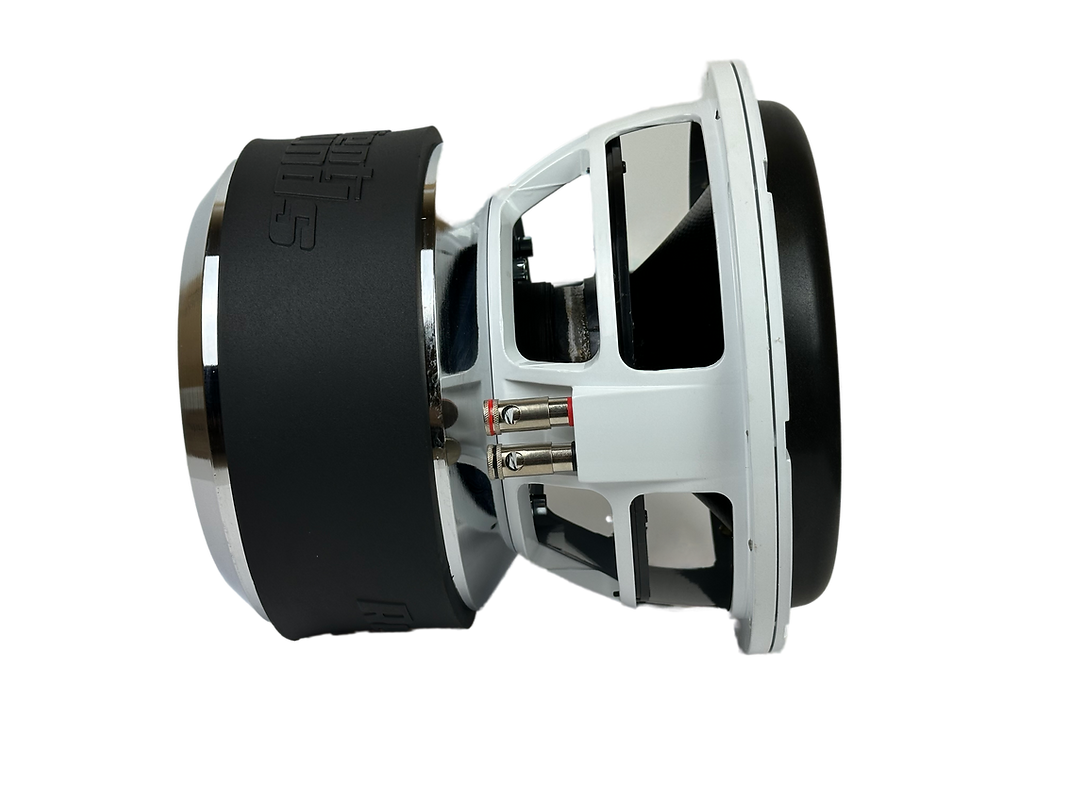

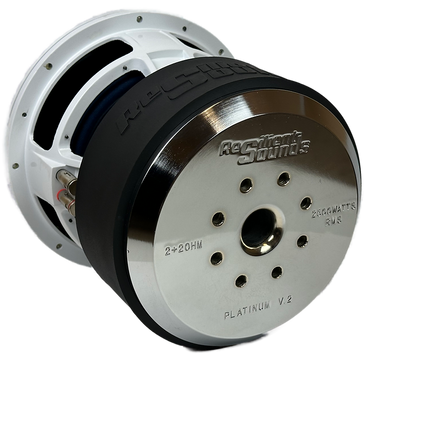

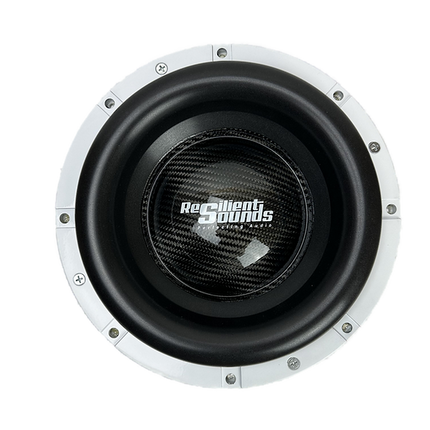

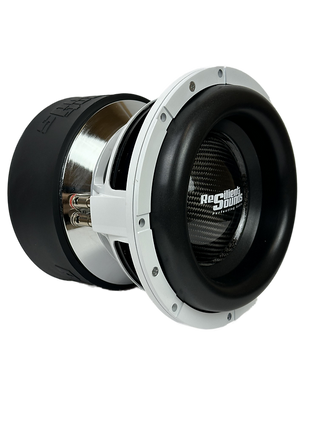

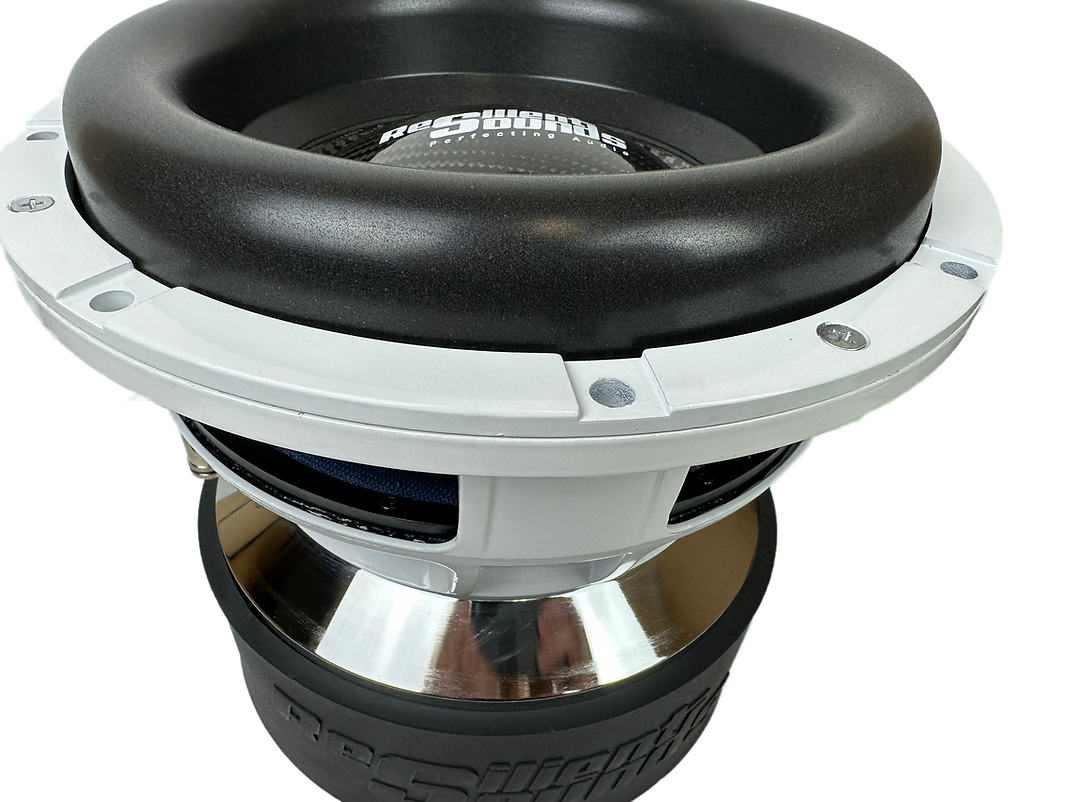

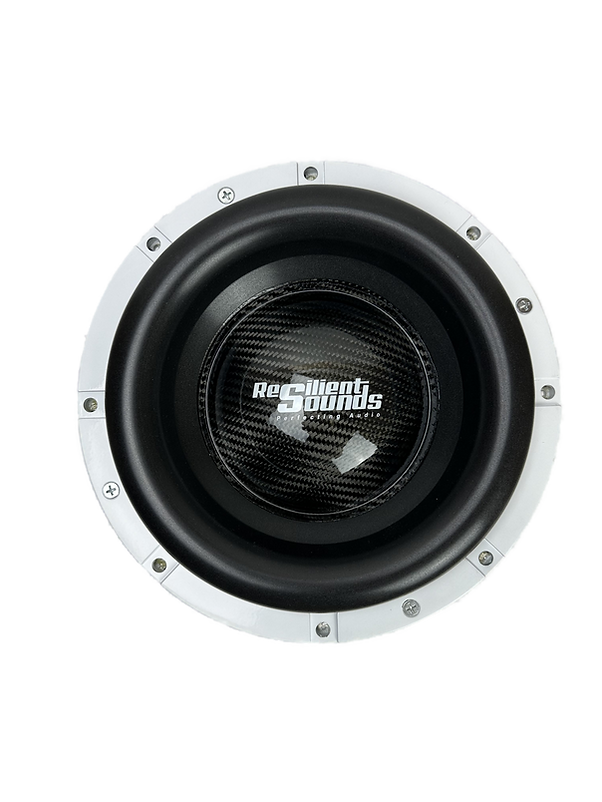

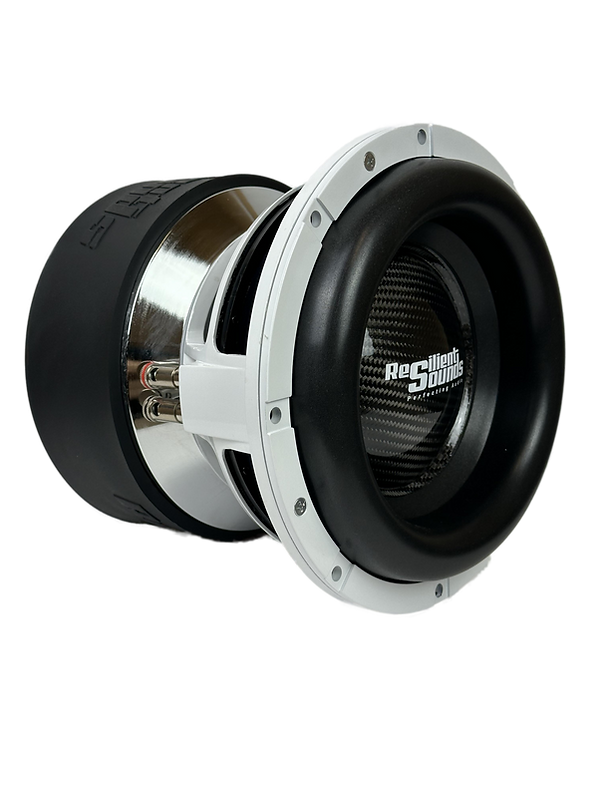

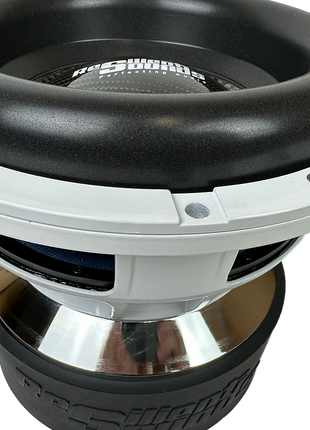

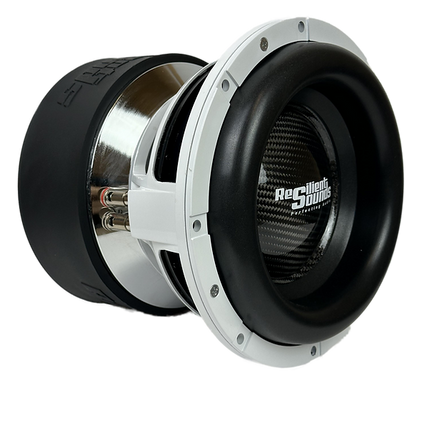

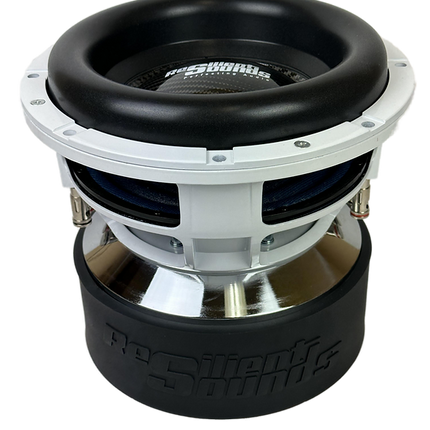

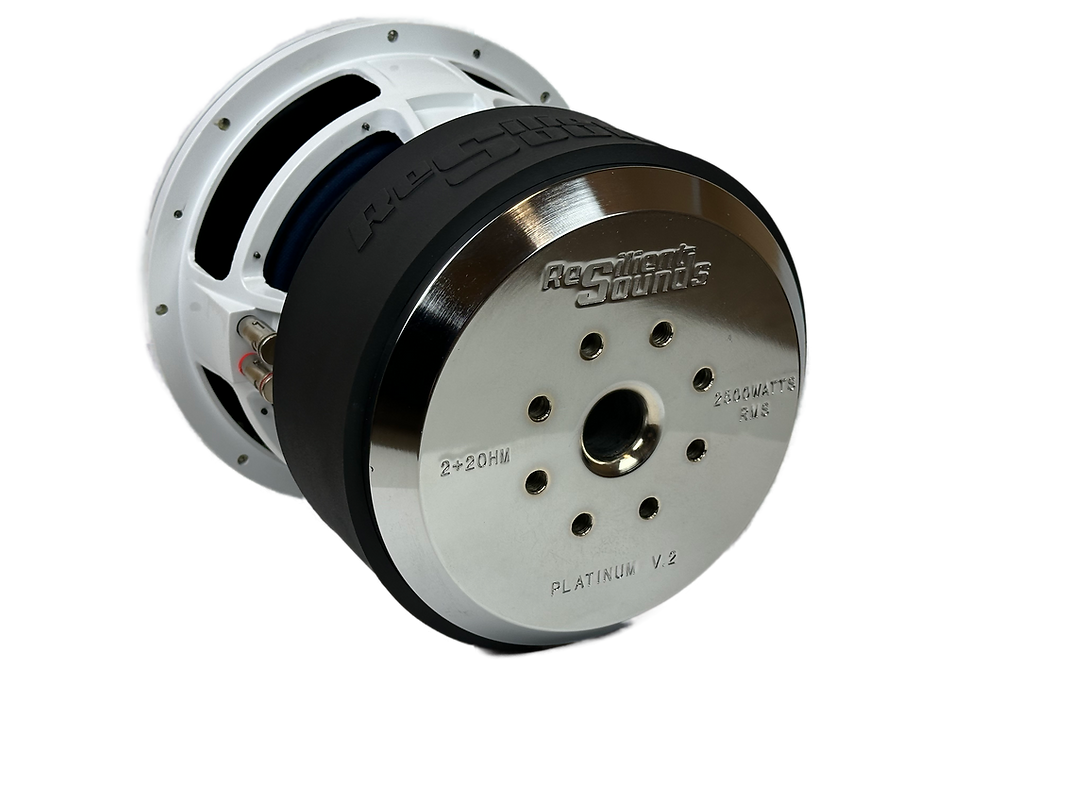

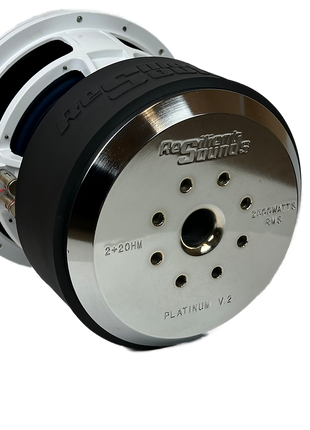

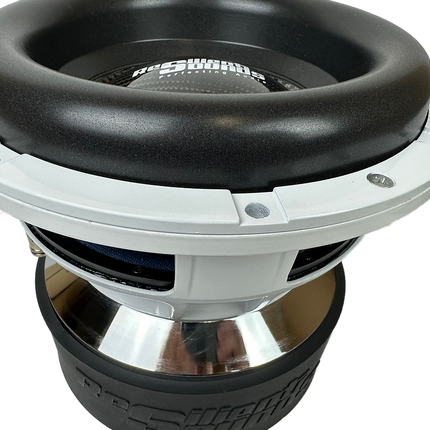

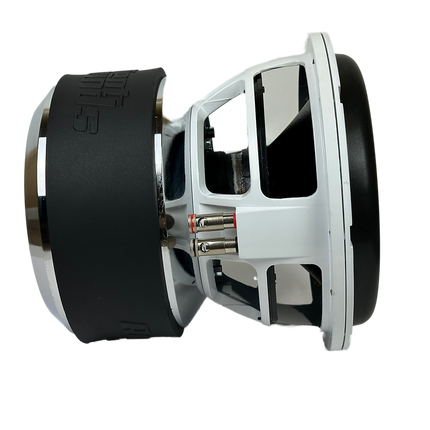

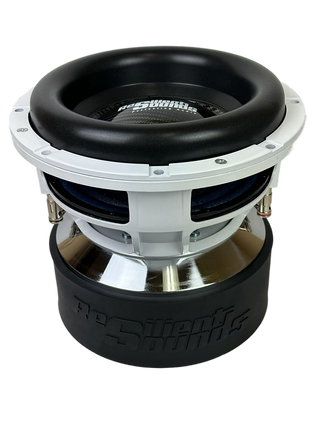

The Resilient Sounds PLATINUM V2 10" D2 is engineered for extreme power handling and sound quality, representing the next evolution of Resilient Sounds' high-end line. Conservatively rated at 2,500W RMS (5,000 Watts Peak), this 10-inch subwoofer features an XL triple-stacked motor and a 20% longer 3-inch 8-layer voice coil for superior thermal management and motor strength, yielding an increase of up to 50% in the motor's force factor compared to the V1. The Dual 2 Ohm impedance is perfectly suited for high-powered systems, allowing for a 1 Ohm or 4 Ohm final load. With a 35mm XMAX and a durable carbon fiber cone, the Platinum V2 delivers clean, aggressive bass that pushes the limits of a 10-inch driver.
TECHNICAL SPECIFICATIONS
| Specification |
Detail |
| Model |
Platinum 10 V2 |
| Nominal Impedance |
Dual 2 Ohm (D2) |
| RMS Power Handling (Conservative) |
2,500 Watts |
| Peak Power Handling |
5,000 Watts |
| Maximum Excursion (XMAX) |
35MM |
| Voice Coil |
3-inch 8 Layer (20% Longer than V1) |
| Motor Structure |
XL Triple Stacked Motor |
| Cone / Dust Cap |
Carbon Fiber |
| Surround |
New High Roll Tooled Surround |
| Spider / Leads |
8.5" Spider Pack with Insulated Dual Leads |
| Frame/Basket |
Cast Aluminum Frame |
RECOMMENDED ENCLOSURE SPECIFICATIONS
| Internal Volume (Cubic Ft) |
1.5 - 2.25 CU FT |
| Tuning Frequency |
28 - 33 HERTZ |
| Port Area |
12 - 16 SQ INCHES OF PORT AREA PER CUBIC FT |
| Mounting Depth |
9.125 INCHES |
| Cutout Diameter |
9 7/16 INCHES |
| Displacement |
0.22 CU FT |
