Optimized Low-Impedance Bass Power

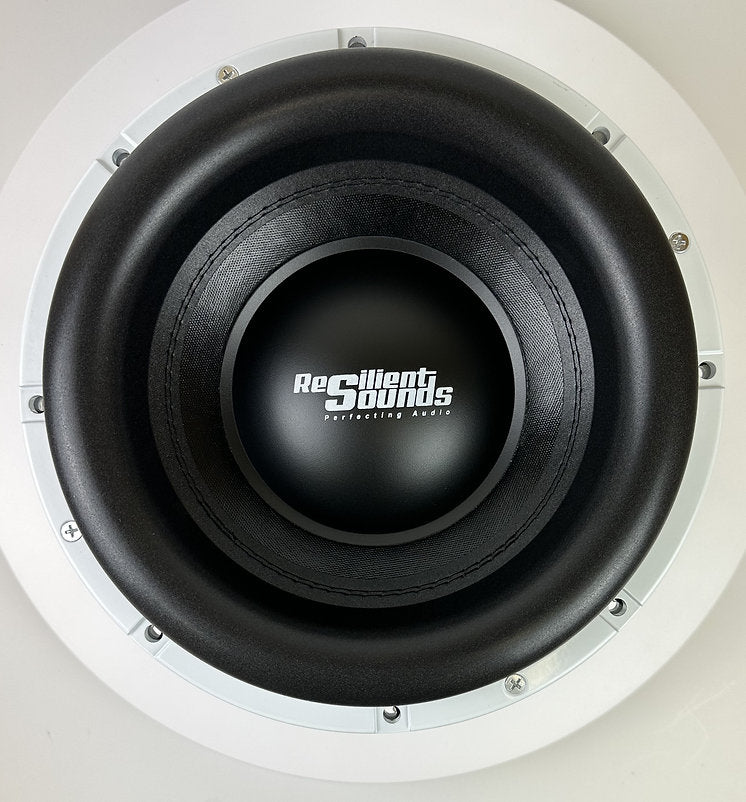

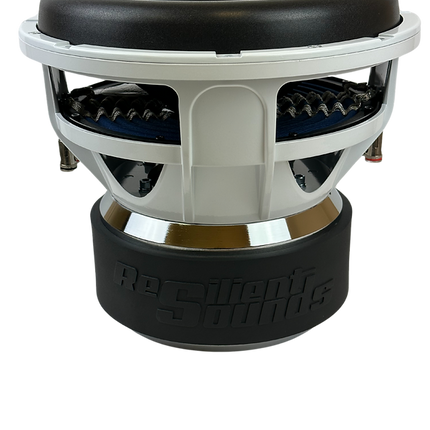

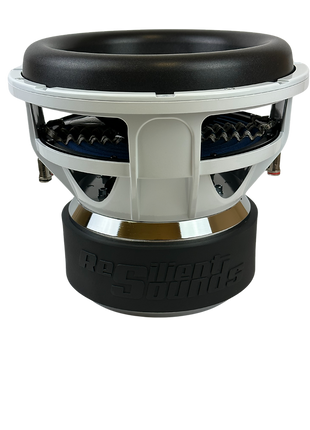

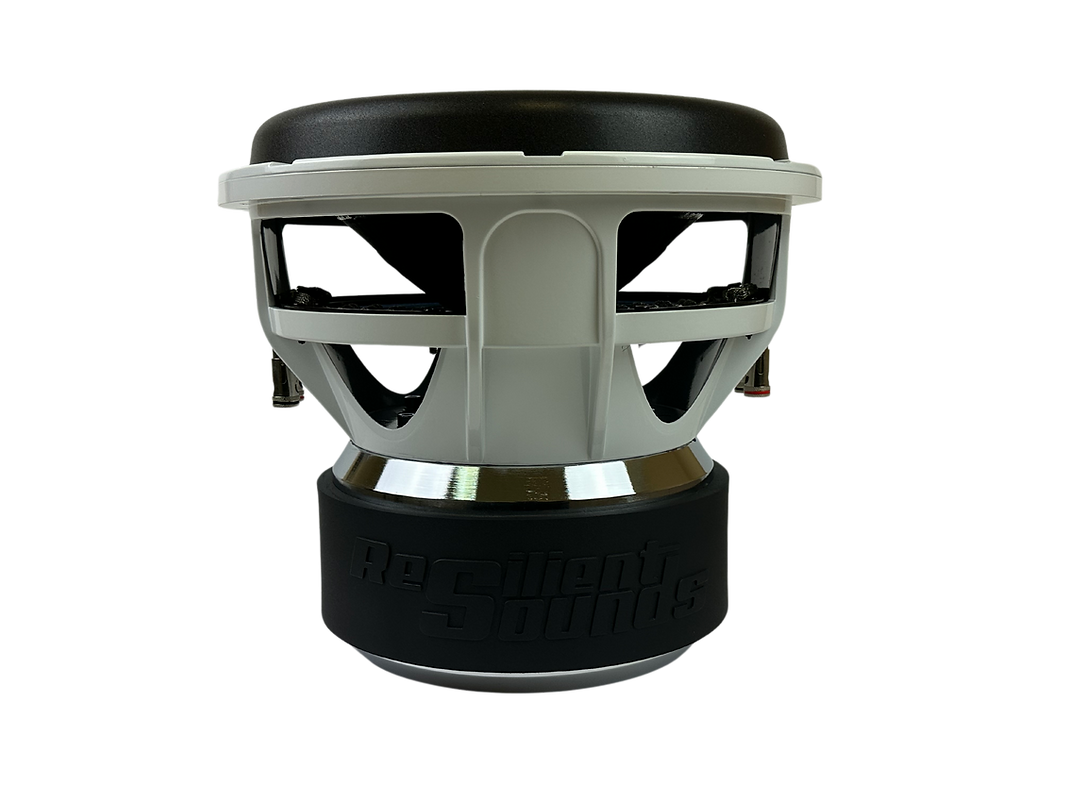

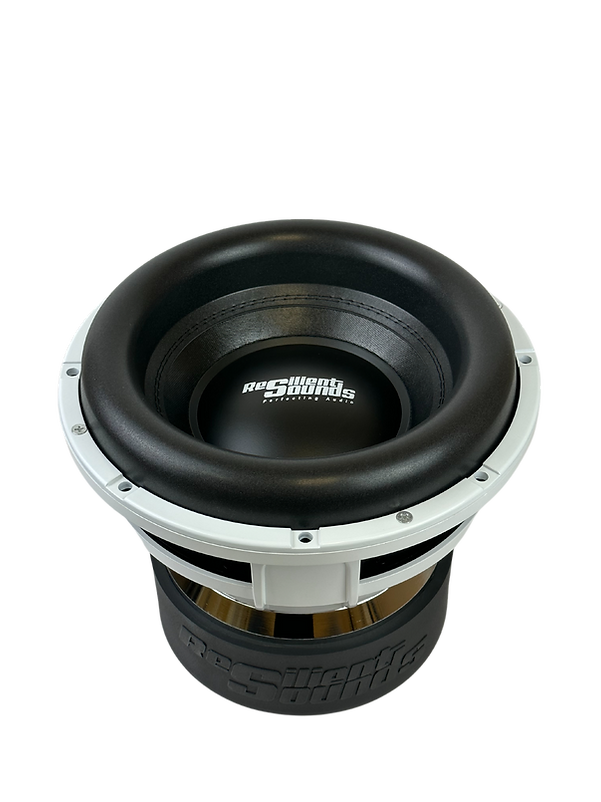

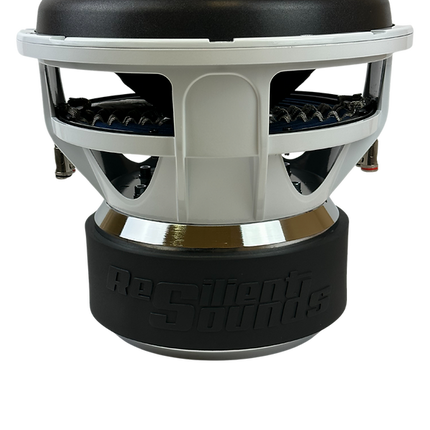

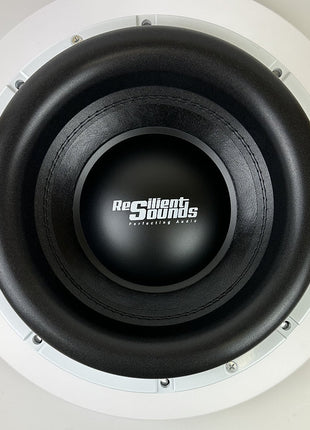

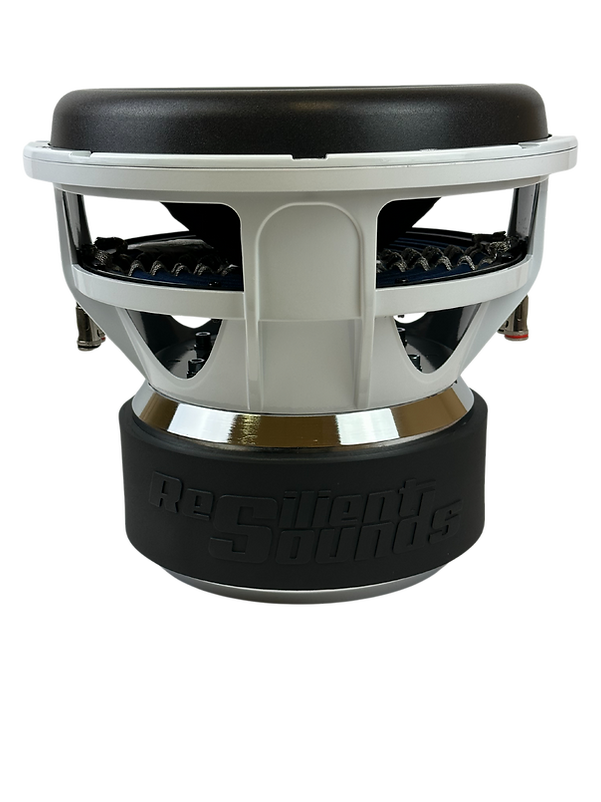

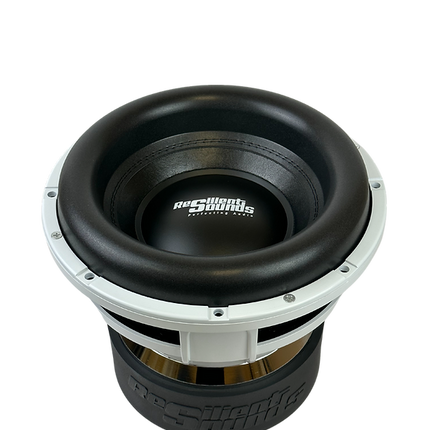

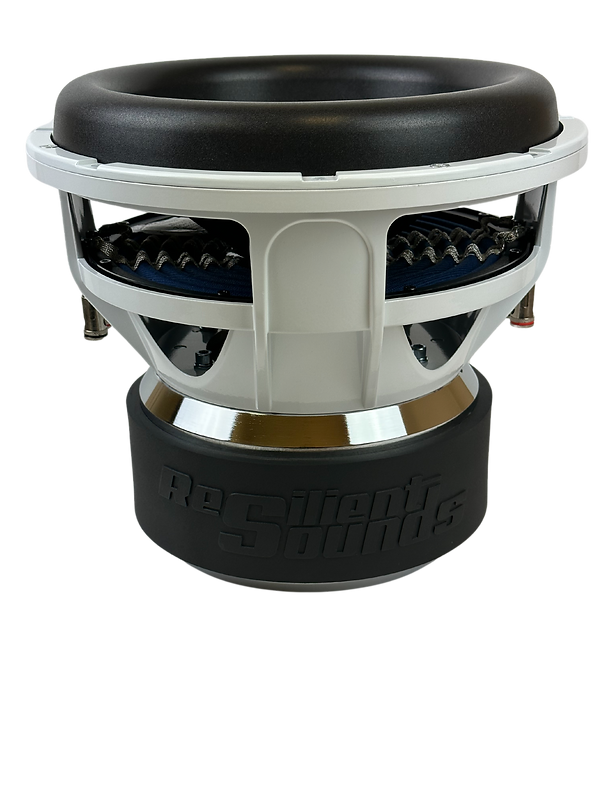

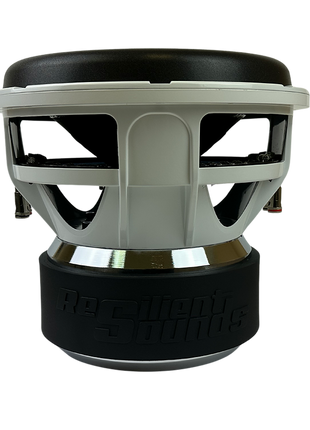

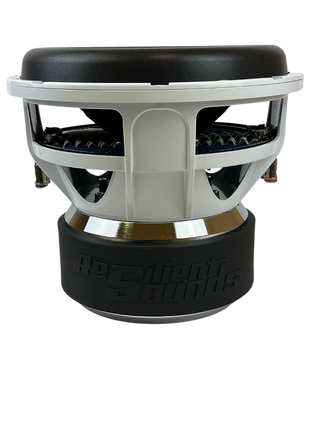

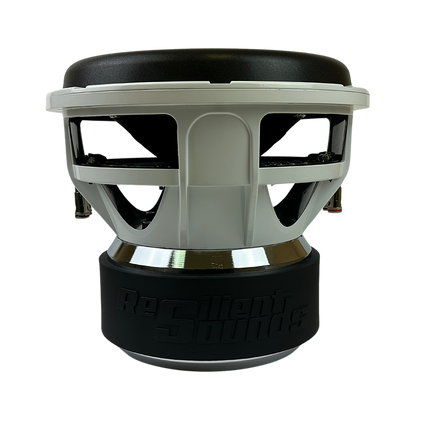

The Resilient Sounds GOLD V2 12" D2 is the premier choice for maximizing output when paired with 1 Ohm-stable amplifiers. This 12-inch powerhouse maintains the conservative 1500W RMS rating and features the same high-performance components: a 3-inch 4-layer voice coil, a 220mm triple-stack motor, and a huge 31mm XMAX. The Dual 2 Ohm voice coil configuration is ideal for achieving a final load of 1 Ohm (single amplifier to multiple subs) or 4 Ohms (single subwoofer), making it a high-efficiency solution for competitive and daily driven systems alike.
TECHNICAL SPECIFICATIONS
| Specification |
Detail |
| Model |
Gold V2 12" |

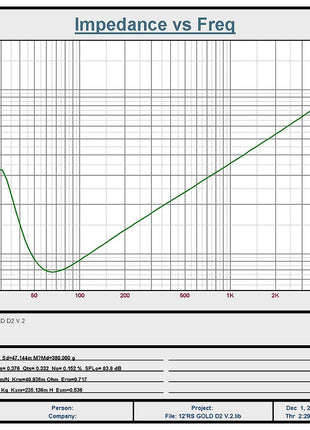

| Nominal Impedance |
Dual 2 Ohm (D2) |
| RMS Power Handling (Conservative) |
1500 Watts |
| Maximum Excursion (XMAX) |
31MM |
| Voice Coil |
3-inch 4 Layer (25% Longer than V1) |
| Motor Structure |

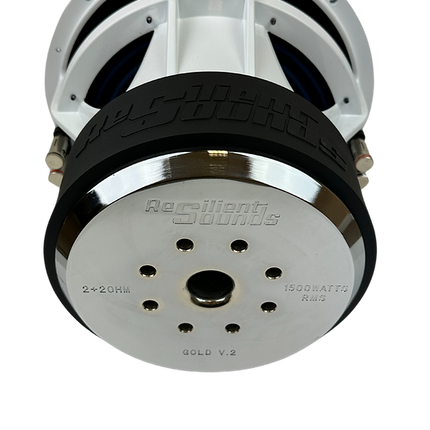

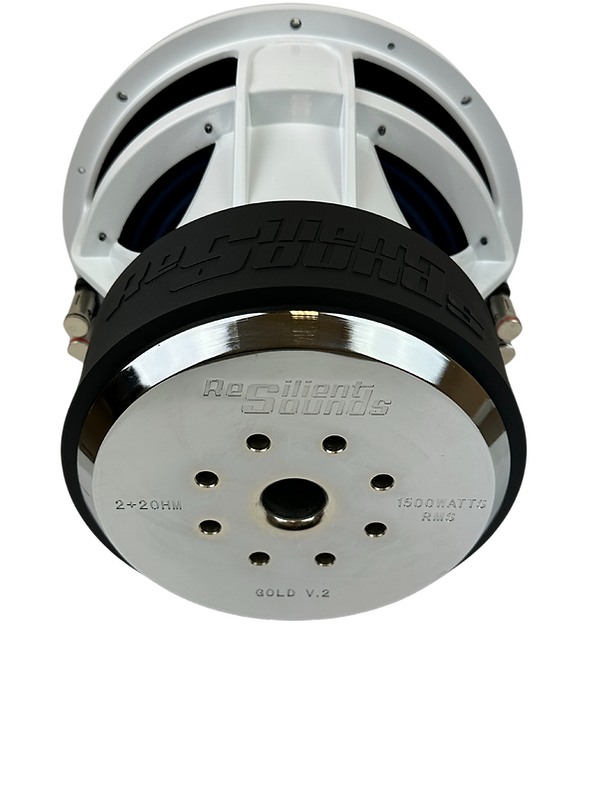

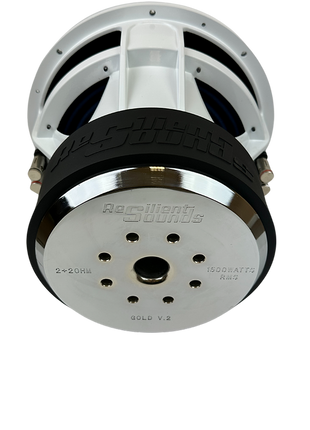

Triple Stack 220mm Motor with Venting (15% Larger than V1), Engraved Bottom Plate, Molded Motor Boot |

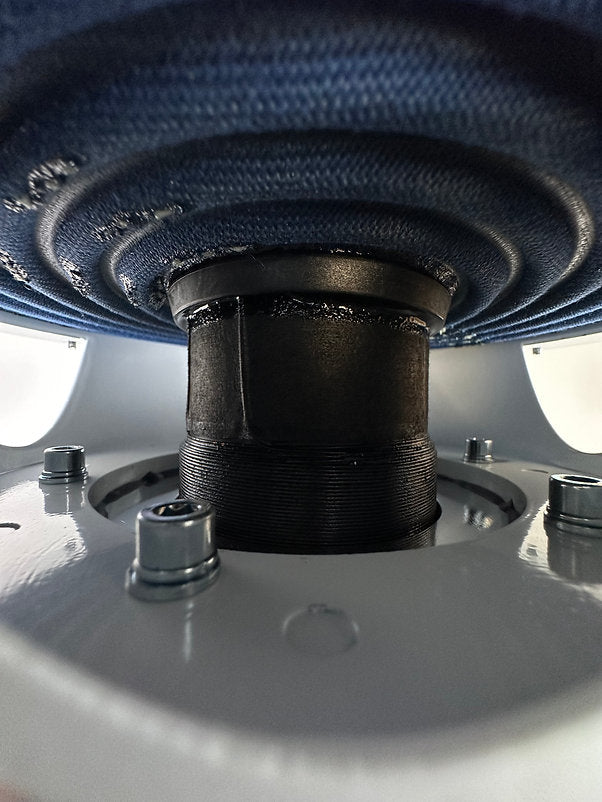

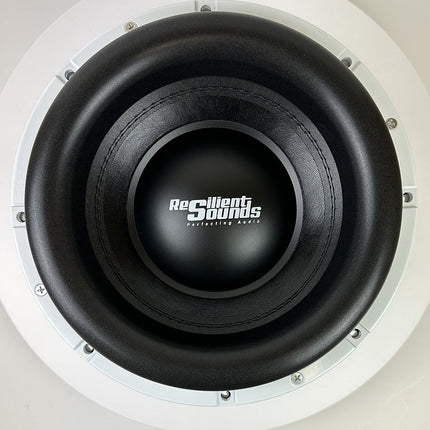

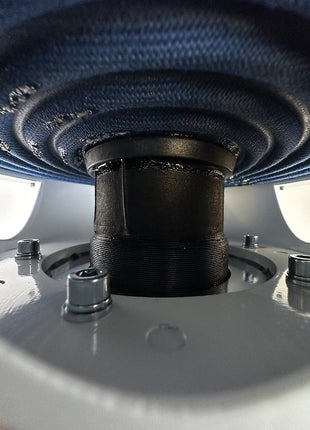

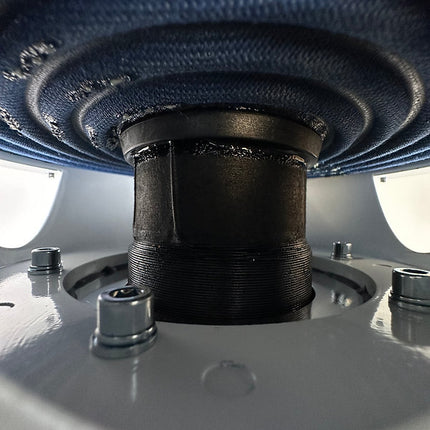

| Surround / Spider |

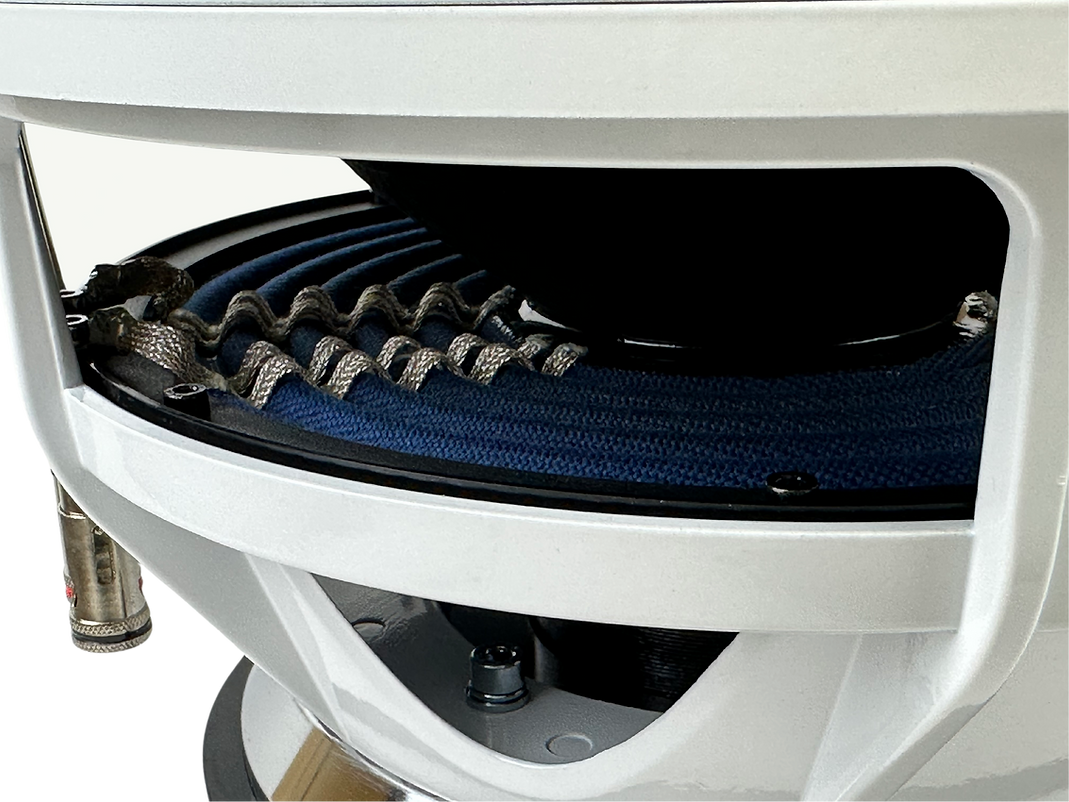

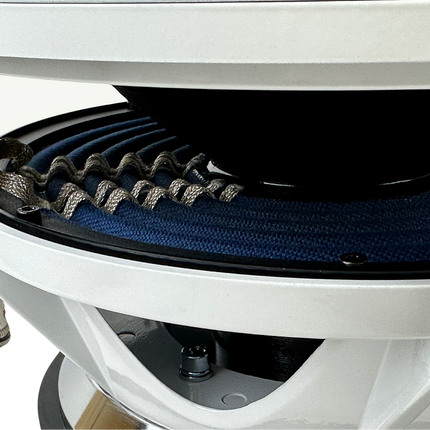

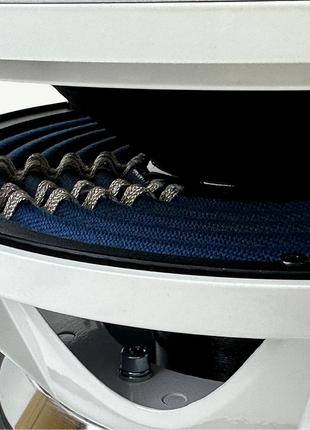

NEW High Roll Tooled Surround, 10" Spider Pack with Dual Sewn Leads |
| Frame/Basket |
Cast Aluminum Frame |
| Terminals |
4 Ga Push Terminals |
| Gasket |
Aluminum Gasket |
| Shorting Ring |
Aluminum |
| Available Sizes |
10", 12", 15", and 18" |
RECOMMENDED ENCLOSURE SPECIFICATIONS
| Internal Volume (Cubic Ft) |
1.75 - 2.75 CU FT |
| Tuning Frequency |
29 - 33 HERTZ |
| Port Area |
12 - 16 SQ INCHES OF PORT AREA PER CUBIC FT |
| Mounting Depth |
9.125 INCHES |
| Cutout Diameter |
11.175 INCHES |
| Displacement |
0.20 CU FT |
| Outside Diameter |
12 5/32 INCHES |
