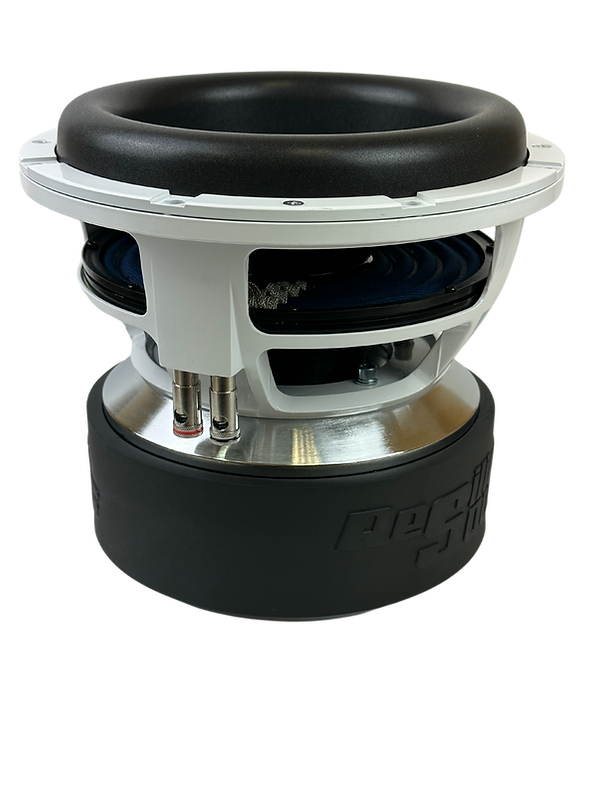

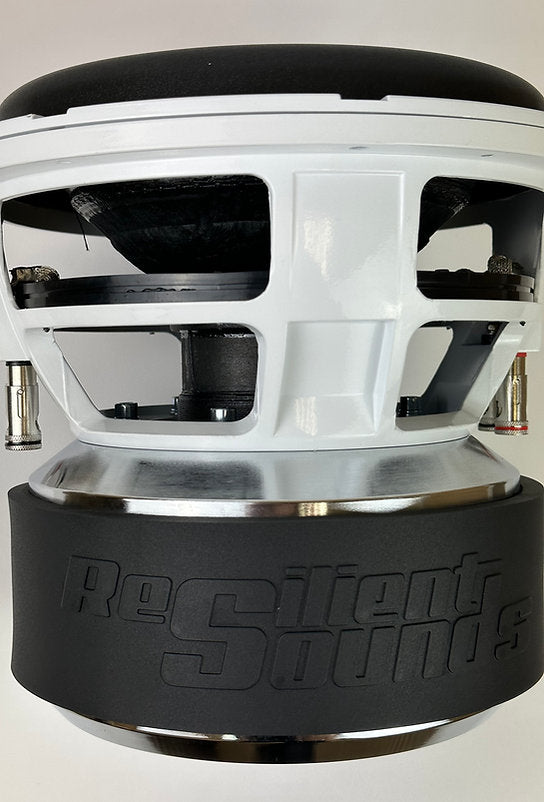

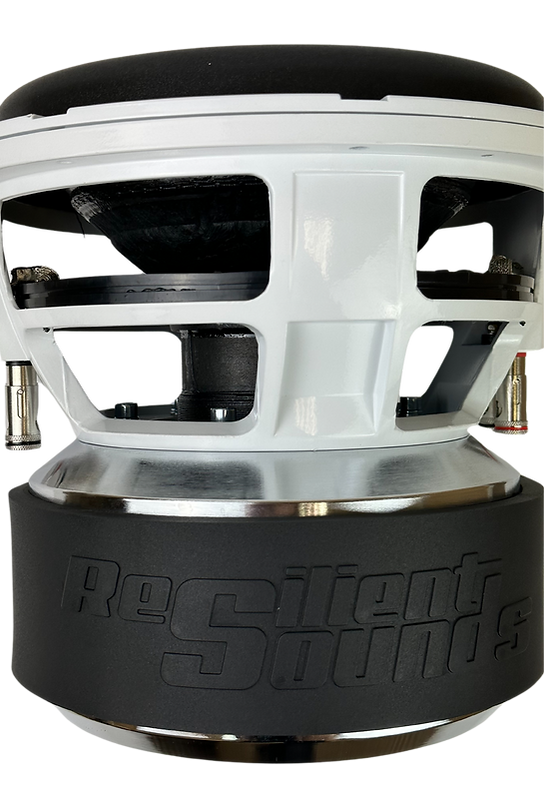

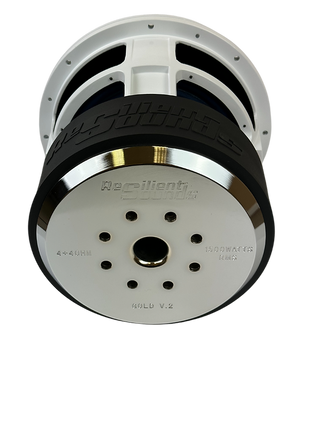

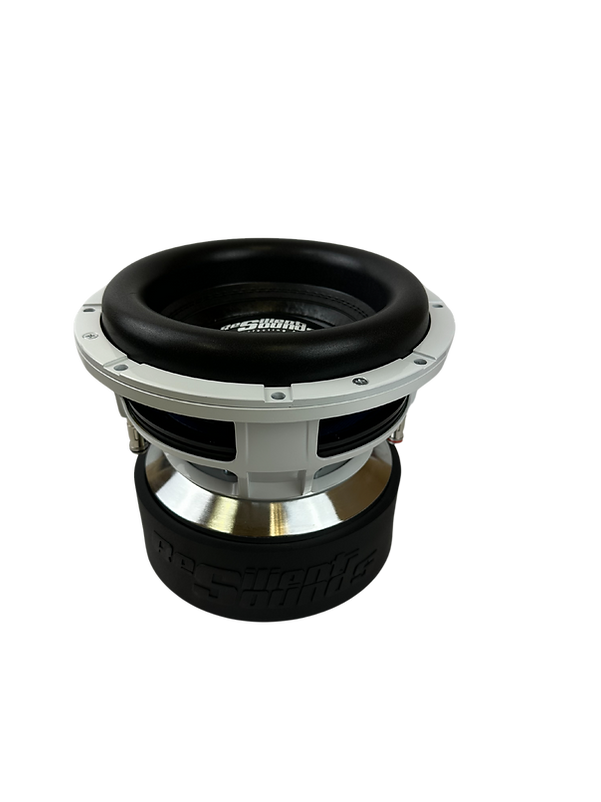

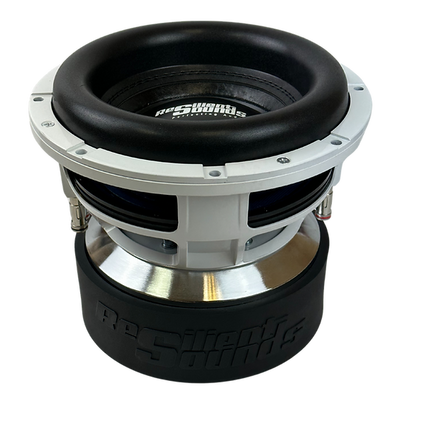

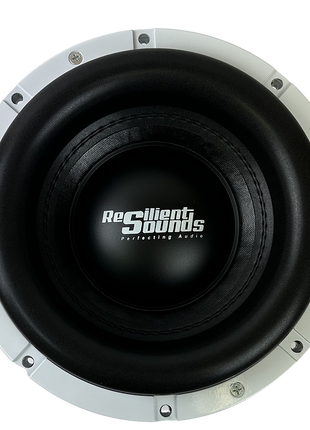

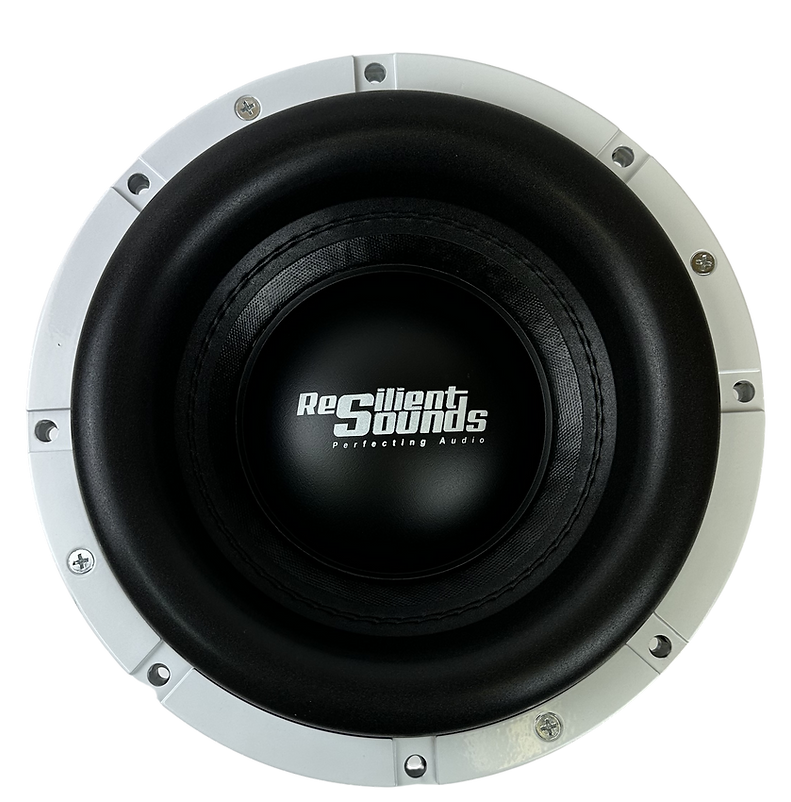

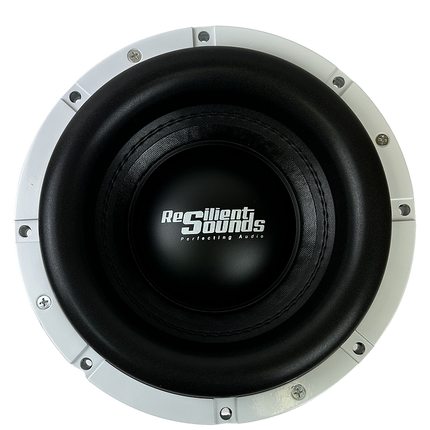

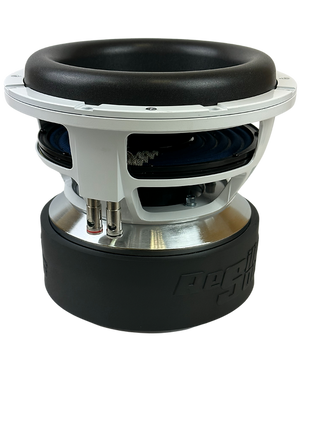

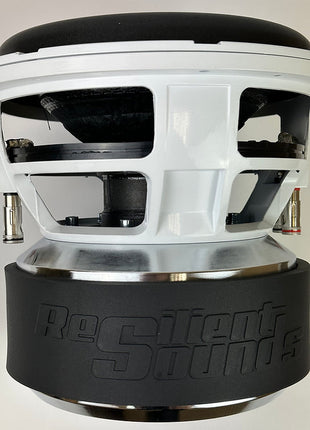

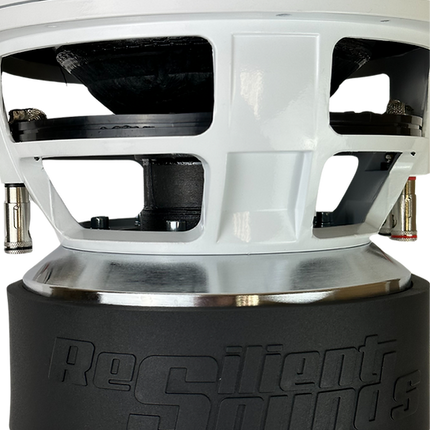

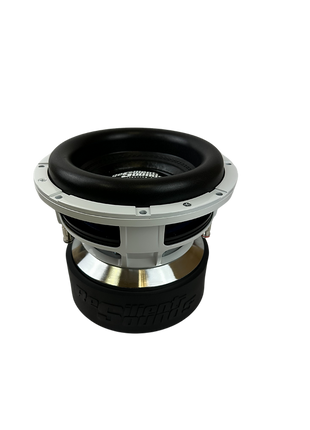

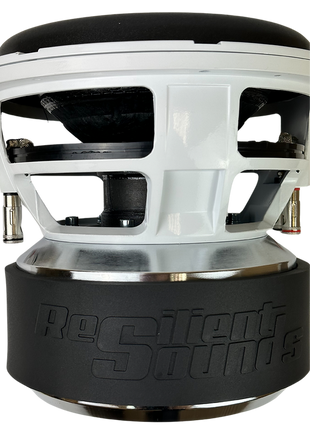

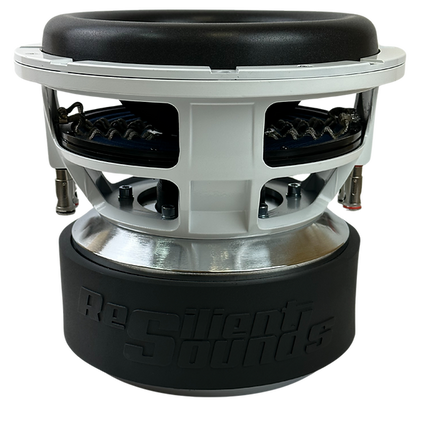

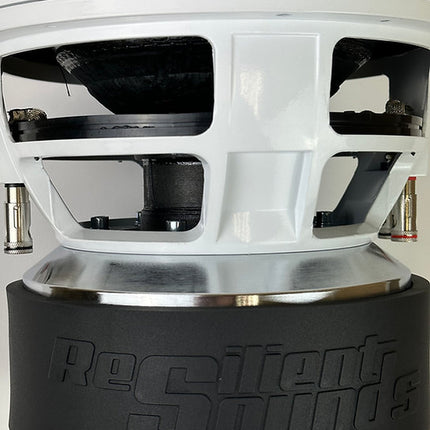

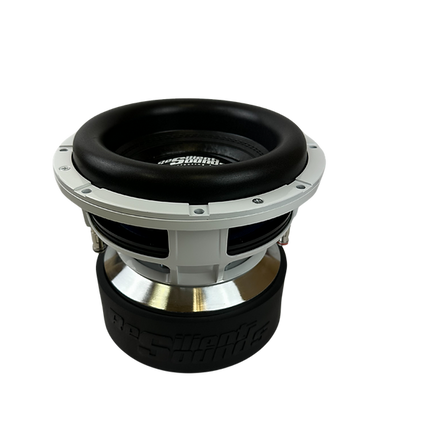

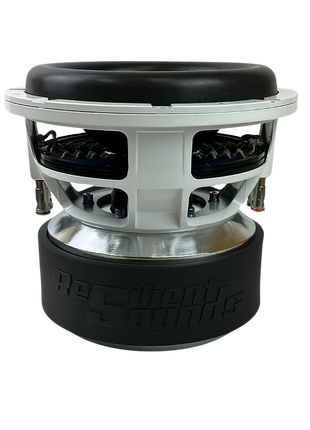

RESILIENT SOUNDS GOLD V2 10" DUAL 4 OHM (D4) SUBWOOFER
RESILIENT SOUNDS GOLD V2 10" DUAL 4 OHM (D4) SUBWOOFER
Unrivaled Power Density in a 10-Inch Frame The Resilient Sounds GOLD V2 10" D4 subwoofer is a compact powerhouse, packing... Read more
$429.99
- Free shipping in the contiguous USA on all orders above $99
- Full Manufacturer Warranty On All Items
- No Hassle, Easy 30 Day Returns
- Price Match Guarantee. Lowest Prices Anywhere.
- REAL Audio Enthusiasts, Expert Support
| Specifications | Resilient Sounds Gold V2 10" D4 |
|---|---|
| Linear Excursion (Xmax) | 31 mm |
| Woofer Size | 10 in |
| Nominal Impedance | Dual 4 Ω |
| Voice Coil | 3 in, 4-layer |
| Mounting Depth | 8.25 in |
| Cutout Diameter | 9 7/16 in |
| Outside Diameter | 10 23/32 in |
| Displacement | 0.17 ft³ |

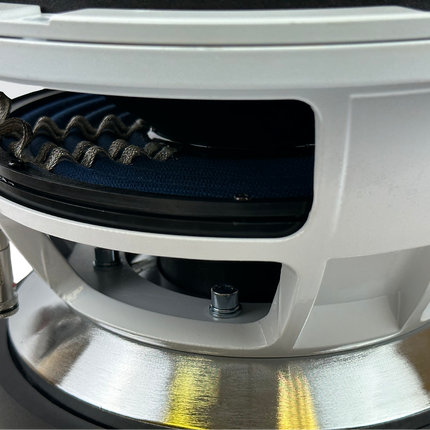

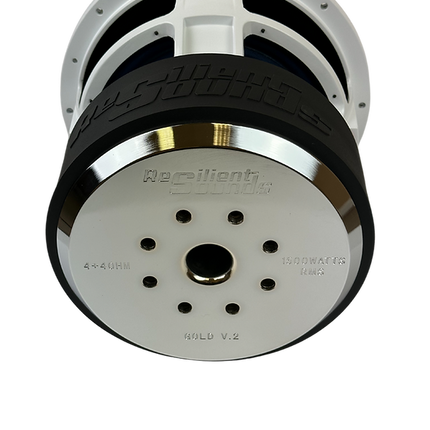

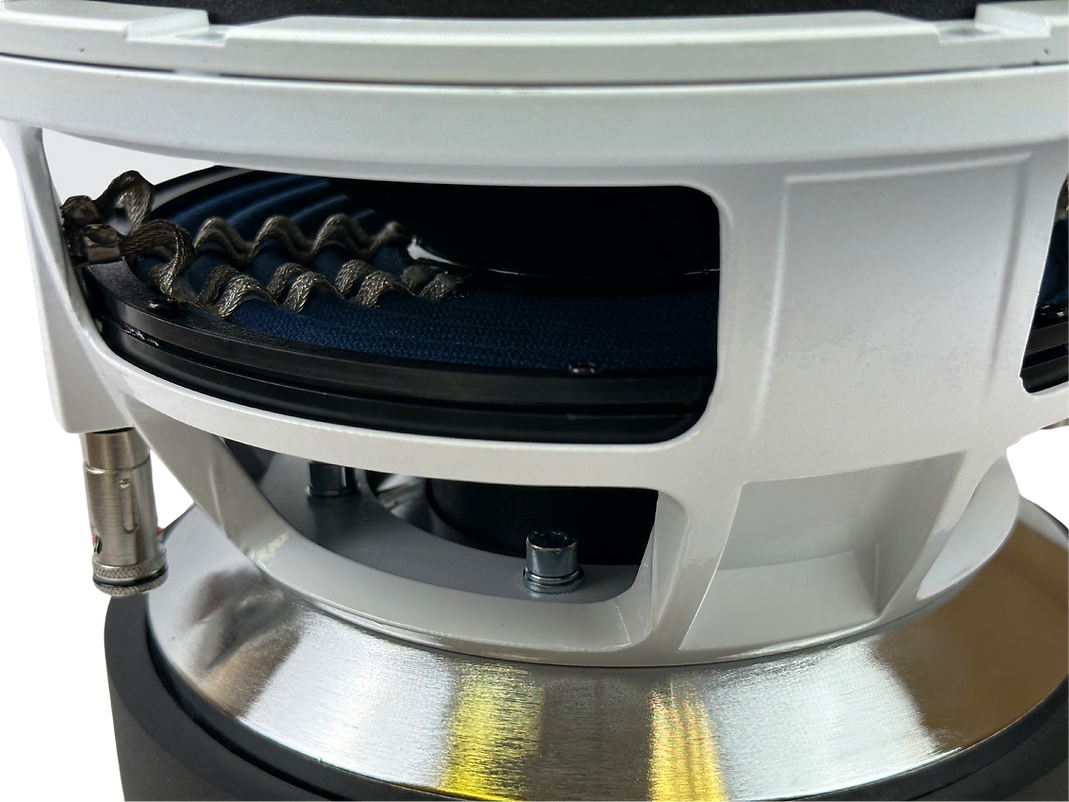

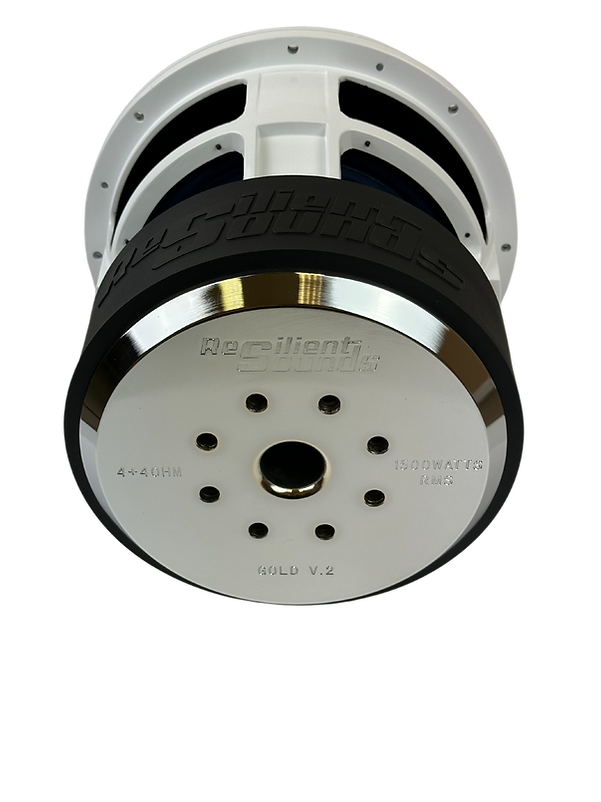

| Motor Structure | Triple-stack 220 mm vented, engraved bottom plate, molded boot |
| Frame / Basket | Cast aluminum |
| Surround | High-roll tooled |

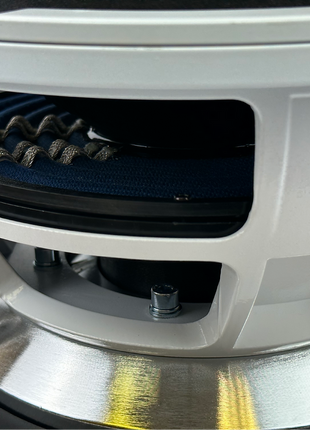

| Spider | 8.5 in pack, dual sewn leads |

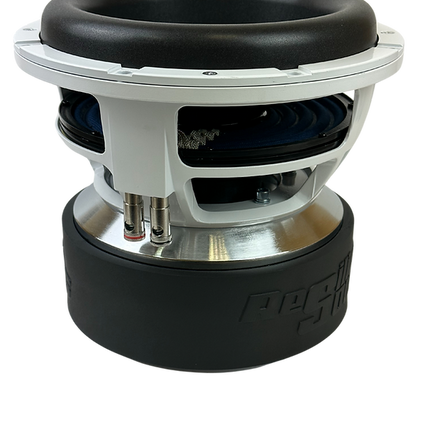

| Terminals | 4 Ga push |
| RMS Power Handling | 1500 W |
| Enclosure Specs | Resilient Sounds Gold V2 10" D4 |
|---|---|
| Recommended Internal Volume | 1.25 – 2 ft³ |
| Tuning Frequency | 28 – 32 Hz |
| Port Area | 12 – 16 in² per ft³ |
| Displacement | 0.17 ft³ |
