Description

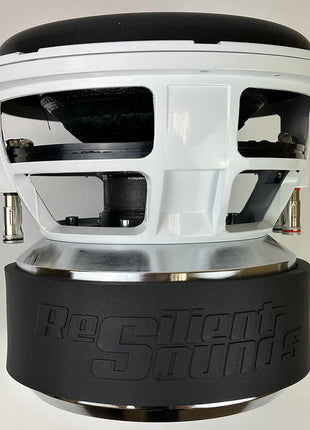

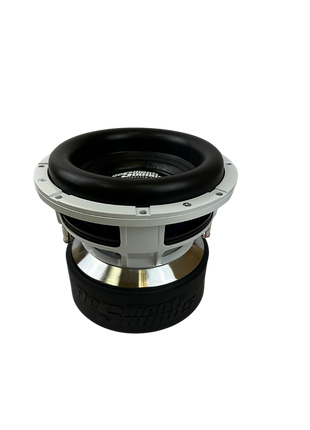

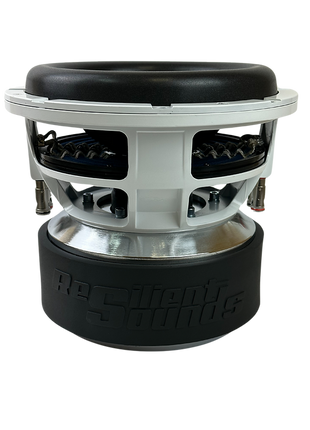

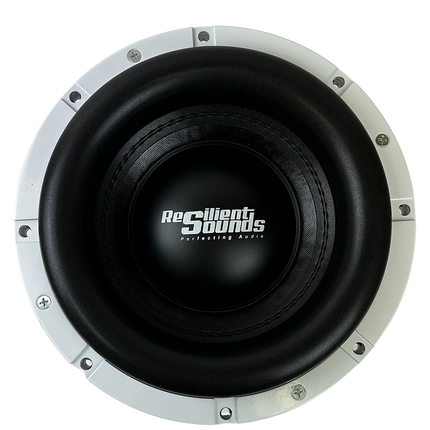

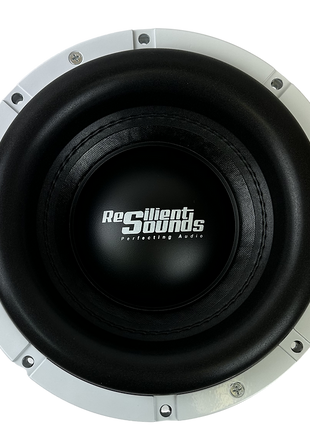

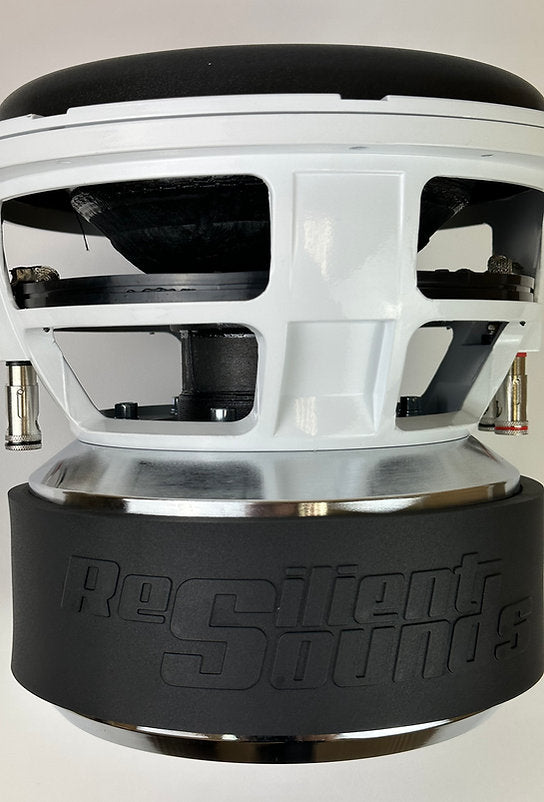

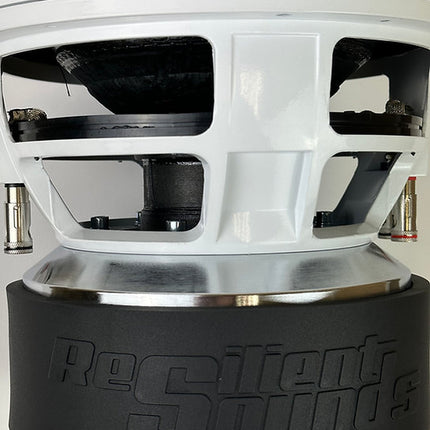

Low Impedance, High Impact 10-Inch Bass

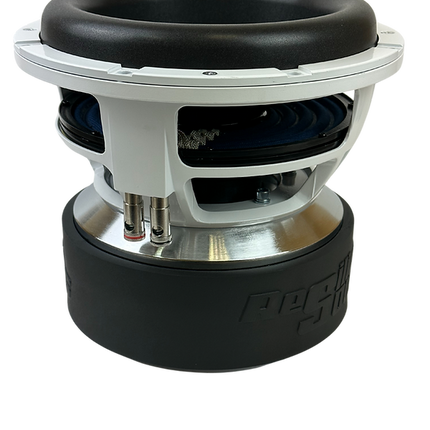

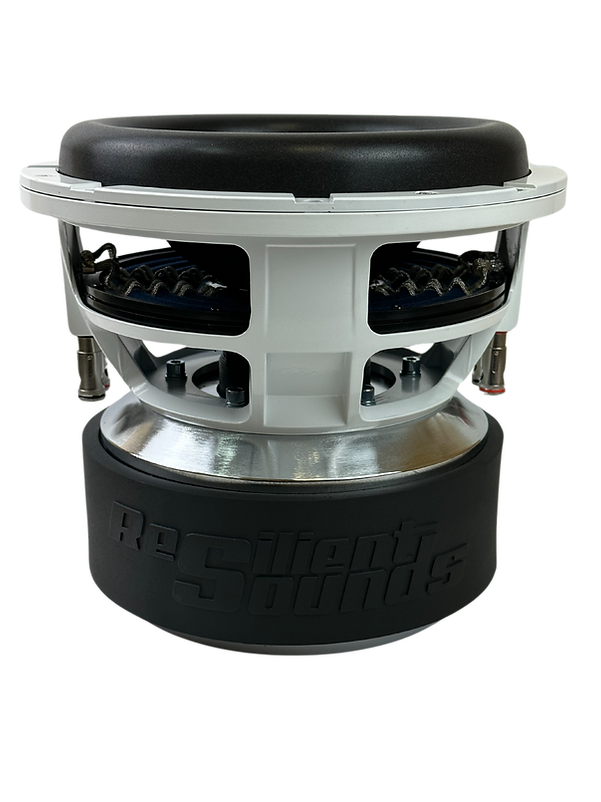

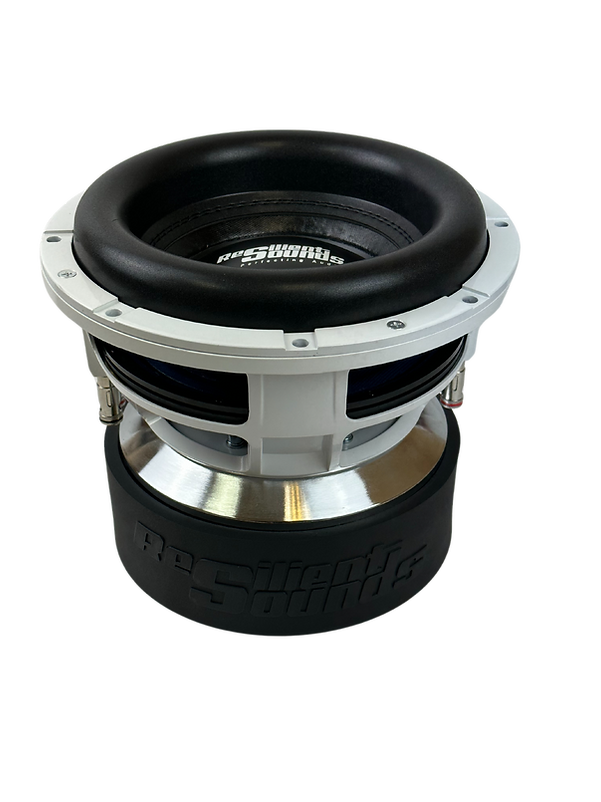

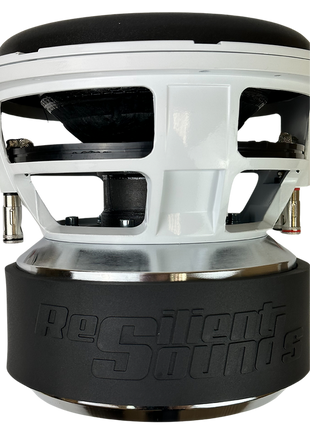

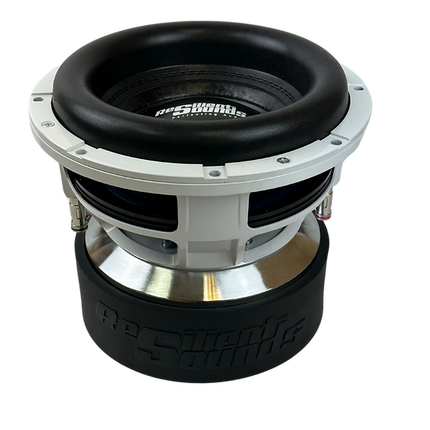

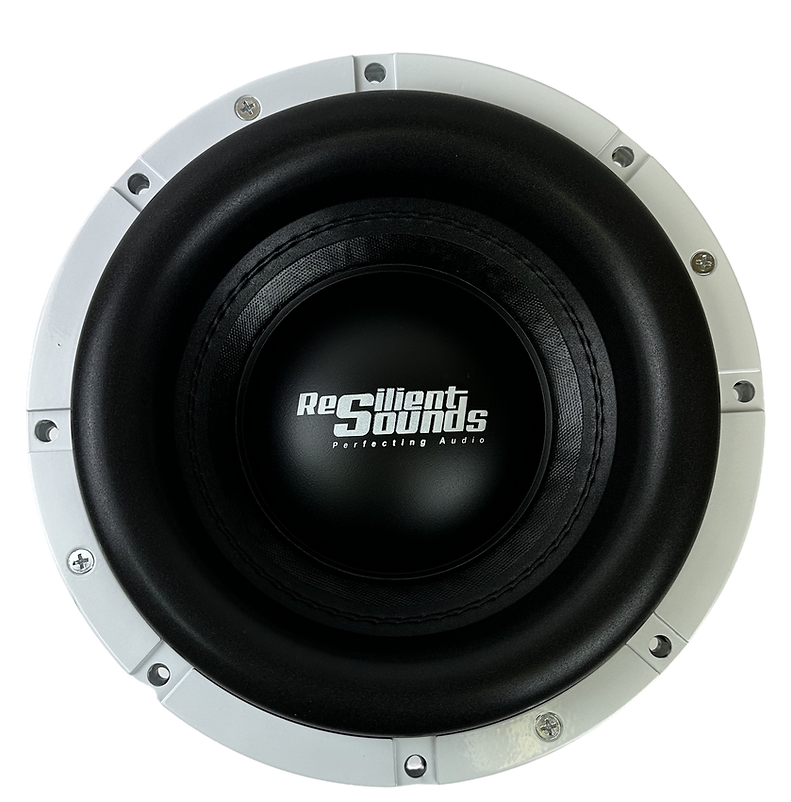

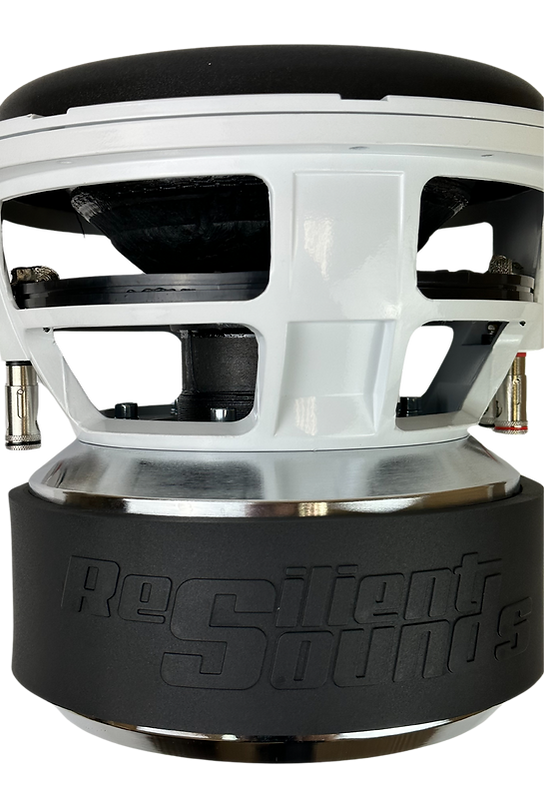

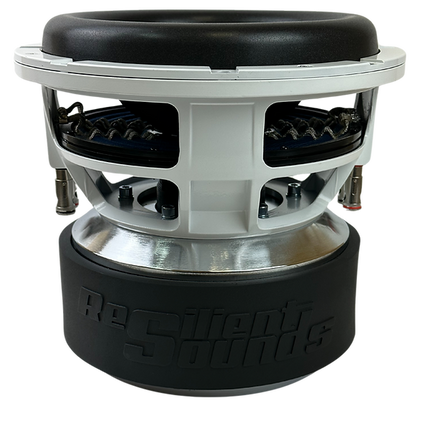

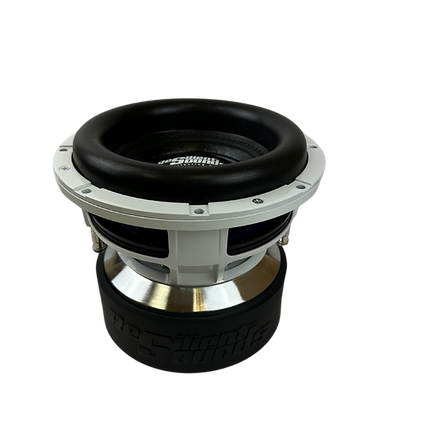

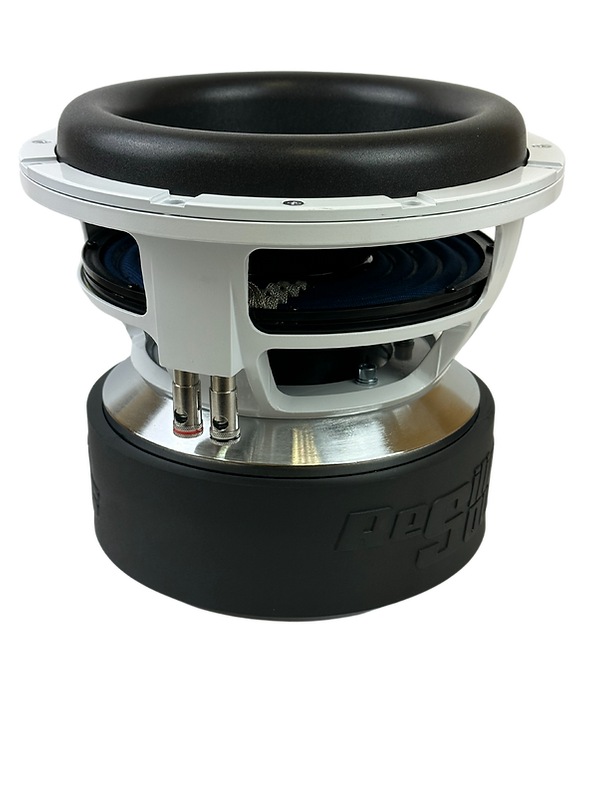

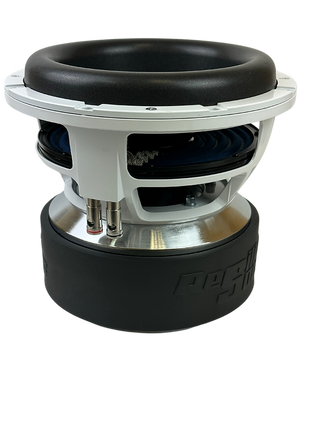

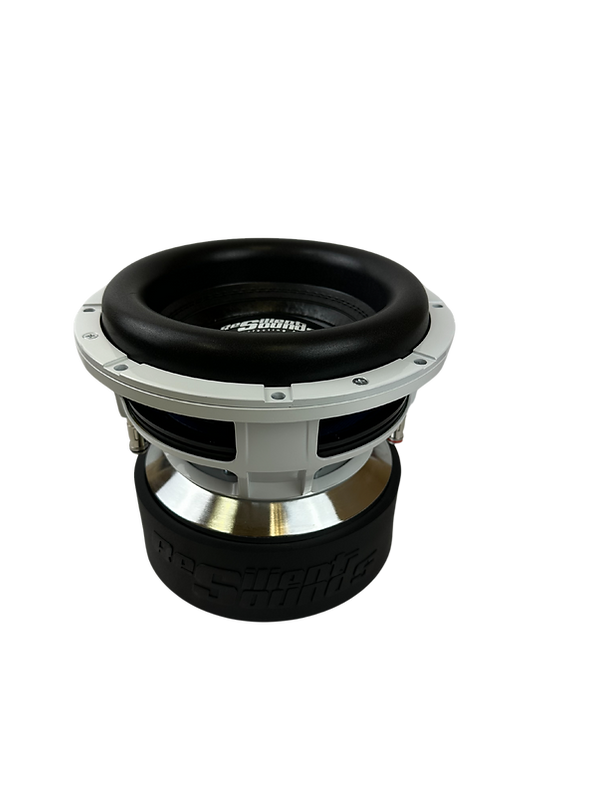

The Resilient Sounds GOLD V2 10" D2 is engineered for high-efficiency systems where a low final impedance is critical. With a conservative 1500W RMS rating and a monumental 31mm of XMAX, this 10-inch subwoofer delivers uncompromising bass performance. Its core features—including the triple-stacked 220mm motor and the 3-inch 4-layer voice coil—ensure it handles extreme power reliably. The Dual 2 Ohm voice coil is optimized for achieving a 1 Ohm final load when wired in parallel (or 4 Ohms in series), making it the perfect match for high-current, 1 Ohm-stable mono amplifiers.
TECHNICAL SPECIFICATIONS
| Specification |
Detail |
| Model |
Gold V2 10" |
| Nominal Impedance |
Dual 2 Ohm (D2) |
| RMS Power Handling (Conservative) |
1500 Watts |
| Maximum Excursion (XMAX) |
31MM |
| Voice Coil |
3-inch 4 Layer (25% Longer than V1) |
| Motor Structure |

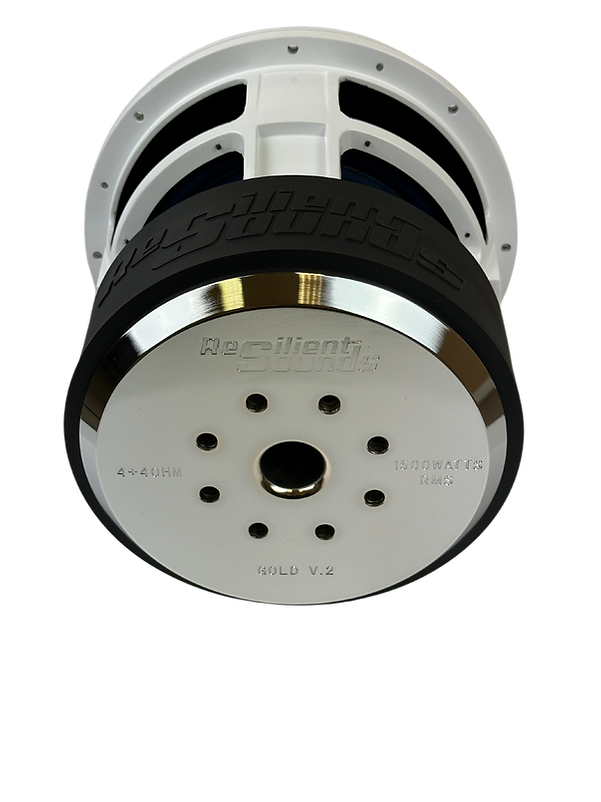

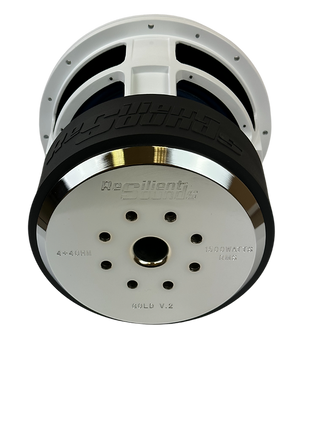

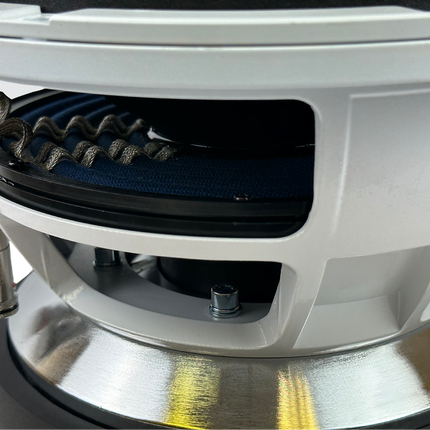

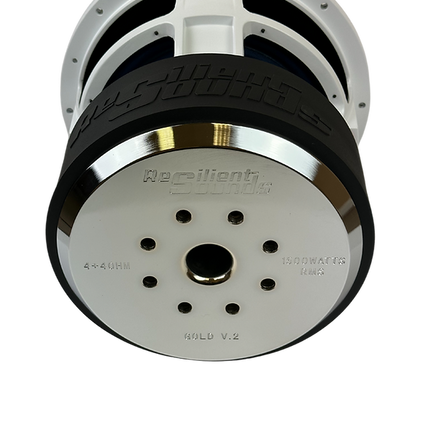

Triple Stack 220mm Motor with Venting (15% Larger than V1), Engraved Bottom Plate, Molded Motor Boot, Aluminum Shorting Ring |
| Surround / Spider |

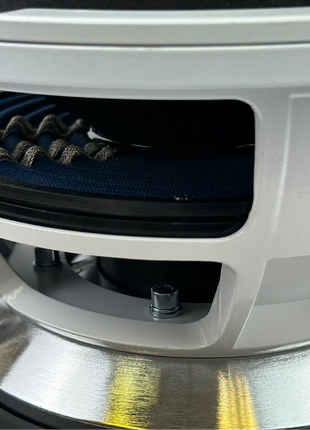

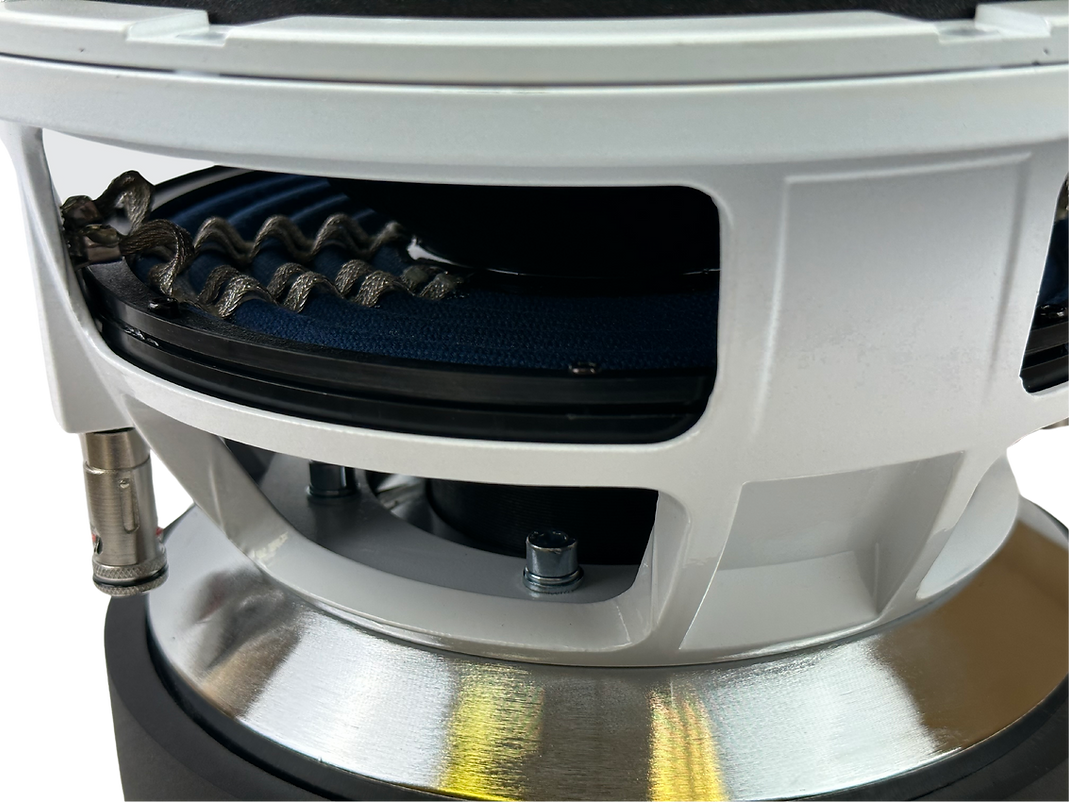

NEW High Roll Tooled Surround, 8.5" Spider Pack with Dual Sewn Leads |
| Frame/Basket |

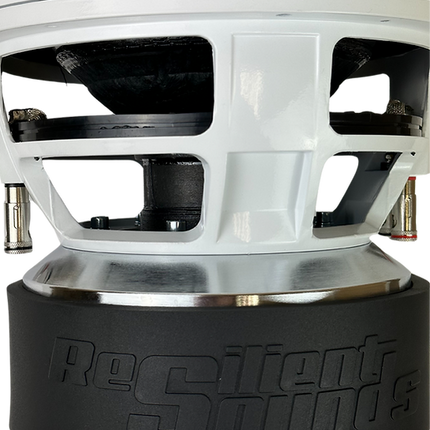

Cast Aluminum Frame |
| Terminals |
4 Ga Push Terminals |
| Gasket |
Aluminum Gasket |
| Available Sizes |
10", 12", 15", and 18" |
RECOMMENDED ENCLOSURE SPECIFICATIONS
| Internal Volume (Cubic Ft) |
1.25 - 2 CU FT |
| Tuning Frequency |
28 - 32 HERTZ |
| Port Area |
12 - 16 SQ INCHES OF PORT AREA PER CUBIC FT |
| Mounting Depth |
8.25 INCHES |
| Cutout Diameter |
9 7/16 INCHES |
| Displacement |
0.17 CU FT |
| Outside Diameter |
10 23/32 INCHES |
