Description
Premium Entry-Level Power and Authority

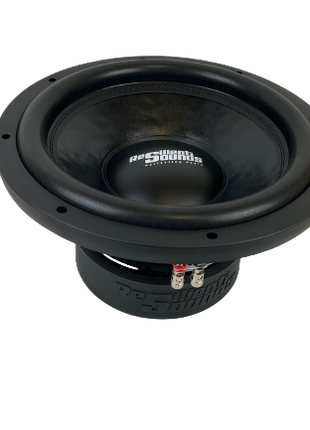

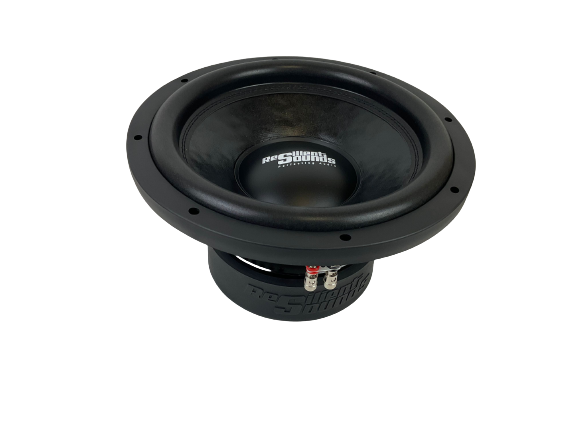

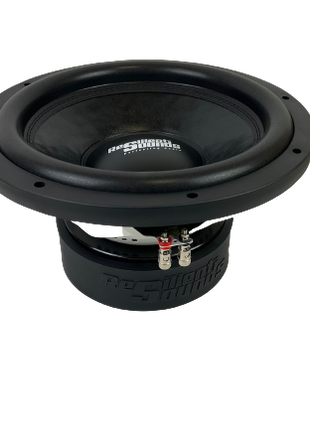

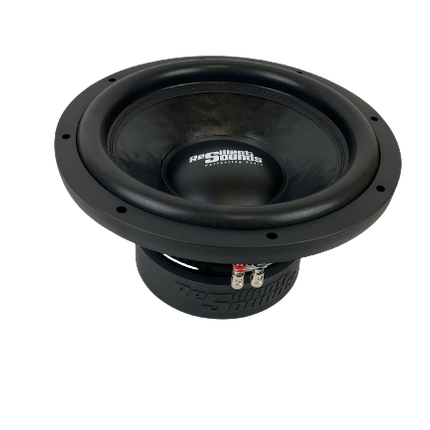

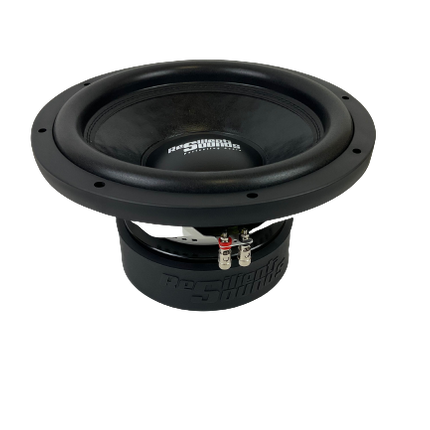

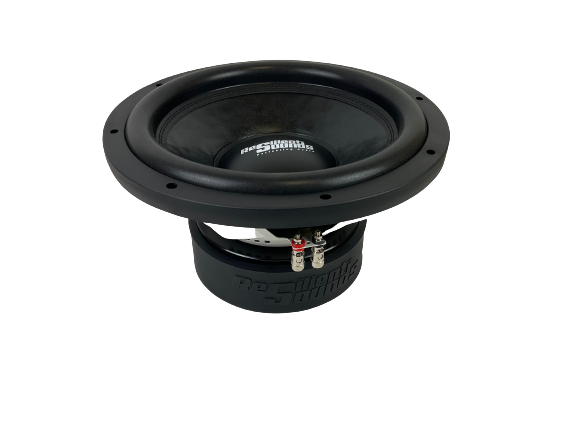

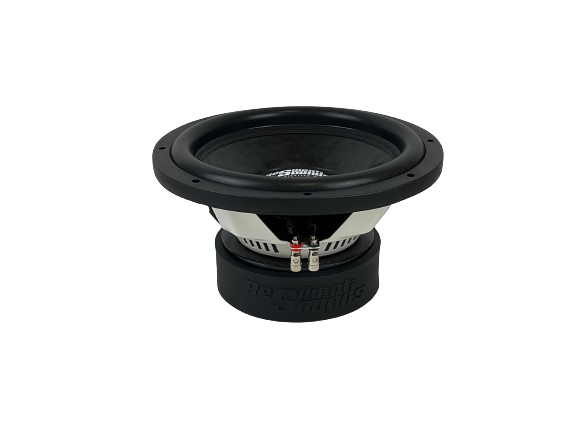

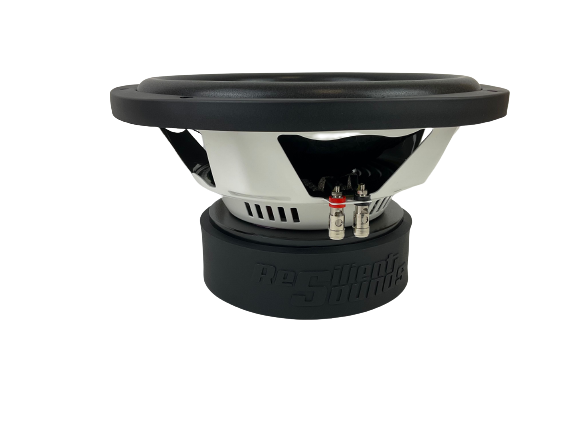

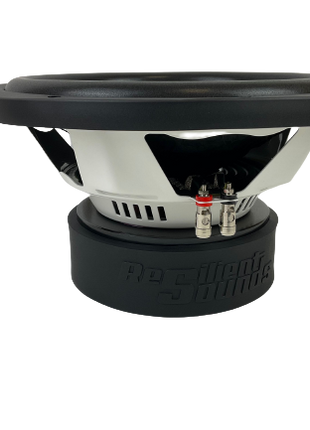

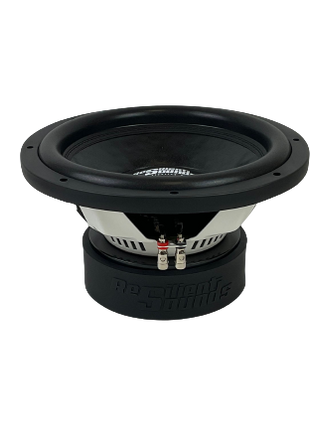

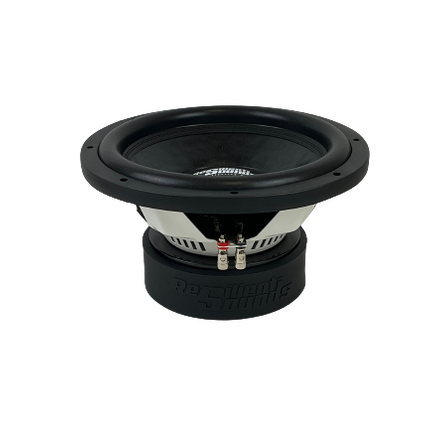

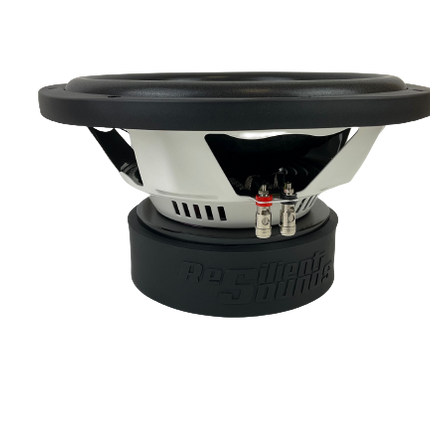

The Resilient Sounds Entry V2 12" represents the peak of the new entry-level lineup, designed to maximize performance with a substantial 750W RMS power rating. This 12-inch subwoofer features significant enhancements in its motor and soft parts, including a robust 3-inch voice coil. This design yields massive increases in motor force (up to 43% in BL factor) over previous models, ensuring powerful and controlled bass. The Dual 4 Ohm impedance allows for wiring to a 2 Ohm or 8 Ohm final load, offering ideal flexibility for high-current mono amplifiers. Built to handle abuse, the RS V2 12" provides lasting, daily resilient bass performance.
TECHNICAL SPECIFICATIONS
| Specification |
Detail |
| Model |
RS 12 V2 |
| RMS Power Handling |
750 Watts |
| Voice Coil |
3" |
| Nominal Impedance |
Dual 4 Ohm |

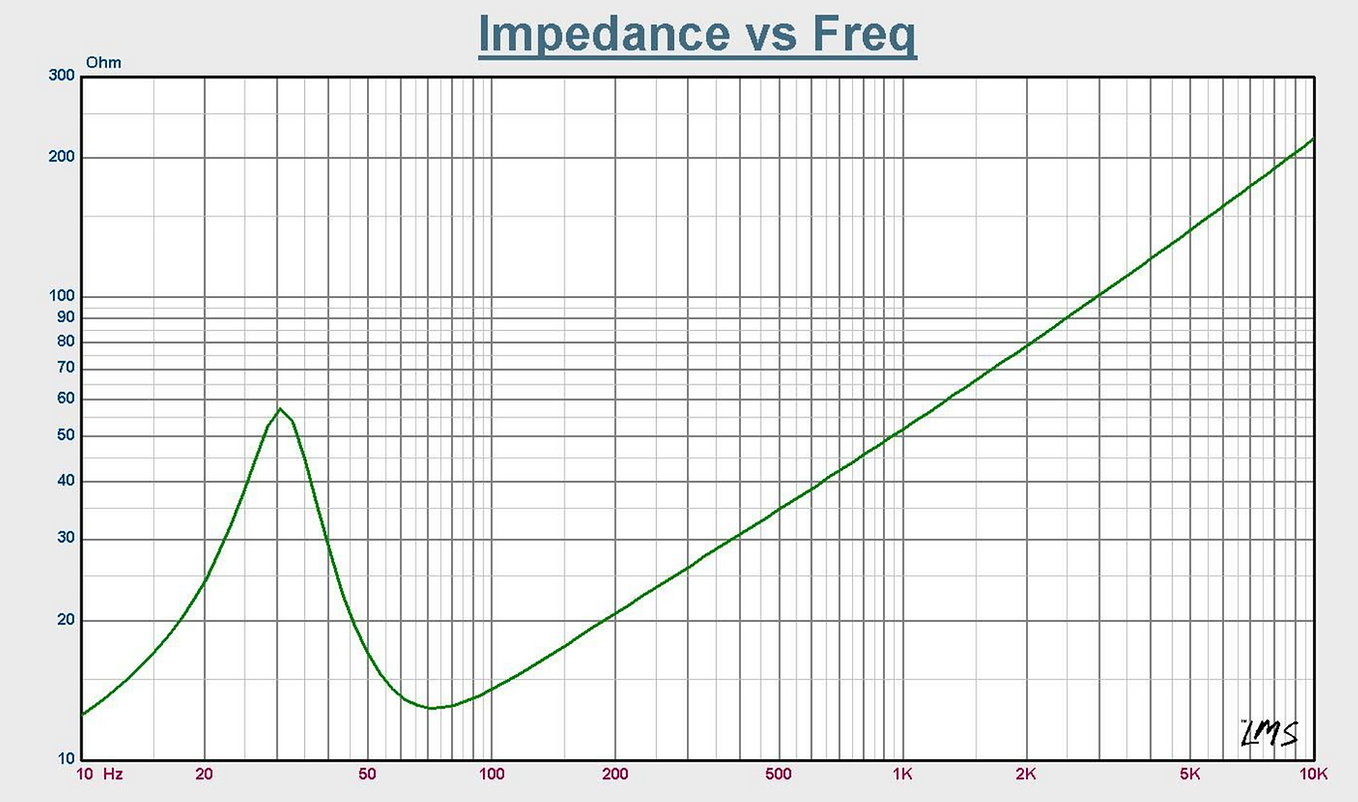

| THIELE-SMALL PARAMETERS |
| Sensitivity (SPL) |
85.7 dB |
| Resonance Frequency (Fs) |
31.140 Hz |
| BL Factor (BL) |
28.793 |
| DC Resistance (RE) |
7.6 Ohms |
| Mechanical Q (QMS) |
3.023 |
| Electrical Q (QES) |
0.483 |
| Total Q (QTS) |
0.416 |
| Compliance (CMS) |
0.097 uM/N |
| Moving Mass (MMS) |
269.274 g |
| Equivalent Volume (VAS) |
38.831 L |
RECOMMENDED ENCLOSURE SPECIFICATIONS
| Internal Volume (Cubic Ft) |
1.5 - 2.25 CU FT |
| Tuning Frequency |
28 - 32 HERTZ |
| Port Area |
12 - 16 SQ INCHES OF PORT AREA PER CUBIC FT |
| Mounting Depth |
6.75 INCHES |
| Cutout Diameter |
11.14 INCHES |
