Description
New and Improved Entry-Level Performance

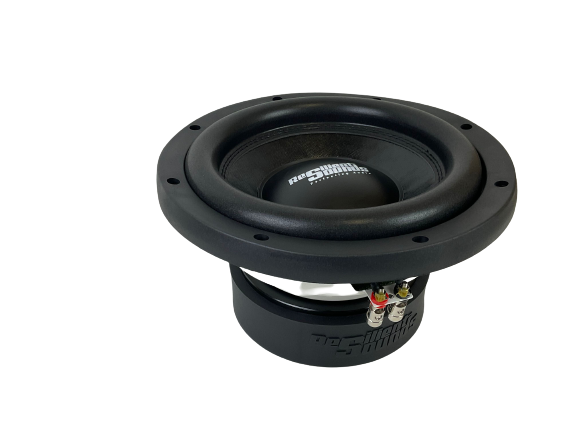

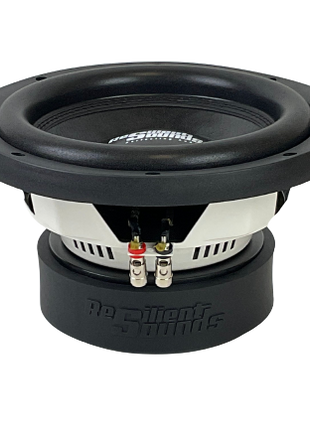

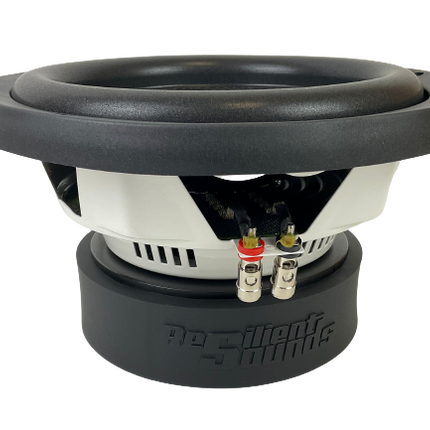

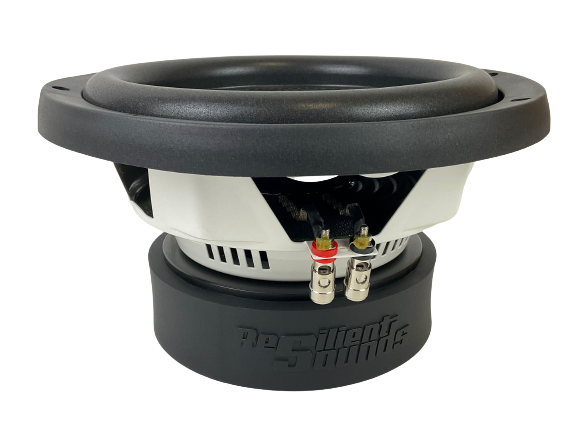

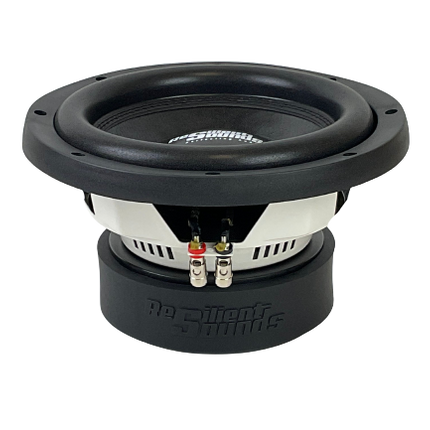

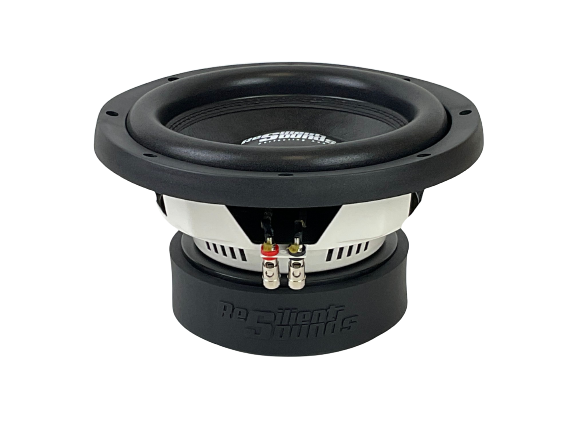

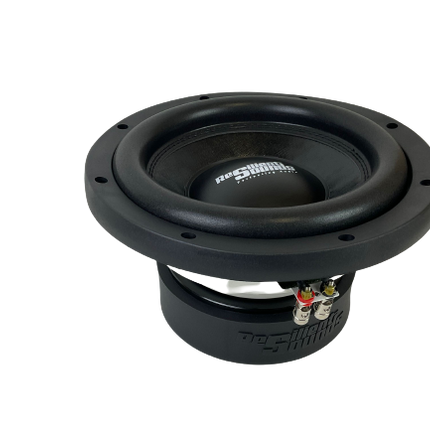

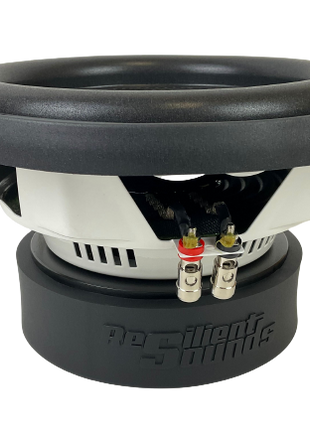

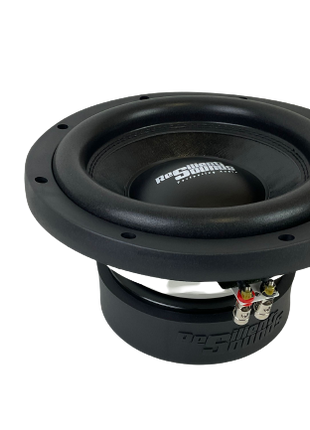

The Resilient Sounds Entry V2 10" is part of the new and improved entry-level model lineup, boasting significant upgrades in its soft parts and motor design. This 10-inch subwoofer is rated at a solid 600W RMS and features a 2.5-inch voice coil, contributing to notable performance increases, including a large jump in BL factor and motor strength. It is engineered for a lasting daily resilient performance with a focus on clean signal handling, making it an excellent balance of power, sound quality, and value. With a nominal impedance of Dual 4 Ohm, it can be wired for a final 2 Ohm or 8 Ohm load.
TECHNICAL SPECIFICATIONS
| Specification |
Detail |
| Model |
RS 10 V2 |
| RMS Power Handling |
600 Watts |
| Voice Coil |
2.5" |
| Nominal Impedance |
Dual 4 Ohm |
| THIELE-SMALL PARAMETERS |
| Sensitivity (SPL) |
84.9 dB |
| Resonance Frequency (Fs) |
36.940 Hz |
| BL Factor (BL) |
27.336 |
| DC Resistance (RE) |
8 Ohms |
| Mechanical Q (QMS) |
2.736 |
| Electrical Q (QES) |
0.426 |
| Total Q (QTS) |
0.368 |
| Compliance (CMS) |
0.17 uM/N |
| Moving Mass (MMS) |
171.257 g |
| Equivalent Volume (VAS) |
16.767 L |
RECOMMENDED ENCLOSURE SPECIFICATIONS
| Internal Volume (Cubic Ft) |
1.0 - 1.6 CU FT |
| Tuning Frequency |
32 - 36 HERTZ |
| Port Area |
12 - 16 SQ INCHES OF PORT AREA PER CUBIC FT |
| Mounting Depth |
5.75 INCHES |
| Cutout Diameter |
9.17 INCHES |
