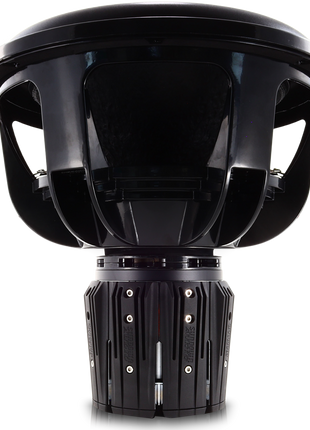

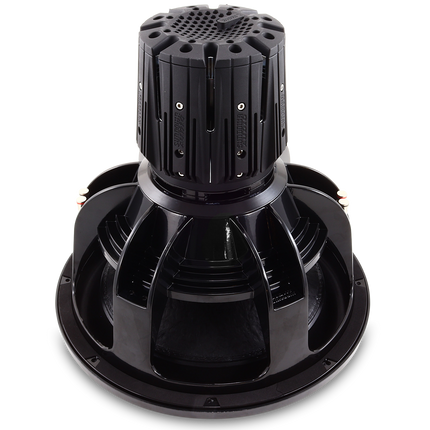

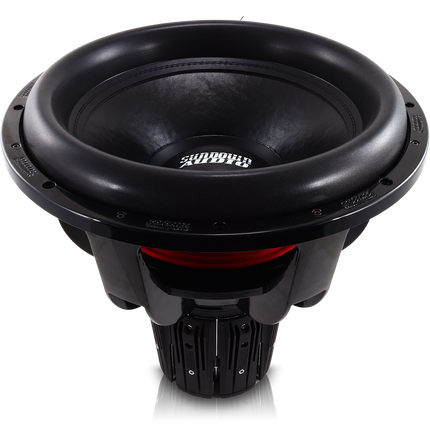

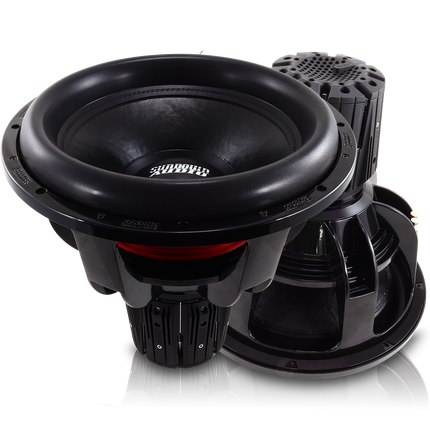

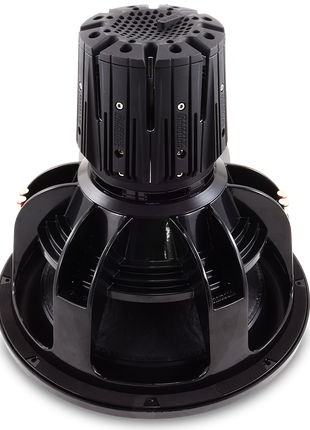

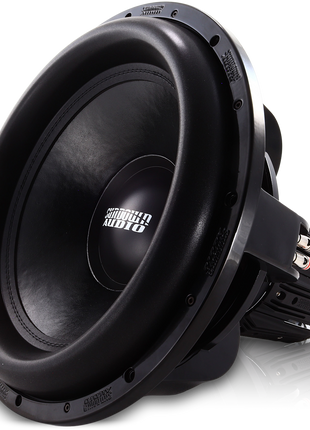

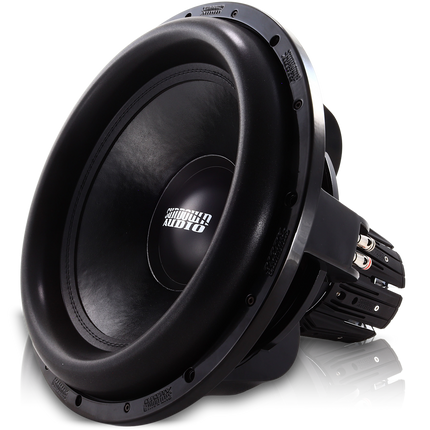

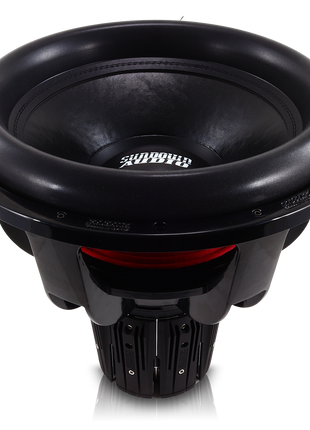

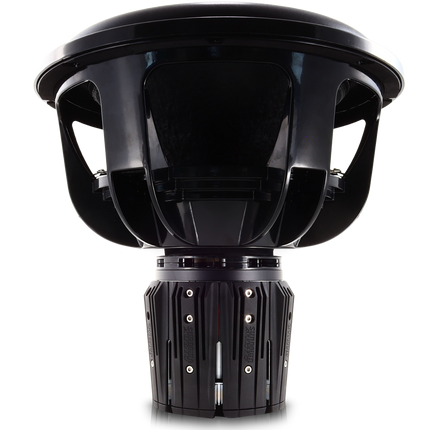

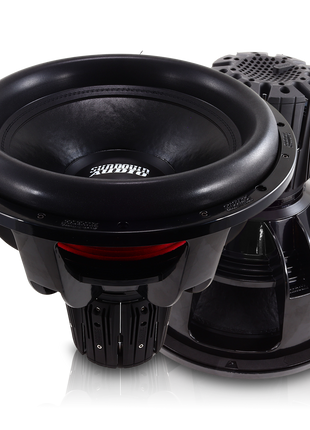

Sundown Audio Nightshade NS-Series NS6 18" 3000W Subwoofer NS v.6
- Sundown Audio
Sundown Audio Nightshade NS-Series NS6 18" 3000W Subwoofer NS v.6
- Sundown Audio
3500 Watt RMS / 7000 Watt Peak Dual 1 or 2 ohm voice coils Optional carbon cone/dustcap available Custom tooled... Read more
$1,099.99
- Free shipping in the contiguous USA on all orders above $99
- Full Manufacturer Warranty On All Items
- No Hassle, Easy 30 Day Returns
- Price Match Guarantee. Lowest Prices Anywhere.
- REAL Audio Enthusiasts, Expert Support
| Parameter | D1 Model | D2 Model |
|---|---|---|
| Re | 1.81 Ω | 3.60 Ω |
| Fs | 28.6 Hz | 28.4 Hz |
| Qms | 5.2141 | 5.4272 |
| Qes | 0.4955 | 0.4133 |
| Qts | 0.4525 | 0.3841 |
| Vas | 78.933 L | 82.932 L |
| Mms | 722.99 g | 556.85 g |
| Cms | 0.04 mm/N | 0.05 mm/N |
| BL | 21.790 T·m | 30.671 T·m |
| Le | 1.71 mH | 3.49 mH |
| Sd | 1641.9 cm² | 1641.9 cm² |
| Xmax | 35mm | 35mm |
| SPL (1W/1m) | 87.6 dB | 85.8 dB |
| Specification | D1 Model | D2 Model |
|---|---|---|
| RMS Power | 3500 W | 3500 W |
| Peak Power | 7000 W | 7000 W |
| Displacement | .27 cu ft | .27 cu ft |
| Mounting Depth | 16.3" | 16.3" |
| Outside Diameter | 18.62" | 18.62" |
| Cutout Diameter | 16.69" | 16.69" |
| Motor Diameter | 7.87 | 7.87 |
| Sealed Enclosure | Not Recommended | Not Recommended |
| Ported Enclosure | 7 cu ft | 7 cu ft |
| Recommended Port Tuning | 32hz | 32hz |
| Recommended Port Area | 100 sq in | 100 sq in |
| Xmax | 35mm | 35mm |
| 4th Order Sealed | 3.0cu ft | 3.0cu ft |
| 4th Order Ported | 9.0cu ft | 9.0cu ft |
| 4th Order Port Area | 180sq in | 180sq in |
| 4th Order Port Length | 8" | 8" |
