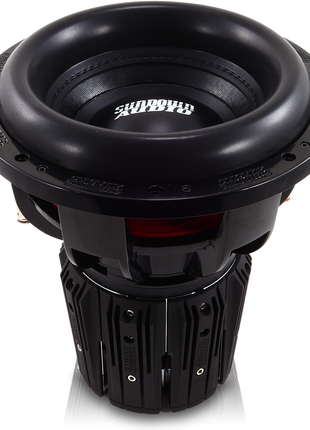

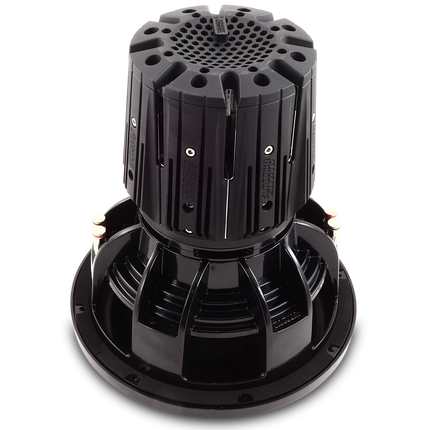

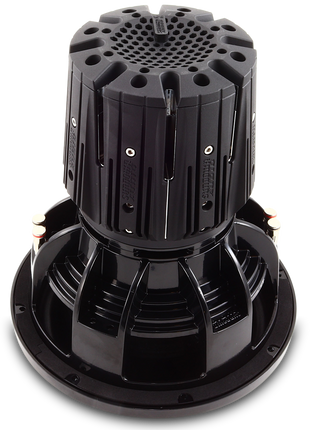

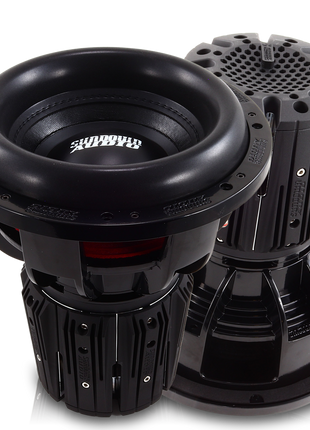

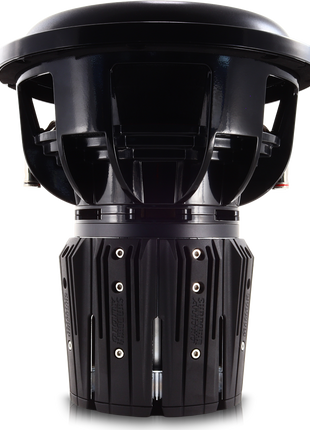

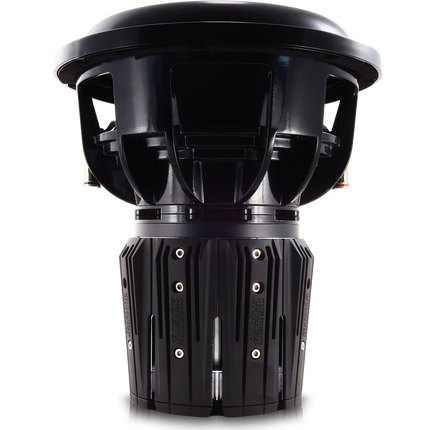

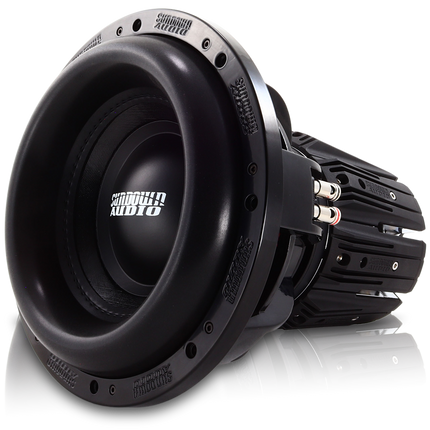

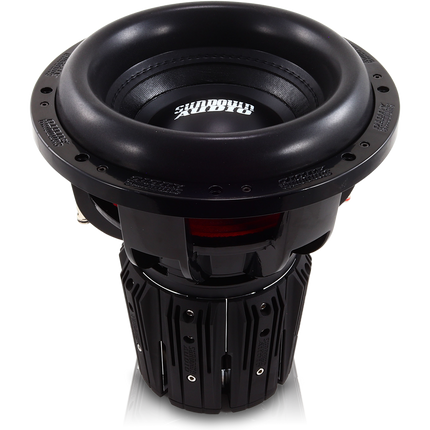

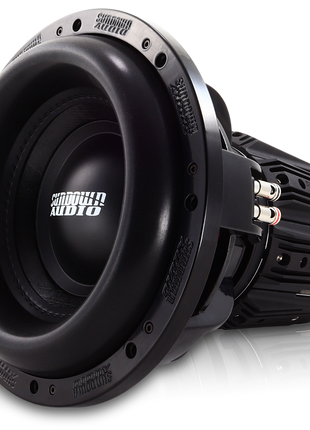

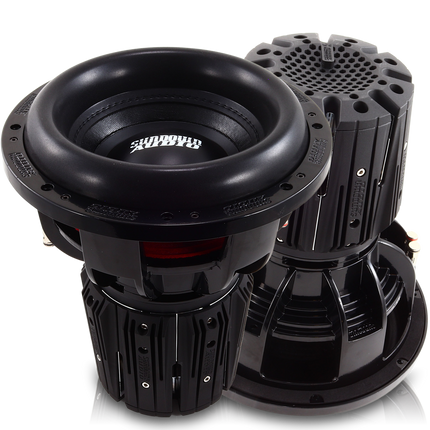

Sundown Audio Nightshade NS-Series NS6 12" 3000W Subwoofer NS v.6
- Sundown Audio
Sundown Audio Nightshade NS-Series NS6 12" 3000W Subwoofer NS v.6
- Sundown Audio
3500 Watt RMS / 7000 Watt Peak Dual 1 or 2 ohm voice coils Optional carbon cone/dustcap available Custom tooled... Read more
$1,029.99
- Free shipping in the contiguous USA on all orders above $99
- Full Manufacturer Warranty On All Items
- No Hassle, Easy 30 Day Returns
- Price Match Guarantee. Lowest Prices Anywhere.
- REAL Audio Enthusiasts, Expert Support
| Parameter | D1 Model | D2 Model |
|---|---|---|
| Re | 1.85 Ω | 3.34 Ω |
| Fs | 37.6 Hz | 37.1 Hz |
| Qms | 5.0189 | 5.2560 |
| Qes | 0.4665 | 0.4388 |
| Qts | 0.4665 | 0.4050 |
| Vas | 11.760 L | 11.837 L |
| Mms | 452.23 g | 460.93 g |
| Cms | 0.04 mm/N | 0.04 mm/N |
| BL | 20.570 T·m | 28.604 T·m |
| Le | 1.65 mH | 3.11 mH |
| Sd | 735.5 cm² | 735.5 cm² |
| Xmax | 35mm | 35mm |
| SPL (1W/1m) | 83.0 dB | 83.2 dB |
| Specification | D1 Model | D2 Model |
|---|---|---|
| RMS Power | 3500 W | 3500 W |
| Peak Power | 7000 W | 7000 W |
| Displacement | .24 cu ft | .24 cu ft |
| Mounting Depth | 12.75" | 12.75" |
| Outside Diameter | 12.81" | 12.81" |
| Cutout Diameter | 11.19" | 11.19" |
| Motor Diameter | 7.87 | 7.87 |
| Sealed Enclosure | Not Recommended | Not Recommended |
| Ported Enclosure | 2.5 cu ft | 2.5 cu ft |
| Recommended Port Tuning | 32hz | 32hz |
| Recommended Port Area | 38 sq in | 38 sq in |
| Xmax | 35mm | 35mm |
| 4th Order Sealed | 1.0cu ft | 1.0cu ft |
| 4th Order Ported | 3.0cu ft | 3.0cu ft |
| 4th Order Port Area | 60sq in | 60sq in |
| 4th Order Port Length | 8" | 8" |
