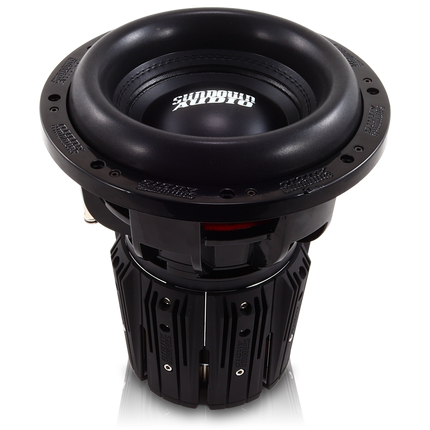

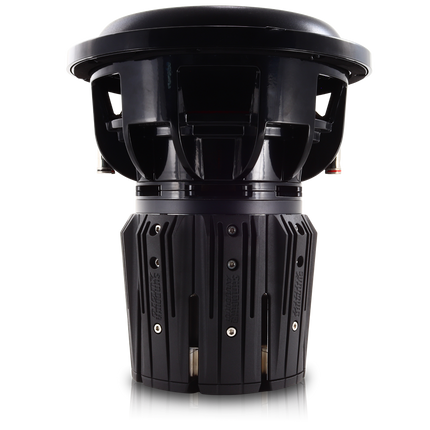

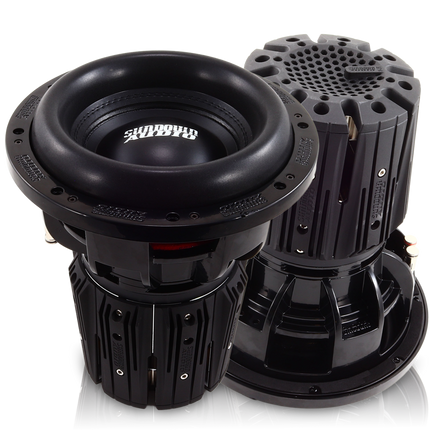

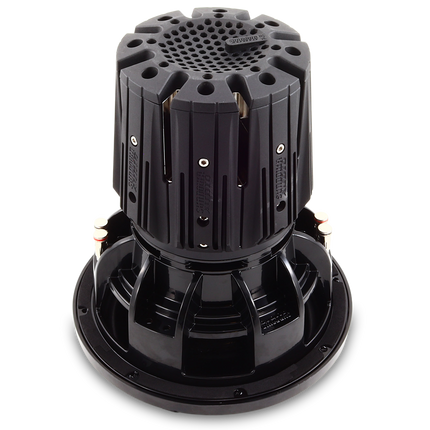

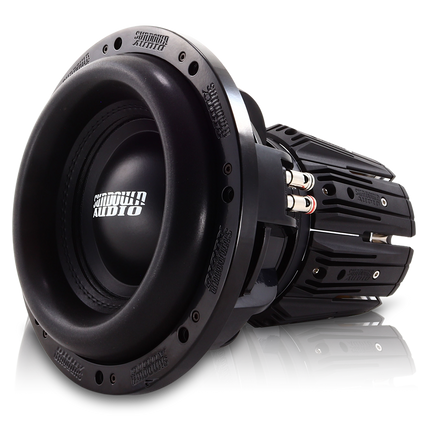

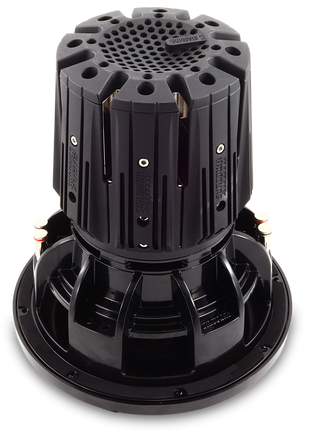

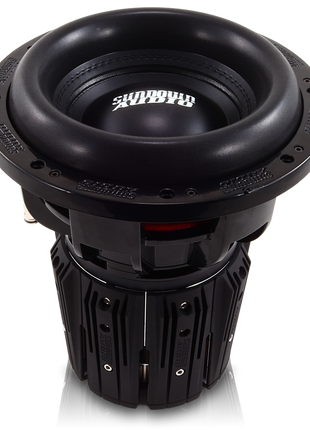

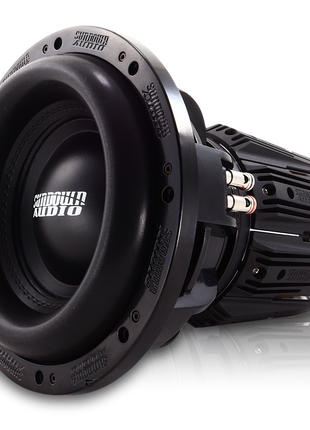

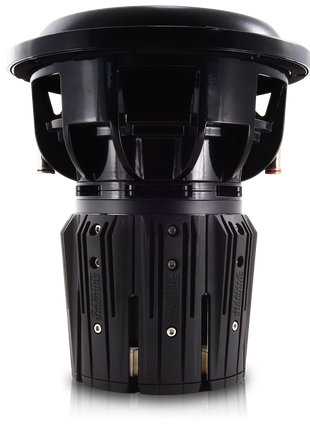

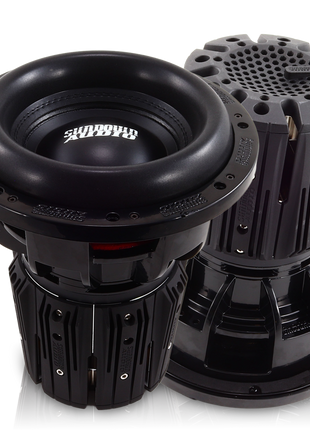

Sundown Audio Nightshade NS-Series NS6 10" 3000W Subwoofer NS v.6
- Sundown Audio
Sundown Audio Nightshade NS-Series NS6 10" 3000W Subwoofer NS v.6
- Sundown Audio
3500 Watt RMS / 7000 Watt Peak Dual 1 or 2 ohm voice coils Optional carbon cone/dustcap available Custom tooled... Read more
$999.99
- Free shipping in the contiguous USA on all orders above $99
- Full Manufacturer Warranty On All Items
- No Hassle, Easy 30 Day Returns
- Price Match Guarantee. Lowest Prices Anywhere.
- REAL Audio Enthusiasts, Expert Support
| Parameter | D1 Model | D2 Model |
|---|---|---|
| Re | 1.88 Ω | 3.61 Ω |
| Fs | 44.4 Hz | 43.8 Hz |
| Qms | 5.4793 | 4.2687 |
| Qes | 0.5400 | 0.3626 |
| Qts | 0.4916 | 0.3626 |
| Vas | 6.219 L | 6.484 L |
| Mms | 393.60 g | 388.06 g |
| Cms | 0.03 mm/N | 0.03 mm/N |
| BL | 19.527 T·m | 30.968 T·m |
| Le | 1.65 mH | 3.25 mH |
| Sd | 506.6 cm² | 506.6 cm² |
| Xmax | 35mm | 35mm |
| SPL (1W/1m) | 81.8 dB | 83.1 dB |
| Specification | D1 Model | D2 Model |
|---|---|---|
| RMS Power | 3500 W | 3500 W |
| Peak Power | 7000 W | 7000 W |
| Displacement | .23 cu ft | .23 cu ft |
| Mounting Depth | 12.24" | 12.24" |
| Outside Diameter | 11.81" | 11.81" |
| Cutout Diameter | 10.1" | 10.1" |
| Motor Diameter | 7.87 | 7.87 |
| Sealed Enclosure | Not Recommended | Not Recommended |
| Ported Enclosure | 1.5 cu ft | 1.5 cu ft |
| Recommended Port Tuning | 32 hz | 32hz |
| Recommended Port Area | 22 sq in | 22 sq in |
| Xmax | 35mm | 35mm |
| 4th Order Sealed | .75cu ft | .75cu ft |
| 4th Order Ported | 2.25cu ft | 2.25cu ft |
| 4th Order Port Area | 45sq in | 45sq in |
| 4th Order Port Length | 8" | 8" |
