Mechman 320A Alternator For 05-13 GM Suburban Tahoe Silverado Escalade Silverado

Original price $549.99 - Original price $549.99
Original price
$549.99
$549.99 - $549.99
Current price $549.99

FREE LANYARD OR STICKERS WITH EVERY PURCHASE AUTOMATICALLY ADDED TO CART!

*Most alternators are custom built to order. Standard build time is 10-14 days.**

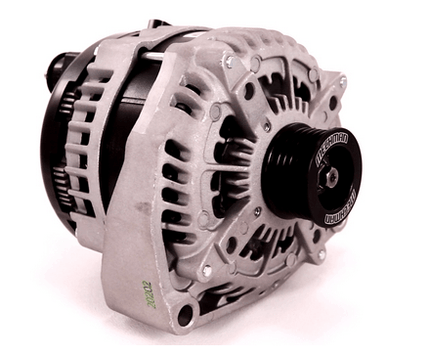

The cast housing Elite series offers the highest possible amperage and durability available in a large case hairpin alternator. 6 phase technology combined with massive twin rectifier assemblies and 12 diodes make these alternators totally durable for daily use, while still maintaining great output. This alternator cranks out over 200 amps at engine idle speeds and a full 320+ at cruising speeds at FULL TEMPERATURE.

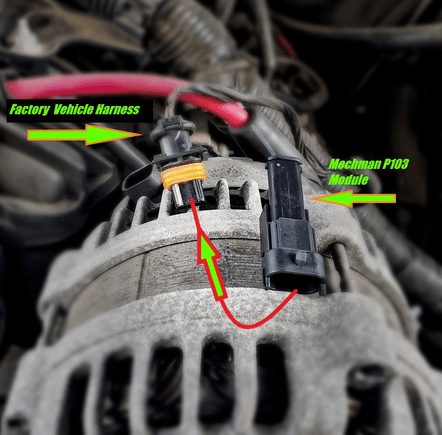

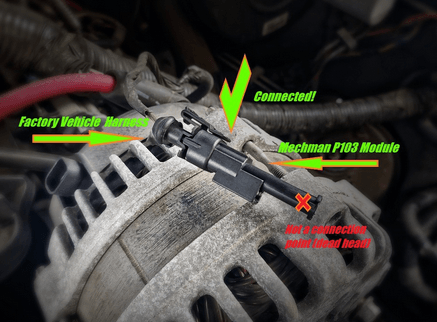

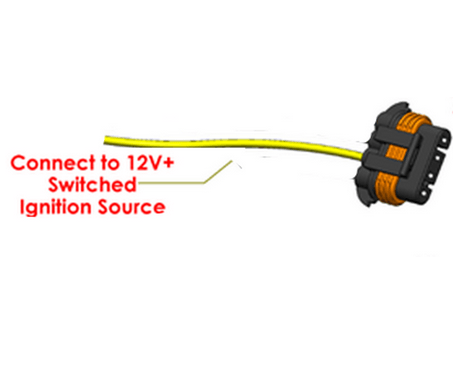

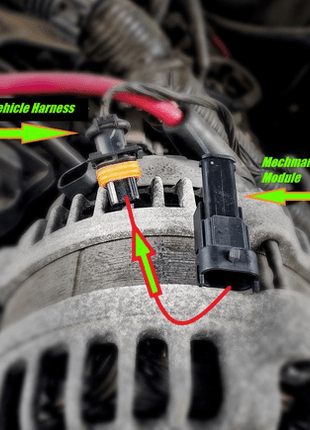

These alternators use the more robust 4 pin style regulator than the OE 2 pin ECU controlled alternator. There is no extreme voltage fluctuation as this will bypass the RVC charging system on all 2005> GM truck applications. Simply install the included 1 wire P101 harness to a tested 12v switched source and plug in the included P103 module into the vehicles 2 pin original alternator wiring harness. No check battery light, no computer controlled voltage swings. The voltage you want, when you want it!

Want to see more options for these vehicles?

Mechman 240A

Mechman 250A

Mechman 370A

Mechman 400A

Fitments:

Name
Model
Engine
Year(s)
BUICK
Rainier
5.3
07-08
CADILLAC
Escalade
5.7 / 6.0 / 6.2
05-13
CHEVROLET
Avalanche
All Engines
05-13
CHEVROLET
Full Size Truck/Silverado
4.3
05-13
CHEVROLET
Full Size Truck/Silverado
4.8
05-13
CHEVROLET
Full Size Truck/Silverado
5.3
05-13
CHEVROLET
Full Size Truck/Silverado
6.0
05-13
CHEVROLET
Full Size Truck/Silverado
6.2
09-13
CHEVROLET
Full Size Truck/Silverado
8.1
06-07
CHEVROLET
Suburban
All Gas Engines
05-14
CHEVROLET
Tahoe/Full Size Blazer
All Gas Engines
05-13
CHEVROLET
Trailblazer
5.3
07-09
CHEVROLET
Trailblazer
6.0
07-09
GMC
Envoy
5.3
07-08
GMC
Full Size Truck / Sierra
4.3
05-13
GMC
Full Size Truck / Sierra
4.8
05-13
GMC
Full Size Truck / Sierra
5.3
05-13
GMC
Full Size Truck / Sierra
6.0
05-13
GMC
Full Size Truck / Sierra
6.2
07-13
GMC
Full Size Truck / Sierra
8.1
06-07
GMC
Yukon
All Gas Engines
05-13
HUMMER
H2
6.2
08-09
HUMMER
H3
5.3
08-10
