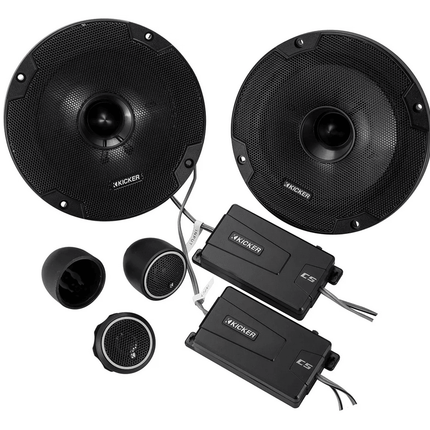

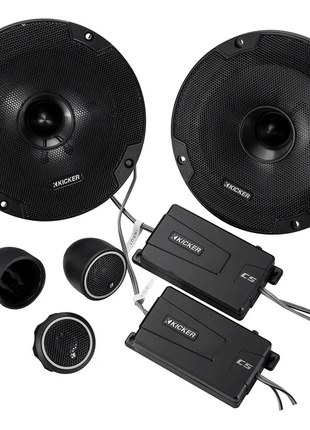

46CSS654 CS-Series 6-1/2" 2-Way Component Speakers The CS Series delivers remarkable performance and ultra-clean bass utilizing a heavy-duty motor/magnet structure featuring EVC (Extended Voice Coil) technology not found in stock speakers. They use polypropylene cones with tough ribbed UV-treated surrounds for precise linear excursion and reliability. CS Series CSS65 The CS-Series 6-1/2-inch Component Speakers are an outstanding factory upgrade. Designed for easy installation in nearly any vehicle CS-Series components include separate titanium tweeters and two-way crossovers with tweeter level control to let you customize your sound for the best sonic quality. The result is precise control with stunning musical realism. Use the flush angled or surface-mount tweeter pods to perfect your imaging and get a sophisticated look! These CS-Series speakers work best with 100 watts of recommended power. Fits nearly every car made 12dB crossovers with a smaller footprint for easier installation Three-position tweeter switch for dialing in your highs EVC (Extended Voice Coil) technology help deliver remarkable bass response Titanium tweeter construction and neodymium magnets to reveal subtle details UV-treated poly-foam surround assists with precise linear excursion Phase plugs in the woofer cones eliminate any distortion Steel mesh grilles protect your drivers Three tweeter mounting options including flush angled and surface pods.

  • Woofer Size (in mm): 6-1/2 / 160
  • Tweeter Size (in mm): 3/4 / 20
  • Dome Material: Titanium
  • Peak Power Handling: 300 watts
  • Continuous Power Handling: 100 watts
  • Effective Frequency Range: 35Hz - 21kHz
  • Woofer Mounting Hole Diameter (in mm): 4-13/16 / 123
  • Woofer Bottom Mount Depth (in mm): 1-11/16 / 43
  • Flush Mounting Tweeter Hole Diameter (in mm): 1-9/16 / 40
  • Flush Mount Tweeter Depth (in mm): 9/16 / 14.5
  • High-Pass dB at Frequency: 12 4000Hz
  • Low-Pass dB at Frequency: 12 4000Hz
  • High Frequency Output Attenuation: 0 3 6dB
  • Bolt-Thru Grilles: Yes
What's in the Box:
  • One pair of 6-1/2" woofers
  • One pair of 3/4" tweeters w/ attached grilles
  • One pair of crossovers 2 woofer grilles
  • 2 Flush-mount tweeter cups
  • 2 Angled-mount tweeter cups
  • 2 surface-mount tweeter cups
  • Owner's manual
