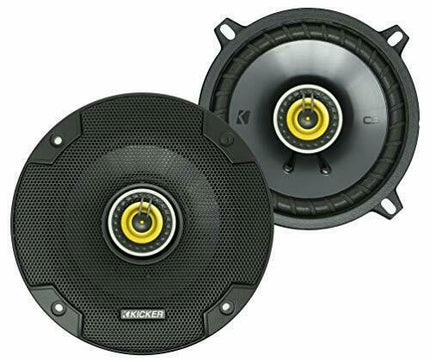

Kicker 46CSC54 5.25 5 1/4" 225W Coaxial Full Range Car Audio Speakers Pair CSC5

Description

CS Series CSC5

The CS Series delivers remarkable performance and ultra-clean bass, utilizing a heavy-duty motor/magnet structure featuring EVC™ (Extended Voice Coil) technology not found in stock speakers. They use polypropylene cones with tough, ribbed, UV-treated surrounds for precise linear excursion and reliability.



CS Series CSC5

CS-Series 5-1/4-Inch Coaxial Speakers are an excellent upgrade from factory speakers.

A significant upgrade from your factory sound, the stamped-steel framework supports a rigid polypropylene cone with EVC™ (Extended Voice Coil) technology for the best sonic quality. Using zero-protrusion PEI tweeters with neodymium magnets, you get the clarity you need without interfering with factory grilles.

These CS speakers work best with 75 watts of recommended power. See below for more details.

  • Fits nearly every car made
  • Zero-protrusion tweeters to fit nearly any factory depth
  • Woofer EVC™ (Extended Voice Coil) tech assists with precise linear excursion
  • UV-treated poly-foam surround resists heat or direct sunlight
  • Large woofer magnet in a heavy-duty motor for ultra-clean bass
  • PEI-tweeter construction provides superb clarity
  • Neodymium tweeter magnets allow for increased volume in high frequencies
  • Steel mesh grilles included for speaker protection

·       Specifications

Speaker Design

2 - way

Woofer Size | in [mm]

5 1/4 [130]

Tweeter Size | in [mm]

1/2 [13]

DC Resistance | ohm

3.4

Peak Power (watts, per ANSI/CTA-2031-A)

225

Recommended Amplifier Power (watts RMS)

75

Sensitivity [SPLo] | dB @ 1W, 1m

90

Effective Frequency Range | Hz

45-20k

Mounting Hole Diameter | in [mm]

4 1/2 [115]

Top Mount Depth | in [mm]

1/4 [7]

Bottom Mount Depth | in [mm]

1 3/4 [45]

Tweeter Protrusion | in [mm]

0

Grilles

Yes

Tweeter Magnet Material

Neodymium

Tweeter Dome Materia

PEI [polyether imide

Tweeter Design

Balanced dome

Woofer Cone Material

Polypropylene

Woofer Surround Material

Polyester foam

Kicker 46CSC54 5.25 5 1/4" 225W Coaxial Full Range Car Audio Speakers Pair CSC5

Product form

CS Series CSC5 The CS Series delivers remarkable performance and ultra-clean bass, utilizing a heavy-duty motor/magnet structure featuring EVC™ (Extended... Read more

$119.99  $99.99

    • Free shipping in the contiguous USA on all orders above $99
    • Full Manufacturer Warranty On All Items
    • No Hassle, Easy 30 Day Returns
    • Price Match Guarantee. Lowest Prices Anywhere.
    • REAL Audio Enthusiasts, Expert Support
    General
    Speaker Size5-1/4" (130 mm)
    Configuration2 - way
    Peak Power225 W Max
    Sensitivity90 dB
    Frequency Response45 Hz – 20 kHz
    Tweeter1/2" (13 mm)
    Recommended Amp Power75 W RMS
    Grilles IncludedYes
    T/S Parameters
    Re3.4 ohm
    Construction
    Cone MaterialPolypropylene
    Surround MaterialPolyester foam
    Tweeter Dome MaterialPEI [polyether imide]
    Tweeter MagnetNeodymium
    Dimensions
    Cut-Out Diameter4-1/2" (115 mm)
    Top Mount Depth1/4" (7 mm)
    Bottom Mount Depth1-3/4" (45 mm)

    Description

    CS Series CSC5

    The CS Series delivers remarkable performance and ultra-clean bass, utilizing a heavy-duty motor/magnet structure featuring EVC™ (Extended Voice Coil) technology not found in stock speakers. They use polypropylene cones with tough, ribbed, UV-treated surrounds for precise linear excursion and reliability.



    CS Series CSC5

    CS-Series 5-1/4-Inch Coaxial Speakers are an excellent upgrade from factory speakers.

    A significant upgrade from your factory sound, the stamped-steel framework supports a rigid polypropylene cone with EVC™ (Extended Voice Coil) technology for the best sonic quality. Using zero-protrusion PEI tweeters with neodymium magnets, you get the clarity you need without interfering with factory grilles.

    These CS speakers work best with 75 watts of recommended power. See below for more details.

    • Fits nearly every car made
    • Zero-protrusion tweeters to fit nearly any factory depth
    • Woofer EVC™ (Extended Voice Coil) tech assists with precise linear excursion
    • UV-treated poly-foam surround resists heat or direct sunlight
    • Large woofer magnet in a heavy-duty motor for ultra-clean bass
    • PEI-tweeter construction provides superb clarity
    • Neodymium tweeter magnets allow for increased volume in high frequencies
    • Steel mesh grilles included for speaker protection

    ·       Specifications

    Speaker Design

    2 - way

    Woofer Size | in [mm]

    5 1/4 [130]

    Tweeter Size | in [mm]

    1/2 [13]

    DC Resistance | ohm

    3.4

    Peak Power (watts, per ANSI/CTA-2031-A)

    225

    Recommended Amplifier Power (watts RMS)

    75

    Sensitivity [SPLo] | dB @ 1W, 1m

    90

    Effective Frequency Range | Hz

    45-20k

    Mounting Hole Diameter | in [mm]

    4 1/2 [115]

    Top Mount Depth | in [mm]

    1/4 [7]

    Bottom Mount Depth | in [mm]

    1 3/4 [45]

    Tweeter Protrusion | in [mm]

    0

    Grilles

    Yes

    Tweeter Magnet Material

    Neodymium

    Tweeter Dome Materia

    PEI [polyether imide

    Tweeter Design

    Balanced dome

    Woofer Cone Material

    Polypropylene

    Woofer Surround Material

    Polyester foam
