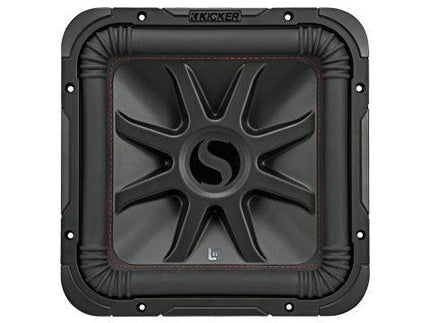

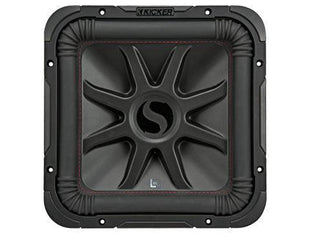

Kicker 45L7R122 1200W Dual 2 Ohm 12" Subwoofer/Sub Solobaric L7R L7 L7R122

Description

The 12-inch L7R Square Sub moves more air and delivers bigger bass, so you get more bump out of every watt!

The engineers at KICKER invented the original square sub right here in Stillwater, Oklahaoma. Designed to give you more bass, yet take up no more air space than a standard round sub. Welcome to the incredible world of the L7R!

  • Dual Two-Ohm Voice Coil
  • Wrap Around Gasketing
  • Patented Ribbed Corners
  • Injection-Molded SoloKon™ Woofer
  • 360-Degree Back Bracing
  • UniPlate™ Back Plate And Pole Piece
  • Bumped Back Plate
  • Thick Tinsel Leads
  • Large Ceramic Magnet
  • Steel Basket With Spoke Design
  • Nickel Plated Speaker Terminals

The L7R 12-Inch Subwoofer works best with 600 watts of recommended power in a sealed or ported enclosure. See below for more details.

Specifications

SIZE [in, cm]:
12, 30

IMPEDANCE [Ohms]:
4 DVC

POWER WATTS [peak/RMS]:
1200/600

SENSITIVITY [dB 1w/1m]:
86.7

MOUNTING DEPTH [in, cm]:
6-7/8, 17.4

MOUNTING DIAMETER [in, cm]:
11-1/16, 28.1

MIN SEALED BOX VOL [cu. ft, L]:
.88, 24.92

MAX SEALED BOX VOL [cu. ft, L]:
2, 56.64

MIN VENTED BOX VOL [cu. ft, L]:
1.75, 49.6

MAX VENTED BOX VOL [cu. ft, L]:
3.25, 92

What's in the Box:
1 - 12" Subwoofer, 1 - install manual, 2 - Kicker stickers

Kicker 45L7R122 1200W Dual 2 Ohm 12" Subwoofer/Sub Solobaric L7R L7 L7R122

Product form

The 12-inch L7R Square Sub moves more air and delivers bigger bass, so you get more bump out of every... Read more

$299.99  $269.99

    • Free shipping in the contiguous USA on all orders above $99
    • Full Manufacturer Warranty On All Items
    • No Hassle, Easy 30 Day Returns
    • Price Match Guarantee. Lowest Prices Anywhere.
    • REAL Audio Enthusiasts, Expert Support
    SpecificationsKicker 45L7R122 Solo-Baric L7R 12" D2
    Sensitivity86.7 dB 1W/1m
    Woofer Size12 in
    Nominal ImpedanceDual 2 Ω
    Mounting Depth6-7/8 in
    Mounting Diameter11-1/16 in
    Peak Power Handling1200 W
    Recommended Amplifier Power600 W
    Enclosure SpecsKicker 45L7R122 Solo-Baric L7R 12" D2
    Min Sealed Volume.88 ft³
    Max Sealed Volume2.0 ft³
    Min Vented Volume1.75 ft³
    Max Vented Volume3.25 ft³

    Description

    The 12-inch L7R Square Sub moves more air and delivers bigger bass, so you get more bump out of every watt!

    The engineers at KICKER invented the original square sub right here in Stillwater, Oklahaoma. Designed to give you more bass, yet take up no more air space than a standard round sub. Welcome to the incredible world of the L7R!

    • Dual Two-Ohm Voice Coil
    • Wrap Around Gasketing
    • Patented Ribbed Corners
    • Injection-Molded SoloKon™ Woofer
    • 360-Degree Back Bracing
    • UniPlate™ Back Plate And Pole Piece
    • Bumped Back Plate
    • Thick Tinsel Leads
    • Large Ceramic Magnet
    • Steel Basket With Spoke Design
    • Nickel Plated Speaker Terminals

    The L7R 12-Inch Subwoofer works best with 600 watts of recommended power in a sealed or ported enclosure. See below for more details.

    Specifications

    SIZE [in, cm]:
    12, 30

    IMPEDANCE [Ohms]:
    4 DVC

    POWER WATTS [peak/RMS]:
    1200/600

    SENSITIVITY [dB 1w/1m]:
    86.7

    MOUNTING DEPTH [in, cm]:
    6-7/8, 17.4

    MOUNTING DIAMETER [in, cm]:
    11-1/16, 28.1

    MIN SEALED BOX VOL [cu. ft, L]:
    .88, 24.92

    MAX SEALED BOX VOL [cu. ft, L]:
    2, 56.64

    MIN VENTED BOX VOL [cu. ft, L]:
    1.75, 49.6

    MAX VENTED BOX VOL [cu. ft, L]:
    3.25, 92

    What's in the Box:
    1 - 12" Subwoofer, 1 - install manual, 2 - Kicker stickers
