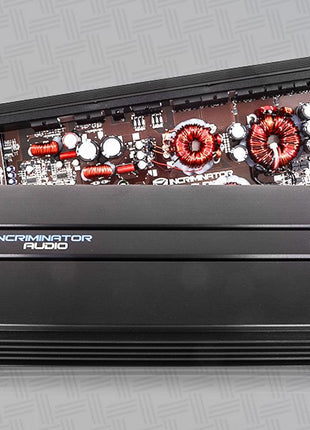

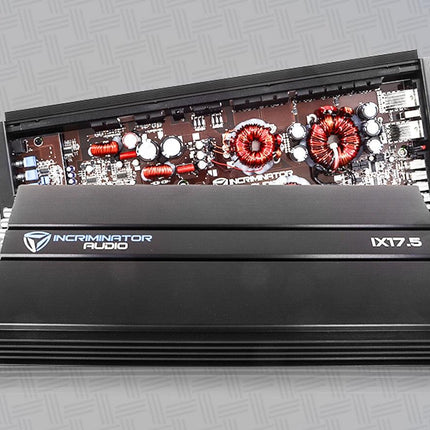

Incriminator Audio IX17.5 5-Channel 2000w Amplifier

Incriminator Audio IX17.5

·         Features

• Full Range Class Digital Amplifier
• Dual MOS-FET Pulse Width Modulation Power Supply
• 2 Ohm Stable Stereo / 4 Ohm Mono for CH 1-4
• 1 Ohm Stable for CH5
• 12dB/octave - Variable State Subsonic Filter
• 12dB/octave - Variable State Low / High Pass Filter
• Heavy Duty Copper Layer Double Sided Epoxy PCB
• Mirror Technology (Channel 1/2, 3/4 & 5) with Individual Clipping Indicators
• Multi-Layer Protection Circuit (Thermal, Voltage, Speaker Short, DC)
• Wire Remote Control with Clipping Indicator
• Ships directly from Incriminator Audio

·         Specifications

• Rated Power ( 14.4V at 1% THD )
• RMS Power - 4 Ohm Mono : 420W x 2CH
• RMS Power - 1 Ohm Mono : 1200W x 1 for CH5 Only
• RMS Power - 2 Ohm Stereo : 210W x 4CH + 850W x 1CH
• RMS Power - 4 Ohm Stereo : 125W x 4CH + 500W x 1CH
• Crossover Frequency ( 12dB/Oct. ) : 20Hz - 5000Hz
• Subsonic Filter ( 12dB/Oct. ) : 10Hz - 50Hz
• Low Pass Filter ( 12dB/Oct. ) : 50Hz - 5000Hz
• Bass Boost ( 45Hz ) : 0dB - 9dB
• Frequency Response ( +/-1dB ) : 10Hz - 28,000Hz for CH1-4, 100Hz - 500Hz for CH5
• Channel Separation : 55dB
• Input Sensitivity ( Volt +/- 5% ) : 6.0V - 0.2V
• Signal / Noise Ratio : 90dB
• Dampening Factor ( 4 Ohm ) : 100 +
• Operation Mode : Mirror CH1/2, CH3/4, CH5
• Power Efficiency ( 4 Ohm ) : 94%
• Fuse Rating ( 14.4V ) : 150A
• Power Input Connection : 0 Gauge
• Operation Voltage : 8.5V - 16.0V
• Speaker Output Connection : 8 Gauge
• Dimensions ( Inches ) : 7.48 W x 2.24 H x 15.74 L
• Dimensions ( Millimeters ) : 190 W x 57 H x 400 L
