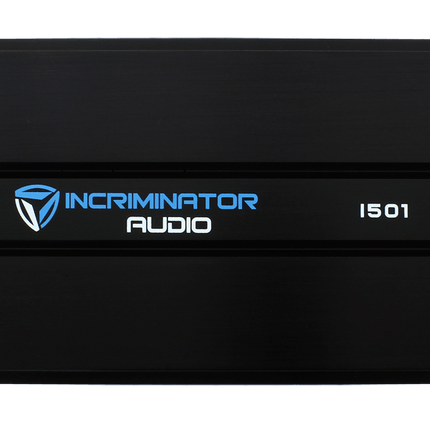

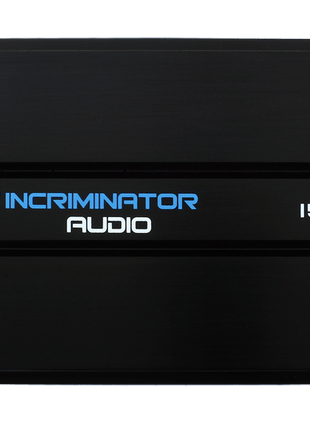

Incriminator Audio I501 500 Watt Mono 1-Channel Car Audio Amplifier/Amp

Description

  • Features

    • Digital Class-D Linkable Mono Block Amplifier
    • MOS-FET Pulse Width Modulation Power Supply
    • 1 Ohm Stable Topology / 16 Volt Stable
    • Heavy Duty 2 Oz Copper Layer Double Sided Epoxy PCB
    • Extremely High Precision Electrical Components For Reliability
    • Proprietary Custom Tooled Heatsink
    • Black Molded Oversized 4 AWG Power and Ground Inputs
    • Advanced Strapping / Linking
    • Multi-Layer Bullet Proof Protection Circuit
    • Remote Bass



    • Specifications

      • Rated Power ( 14.4V at 1% THD )
      • RMS Power - 2 Ohm Linked : 1000W
      • RMS Power - 1 Ohm Mono : 500W
      • RMS Power - 2 Ohm Mono : 375W
      • RMS Power - 4 Ohm Mono : 250W
      • Low Pass Filter ( 24dB/Oct. ) : 35Hz - 250Hz
      • Subsonic Filter ( 24dB/Oct. ) : 10Hz - 50Hz
      • Frequency Response ( +/-3dB ) : 15Hz - 250Hz
      • Bass Boost ( 45Hz ) : 0 – 9dB
      • Input Sensitivity ( Volt +/- 5% ) : 6.0V - 0.2V
      • Signal / Noise Ratio : 95dB
      • Dampening Factor ( 1 Ohm ) : >200
      • Operation Mode : Master/Slave
      • Power Efficiency ( 4 Ohm ) : 85%
      • Fuse Rating ( 14.4V ) : 50A
      • Fuse Rating ( 14.4V Linked ) : 100A
      • Power Input Connection : 4 Gauge
      • Operation Voltage : 10V - 16.0V
      • Speaker Output Connection : 8 Gauge
      • Dimensions ( Inches ) : 6.85 W x 2.36 H x 10.24 L
      • Dimensions ( Millimeters ) : 174 W x 60 H x 260 L

Incriminator Audio I501 500 Watt Mono 1-Channel Car Audio Amplifier/Amp

Product form

Features Digital Class-D Linkable Mono Block Amplifier MOS-FET Pulse Width Modulation Power Supply 1 Ohm Stable Topology / 16 Volt... Read more

$219.00

    • Free shipping in the contiguous USA on all orders above $99
    • Full Manufacturer Warranty On All Items
    • No Hassle, Easy 30 Day Returns
    • Price Match Guarantee. Lowest Prices Anywhere.
    • REAL Audio Enthusiasts, Expert Support

    Description

    • Features

      • Digital Class-D Linkable Mono Block Amplifier
      • MOS-FET Pulse Width Modulation Power Supply
      • 1 Ohm Stable Topology / 16 Volt Stable
      • Heavy Duty 2 Oz Copper Layer Double Sided Epoxy PCB
      • Extremely High Precision Electrical Components For Reliability
      • Proprietary Custom Tooled Heatsink
      • Black Molded Oversized 4 AWG Power and Ground Inputs
      • Advanced Strapping / Linking
      • Multi-Layer Bullet Proof Protection Circuit
      • Remote Bass



      • Specifications

        • Rated Power ( 14.4V at 1% THD )
        • RMS Power - 2 Ohm Linked : 1000W
        • RMS Power - 1 Ohm Mono : 500W
        • RMS Power - 2 Ohm Mono : 375W
        • RMS Power - 4 Ohm Mono : 250W
        • Low Pass Filter ( 24dB/Oct. ) : 35Hz - 250Hz
        • Subsonic Filter ( 24dB/Oct. ) : 10Hz - 50Hz
        • Frequency Response ( +/-3dB ) : 15Hz - 250Hz
        • Bass Boost ( 45Hz ) : 0 – 9dB
        • Input Sensitivity ( Volt +/- 5% ) : 6.0V - 0.2V
        • Signal / Noise Ratio : 95dB
        • Dampening Factor ( 1 Ohm ) : >200
        • Operation Mode : Master/Slave
        • Power Efficiency ( 4 Ohm ) : 85%
        • Fuse Rating ( 14.4V ) : 50A
        • Fuse Rating ( 14.4V Linked ) : 100A
        • Power Input Connection : 4 Gauge
        • Operation Voltage : 10V - 16.0V
        • Speaker Output Connection : 8 Gauge
        • Dimensions ( Inches ) : 6.85 W x 2.36 H x 10.24 L
        • Dimensions ( Millimeters ) : 174 W x 60 H x 260 L
