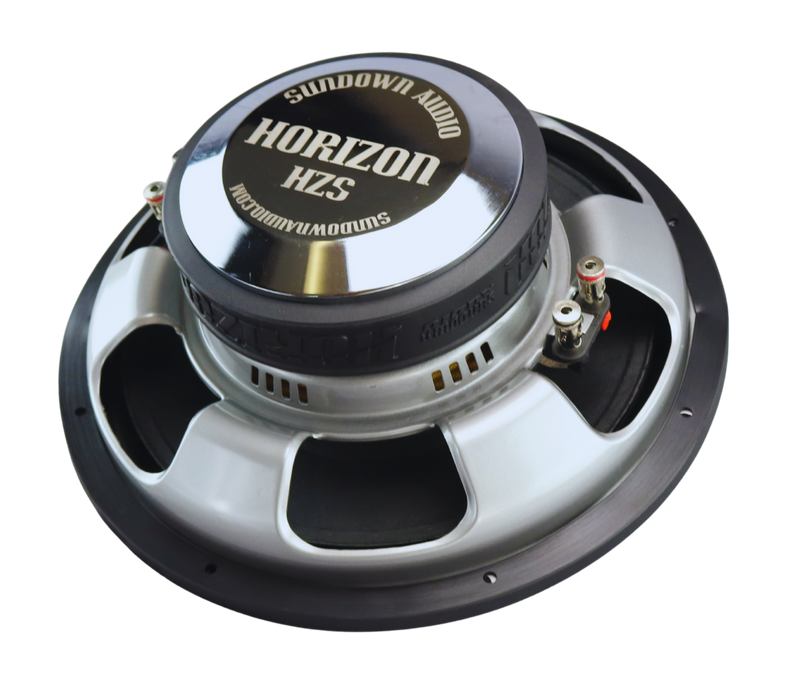

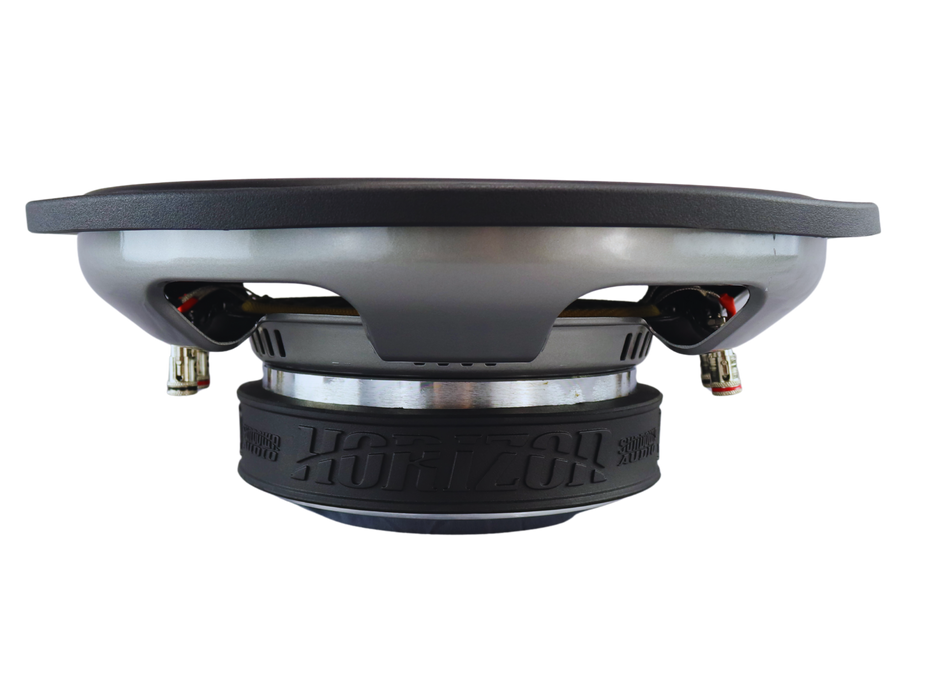

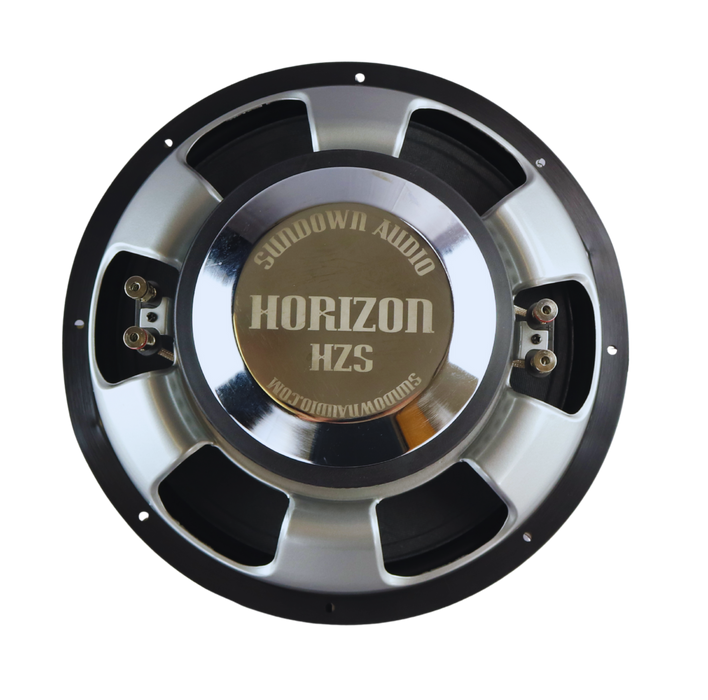

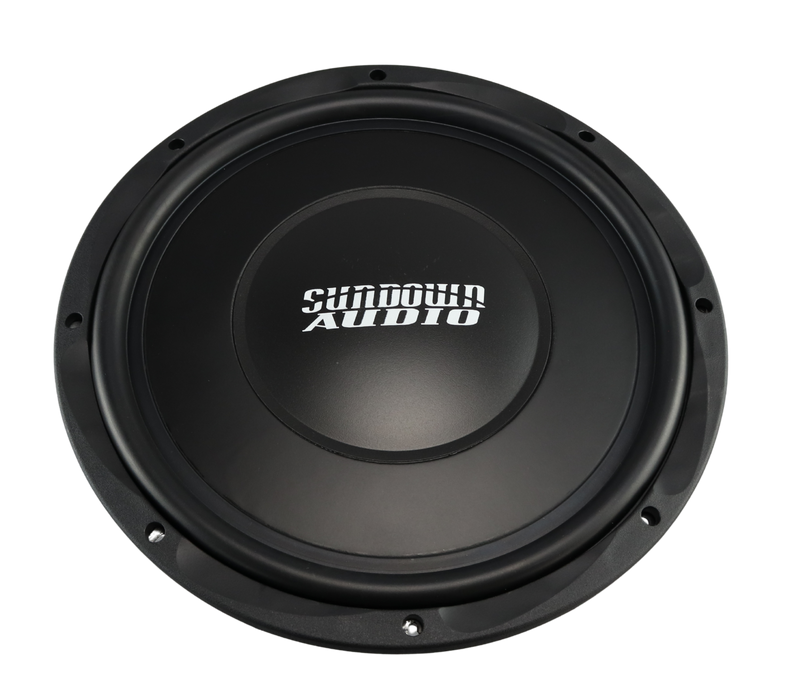

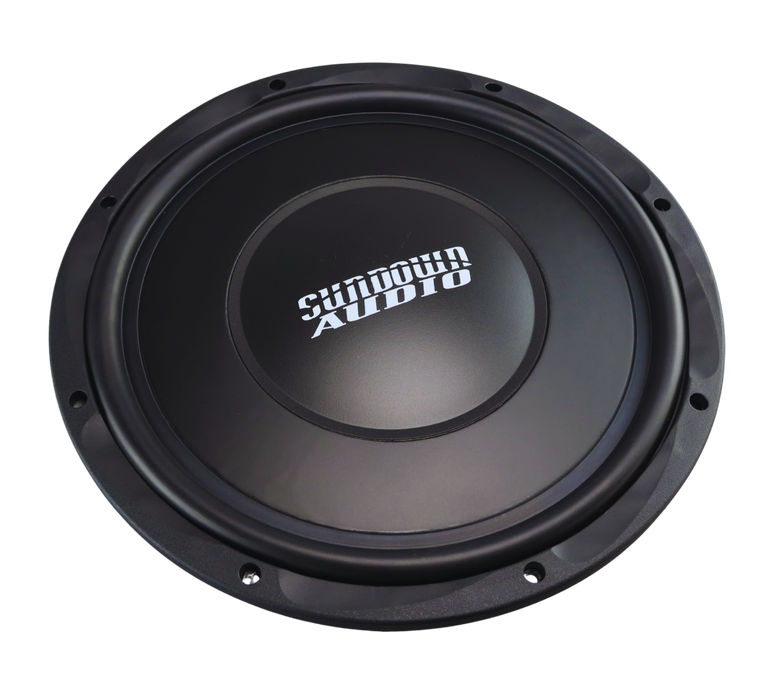

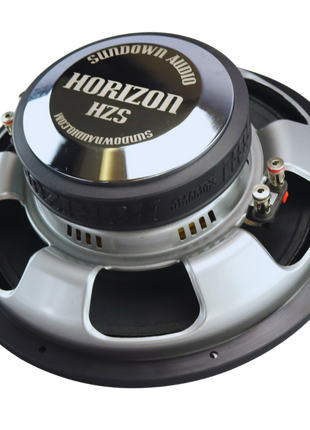

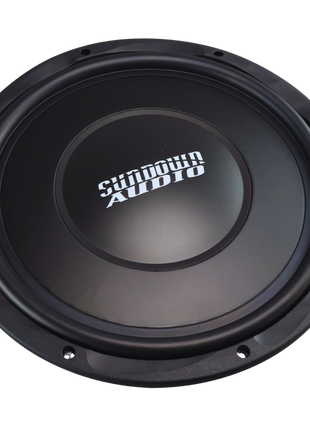

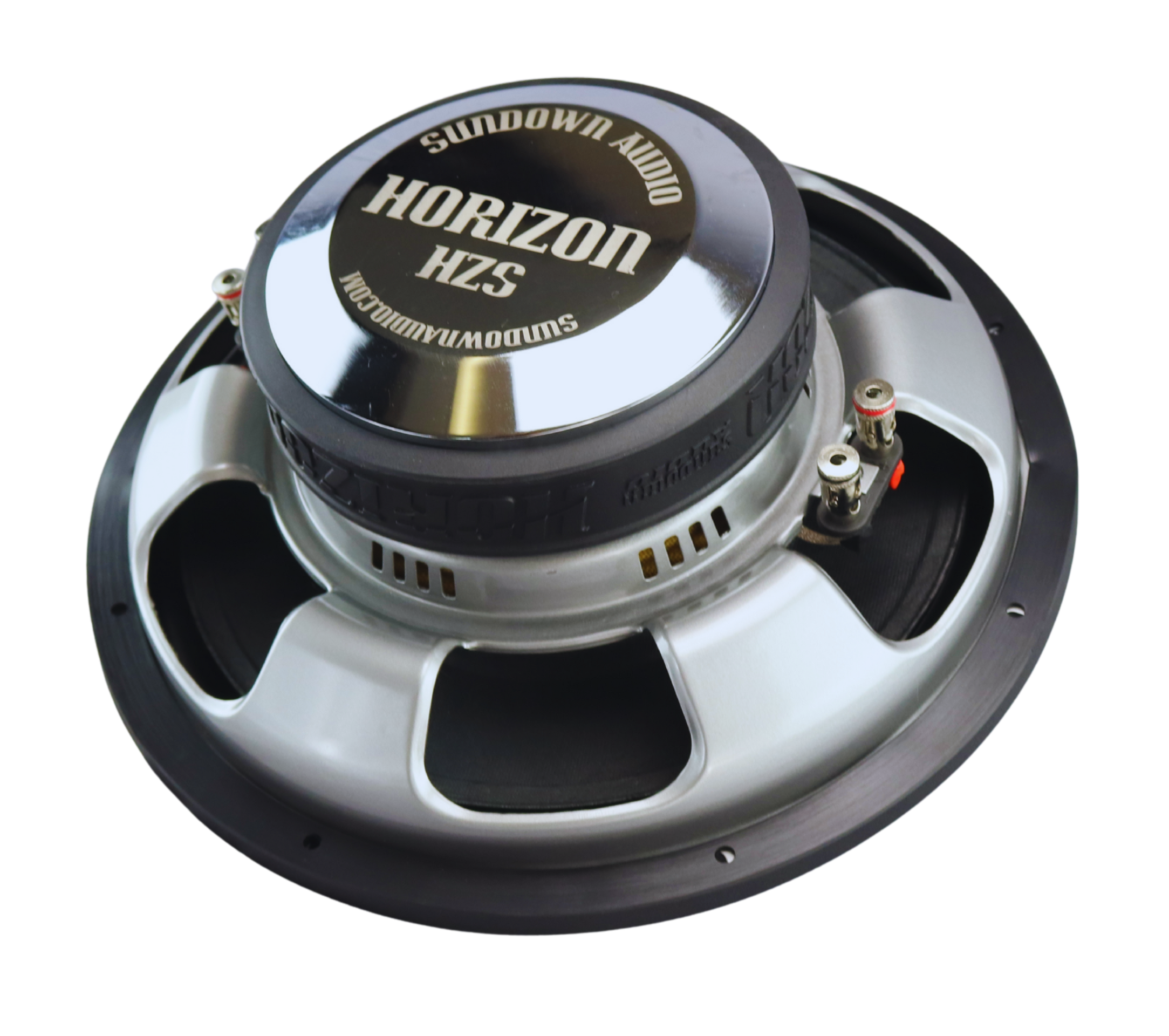

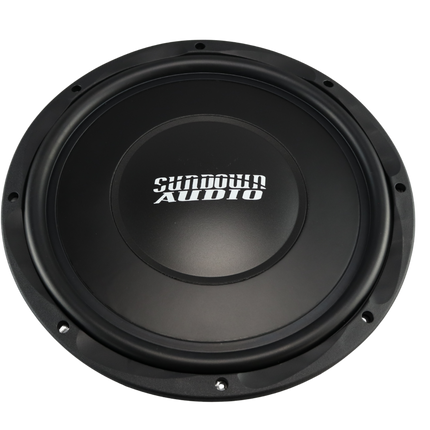

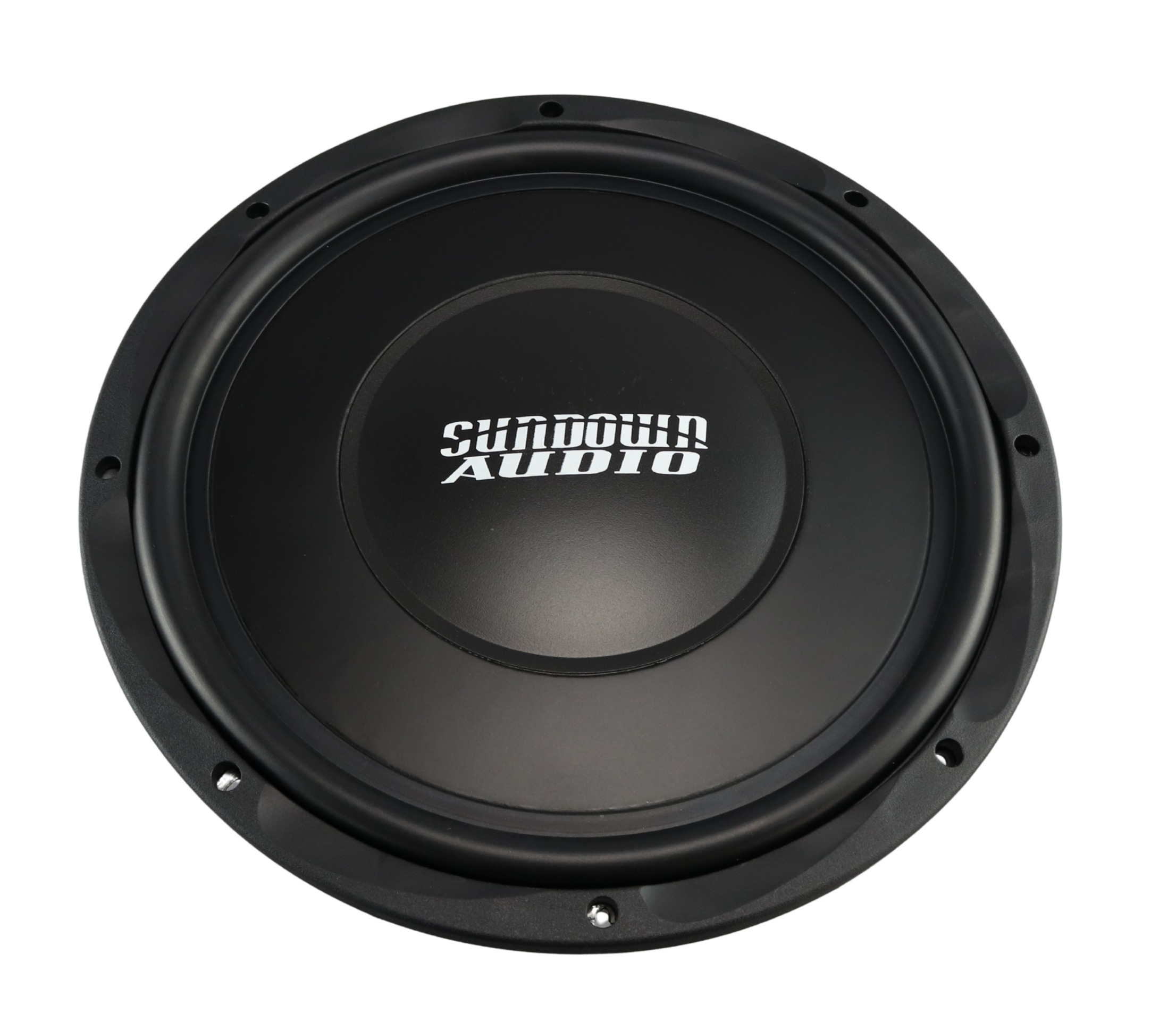

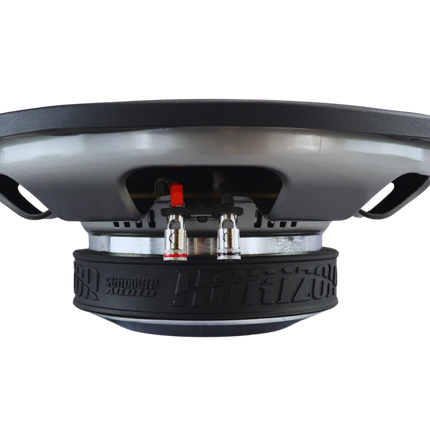

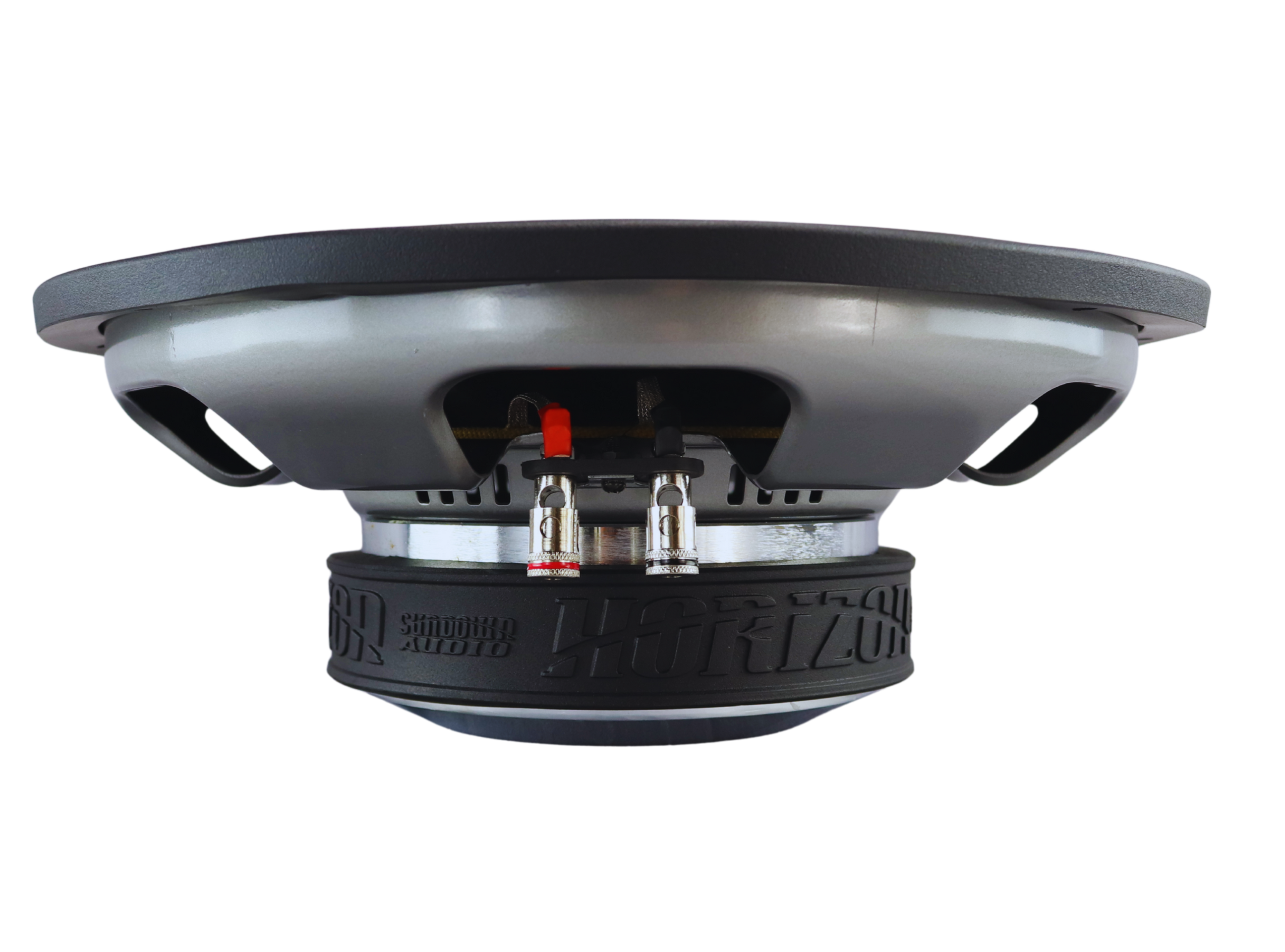

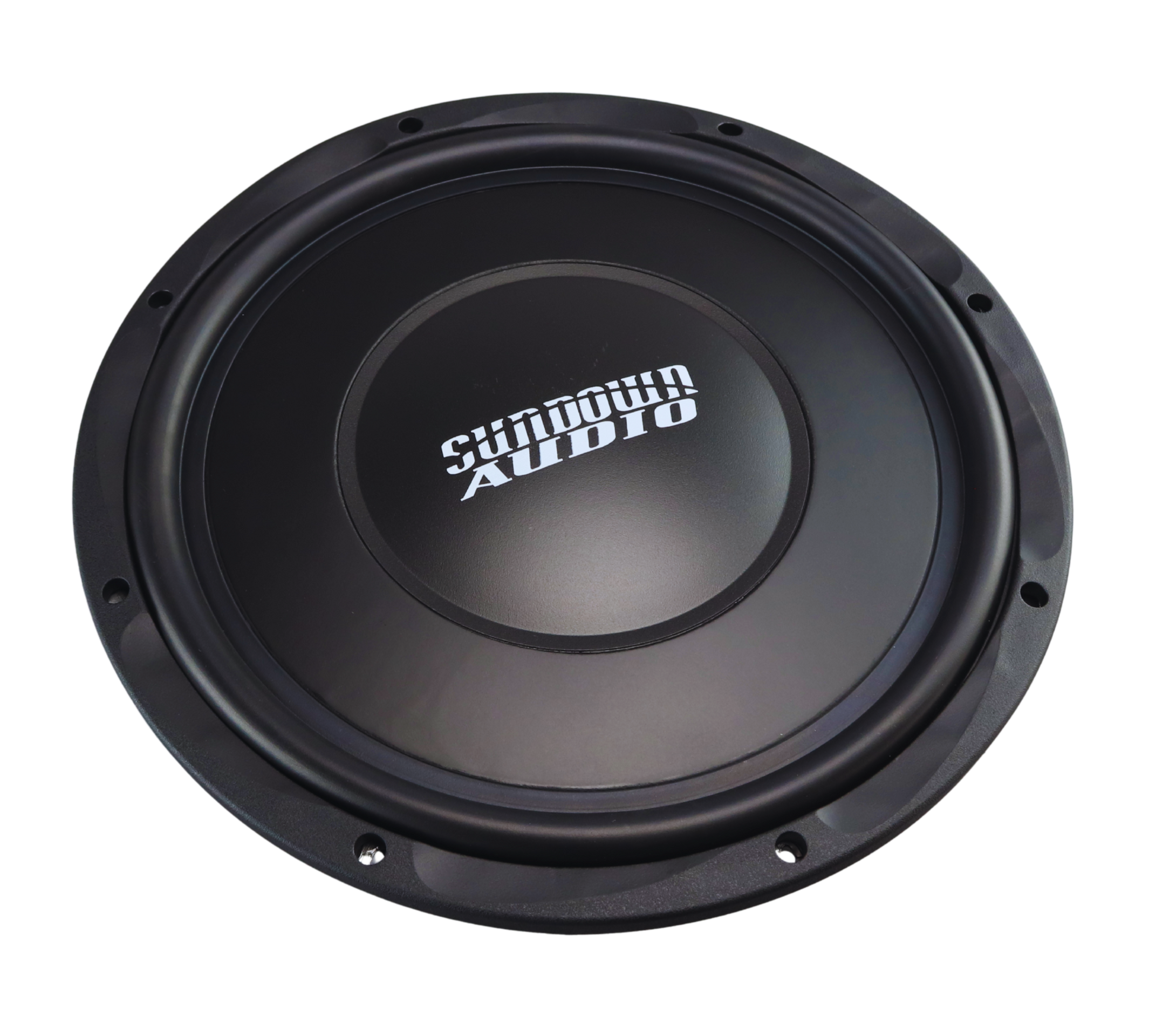

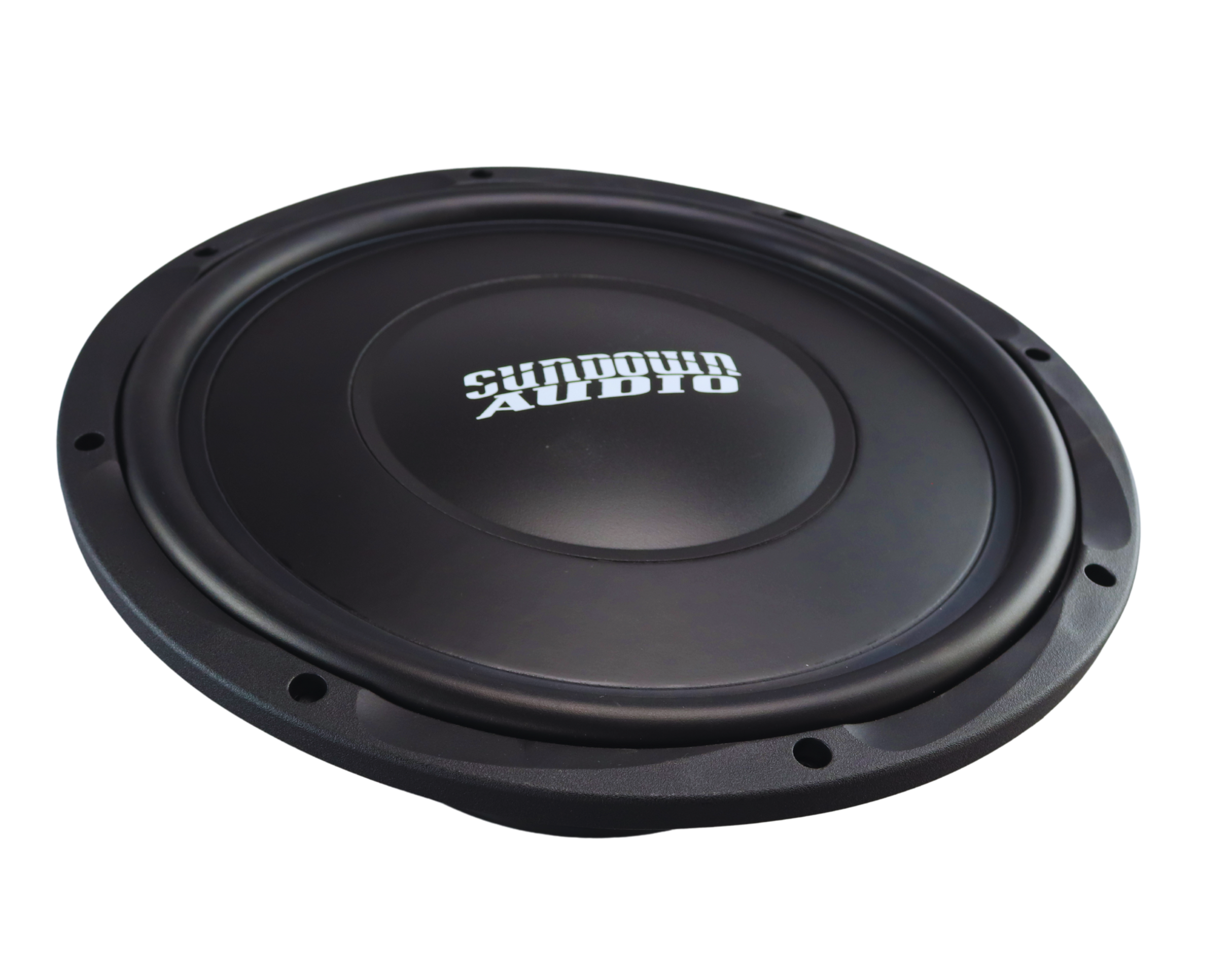

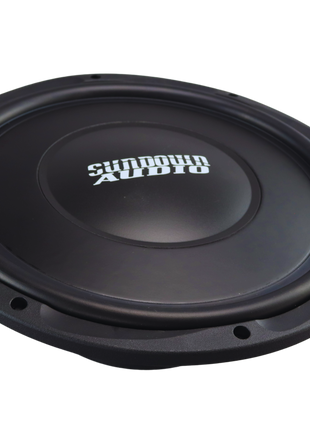

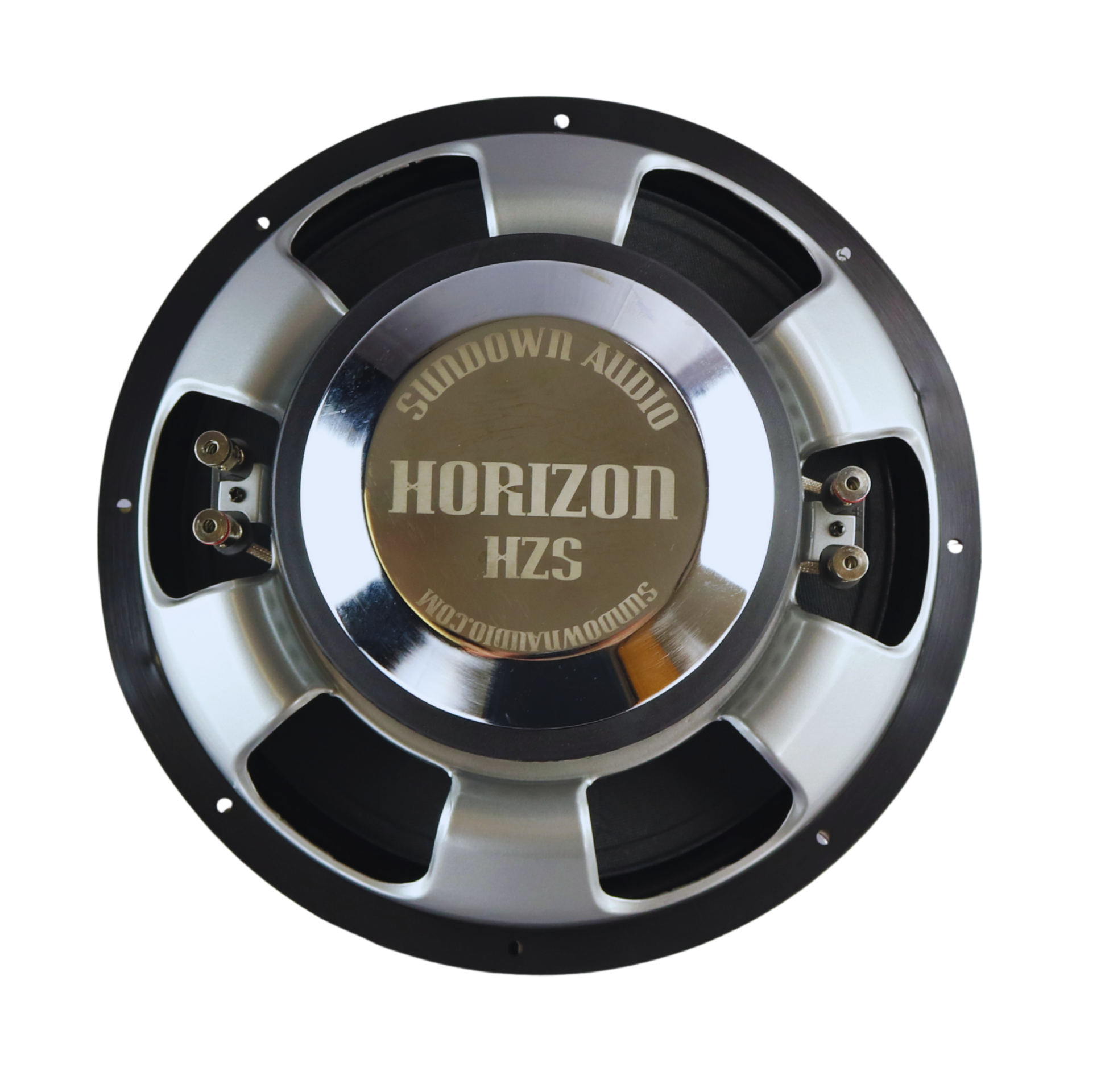

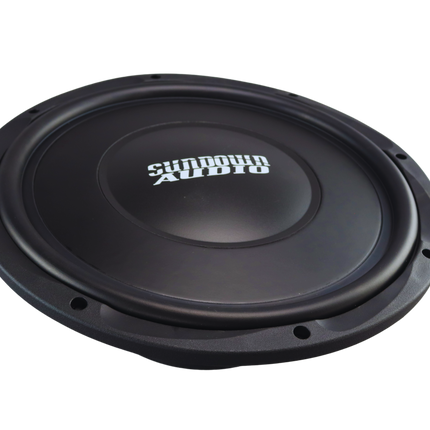

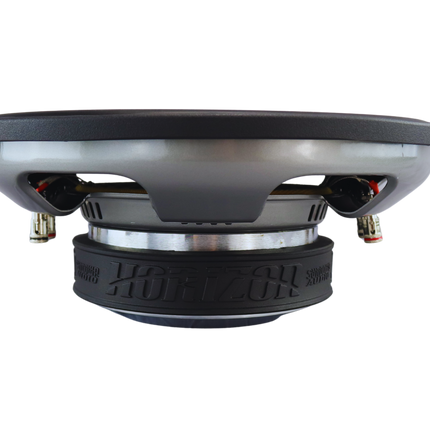

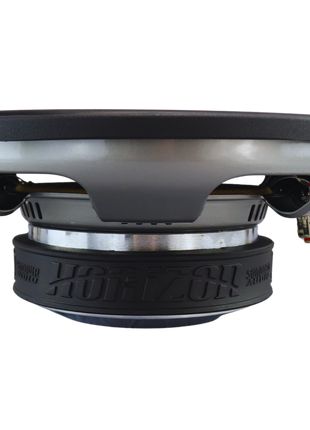

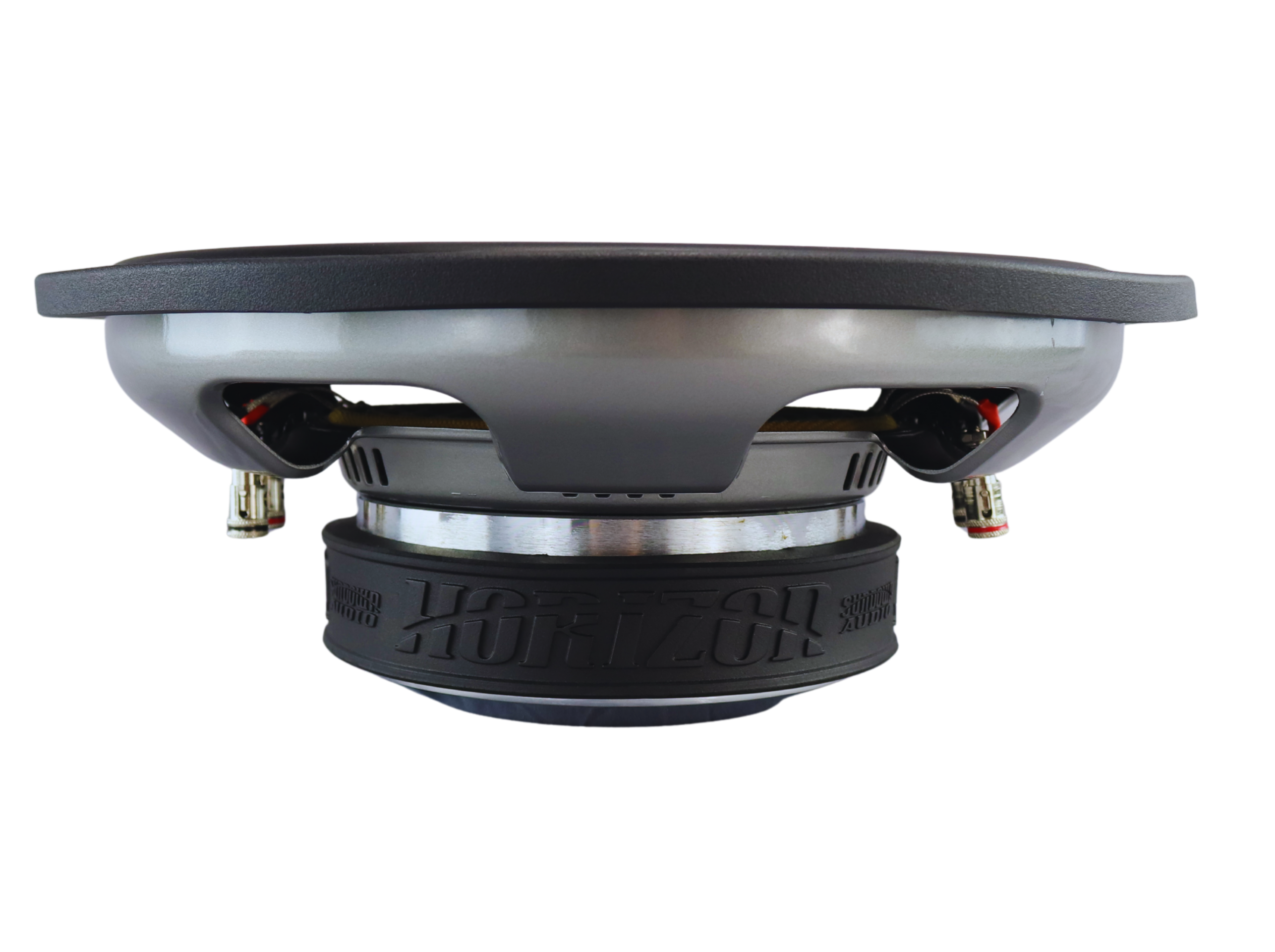

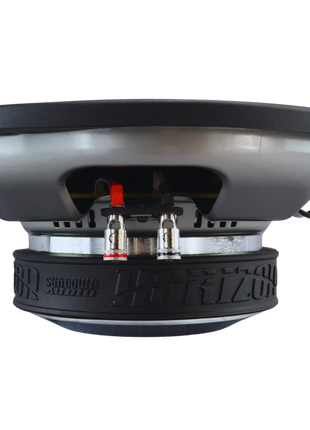

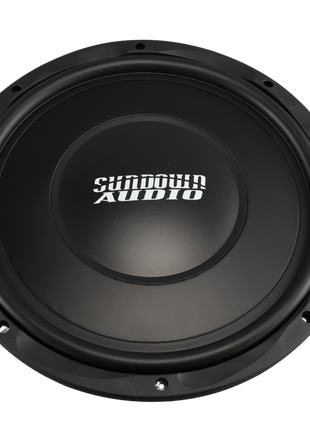

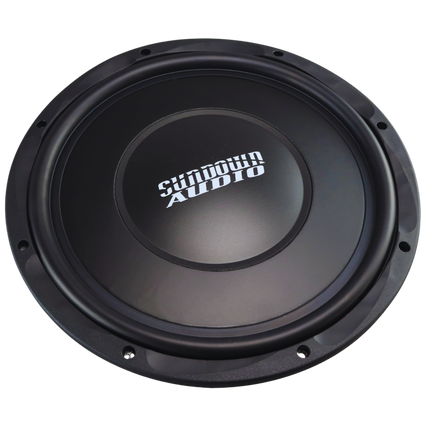

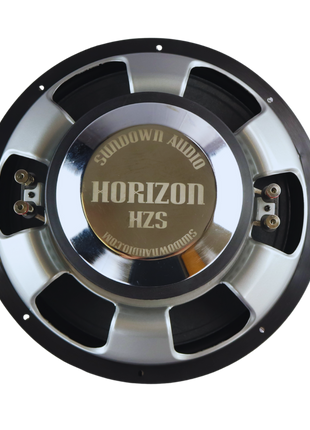

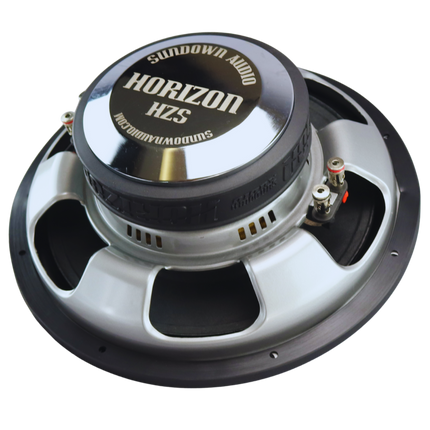

Horizon HZS 12" Subwoofer
Free Shipping In The Contiguous United States
Free Shipping In The United States, excluding Alaska and Hawaii.
International Shipping available and calculated at checkout.
Description

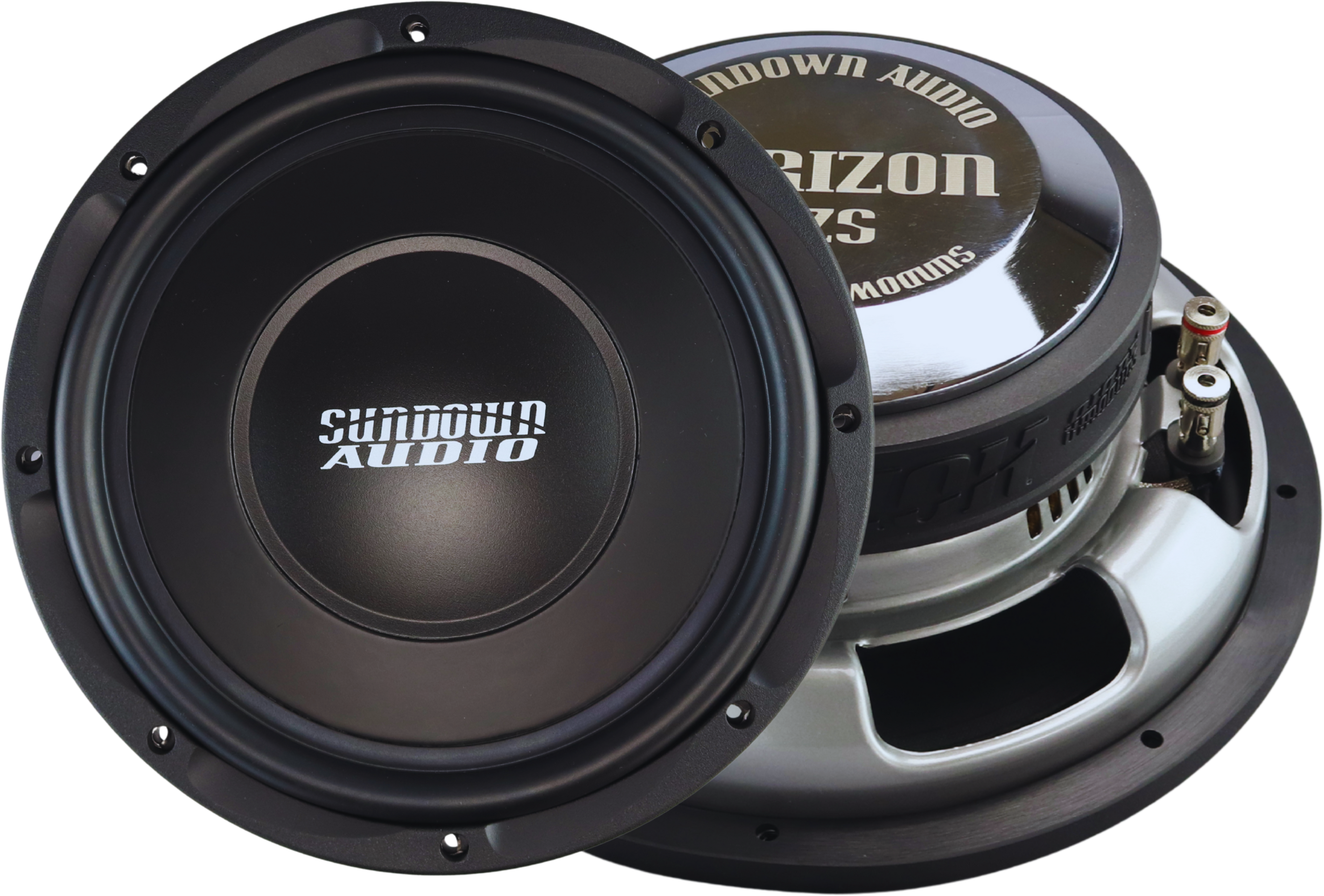

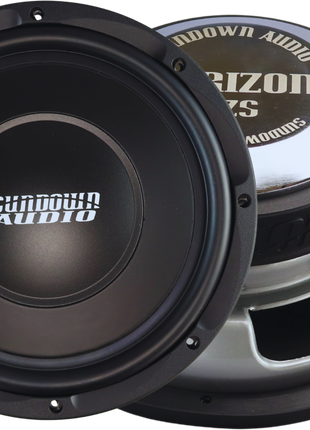

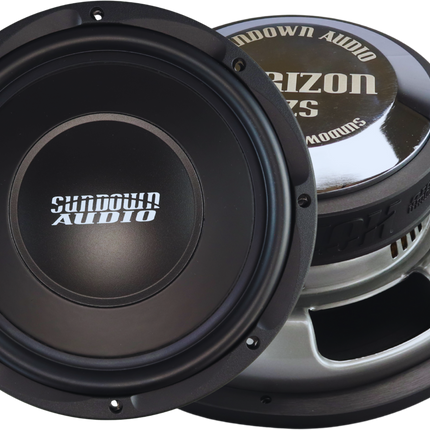

Sundown Audio HZS Series Subwoofers
Purpose-Built for Tight Installs. Powered by Real Performance.
The Sundown Audio HZS Series was engineered from the ground up to bring powerful, clean bass to space-limited installations—without sacrificing output, reliability, or thermal performance. Whether you’re working with a slim enclosure behind a truck seat, under a rear deck, or in a stealth build, the HZS delivers the kind of low-end impact you expect from Sundown.
Available in 10" and 12" sizes, the HZS is a shallow-mount subwoofer rated for 600 watts RMS and designed to thrive in ported enclosures, though sealed options are also supported. Each model features a 2.5" black aluminum voice coil, a high-roll surround, a progressive spider, and a vented motor design that keeps things cool when the music gets loud.
Built for daily abuse and engineered for clean excursion, the HZS combines strength, efficiency, and low-profile fitment into one aggressive package. It’s the ideal solution when you want true bass performance without giving up precious install depth.
Key Features:
- RMS Power: 600W
- Voice Coil: 2.5" black aluminum former - Dual 4Ω
- Cooling: Vented motor gap and solid pole piece
- Suspension: High-roll surround and progressive spider
- Lead Wires: Stitched mini-XL tinsel leads for long-term durability
- Motor Assembly: Bolt-through design for mechanical strength
- Mounting Depth: Compact profile for shallow, space-restricted enclosures
- Best Use: Ported enclosures for optimal output; sealed compatible
Specifications
RE (Ohms) |
6.850 |
FS (Hz) |
32.802 |
VAS (L) |
56.708 |
Qes |
0.564 |
Qms |
3.240 |
Qts |
0.480 |
BL (NA) |
21.348 |
Mms (Grams) |
182.051 |
Cms (mm/N) |
129.313 |
Sens (dB @ 1w/1m) |
87.4 |
Xmax |
|
T/S SPECS |
HZS 12" |
Enclosure Specs
-
-
Ported Enclosure
- Size: N/A
- Port Area: N/A
- Port Tuning: N/A
-
Sealed Enclosure
- Size: 1.0 cuft net
- Displacement: 0.05 cuft.
- Depth: 4.3"
- Outside Diameter: 12.5"
- Cutout: 11.2"
-
Ported Enclosure
