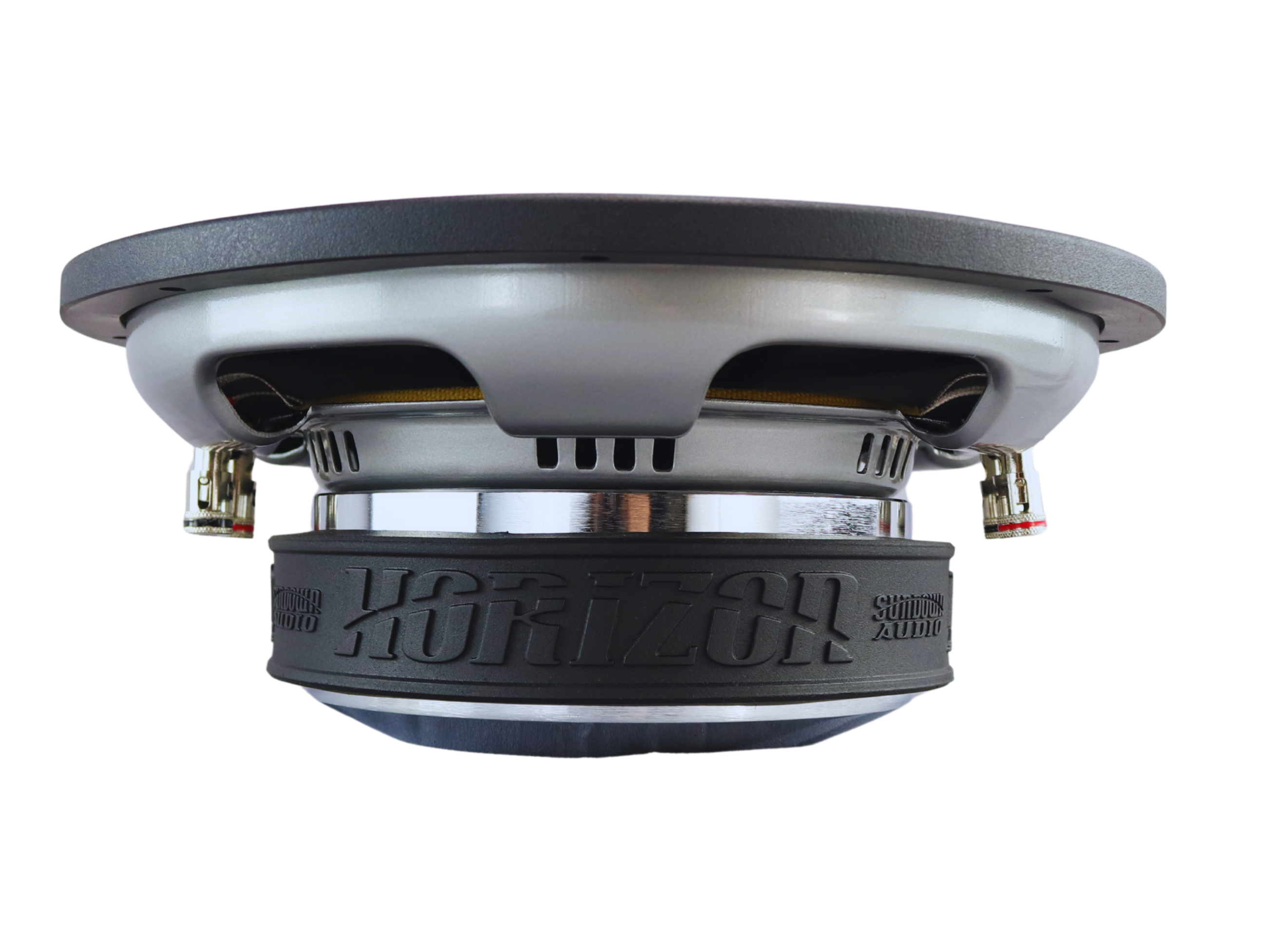

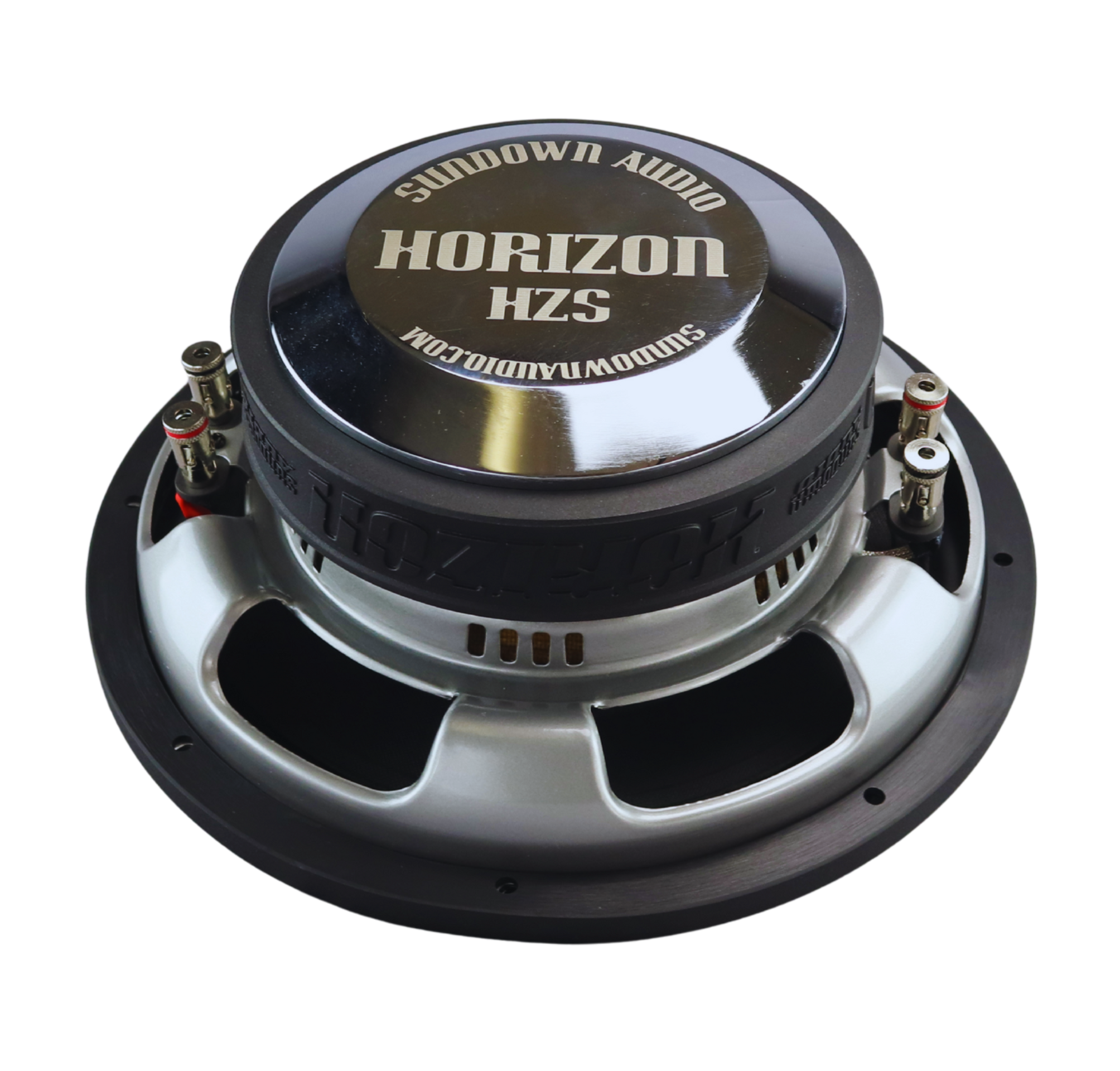

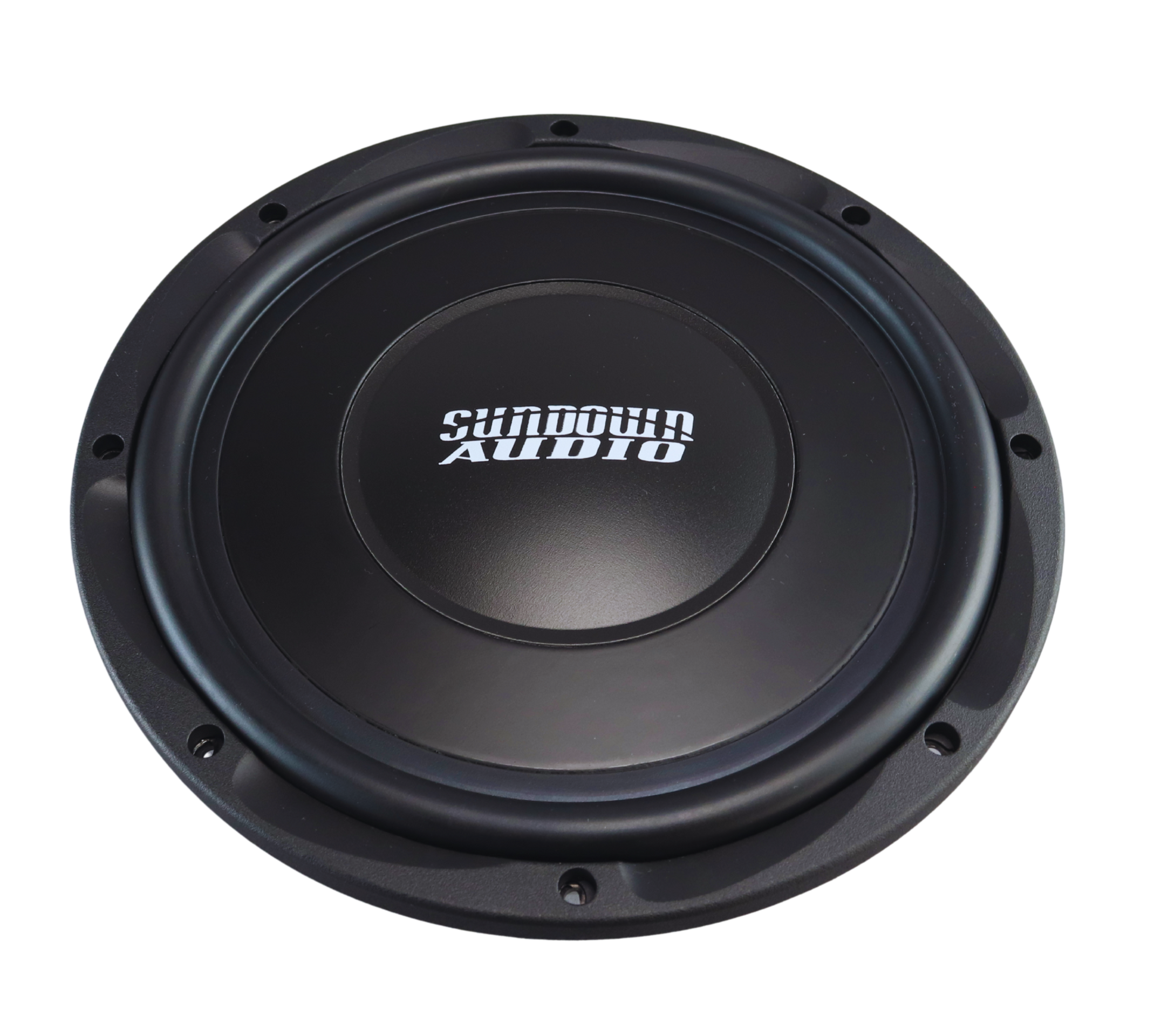

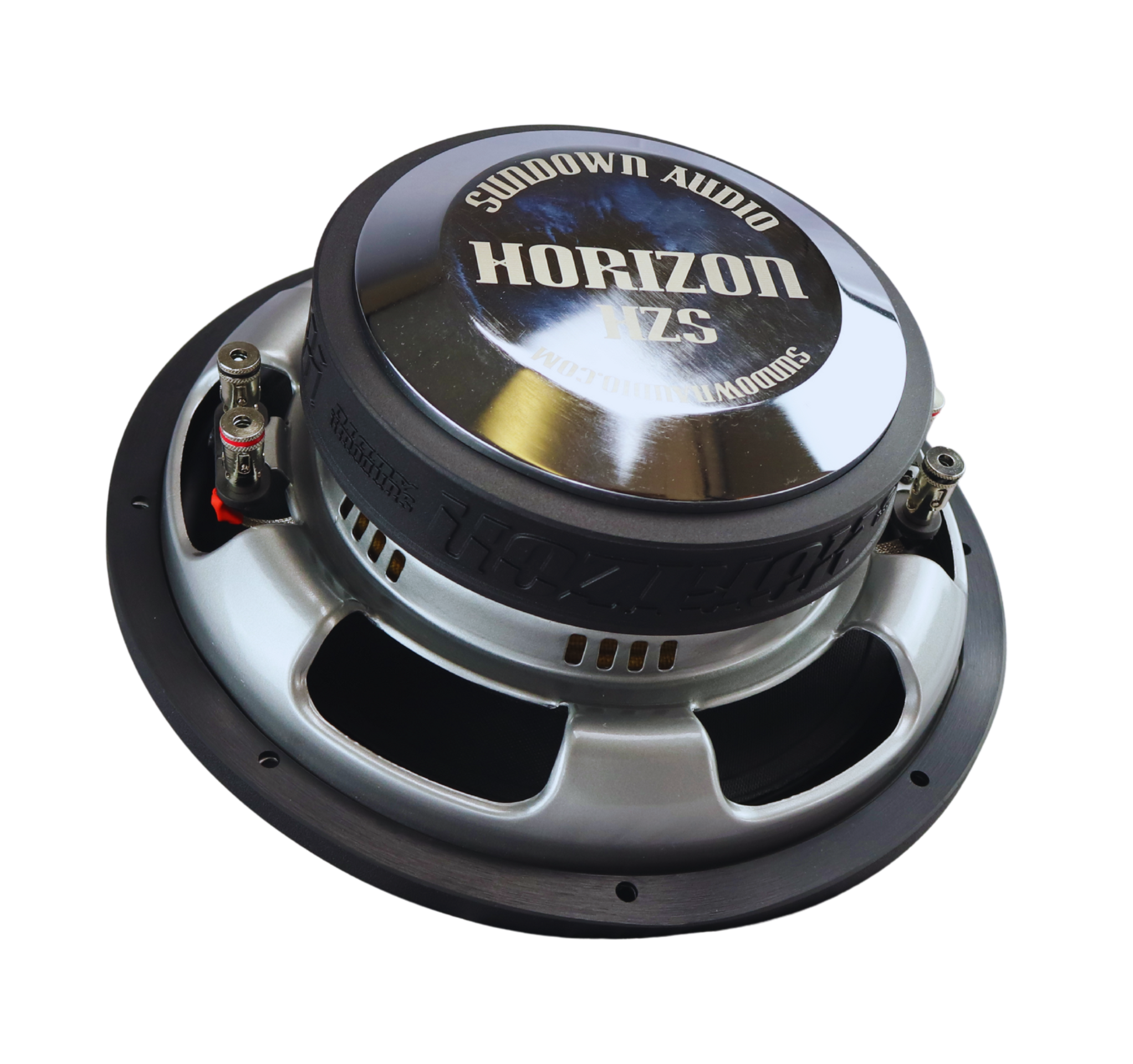

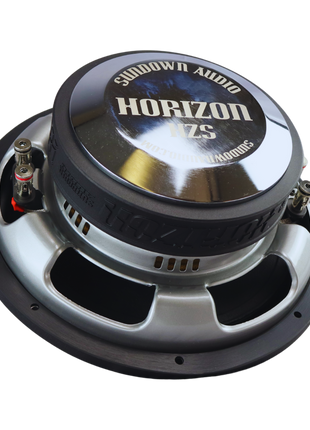

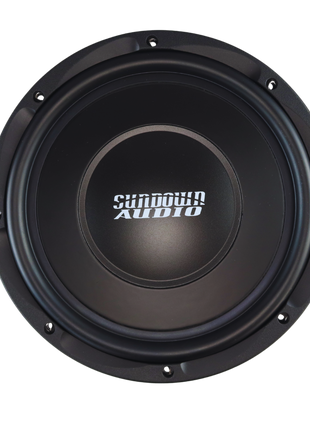

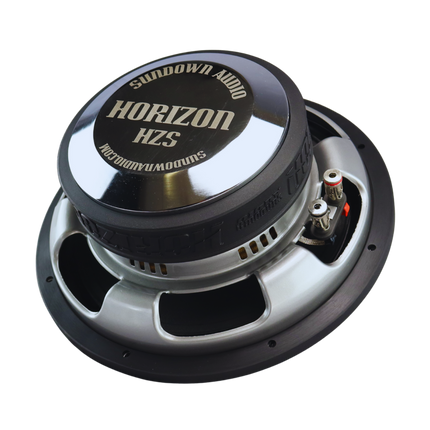

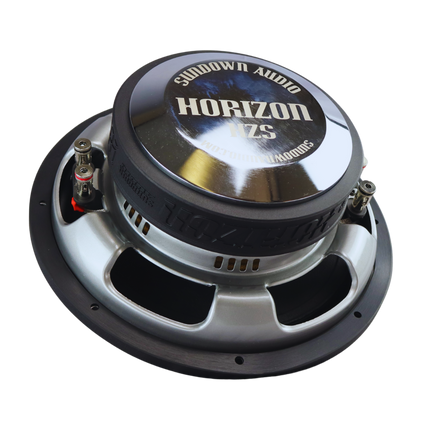

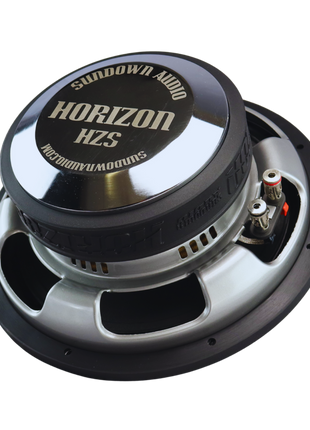

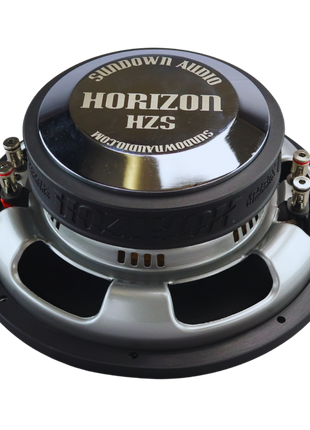

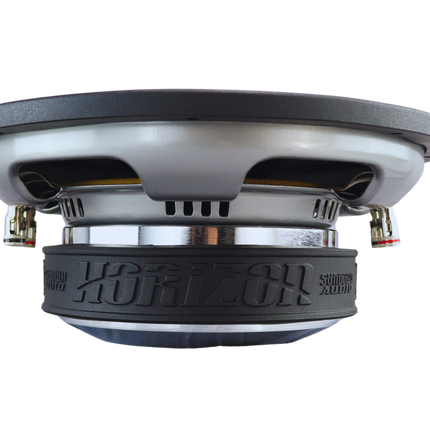

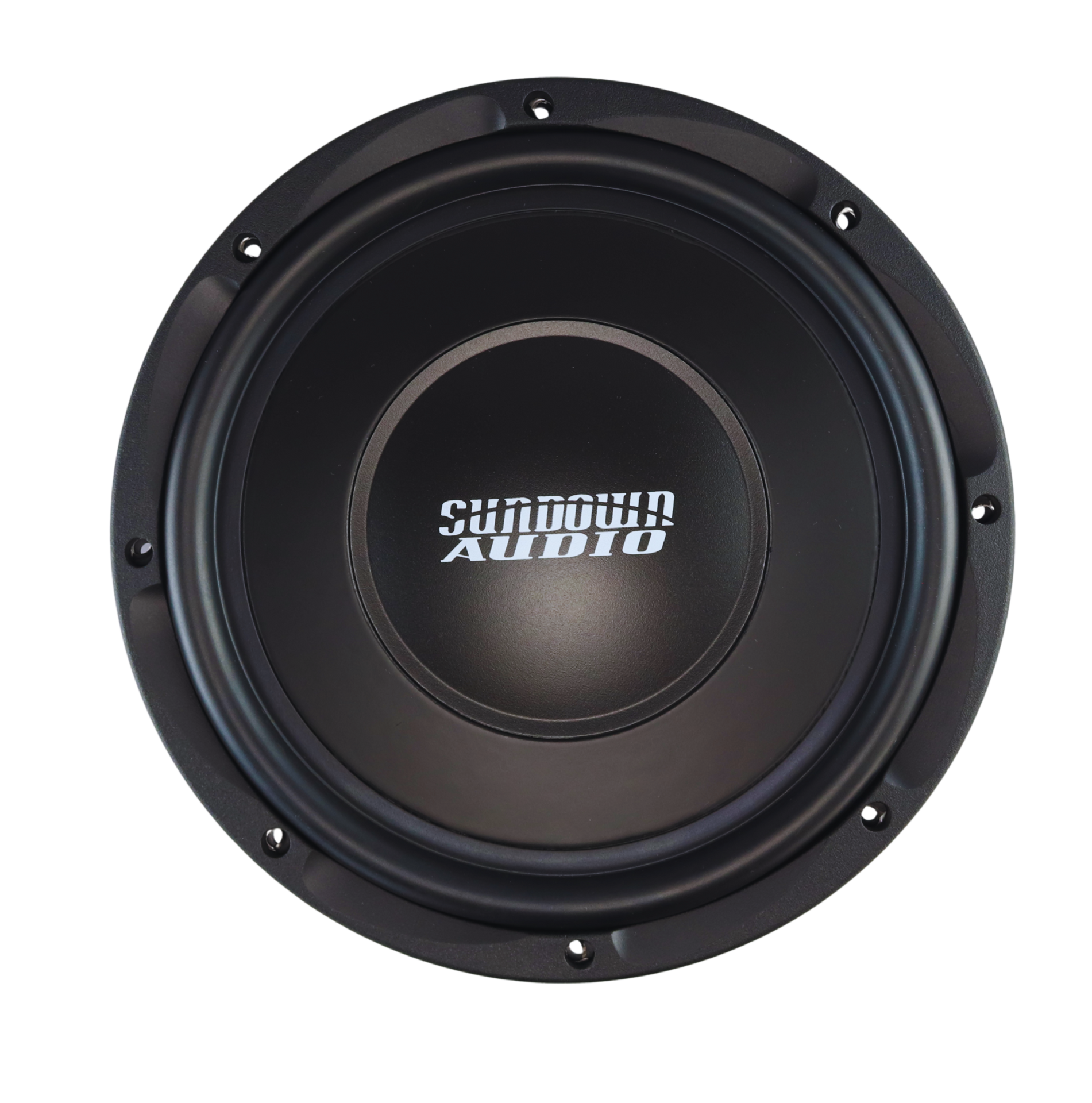

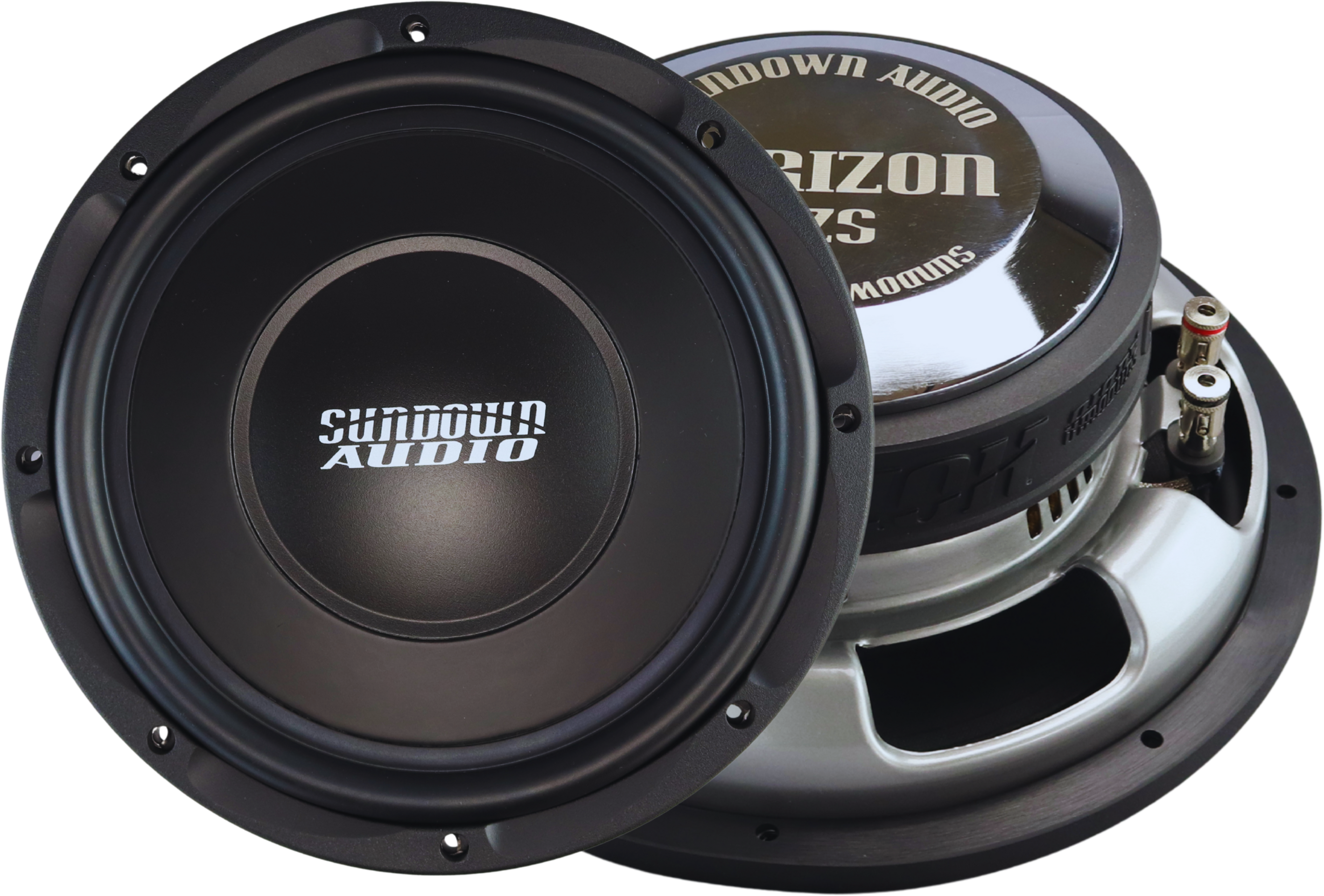

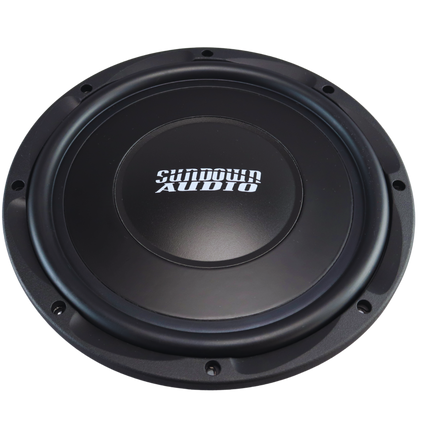

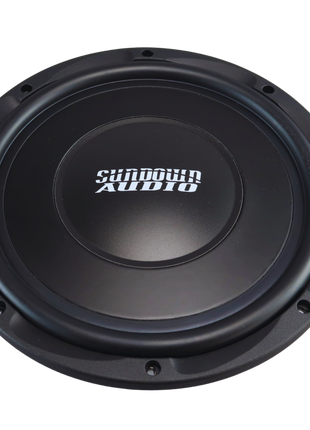

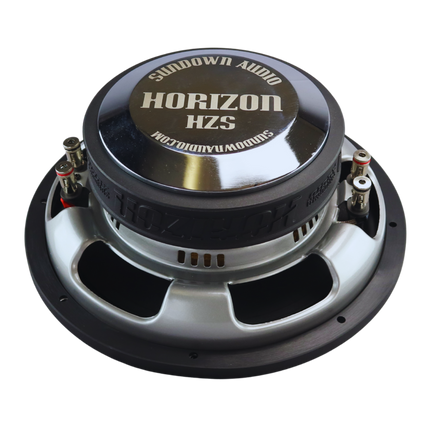

Horizon HZS 10" Subwoofer
- Sundown Audio

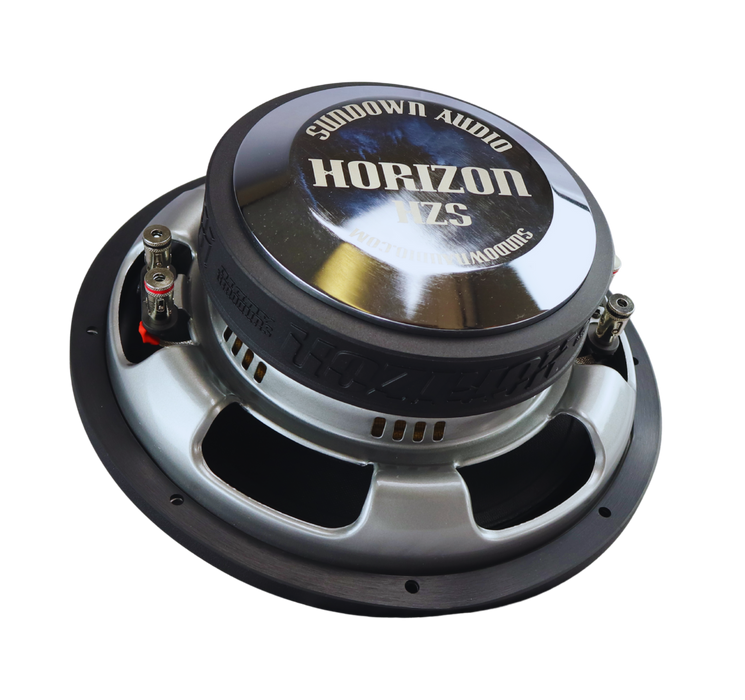

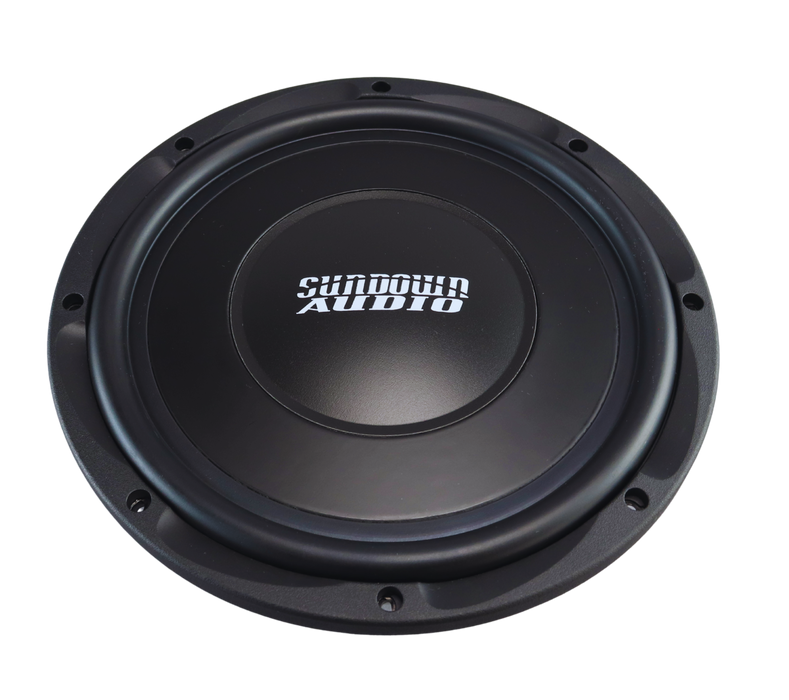

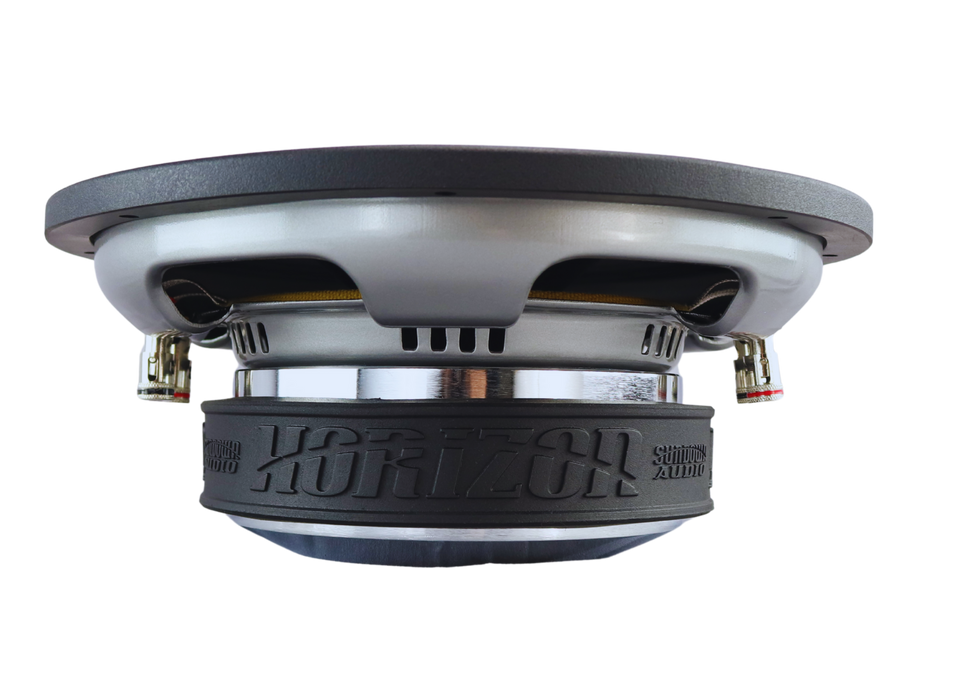

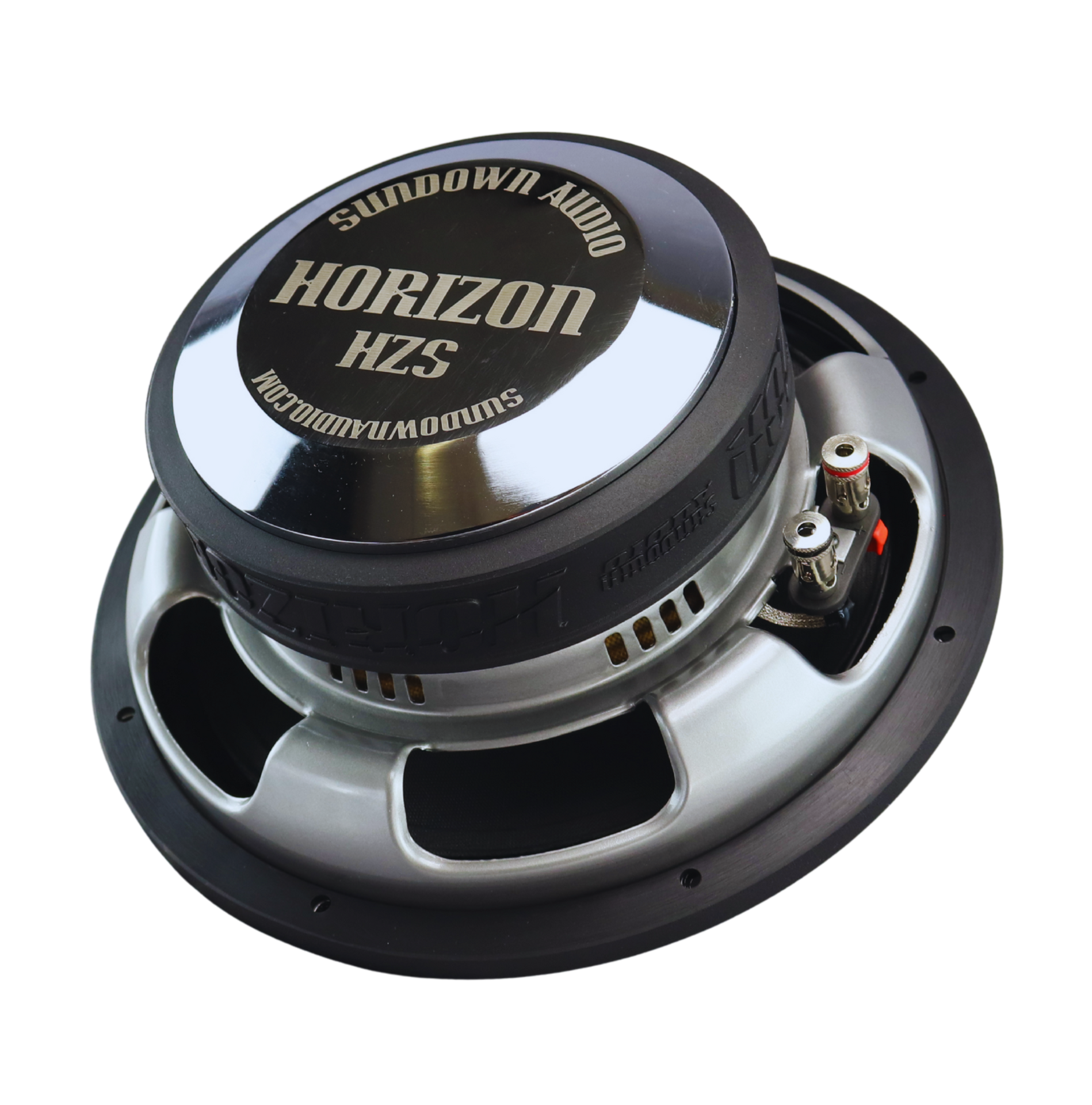

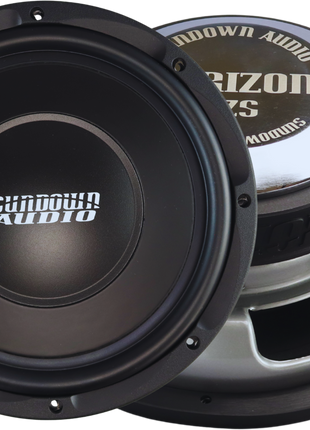

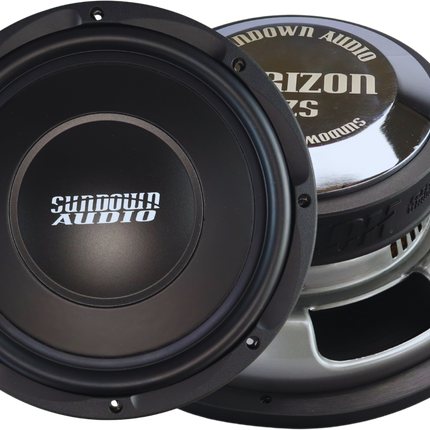

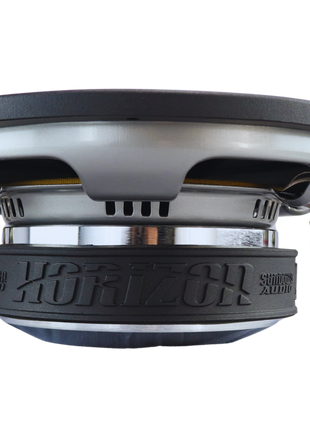

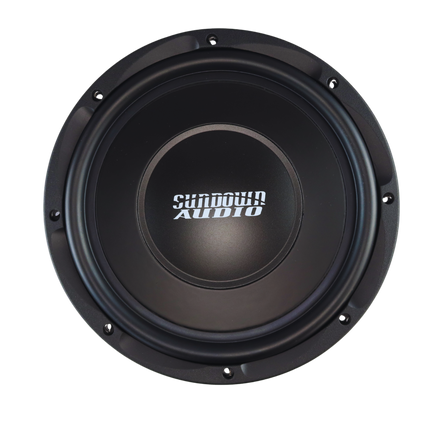

Horizon HZS 10" Subwoofer
- Sundown Audio
Sundown Audio HZS Series SubwoofersPurpose-Built for Tight Installs. Powered by Real Performance. The Sundown Audio HZS Series was engineered from... Read more
$244.99
- Free shipping in the contiguous USA on all orders above $99
- Full Manufacturer Warranty On All Items
- No Hassle, Easy 30 Day Returns
- Price Match Guarantee. Lowest Prices Anywhere.
- REAL Audio Enthusiasts, Expert Support
| Parameter | D4 Model |
|---|---|
| Re | 6.85 Ω |
| Fs | 44.5 Hz |
| Qms | 3.3200 |
| Qes | 0.5780 |
| Qts | 0.4920 |
| Vas | 19.250 L |
| Mms | 124.02 g |
| Cms | 0.10 mm/N |
| BL | 20.280 T·m |
| Sd | 506.6 cm² |
| Xmax | 12mm |
| SPL (1W/1m) | 86.6 dB |
| Specification | D4 Model |
|---|---|
| RMS Power | 500 W |
| Peak Power | 1000 W |
| Displacement | .04cu ft |
| Mounting Depth | 3.9" |
| Outside Diameter | 10.3" |
| Cutout Diameter | 9.2" |
| Motor Diameter | 6.15" |
| Sealed Enclosure | 0.5cu ft |
| Ported Enclosure | N/A |
| Recommended Port Area | 15 sq in |
| Xmax | 12mm |
| 4th Order Sealed | .4cu ft |
| 4th Order Ported | 1.2cu ft |
| 4th Order Port Area | 24sq in |
| 4th Order Port Length | 6" |
