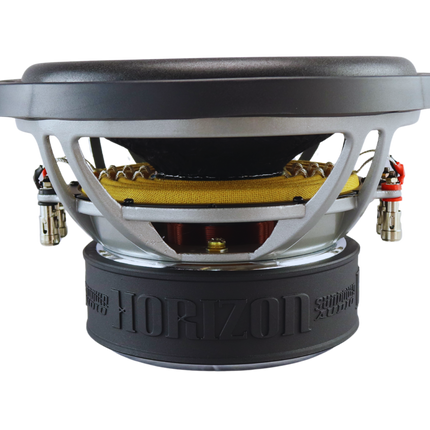

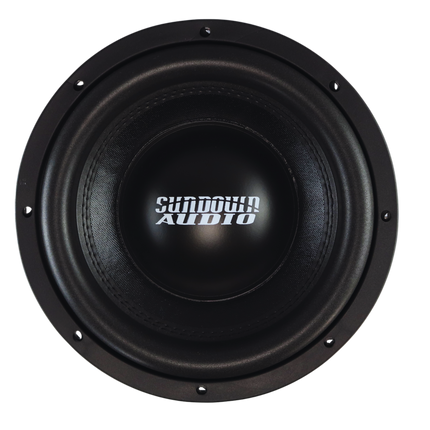

Horizon HZ 10" Subwoofer
- Sundown Audio

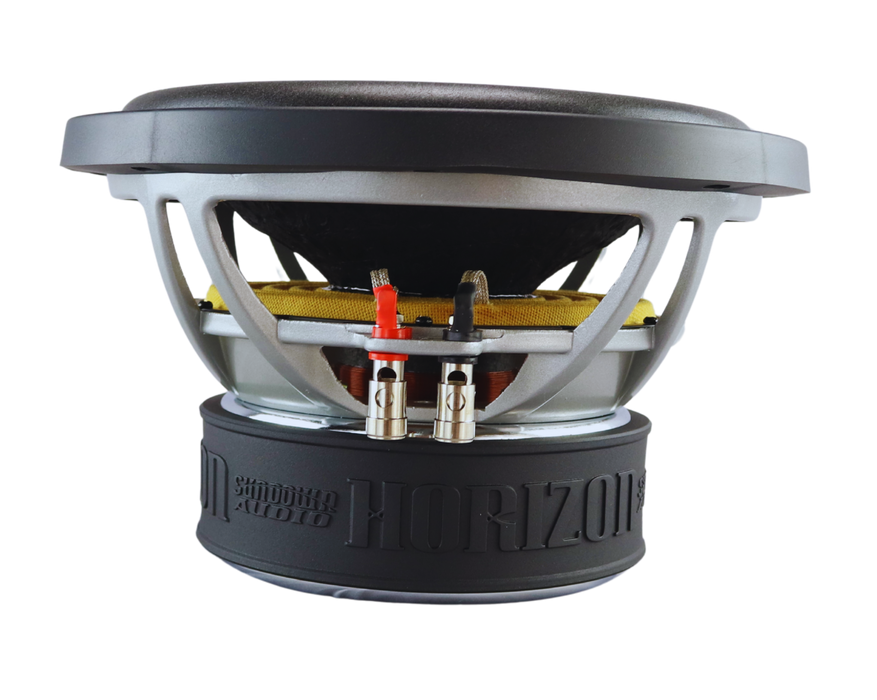

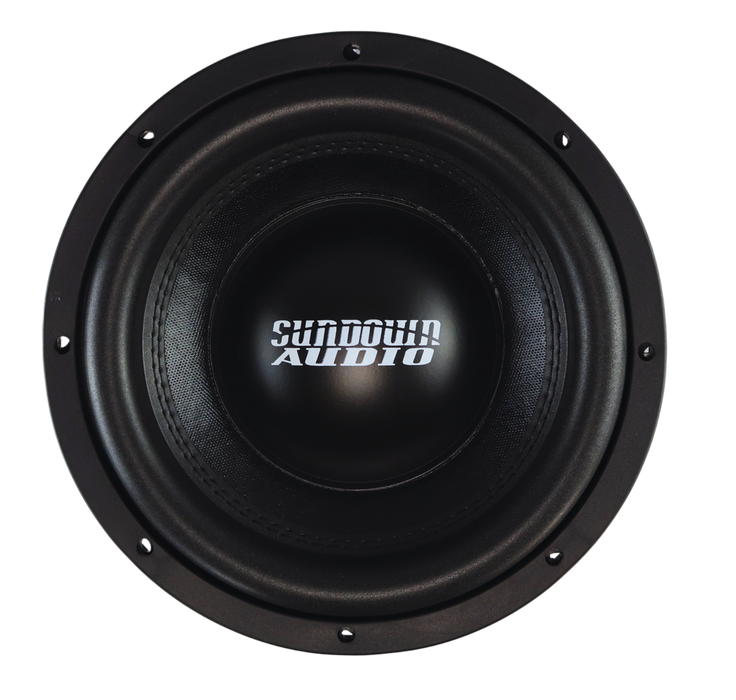

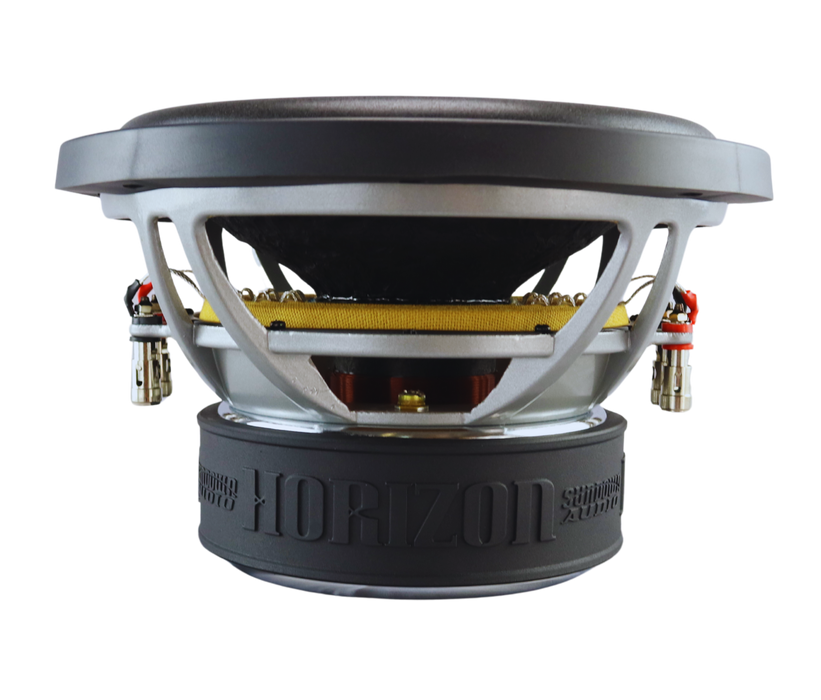

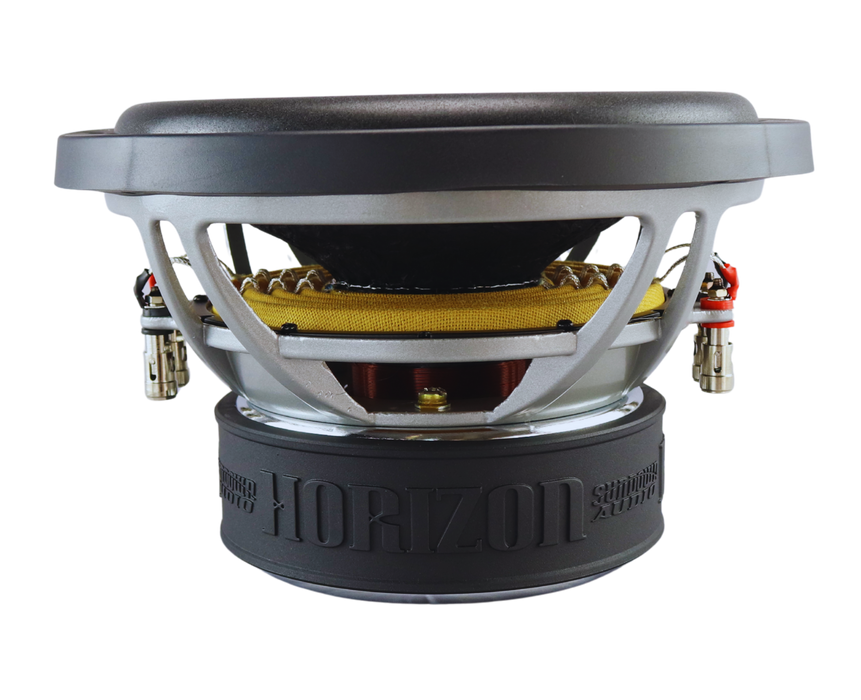

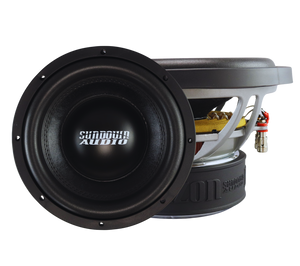

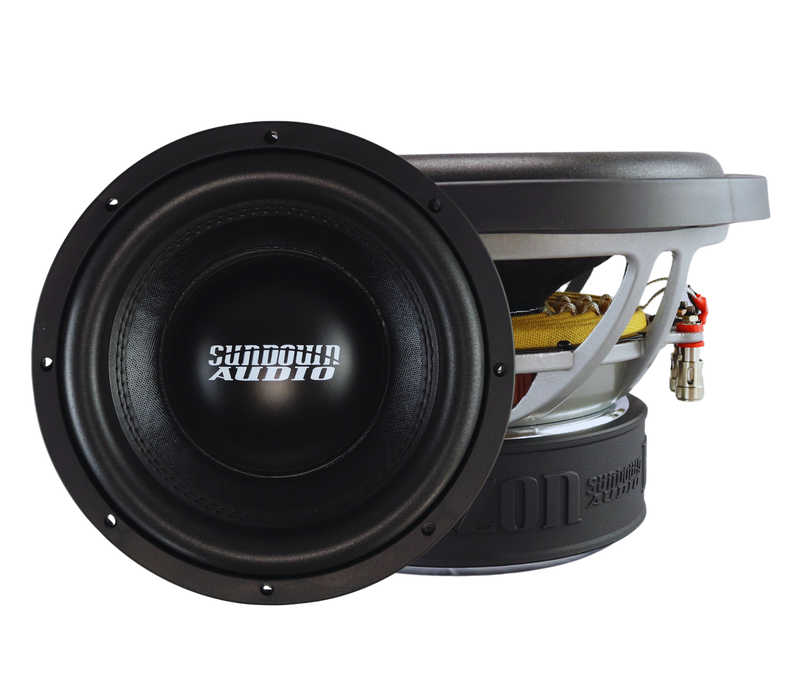

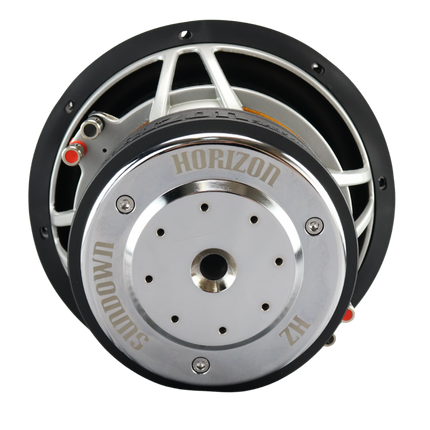

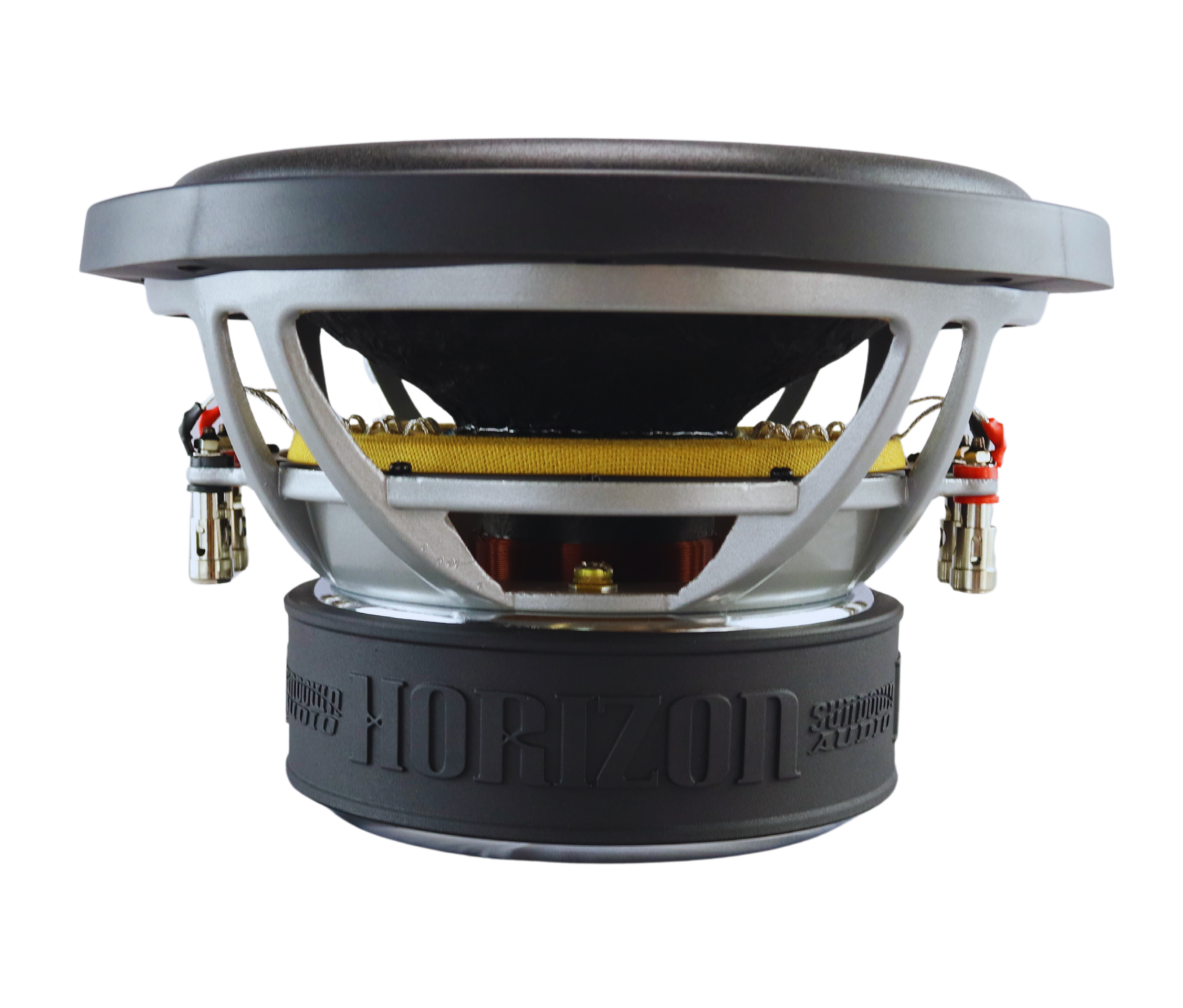

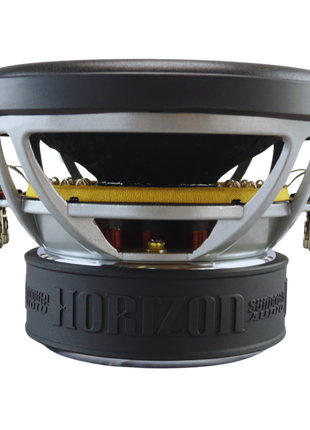

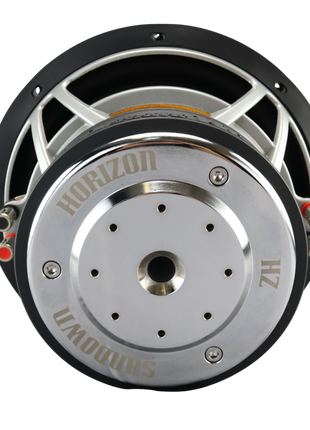

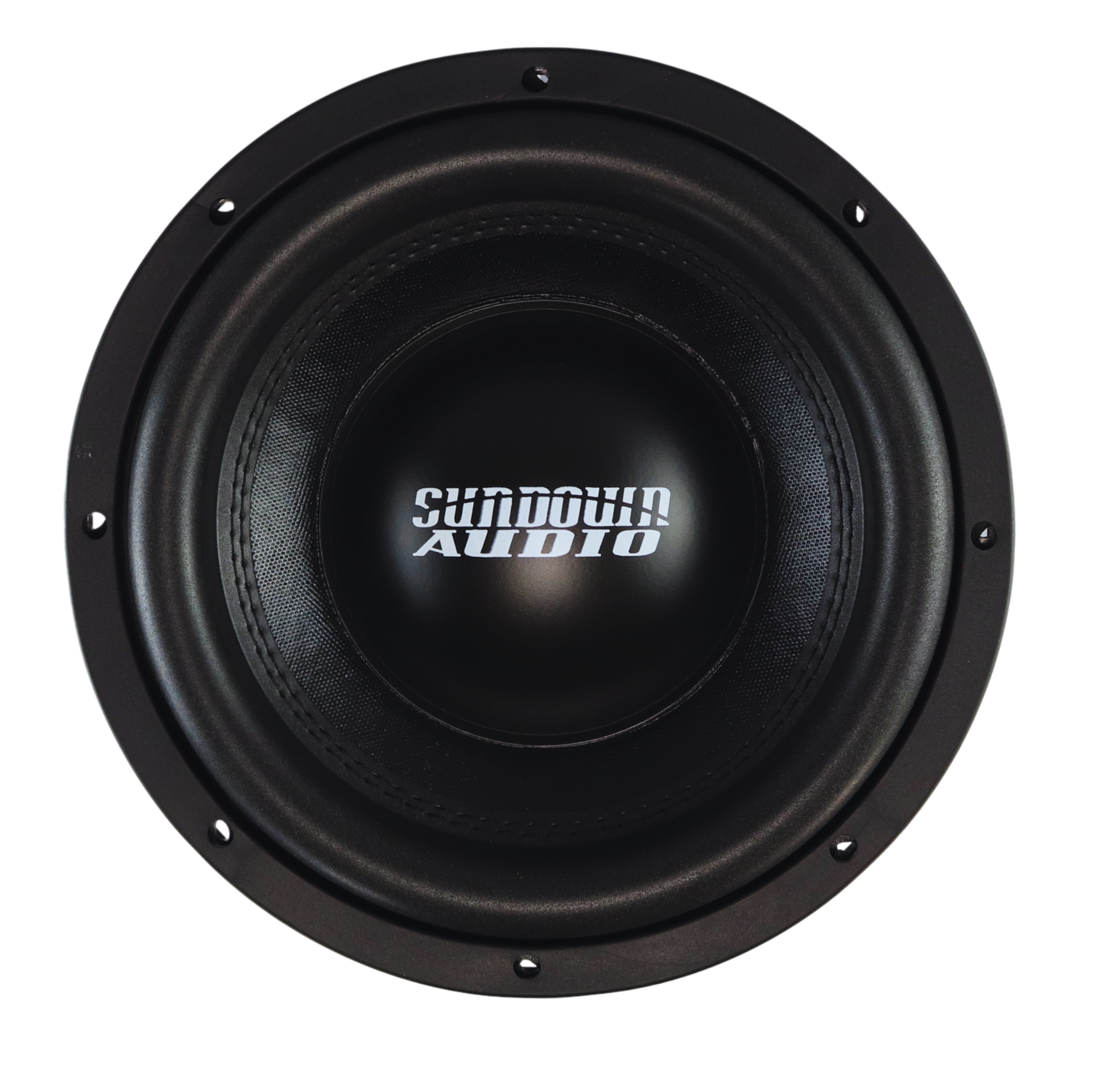

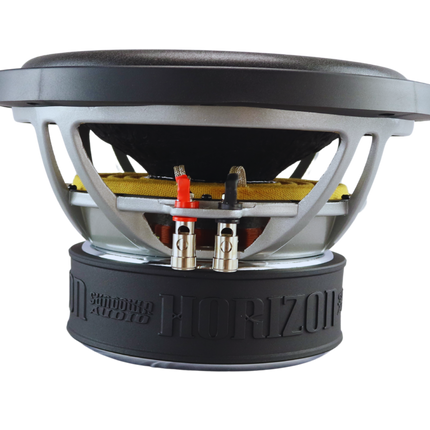

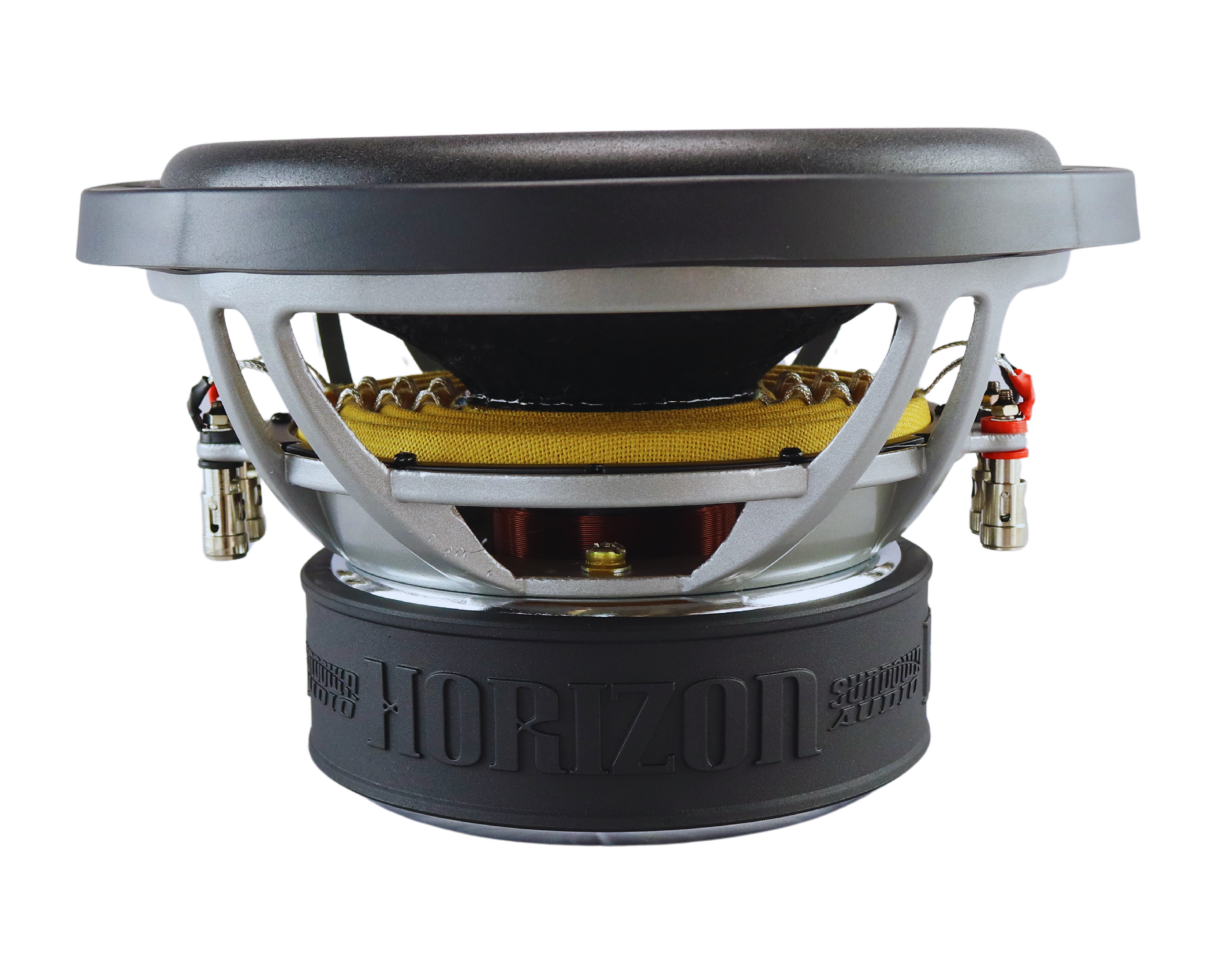

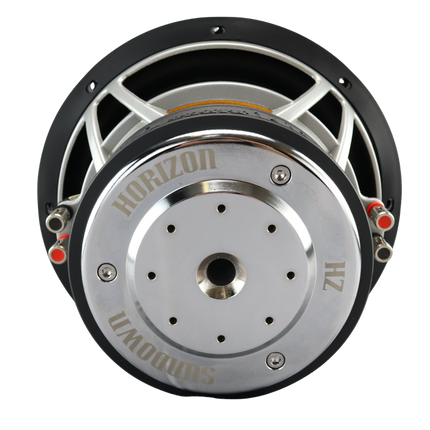

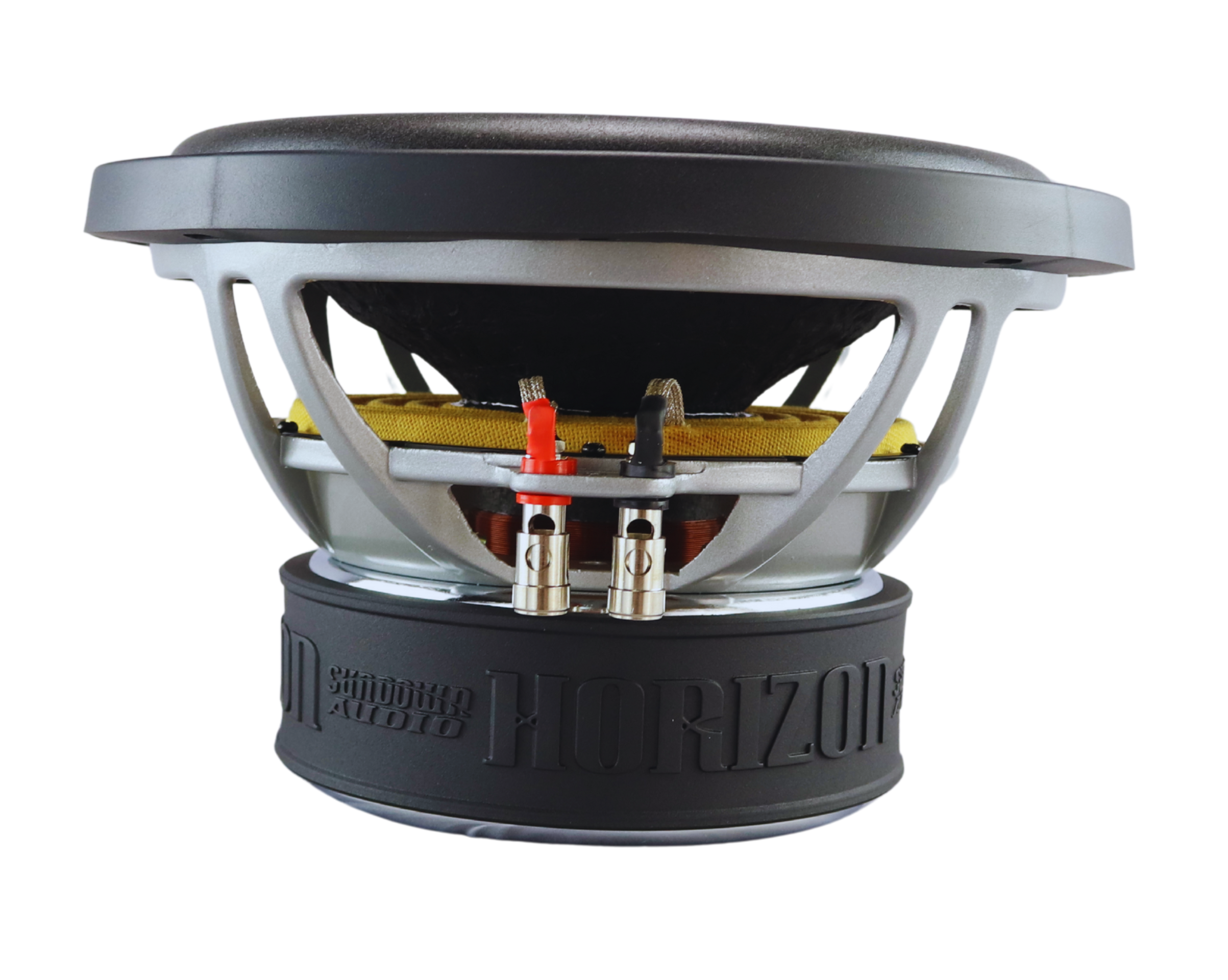

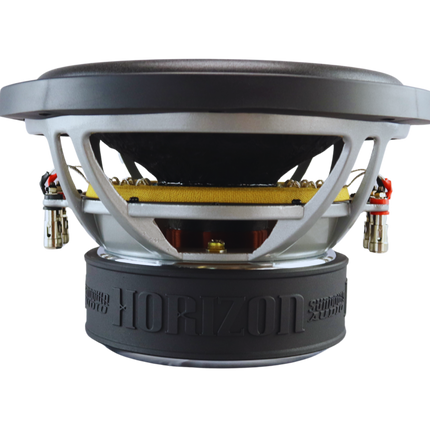

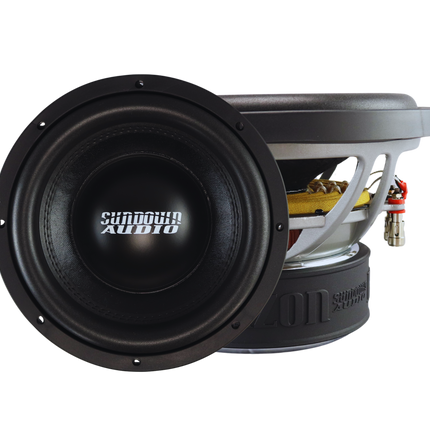

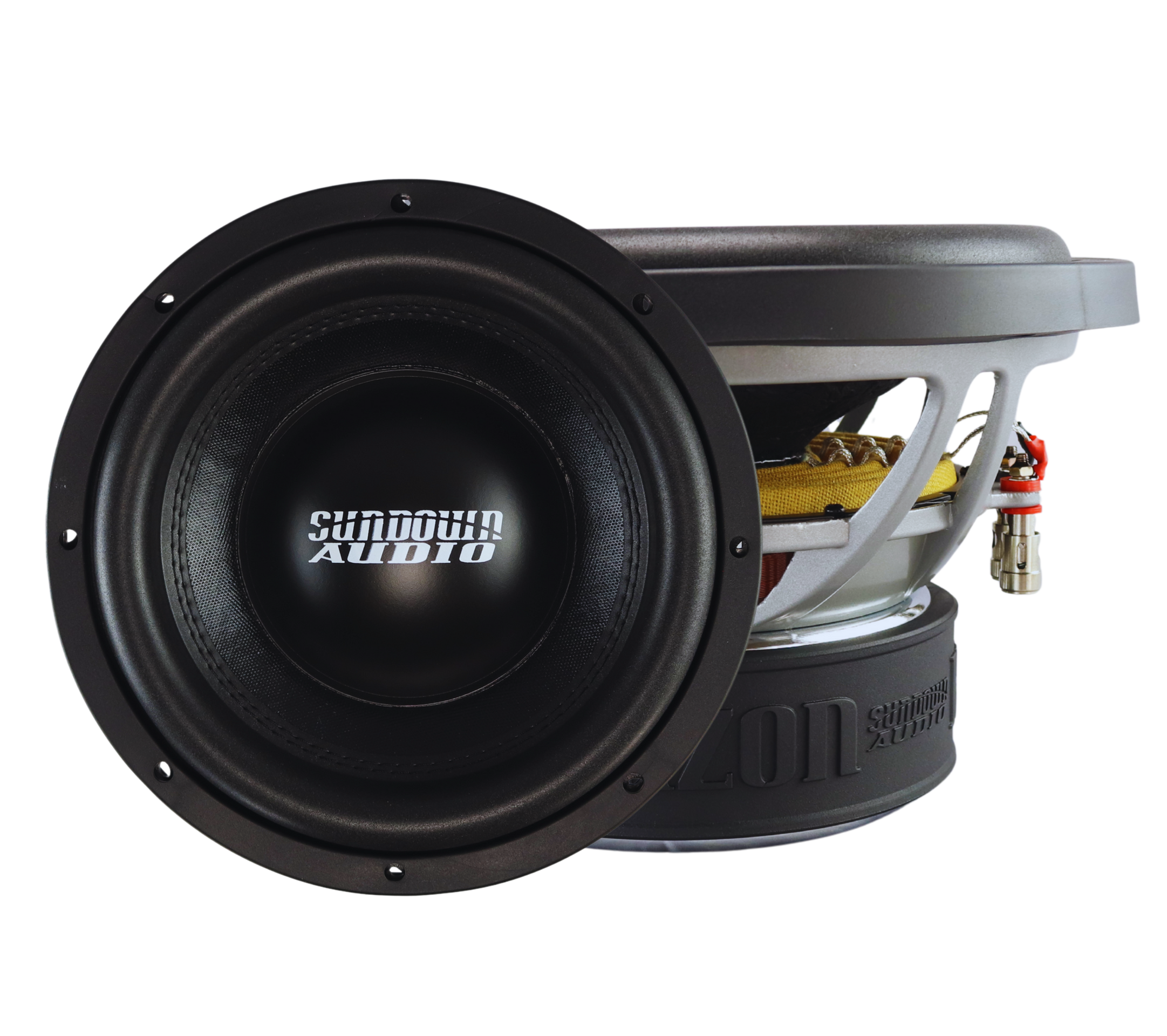

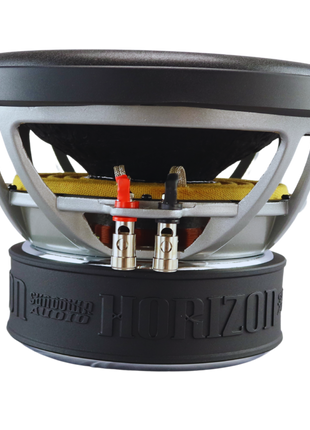

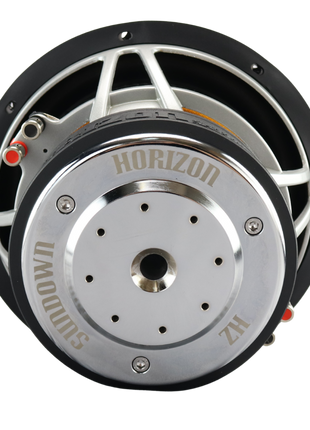

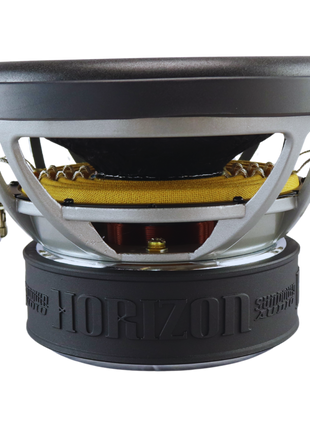

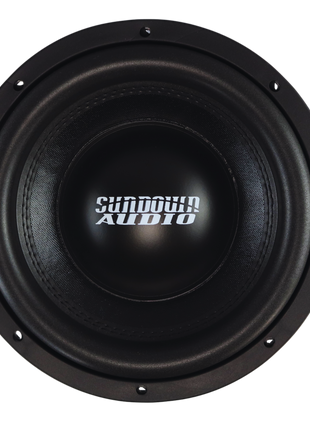

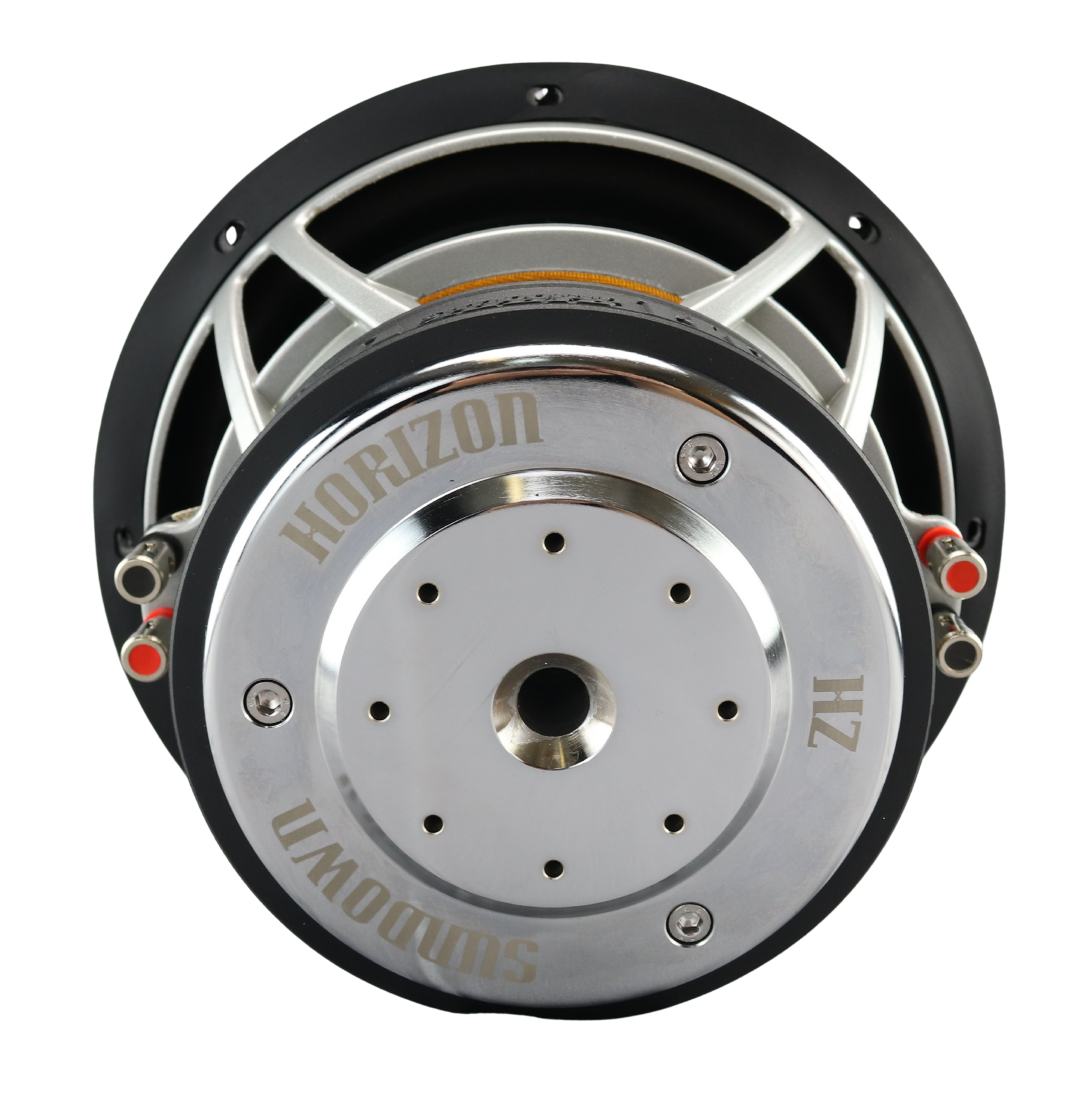

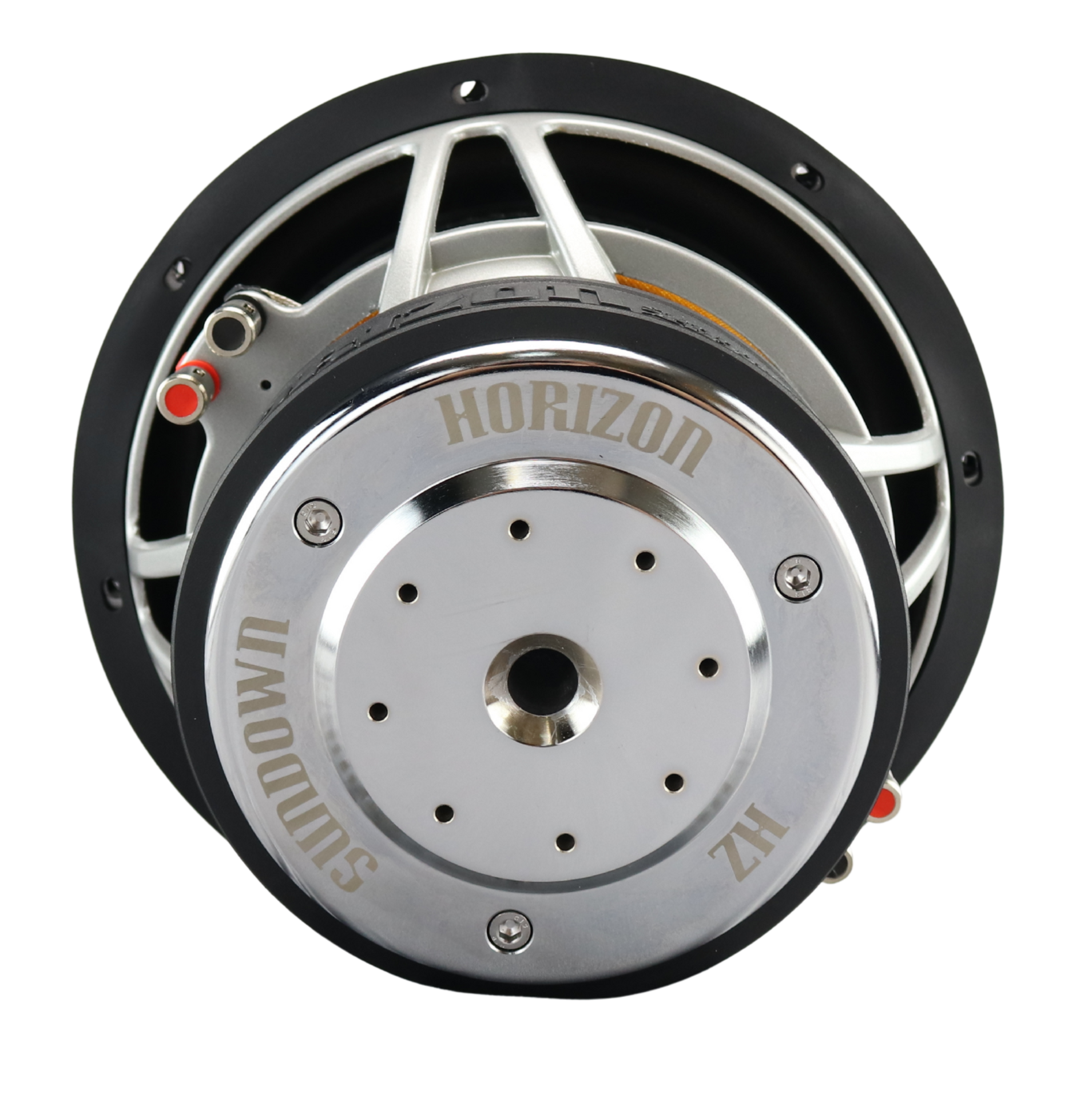

Horizon HZ 10" Subwoofer
- Sundown Audio
HZ Series Key Features: RMS Power: 10" – 750W RMS / 2.5" Voice Coil Voice Coil Options: Dual 4Ω -... Read more
$299.99
- Free shipping in the contiguous USA on all orders above $99
- Full Manufacturer Warranty On All Items
- No Hassle, Easy 30 Day Returns
- Price Match Guarantee. Lowest Prices Anywhere.
- REAL Audio Enthusiasts, Expert Support
| Parameter | D4 Model |
|---|---|
| Re | 6.13 Ω |
| Fs | 33.1 Hz |
| Qms | 3.4300 |
| Qes | 0.5390 |
| Qts | 0.4660 |
| Vas | 22.860 L |
| Mms | 165.36 g |
| Cms | 0.14 mm/N |
| BL | 19.780 T·m |
| Sd | 506.6 cm² |
| Xmax | 14mm |
| SPL (1W/1m) | 83.8 dB |
| Specification | D4 Model |
|---|---|
| RMS Power | 500 W |
| Peak Power | 1000 W |
| Displacement | 0.1 cu ft |
| Mounting Depth | 5.8" |
| Outside Diameter | 10.45" |
| Cutout Diameter | 9.2" |
| Motor Diameter | 6.15" |
| Sealed Enclosure | 0.5cu ft |
| Ported Enclosure | 1.0 cu ft |
| Recommended Port Tuning | 35hz |
| Recommended Port Area | 15 sq in |
| Xmax | 14mm |
| 4th Order Sealed | .4cu ft |
| 4th Order Ported | 1.2cu ft |
| 4th Order Port Area | 24sq in |
| 4th Order Port Length | 6" |
