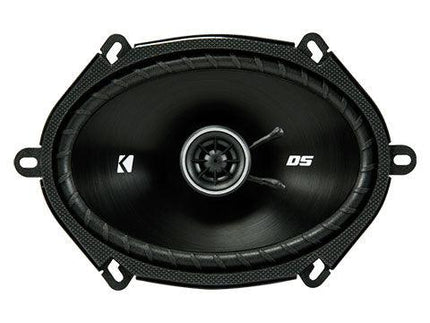

Kicker 43DSC6804 5x7/6x8 400 Watt 2-Way Coaxial Car Audio Speakers DS DSC68

Description

DS Series 6x8" Coax

A drop-in coaxial upgrade with the flexibility to fit nearly any vehicles doors for a vast improvement over factory sound.

DS Series 6x8" Coax

The DS 6x8-Inch Coaxial Speakers are the upgrade you need for great sound in your doors.

A ribbed, UV-treated foam surround and rigid polypropylene cone with EVC™ (Extended Voice Coil) technology give you the best sonic quality and the deepest bass in a full range speaker.

These DS speakers work best with 50 watts of recommended power. See below for more details.

Specifications
Model

DSC680

Speaker Design
2 - Way
Woofer [in, mm]

6x8, 160x200

Mid [in, mm]
n/a
Tweeter [in, mm]

1/2, 13

Rated Impedance [Ω]
4
Peak Power Handling [Watts]
200
Continuous Power Handling [Watts RMS]
50
Sensitivity [1W, 1m]
90
Frequency Response [Hz]
45-20k
Mounting Hole Diameter [in, mm]

5x7 3/16, 126x182

Top Mount Depth [in, mm]

3/8, 9

Bottom Mount Depth [in, mm]

2-3/16, 56

Tweeter Protrusion [in, mm]
0
Grilles
No

Tweeter Magnet Material

Neodymium
Tweeter Dome Material

PEI (polyether imide)

Tweeter Design

Balanced dome

Woofer Cone Material

Polypropylene

Woofer Surround Material

Polyester foam

Kicker 43DSC6804 5x7/6x8 400 Watt 2-Way Coaxial Car Audio Speakers DS DSC68

Product form

DS Series 6x8" Coax A drop-in coaxial upgrade with the flexibility to fit nearly any vehicles doors for a vast... Read more

$94.99  $84.99

    • Free shipping in the contiguous USA on all orders above $99
    • Full Manufacturer Warranty On All Items
    • No Hassle, Easy 30 Day Returns
    • Price Match Guarantee. Lowest Prices Anywhere.
    • REAL Audio Enthusiasts, Expert Support
    General
    Speaker Size6x8, 160x200
    Configuration2 - Way
    Impedance4 ohm
    RMS Power50 W RMS
    Peak Power200 W Max
    Sensitivity90 dB
    Frequency Response45 Hz – 20 kHz
    Tweeter1/2" (13 mm)
    Grilles IncludedNo
    Construction
    Cone MaterialPolypropylene
    Surround MaterialPolyester foam
    Tweeter Dome MaterialPEI (polyether imide)
    Tweeter MagnetNeodymium
    Dimensions
    Cut-Out Diameter5x7 3/16, 126x182
    Top Mount Depth3/8" (9 mm)
    Bottom Mount Depth2-3/16" (56 mm)

    Description

    DS Series 6x8" Coax

    A drop-in coaxial upgrade with the flexibility to fit nearly any vehicles doors for a vast improvement over factory sound.

    DS Series 6x8" Coax

    The DS 6x8-Inch Coaxial Speakers are the upgrade you need for great sound in your doors.

    A ribbed, UV-treated foam surround and rigid polypropylene cone with EVC™ (Extended Voice Coil) technology give you the best sonic quality and the deepest bass in a full range speaker.

    These DS speakers work best with 50 watts of recommended power. See below for more details.

    Specifications
    Model

    DSC680

    Speaker Design
    2 - Way
    Woofer [in, mm]

    6x8, 160x200

    Mid [in, mm]
    n/a
    Tweeter [in, mm]

    1/2, 13

    Rated Impedance [Ω]
    4
    Peak Power Handling [Watts]
    200
    Continuous Power Handling [Watts RMS]
    50
    Sensitivity [1W, 1m]
    90
    Frequency Response [Hz]
    45-20k
    Mounting Hole Diameter [in, mm]

    5x7 3/16, 126x182

    Top Mount Depth [in, mm]

    3/8, 9

    Bottom Mount Depth [in, mm]

    2-3/16, 56

    Tweeter Protrusion [in, mm]
    0
    Grilles
    No

    Tweeter Magnet Material

    Neodymium
    Tweeter Dome Material

    PEI (polyether imide)

    Tweeter Design

    Balanced dome

    Woofer Cone Material

    Polypropylene

    Woofer Surround Material

    Polyester foam
