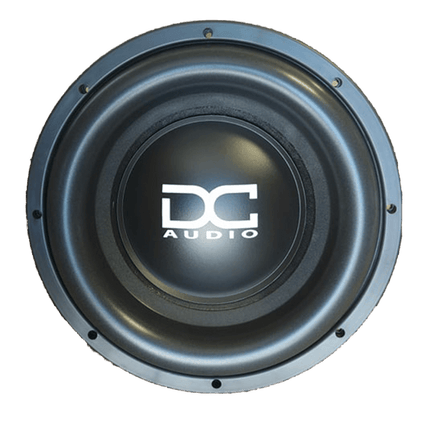

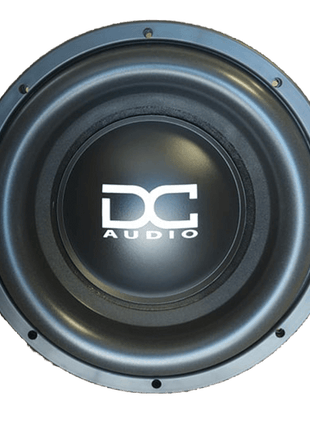

DC Audio Level 4 15" Dual-2-Ohm 1500W RMS / 3000W Peak Car Audio Subwoofer/Sub
DC Audio Level 4 15" Dual-2-Ohm 1500W RMS / 3000W Peak Car Audio Subwoofer/Sub
The Level 4 m3 was designed to take even more power and get even louder than the m2. With fantastic... Read more
$409.99
- Free shipping in the contiguous USA on all orders above $99
- Full Manufacturer Warranty On All Items
- No Hassle, Easy 30 Day Returns
- Price Match Guarantee. Lowest Prices Anywhere.
- REAL Audio Enthusiasts, Expert Support
| Specifications | DC Audio Level 4 15" D2 |
|---|---|
| Resonant Frequency (Fs) | 30.6 Hz |
| DC Resistance (Re) | 3.82 Ω |
| Voice Coil Inductance (Le) | 3.78 mH |
| Mechanical Q (Qms) | 10.2 |
| Electrical Q (Qes) | 0.644 |
| Total Q (Qts) | 0.60 |
| Equivalent Compliance Volume (Vas) | 80.16 L |
| Compliance (Cms) | .085 mm/N |
| Moving Mass (Mms) | 318.5 g |
| Force Factor (BL) | 19.18 T·m |
| Effective Cone Area (Sd) | 823 cm² |
| Linear Excursion (Xmax) | 23.5 mm |
| Sensitivity | 87.4 dB 1W/1m |
| Woofer Size | 15 in |
| Nominal Impedance | Dual 2 Ω |
| Voice Coil | 3" hi-temp aluminum |
| Mounting Depth | 8 in |
| Cutout Diameter | 14 in |
| Outside Diameter | 15.7 in |
| Displacement | .21 ft³ |
| Net Weight | 33.5 lbs |
| Magnet Weight | 29 lbs |
| Motor Structure | Large triple-stacked, chrome top plate and T-yoke |
| Frame / Basket | Cast aluminum |
| Cone | Non-pressed paper |
| Surround | Multilayer polymer foam |
| Terminals | Chrome spring-loaded push |
| RMS Power Handling | 1500 W |
| Peak Power Handling | 3000 W |
| Enclosure Specs | DC Audio Level 4 15" D2 |
|---|---|
| Recommended Sealed Volume | 2.75 ft³ |
| Recommended Vented Volume | 3.0 ft³ |
