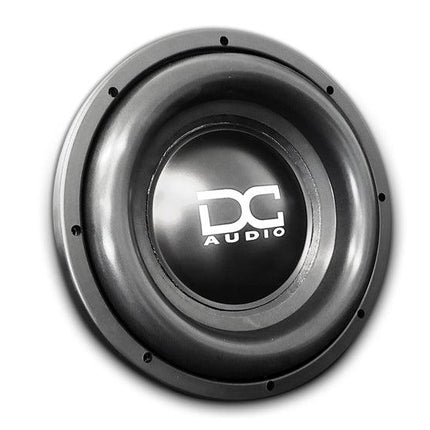

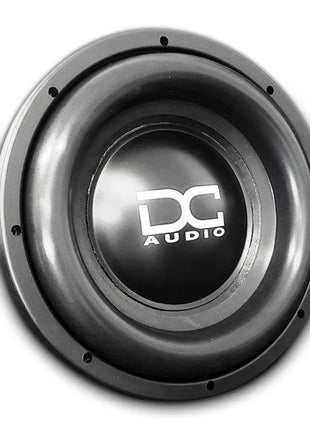

DC Audio Level 3 15" Dual-2-Ohm 1000W RMS / 2000W Peak Car Audio Subwoofer/Sub
DC Audio Level 3 15" Dual-2-Ohm 1000W RMS / 2000W Peak Car Audio Subwoofer/Sub
The level 3 sub is the ultimate daily driver sub. It puts out the low lows with lots of output... Read more
$329.99
- Free shipping in the contiguous USA on all orders above $99
- Full Manufacturer Warranty On All Items
- No Hassle, Easy 30 Day Returns
- Price Match Guarantee. Lowest Prices Anywhere.
- REAL Audio Enthusiasts, Expert Support
| Specifications | DC Audio Level 3 15" D2 |
|---|---|
| Resonant Frequency (Fs) | 30.9 Hz |
| DC Resistance (Re) | 3.6 Ω |
| Voice Coil Inductance (Le) | 3.5 mH |
| Mechanical Q (Qms) | 8.18 |
| Electrical Q (Qes) | 0.706 |
| Total Q (Qts) | 0.65 |
| Equivalent Compliance Volume (Vas) | 84.88 L |
| Compliance (Cms) | 0.09 mm/N |
| Moving Mass (Mms) | 295 g |
| Force Factor (BL) | 17.2 T·m |
| Effective Cone Area (Sd) | 823 cm² |
| Linear Excursion (Xmax) | 23 mm |
| Sensitivity | 87.3 dB 1W/1m |
| Woofer Size | 15 in |
| Nominal Impedance | Dual 2 Ω |
| Voice Coil | 3" hi-temp aluminum |
| Mounting Depth | 8 in |
| Cutout Diameter | 14 in |
| Outside Diameter | 15.7 in |
| Displacement | .18 ft³ |
| Net Weight | 21.5 lbs |
| Magnet Weight | 18 lbs |
| Motor Structure | Triple-stacked FEA-optimized, chrome top plate |
| Frame / Basket | Cast aluminum |
| Cone | Non-pressed paper |
| Surround | Multilayer polymer foam |
| Terminals | Chrome spring-loaded push |
| RMS Power Handling | 1000 W |
| Peak Power Handling | 2000 W |
| Enclosure Specs | DC Audio Level 3 15" D2 |
|---|---|
| Recommended Sealed Volume | 2.0 ft³ |
| Recommended Vented Volume | 3.0 ft³ |
