Description
CS Series CST20
This tweeter is an excellent addition to any sound system that needs more accuracy and realism, while allowing you to hear more through the bass.
CS Series CST20

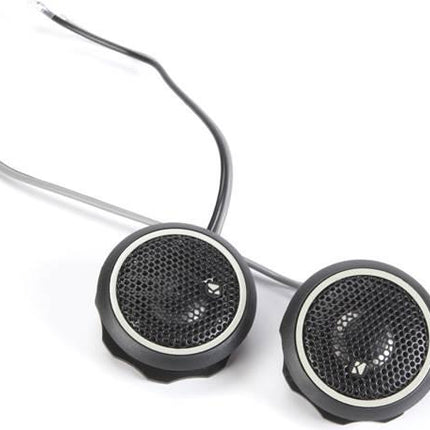

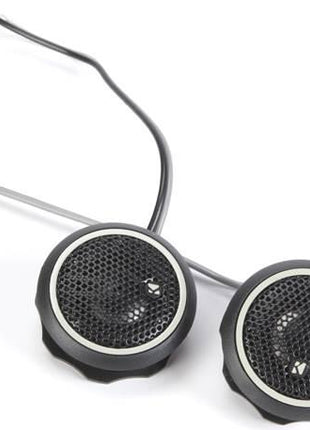

A complete acoustic upgrade in a single box, the ¾-inch titanium-dome tweeters are optimized to fit any vehicle with a flush, surface and angled mounting kit included. Getting a custom look to go with your custom sound has never been easier.
These tweeters work best with 50 watts of recommended power. See below for more details.
- Fits nearly every car made
- Titanium tweeter construction and neodymium magnets reveal subtle details
- 6dB in-line crossovers for tweaking the most perfect frequencies
- Built-in poly-switch protection for higher volumes
- Three tweeter mounting options including flush, angled and surface
| Tweeter [in,mm] |
| 3/4, 20 |
| Dome Material |
| Titanium |
| Rated Impedance [Ω] |
| 4 |
| Peak Power Handling [ Watts] |
| 100 |
| Continuous Power Handling [Watts RMS] |
| 50 |
| Sensitivity [1W, 1m] |
| 92 |
| Frequency Response [Hz] |
| 4,500-21k |
| Flush Mount Tweeter Depth [in, mm] |
| 9/16, 14.5 |
| Flush Mount Tweeter Hole Diameter [in,mm] |
| 1-9/16, 40 |
| High Pass [dB], at Frequency [Hz] |
| 6, 4500 |
