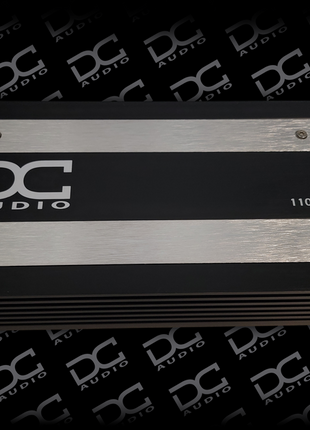

DC Audio CS-1100X1 1100 Watt Mono Block Car Audio Class D Amplifier/Amp+Bass Knob

Original price $449.99 - Original price $449.99
Original price
$449.99 - $449.99
Current price $449.99


Amplifier Description

The DC-CS 1000.1 is a compact series amplifier capable of making 1,100 watts. Its High power mono block. It has 4awg inputs and onboard clipping lights. It also comes with a bass knob and a clipping indicator. Designed to make more power in less space.


Output Power (RMS)

4 ohm 500Wx1 @ 14.4 Volts

2 ohm 800Wx1 @ 14.4 Volts

1 ohm mono 1100x1 @ 14.4 Volts

1 ohm mono 1400x1 @ 16.0 Volts

Key Features

• 1 ohm stable

• Variable low pass filter

• Variable subsonic filter

• Wired Bass Knob remote control W/ Clip light

• RCA Pass Thru

• Onboard clip light


DC Amp Model: CS 1100x1
Input Sensitivity 6V~0.2V
Frequency Response 10Hz~250Hz
24dB / Octave Crossover YES
Low Pass 35Hz ~ 250Hz
Subsonic Filter 10Hz-50hz
Bass Boost @45hz NO
Phase Shift NO
Remote Control Yes
Clip Indicator Yes
Signal to Noise Ratio dB92
Damping Factor 150<
THD @ 4ohms Less than 0.1%
Fuse Rating External 100 amp
LED Status Lights Power/Protect/Clip
Master/Slave NO
Heatsink Length 8.27"/210mm
Heatsink Width 4.72"/120mm
Heatsink Height 1.96"/50.0mm
