Description

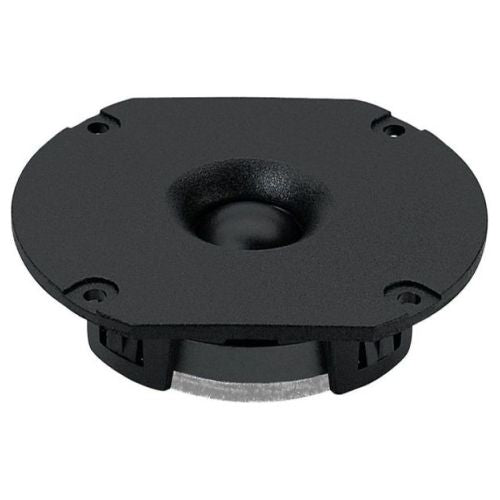

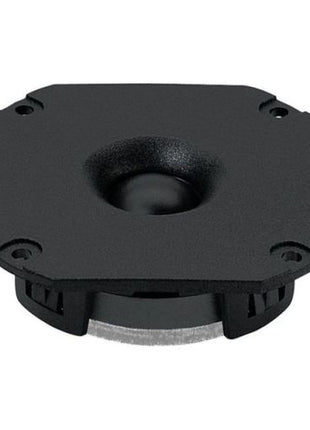

Introduce clarity and finesse to your high-frequency stage with the Ciare HT200 dome tweeter. Engineered to produce transparent, smooth, and extended treble, this 0.75″ silk / polyamide dome design is ideal for 2-way or multiway speaker systems, studio monitors, or high-fidelity audio builds. Whether you're designing bookshelf speakers, home theater satellites, or custom installations, the HT200 brings rich detail to voices, cymbals, and overtones without harshness.
Built around a 20 mm voice coil and a lightweight yet rigid polyamide dome, the HT200 sustains linear operation from 2 kHz up to 20 kHz. Its 90 dB sensitivity ensures efficient drive, while its 60 W nominal and 100 W continuous power ratings give you headroom in real-world use. The ABS housing and compact form, with a shallow 24 mm depth, make it adaptable to tight mounting spaces without compromising performance.
Choose the HT200 when you want a high-performance tweeter that blends musicality, reliability, and flexibility in fit. It's especially suited for discerning DIYers, OEMs, and audio enthusiasts seeking a premium “silk dome” character with robust technical backing.
Specifications
-
Driver Type / Category: 0.75″ (20 mm) dome tweeter
-
Impedance: 8 Ω
-
Nominal Power (RMS): 60 W
-
Continuous / Max Power: 100 W
-
Sensitivity (1W/1m): 90 dB
-
Frequency Range: 2,000 Hz – 20,000 Hz
-
Voice Coil Diameter: 20 mm (0.78 in)
-
Dome Material: Polyamide (silk / polymer dome)
-
Basket / Frame Material: ABS / plastic housing
-
Overall Diameter: 78 mm
-
Baffle Cut-out Diameter: ~70 mm
-
Mounting Depth: 24 mm
-
Bolt Pattern: 4 bolts, B.C.D. 81 mm
-
Thiele-Small / Motor Data:
• Fs: 1000 Hz
• Qts: 0.9
• Qes: 1.1
• Qms: 4.7
• Mms: 0.28 g
• Le: 0.02 mH
• Re: 3 Ω
• Bl: 2.17 T·m
• Sd: 4 cm²
• Dome diameter “d”: 23 mm
