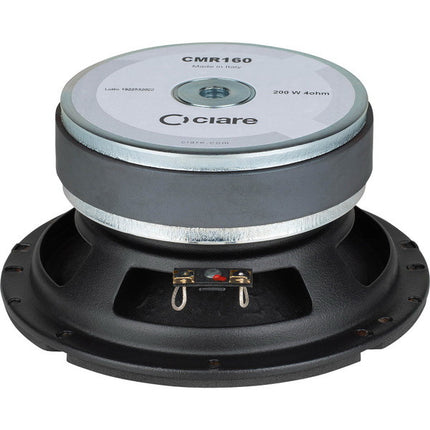

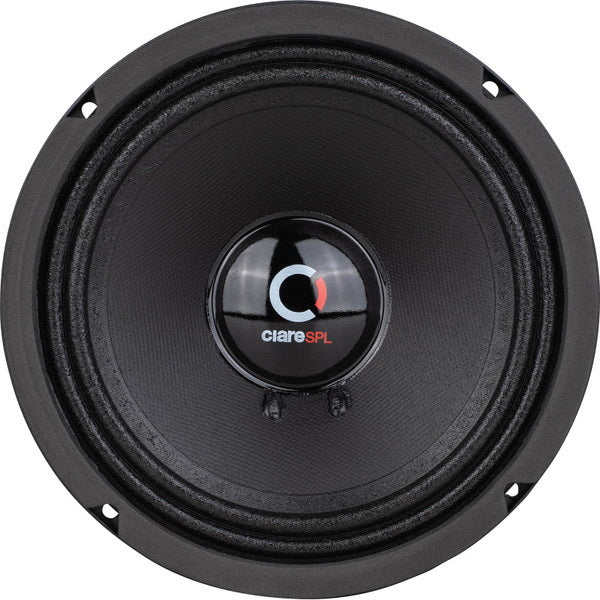

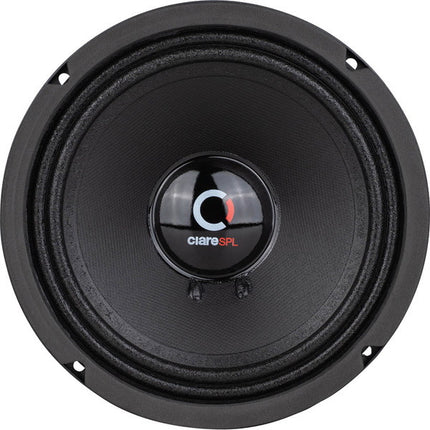

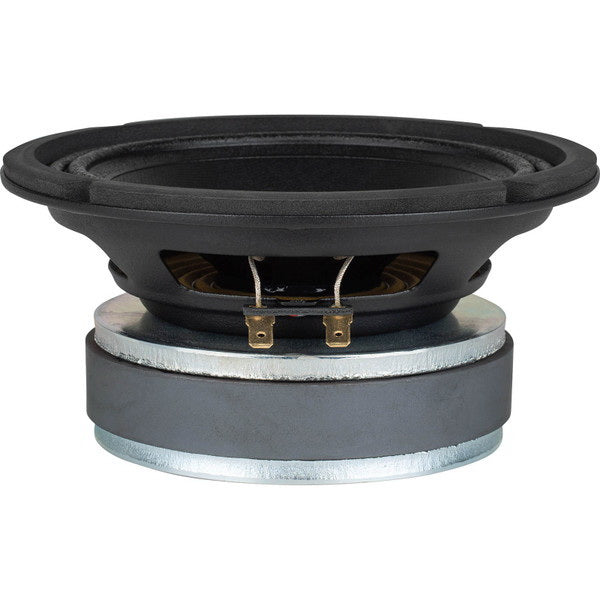

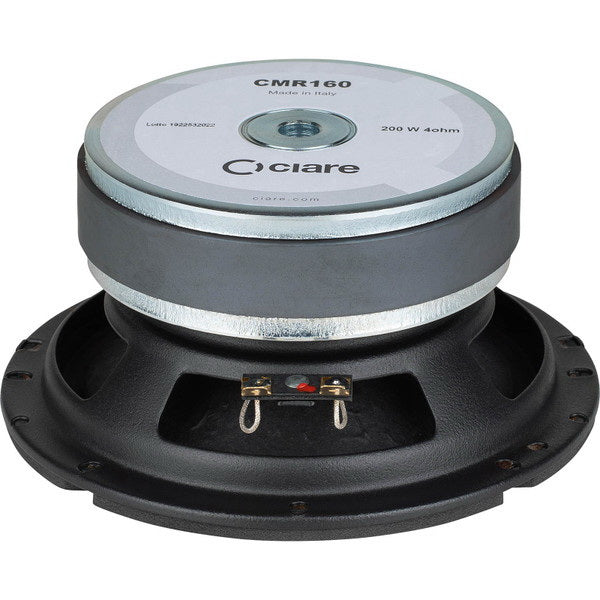

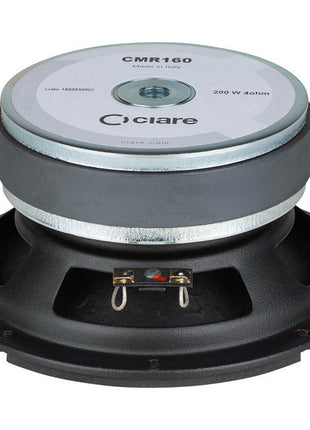

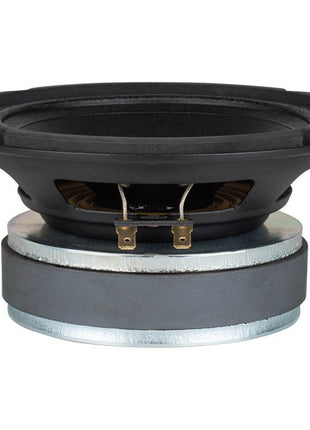

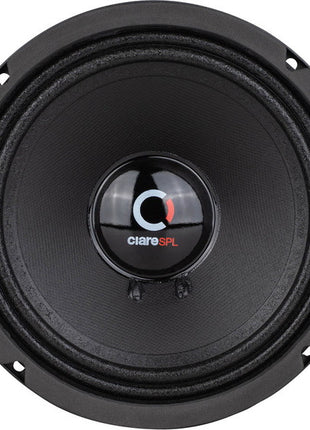

Ciare | CMR160 | 6.5″ Extended-Range / Mid-Bass Driver (200 W Program)
Free Shipping In The Contiguous United States
Free Shipping In The United States, excluding Alaska and Hawaii.
International Shipping available and calculated at checkout.
Description
The Ciare CMR160 is a versatile 6.5″ extended-range driver built to bridge the gap between midrange and mid-bass duties with clarity, power, and durability. Whether used in full-range systems, compact 2-way enclosures, or as a midbass in multiway systems, it delivers musical presence and control without compromising tonal balance.
With a robust ferrite motor structure, 1.5″ voice coil on Kapton, and a rigid steel frame, the CMR160 handles power with stability while maintaining low distortion across its range. Its doped cellulose cone and fabric surround provide a smooth and neutral tonal character, ensuring that vocals, guitars, and instruments sound natural and coherent across the mid-spectrum.
Because of its extended-range capability, this driver can take on more bandwidth than typical midranges, giving designers flexibility in crossover points, and reducing the need for tightly constrained bands. The combination of moderate sensitivity, solid excursion capacity, and reliable mechanical design makes it a strong choice for OEMs, installation speakers, or custom builders seeking a dependable, musical driver.
Specifications
-
Driver type / Category: 6.5″ Extended-Range / Mid-Bass driver
-
Nominal Impedance: 4 Ω
-
Continuous / Nominal Power: 80 W
-
Program Power: 200 W
-
Sensitivity: ~ 93 dB (1 W / 1 m)
-
Frequency Response: 80 – 8,000 Hz
-
Resonance (Fs): 66 Hz
-
Total Q (Qts): 0.32
-
Linear Excursion (Xmax): ± 1.5 mm
-
Voice Coil Diameter: 1.5″ (38 mm)
-
Voice Coil Former / Material: Kapton (polyimide)
-
Winding Height: 6 mm
-
Basket / Frame Material: Steel
-
Cone Material: Doped cellulose fiber, exponential shape
-
Surround: Doped fabric
-
Magnet Type: Ferrite
-
Magnet Gap Height: 6 mm
-
Cutout Diameter: ~ 142 mm
-
Overall Depth: ~ 80 mm
-
Mounting Depth: ~ 73 mm
-
Flange Thickness: ~ 7 mm
-
Net Weight: ~ 2.4 kg
