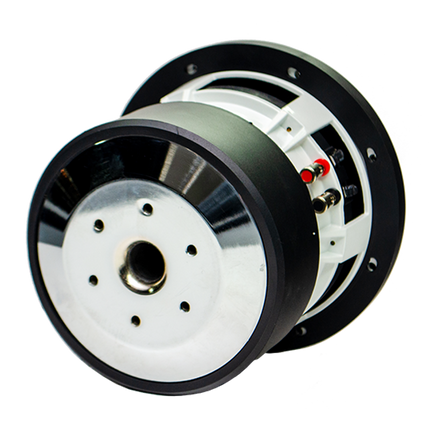

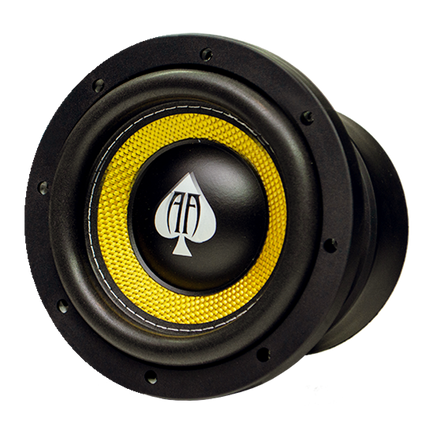

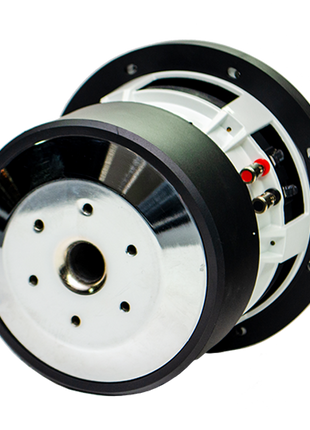

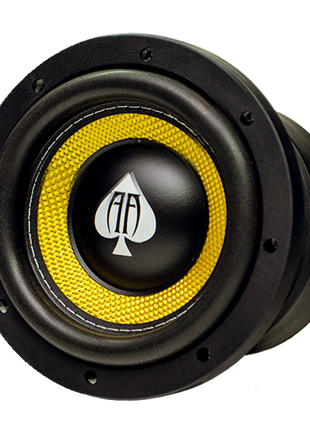

Audio Ace Small Stack 6.5" 400W RMS Dual-4-Ohm Subwoofer
Audio Ace Small Stack 6.5" 400W RMS Dual-4-Ohm Subwoofer
The Small Stack subwoofer was designed to be one of the most attractive and best performing 6.5" SUBwoofers on the market!Don't be... Read more
$169.00
- Free shipping in the contiguous USA on all orders above $99
- Full Manufacturer Warranty On All Items
- No Hassle, Easy 30 Day Returns
- Price Match Guarantee. Lowest Prices Anywhere.
- REAL Audio Enthusiasts, Expert Support
| Specifications | Audio Ace Small Stack 6.5" D4 |
|---|---|
| Resonant Frequency (Fs) | 50.195 Hz |
| Mechanical Q (Qms) | 3.187 |
| Electrical Q (Qes) | 0.516 |
| Total Q (Qts) | 0.444 |
| Equivalent Compliance Volume (Vas) | 3.290 L |
| Linear Excursion (Xmax) | 10.6 mm |
| Woofer Size | 6.5 in |
| Nominal Impedance | Dual 4 Ω |
| Voice Coil | 2 in, 4-layer high-temp |
| Mounting Depth | 5.125 in |
| Cutout Diameter | 5.95 in |
| Motor Structure | 80 oz FEA high-efficiency |
| Cone | Non-pressed pulp with yellow glass fiber |
| Surround | Foam |
| RMS Power Handling | 200 – 400 W |
| Enclosure Specs | Audio Ace Small Stack 6.5" D4 |
|---|---|
| Recommended Vented Volume | 0.4 – 0.7 ft³ |
| Tuning Frequency | 34 – 38 Hz |
| Port Area | 7 – 9 in² per ft³ |
| Enclosure Notes | Not recommended for sealed enclosures |
