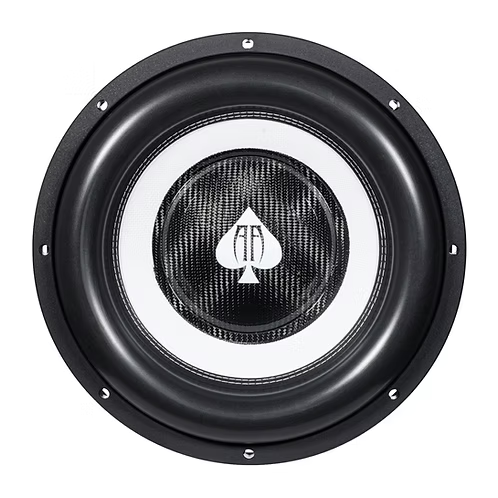

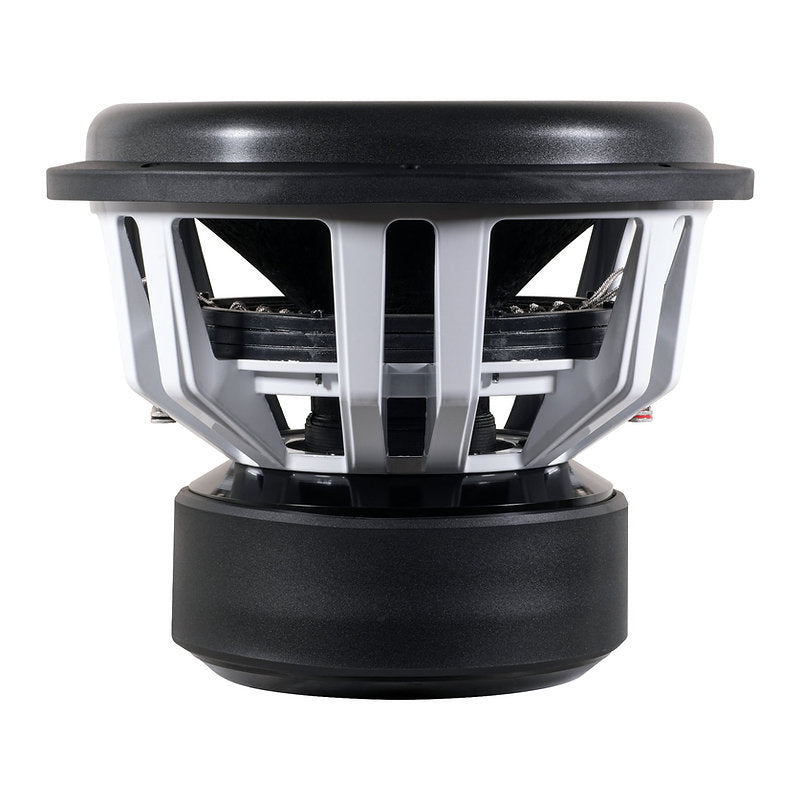

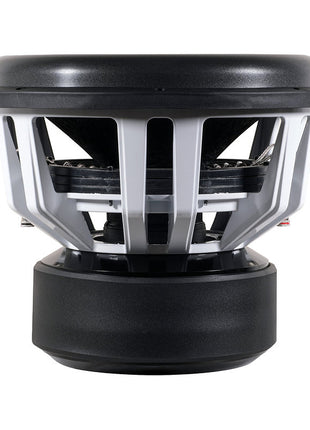

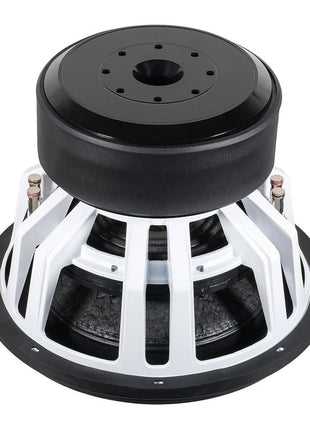

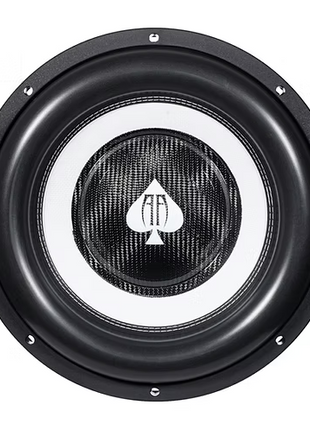

Product Overview: Audio Ace's Versatile 4,000W 15-Inch Driver

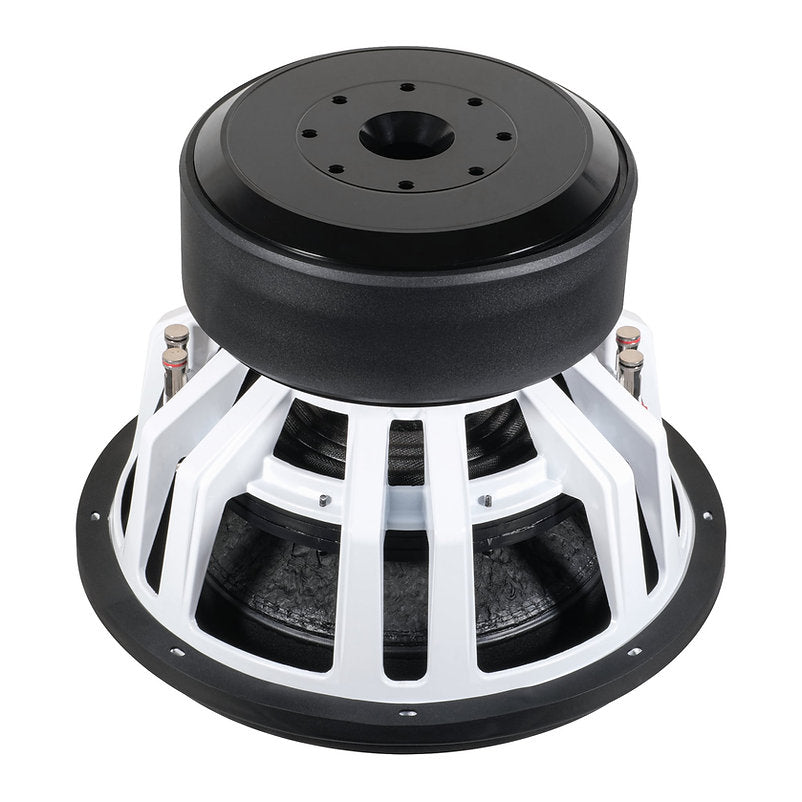

The Audio Ace Rebellion 15" D1 is a high-power subwoofer designed to excel in both Sound Quality (SQ) and sheer output (SPL). Rated at a massive 4,000W RMS, this 15-inch driver is built with a low Free Air Resonance (Fs) of 27 Hz and a strong 498 oz motor structure, making it highly versatile for great sound across various music styles. It features a 4-inch voice coil and a substantial linear excursion (Xmax) of 25mm each way. The Dual 1 Ohm impedance is perfect for high-current amplifier setups, allowing for an ultra-low 0.5 Ohm final impedance when wired in parallel. Choose the Rebellion for EXTREME sound levels whether you are competing or enjoying powerful daily bass.

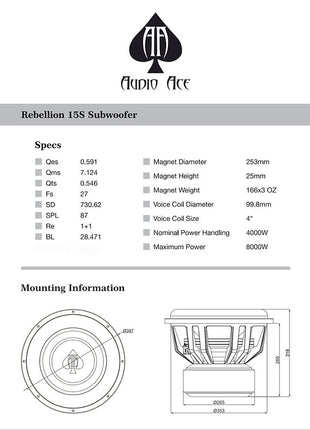

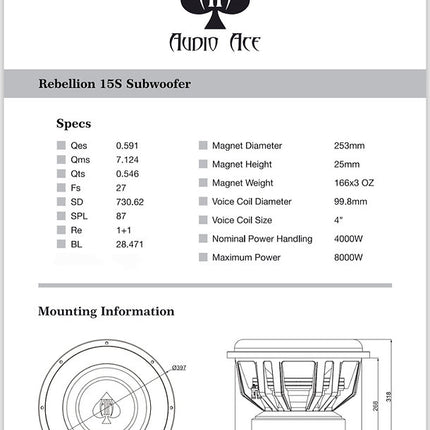

| AUDIO ACE REBELLION 15" DUAL 1 OHM SPECIFICATIONS |
| Model |
Rebellion 15" |
| Nominal Impedance |
Dual 1 Ohm (D1) |
| RMS Power Handling |
4,000 Watts |
| Voice Coil |
4 Inch D1 |
| Motor Weight |
498 oz |
| Maximum Excursion (Xmax) |
25mm Each Way |

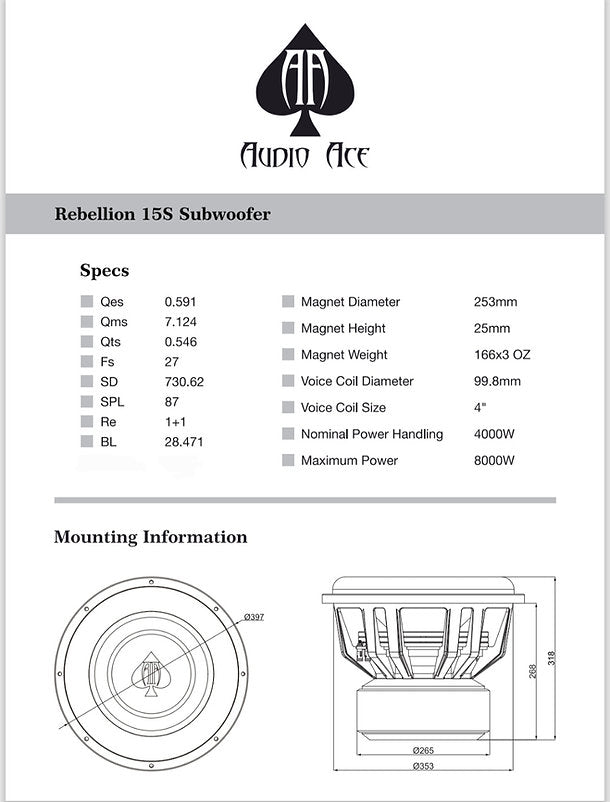

| THIELE-SMALL PARAMETERS |
| Sensitivity (SPL) |
87 dB |
| Electrical Q (Qes) |
0.591 |
| Mechanical Q (Qms) |
7.124 |
| Total Q (Qts) |
0.546 |
| Resonance Frequency (Fs) |
27 Hz |
| Effective Piston Area (SD) |
730.62 |
| DC Resistance (Re) |
1 + 1 Ohms |
| BL Factor (BL) |
28.471 |
