Product Overview: The High-Performing Crowd-Pleaser

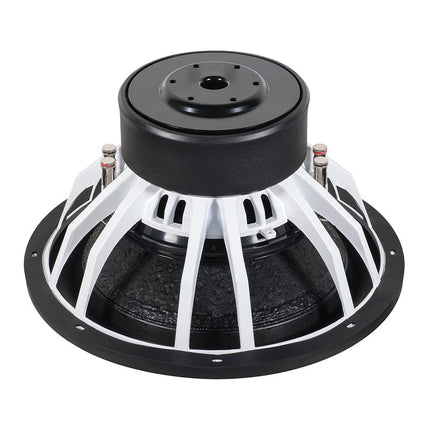

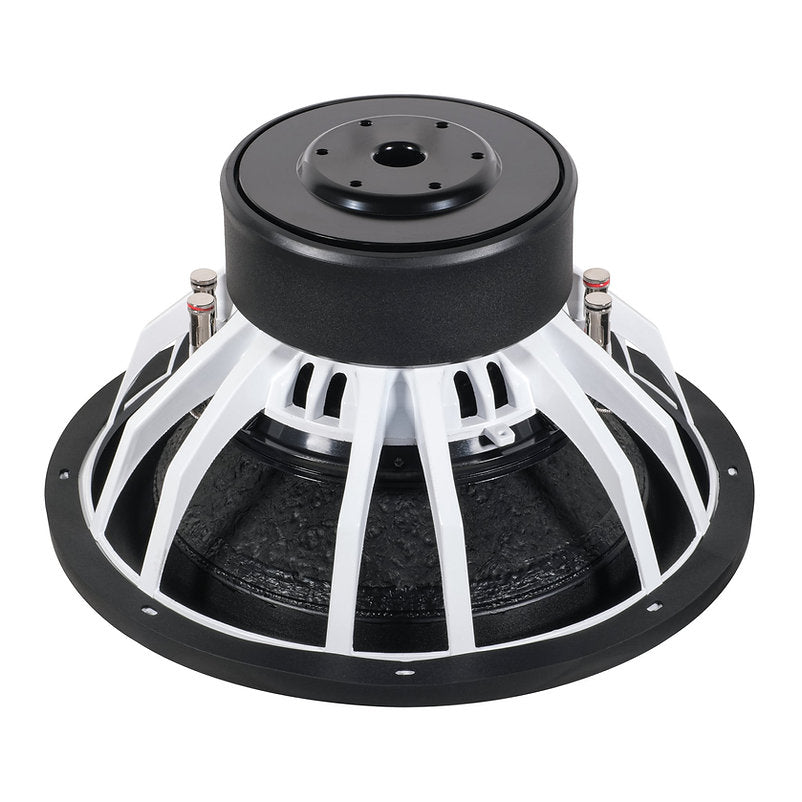

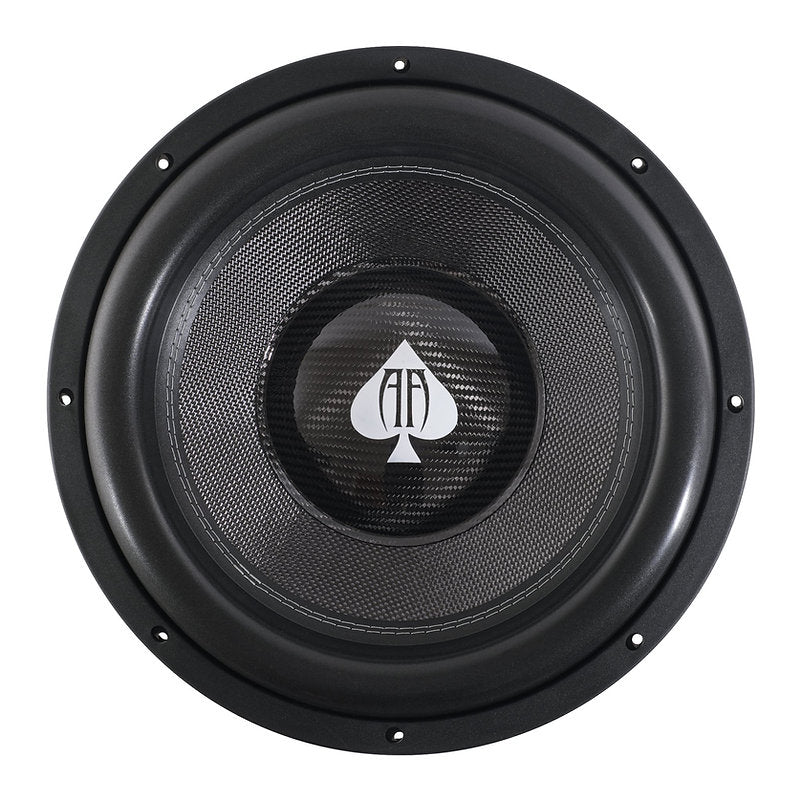

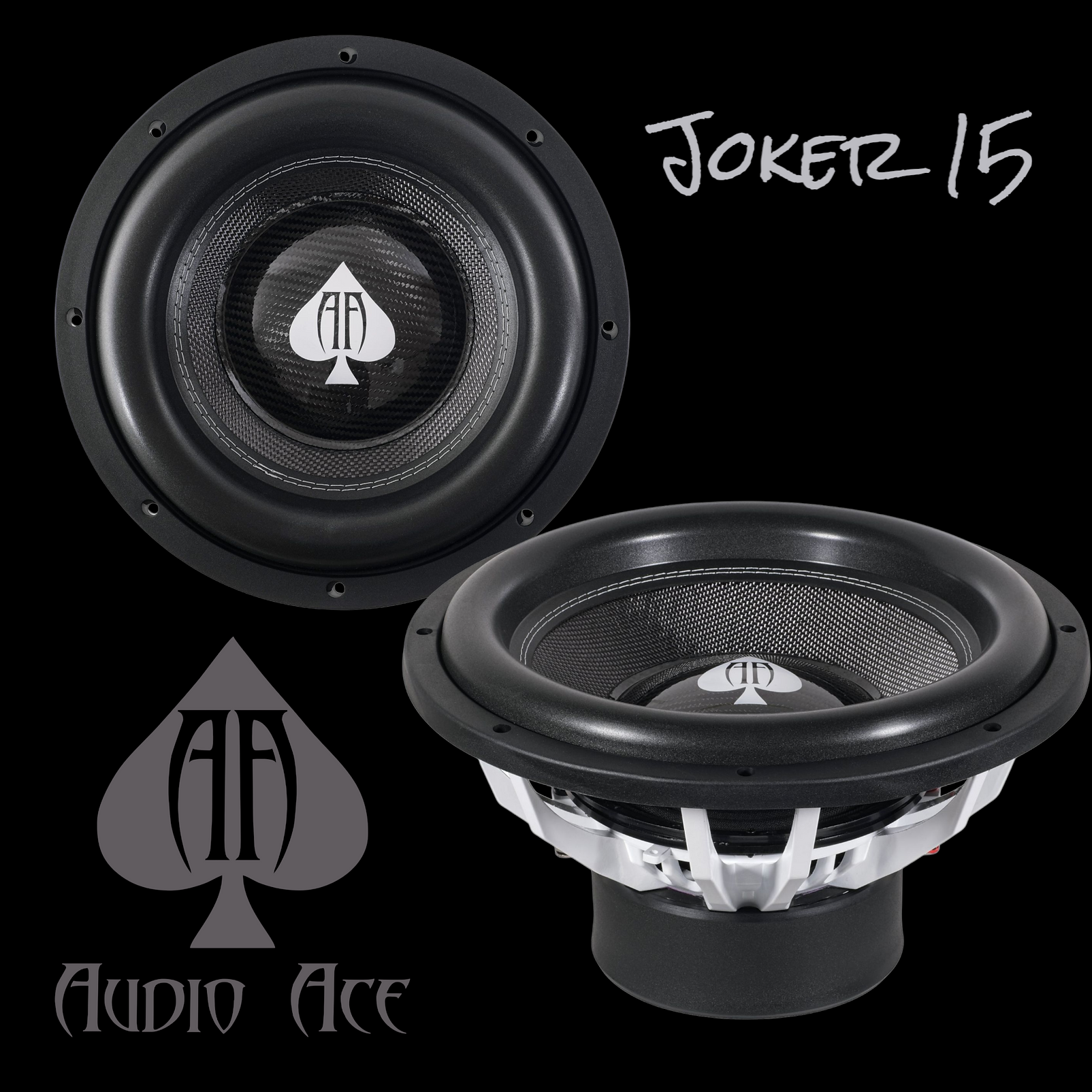

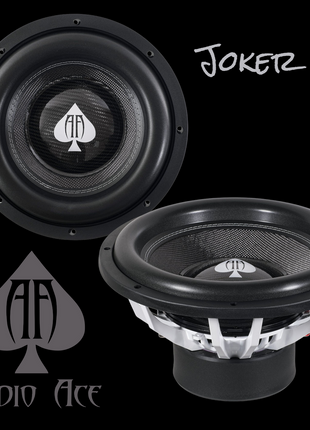

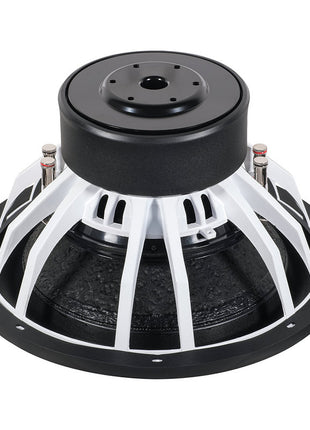

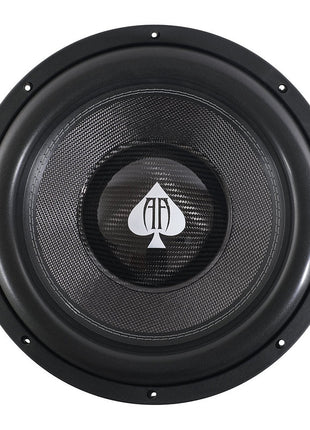

Don’t let the name fool you! The Audio Ace Joker 15" V4 D2 is NO JOKE and is one of Audio Ace’s most popular subwoofers. This 15-inch driver is rated at a very conservative 1,000W RMS, designed to outperform expectations with its wide roll surround, high-temperature 3-inch 4-layer epoxy voice coil, and high-efficiency 168oz FEA Optimized Magnet Motor. The Dual 2 Ohm impedance provides flexible wiring for a 1 Ohm or 4 Ohm final load. The Joker is versatile, performing great in Sealed, Ported, and Bandpass enclosures.

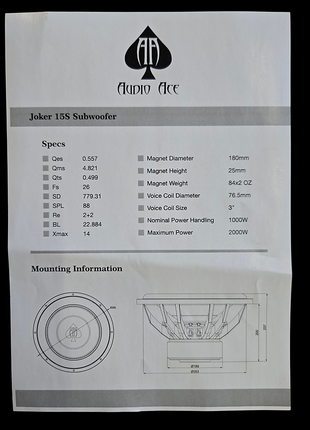

| AUDIO ACE JOKER 15" V4 DUAL 2 OHM SPECIFICATIONS |
| Size |
15 Inch |
| RMS Power Handling (Conservative) |
1,000 Watts |
| Nominal Impedance |

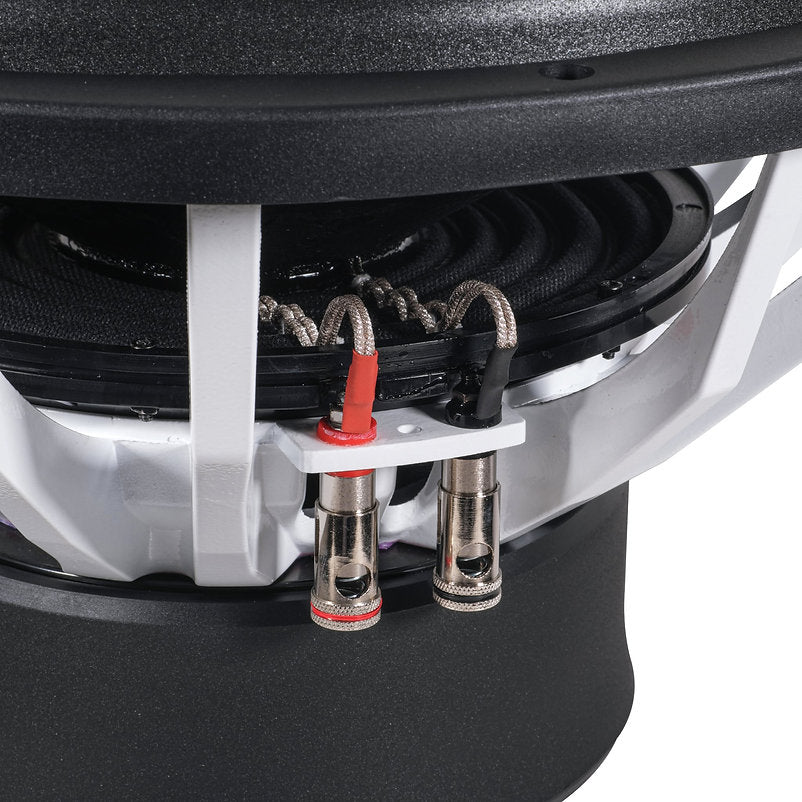

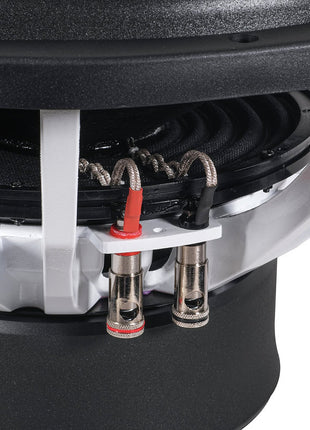

Dual 2 Ohm (D2) |
| Voice Coil |
3 Inch 4 Layer Epoxy High Temp |
| Motor Weight |
168 oz (FEA Optimized) |
| Surround |
Wide Roll Surround |
| Mounting Depth |
7.75 Inches |
| Cutout Diameter |
13.819 Inches |

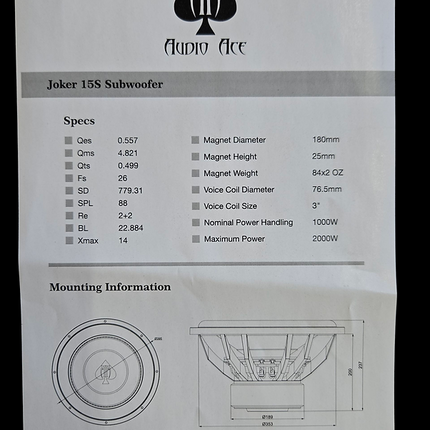

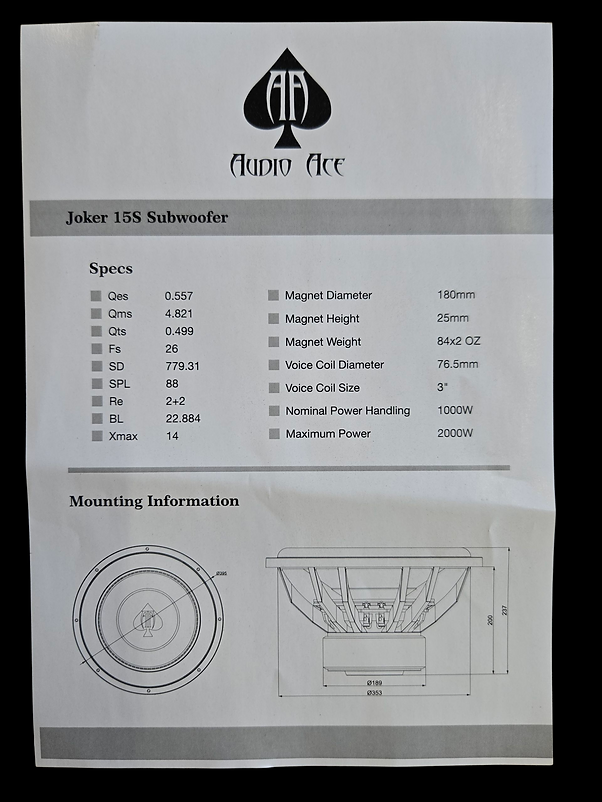

| LOSS FACTORS & MISC PARAMETERS |
| Total Q (Qts) |
0.499 |
| Mechanical Q (Qms) |
4.821 |
| Electrical Q (Qes) |
0.557 |
| Free Air Resonance (Fs) |
26.8 Hz |
| Sensitivity (Lm) |
85.70 dB |
| Equivalent Volume (Vas) |
67.0709 L |
| Moving Mass (Mms) |
450.600 g |
| BL Factor (Bl) |
22.884 |
|
|
