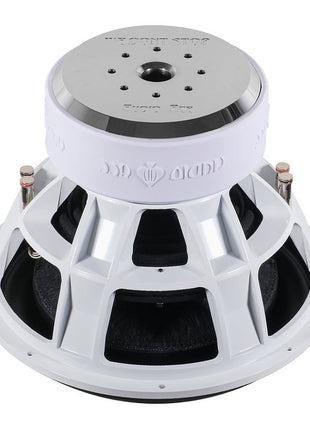

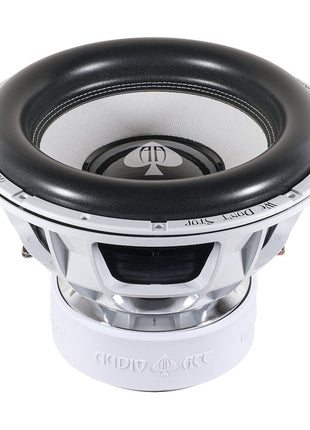

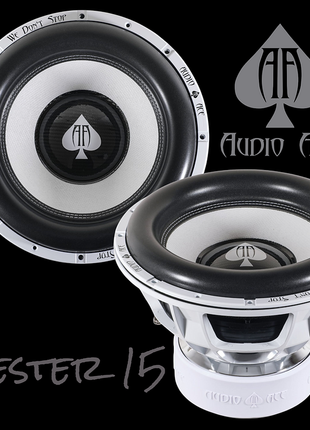

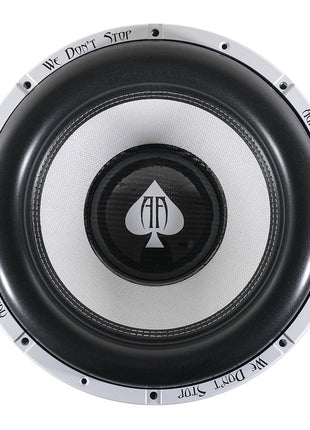

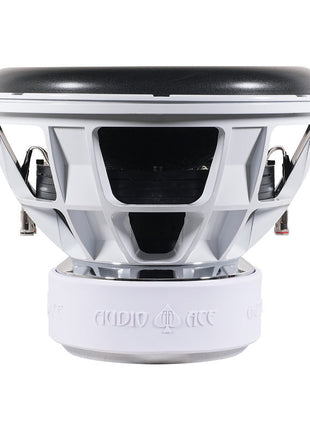

Product Overview: Audio Ace’s Powerful and Versatile 15-Inch Driver

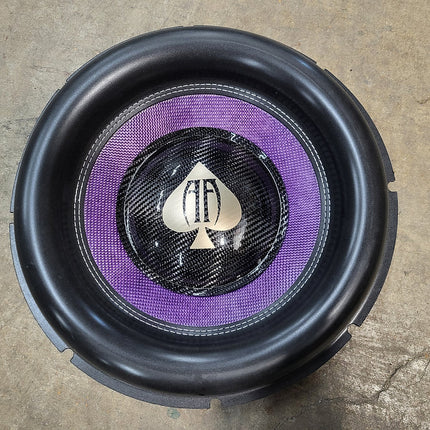

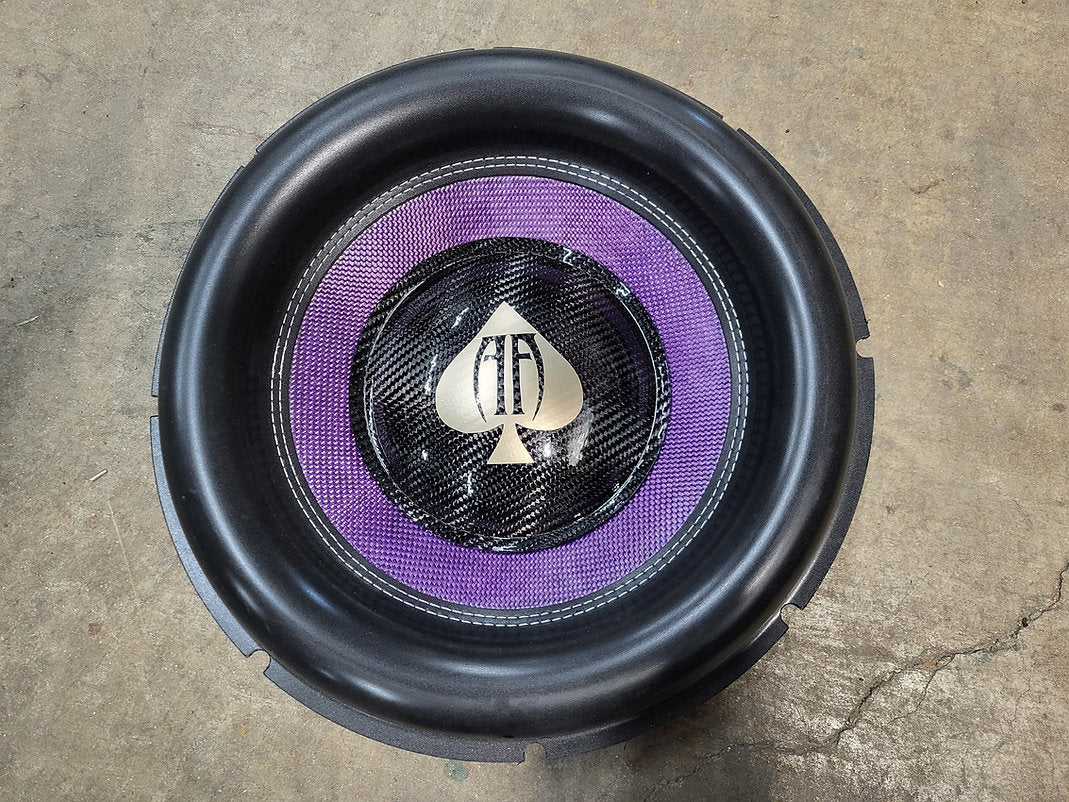

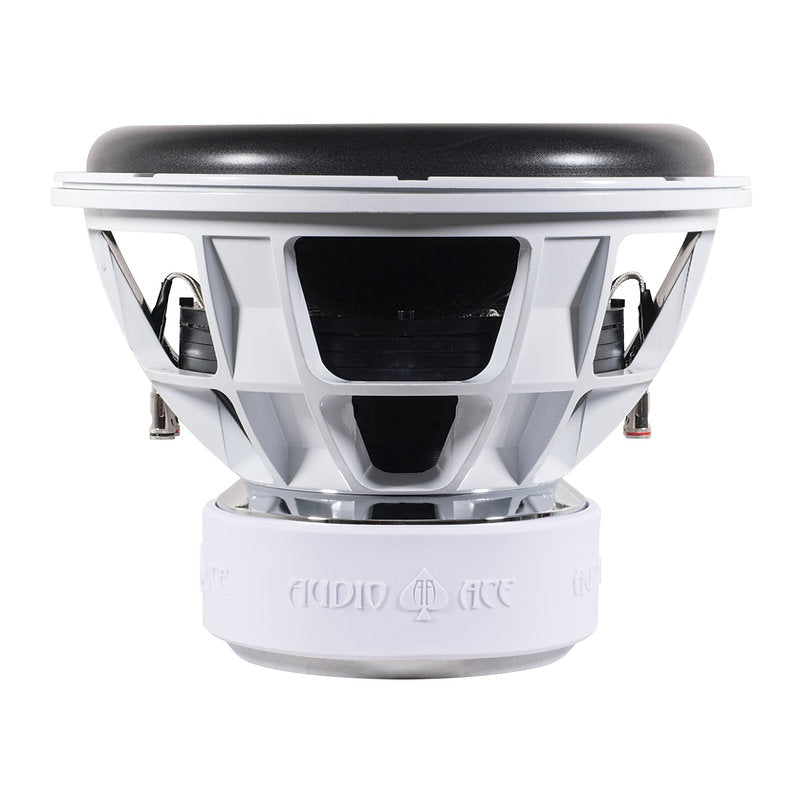

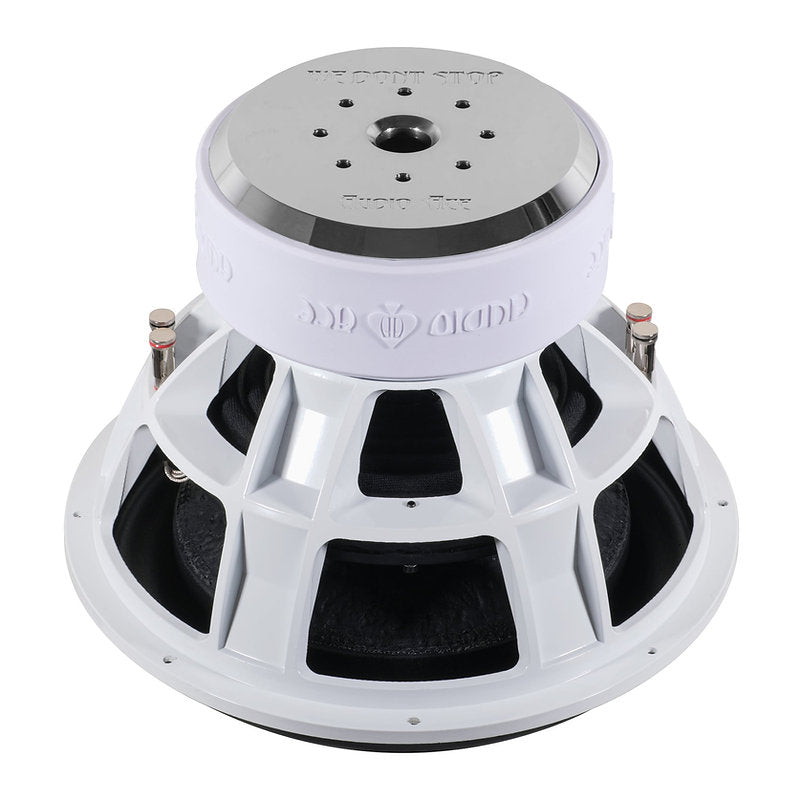

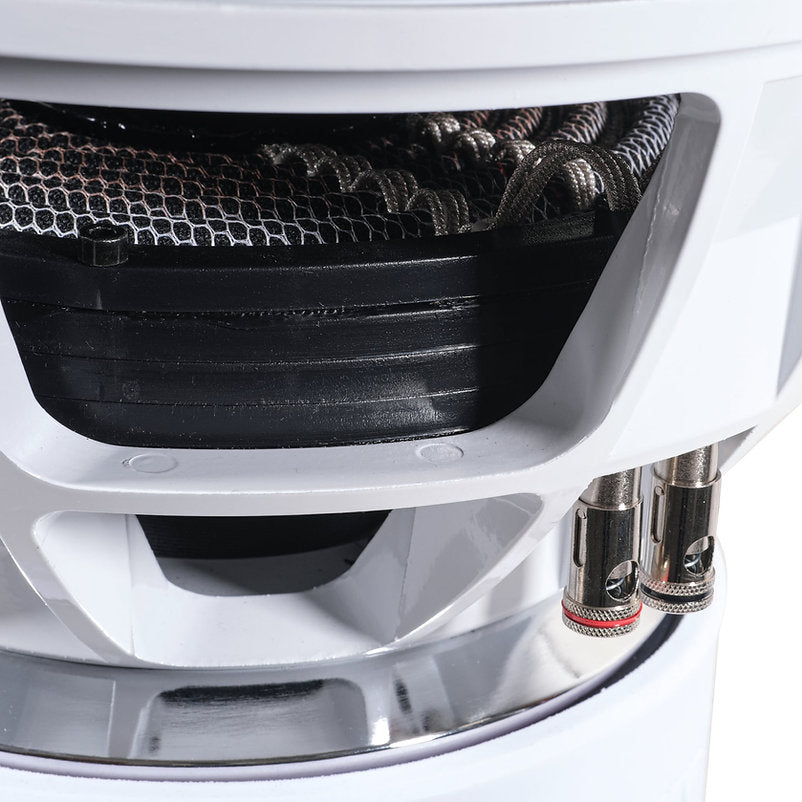

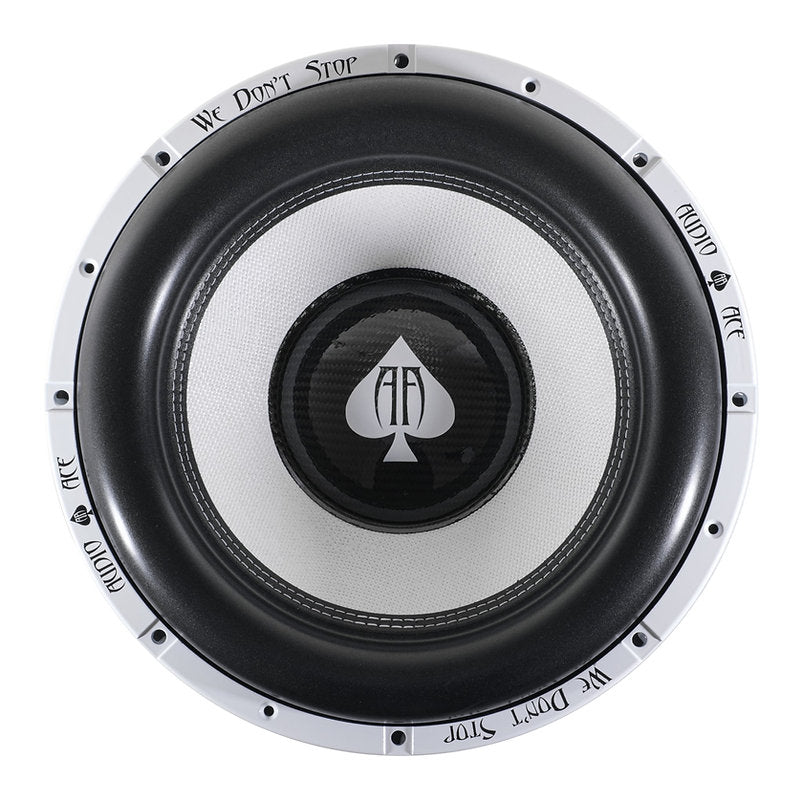

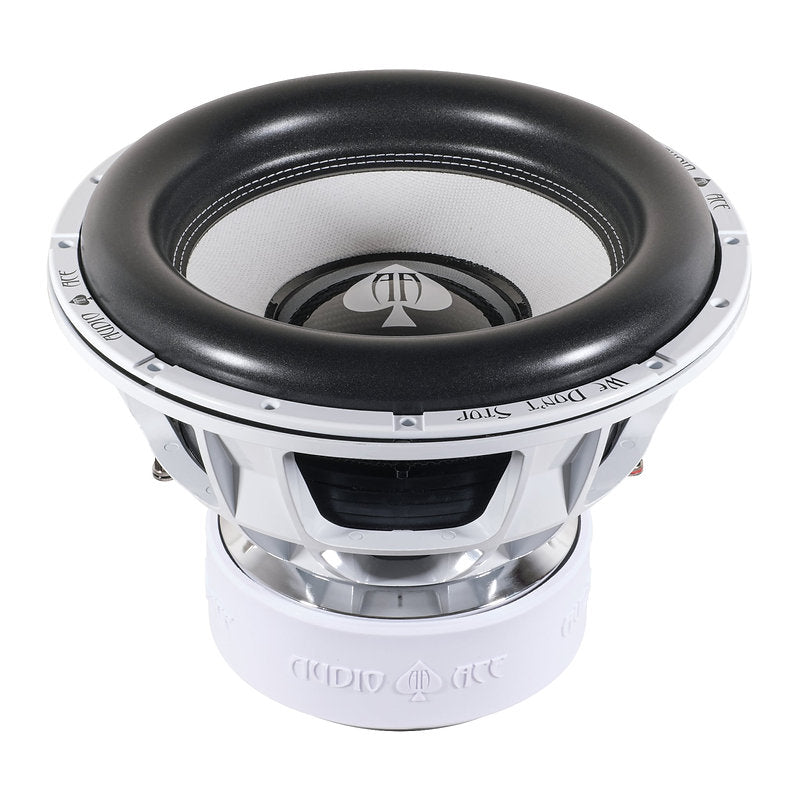

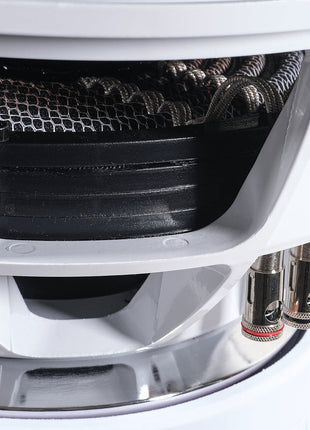

The Audio Ace Jester 15" D2 is designed to achieve a high level of both Sound Quality (SQ) and Sound Pressure Level (SPL), rated at a formidable 3, 000W RMS. Its design includes a fairly low Free Air Resonance (Fs) and a powerful 300 oz motor structure, making it highly versatile for great sound across a wide range of music. Whether you're aiming for extreme sound levels or just wanting to enjoy powerful bass in your daily driver, the Jester is an excellent choice. It features a heavy-duty die-cast aluminum basket, a 3-inch BACCAW 4-layer voice coil, and a 4-layer 10-inch spider suspension. The Dual 2 Ohm impedance provides a flexible path to a 1 Ohm or 4 Ohm final load.
| AUDIO ACE JESTER 15" DUAL 2 OHM SPECIFICATIONS |
| Model |
Jester 15" |
| RMS Power Handling |
3,000 Watts |
| Voice Coil |
3" BACCAW 4 Layer Coil |
| Magnet Structure |
300 oz |
| Suspension |
4 Layer 10" Spider |
| Basket |
Heavy Duty Die Cast Aluminum |
| Nominal Impedance |
Dual 2 Ohm (D2) |
| Cutout Diameter |
14.331 in |
| Mounting Depth |
10.07 in |
| LOSS FACTORS & MISC PARAMETERS |
| Total Q (Qts) |
0.464 |
| Mechanical Q (Qms) |
5.368 |
| Electrical Q (Qes) |
0.508 |
| Free Air Resonance (Fs) |
33.7 Hz |
| Sensitivity (Lm) |
86.10 dB |
| Equivalent Volume (Vas) |
33.8589 L |
| Moving Mass (Mms) |
551.552 g |
| BL Factor (Bl) |
28.449 |
| DC Resistance (Re) |
3.52 Ohms |
| Effective Piston Area (Sd) |
769.45 |
