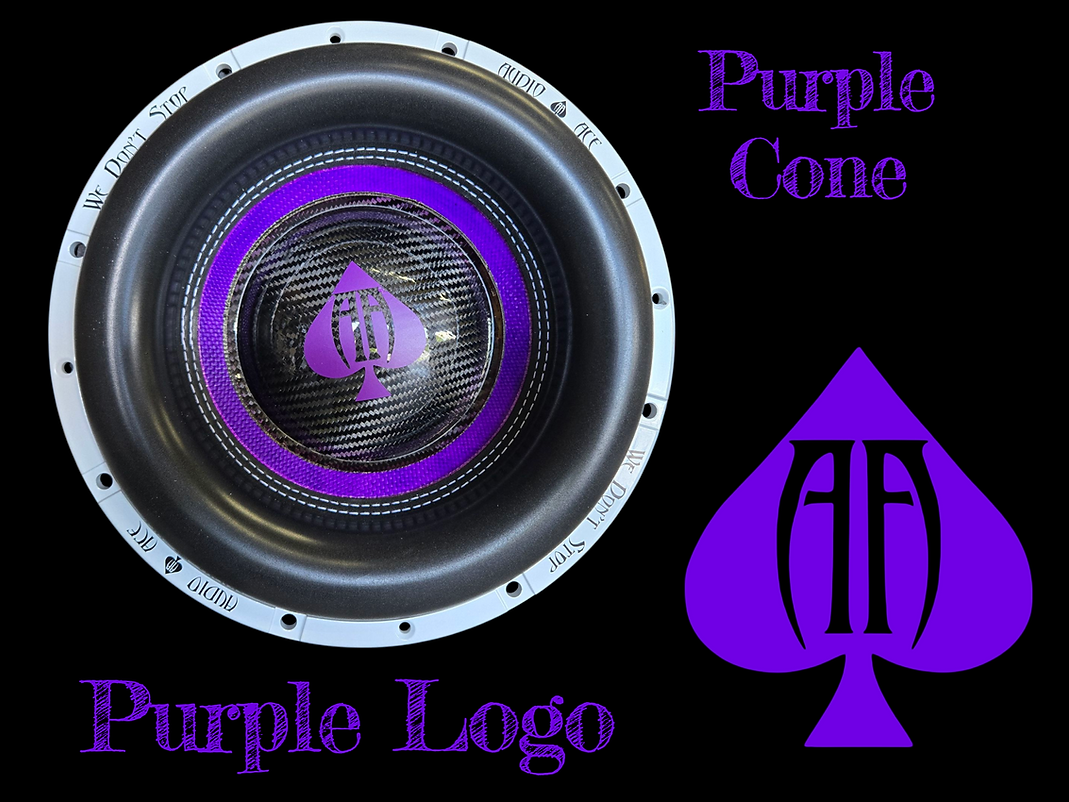

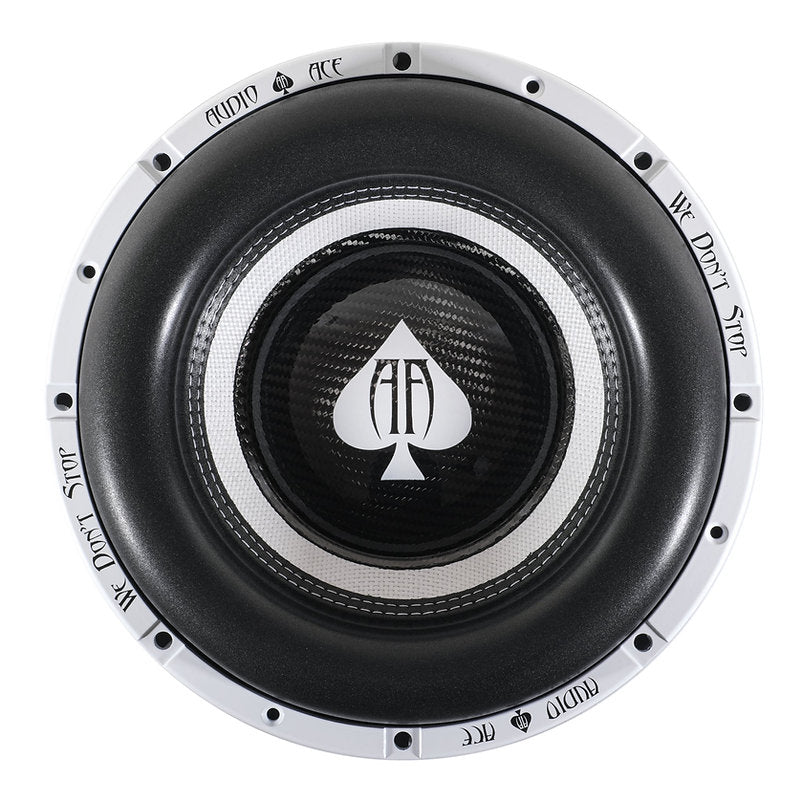

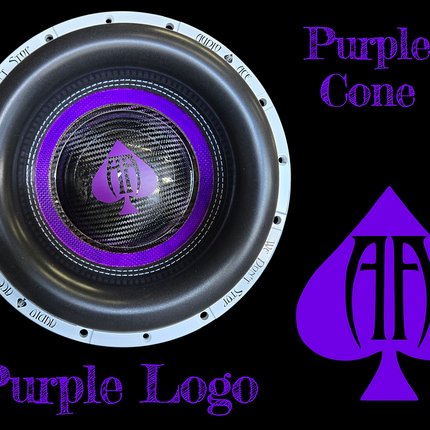

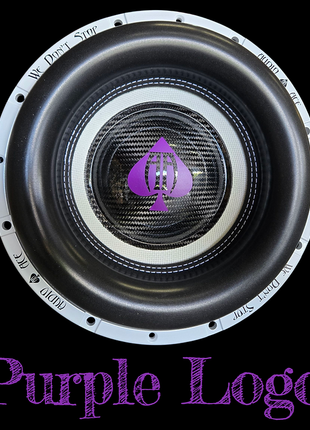

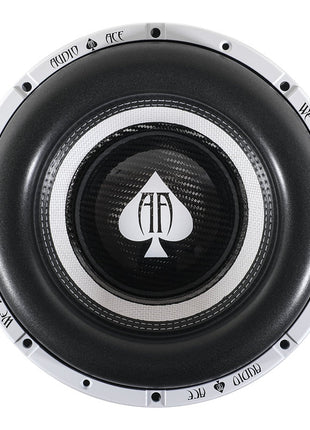

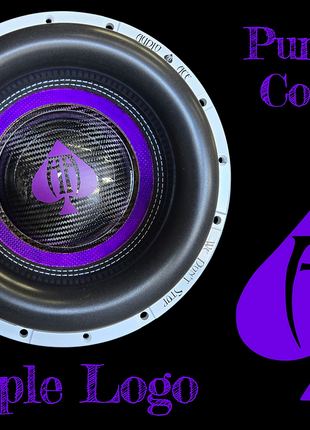

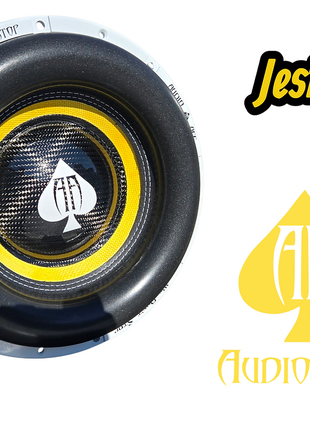

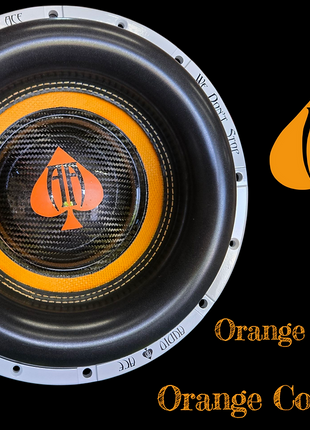

Product Overview: Audio Ace’s Powerful and Versatile 12-Inch Driver

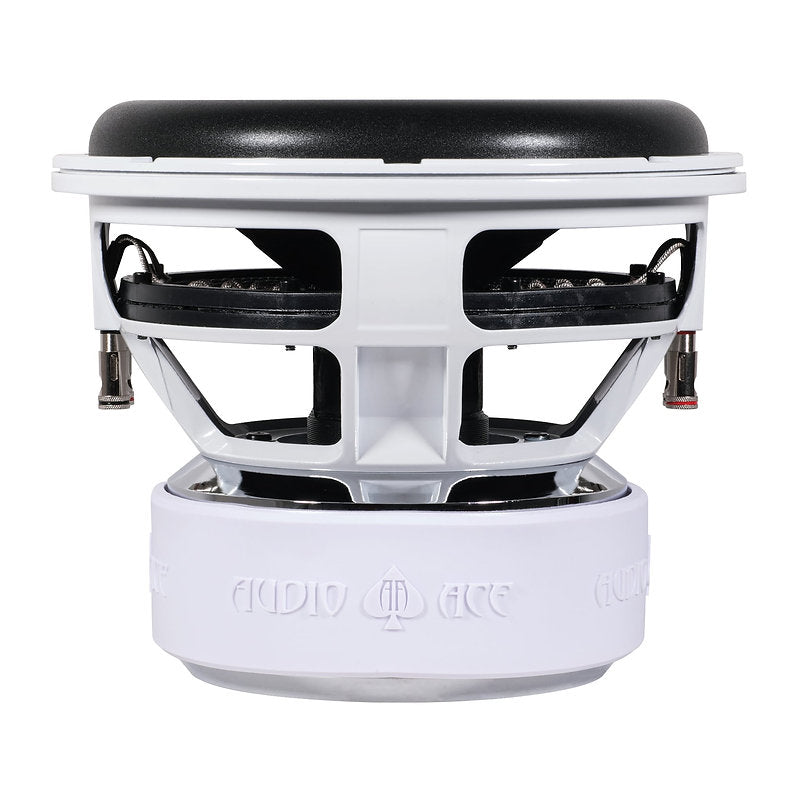

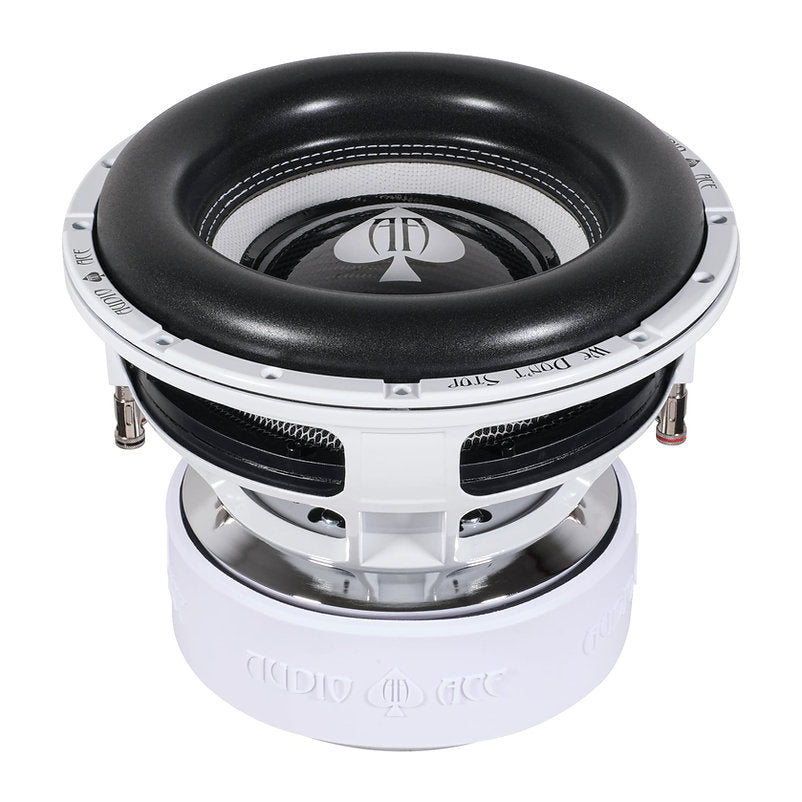

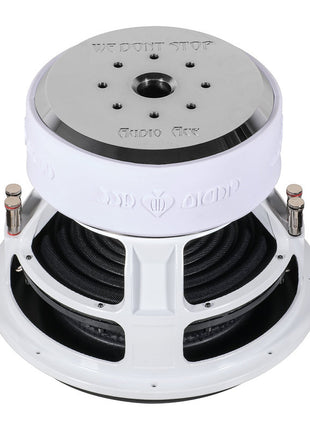

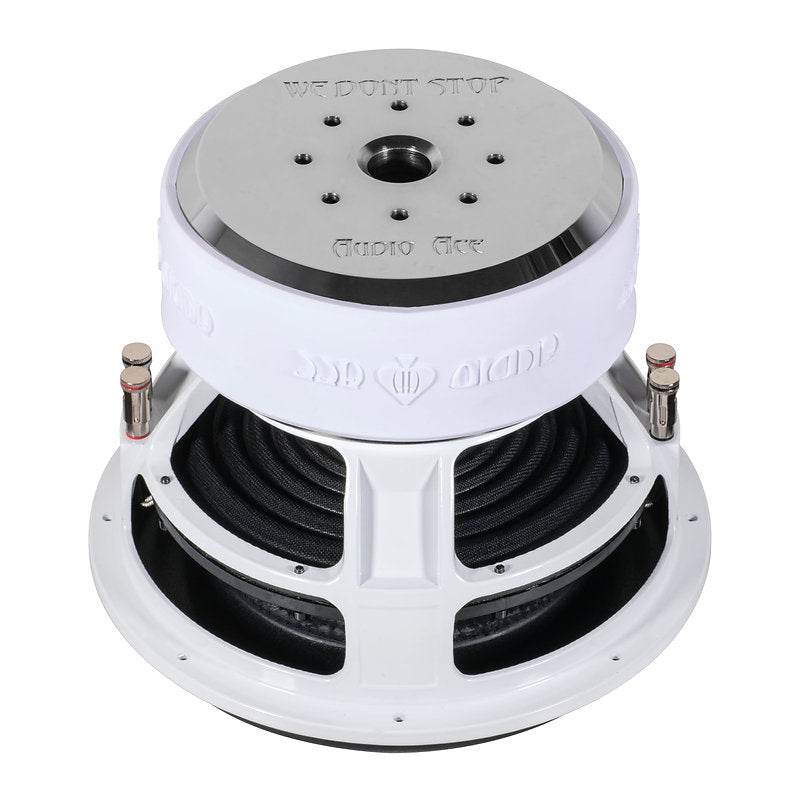

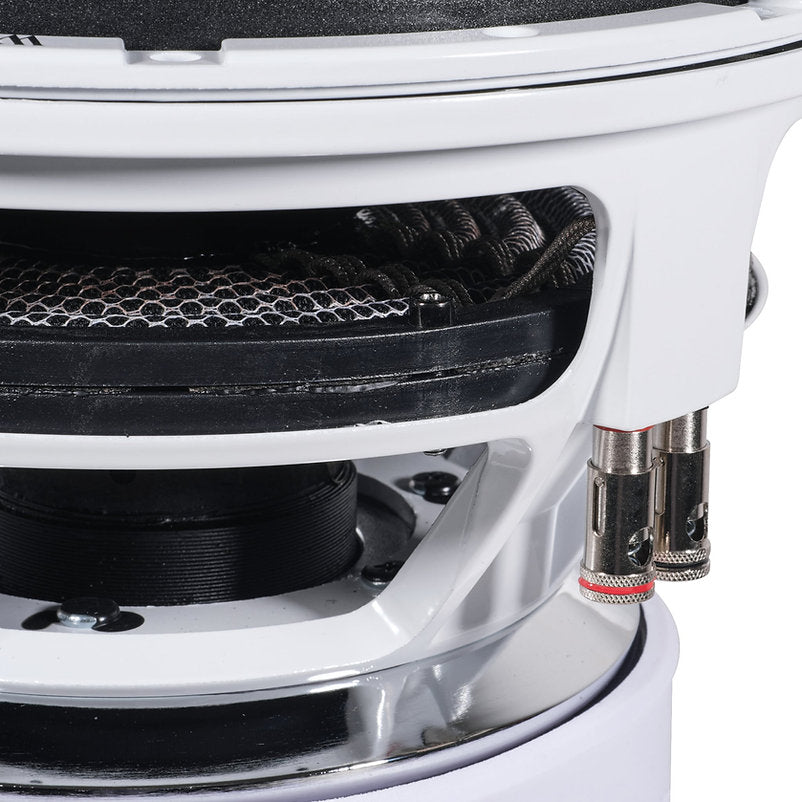

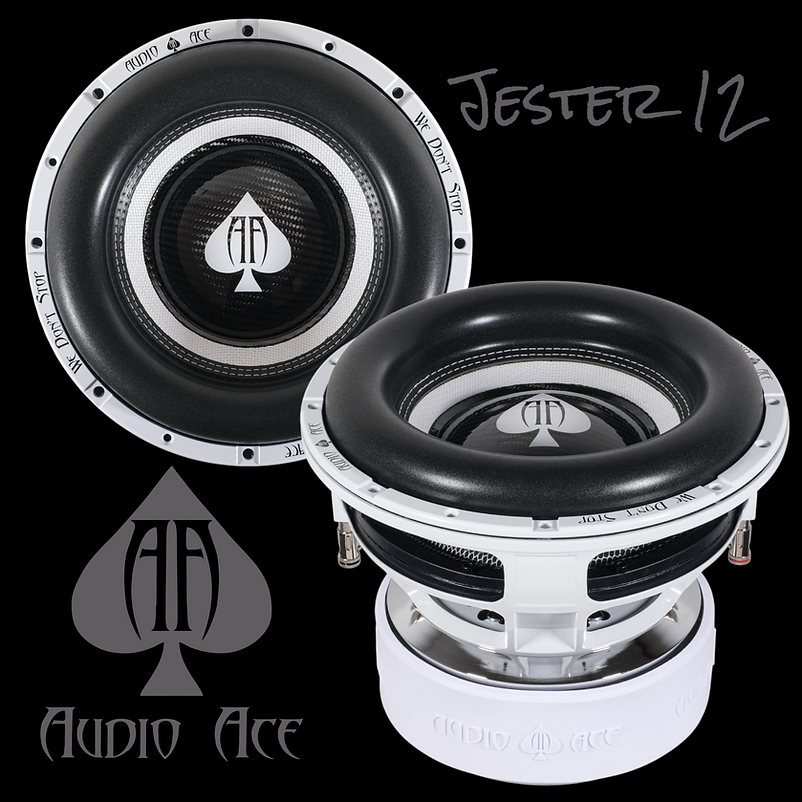

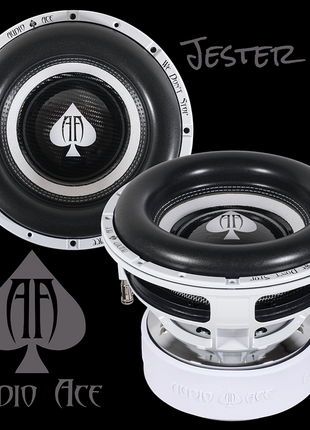

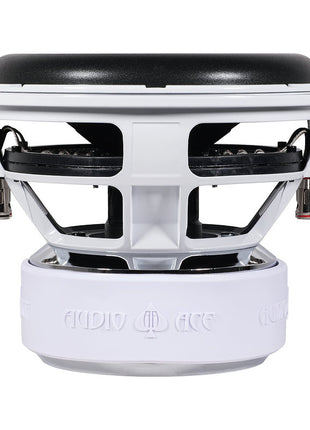

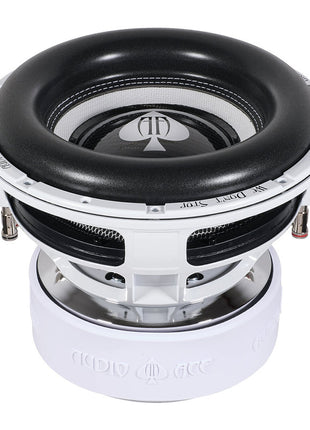

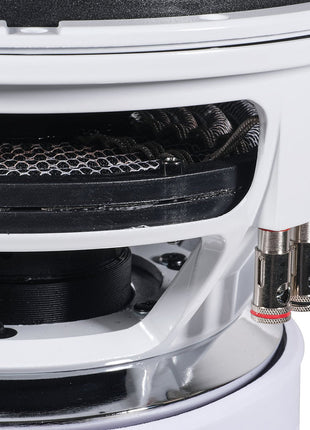

The Audio Ace Jester 12" D2 is designed to achieve a high level of both Sound Quality (SQ) and Sound Pressure Level (SPL). Conservatively rated at a robust 3, 000W RMS, the Jester is built with a low Free Air Resonance (Fs) and a strong 300 Oz magnet structure, allowing it to be versatile and sound great across a wide range of music. Featuring a heavy-duty die-cast aluminum basket, a 3-inch BACCAW 4-layer voice coil, and a 4-layer 10-inch spider suspension, this 12-inch driver is a perfect choice for achieving EXTREME sound levels in your daily driver. The Dual 2 Ohm coil provides a flexible path to a 1 Ohm or 4 Ohm final load.
| AUDIO ACE JESTER 12" DUAL 2 OHM SPECIFICATIONS |
| Model |
Jester 12" High Performance Subwoofer |
| RMS Power Handling (Conservative) |
3,000 Watts |
| Voice Coil |
3" BACCAW 4 Layer Voice Coil |
| Magnet Structure |
300 Oz |
| Suspension |
4 Layer 10" Spider |
| Basket |
Heavy Duty Die Cast Aluminum |
| Nominal Impedance |
Dual 2 Ohm (D2) |
| Cutout Diameter |
11.25 inches |
| Mounting Depth |
8.5 inches |
| Total Weight |
47.6 Lbs |
| LOSS FACTORS & MISC PARAMETERS |
| Total Q (Qts) |
0.386 |
| Mechanical Q (Qms) |
4.787 |
| Electrical Q (Qes) |
0.420 |
| Free Air Resonance (Fs) |
35.4 Hz |
| Sensitivity (Lm) |
83.37 dB |
| Equivalent Volume (Vas) |
12.8560 L |
| Moving Mass (Mms) |
454.545 g |
| BL Factor (Bl) |
29.466 |
| DC Resistance (Re) |
3.60 Ohms |
| Effective Piston Area (Sd) |
452.39 |
