Product Overview: High-Output Coaxial Loudspeaker

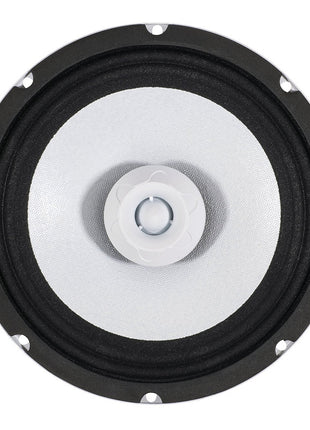

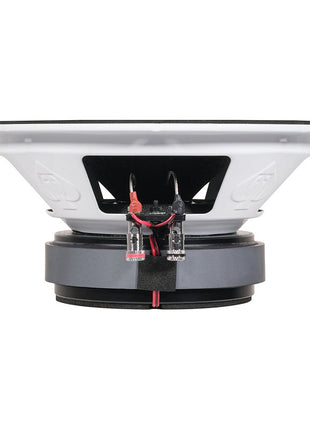

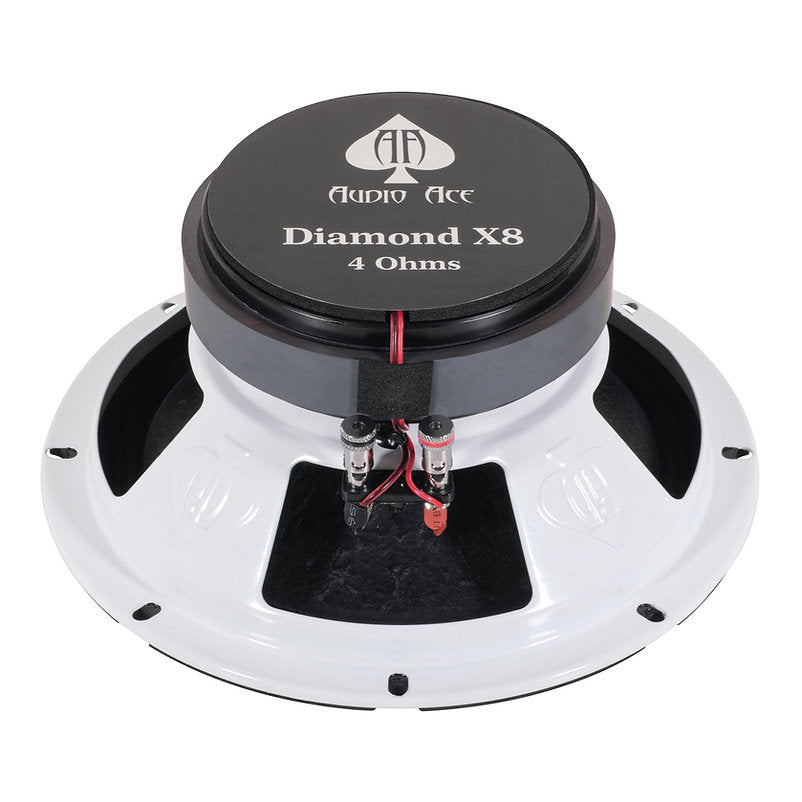

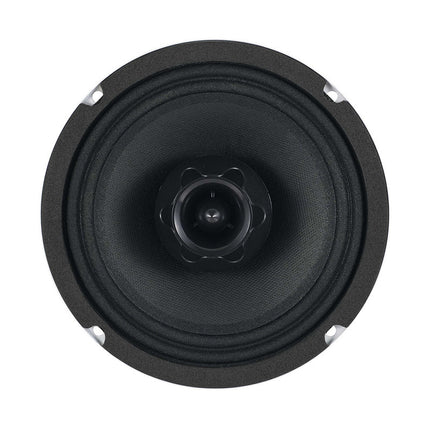

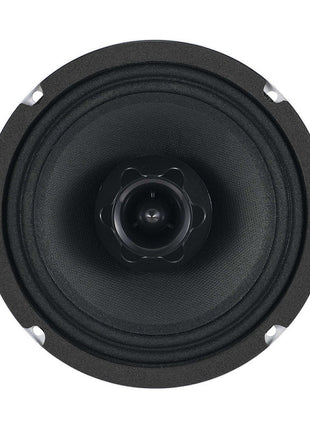

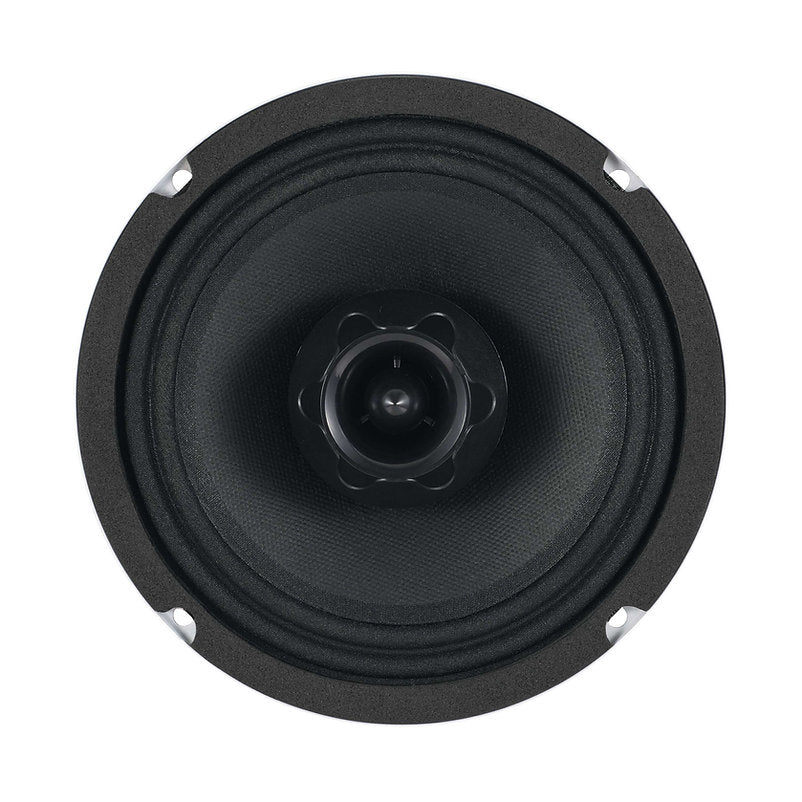

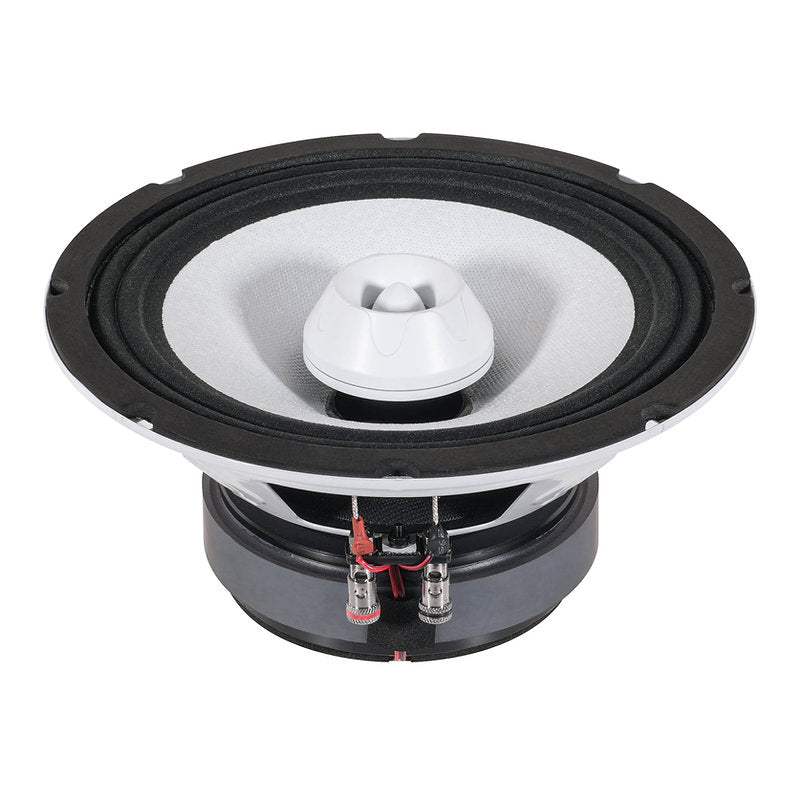

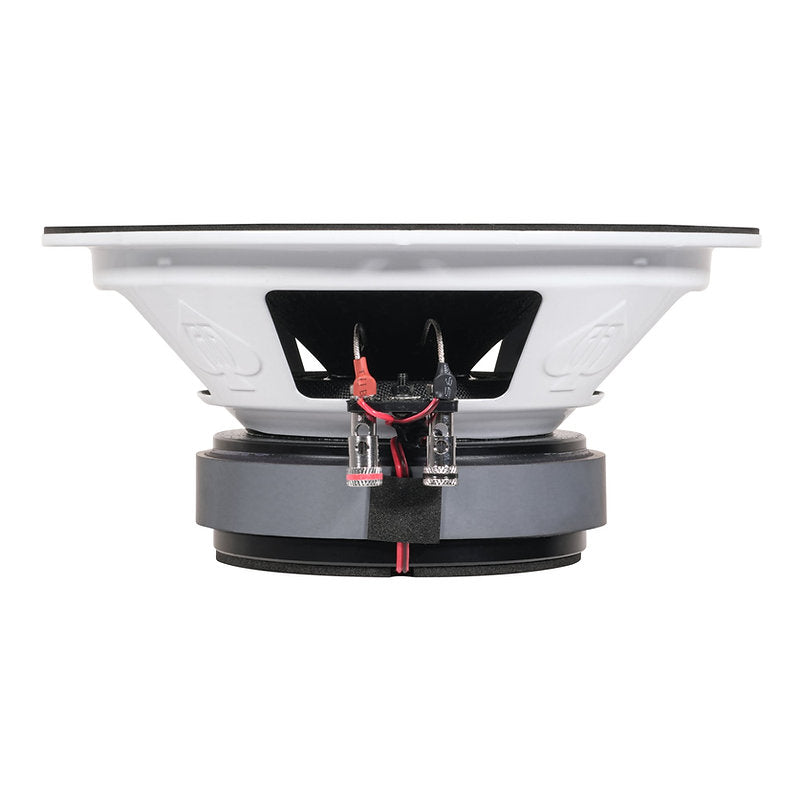

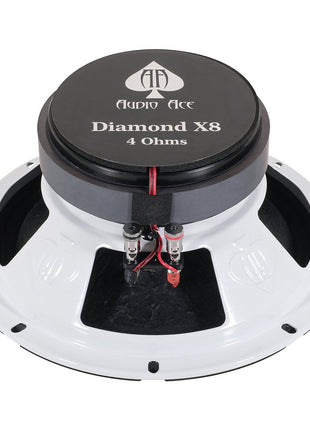

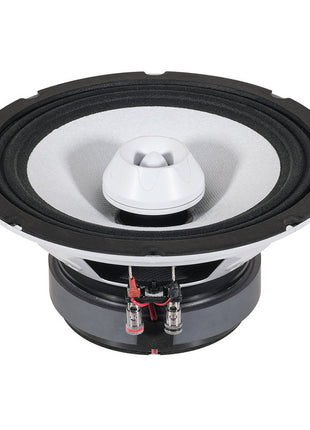

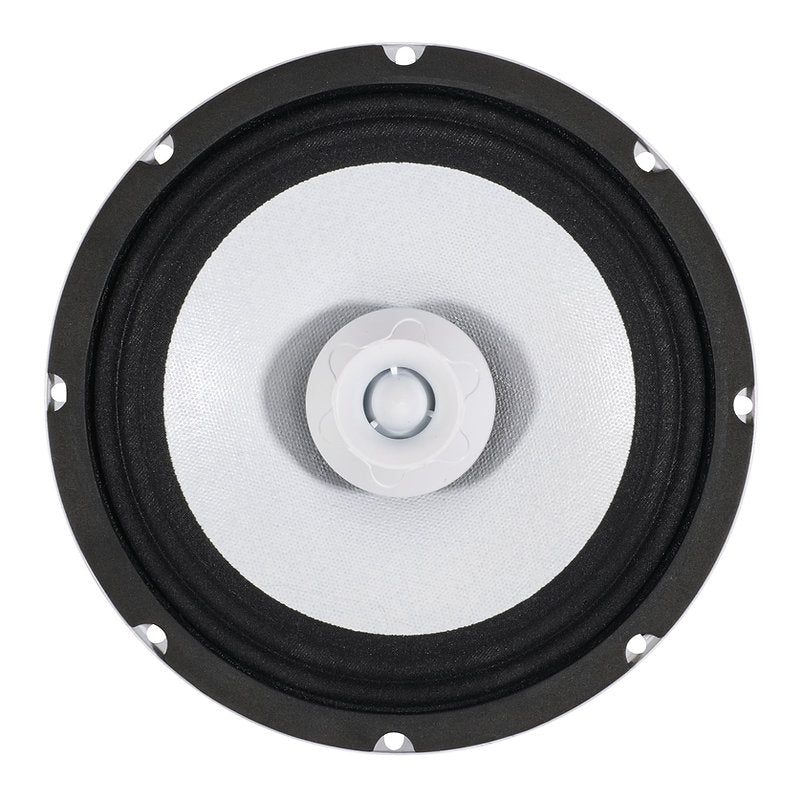

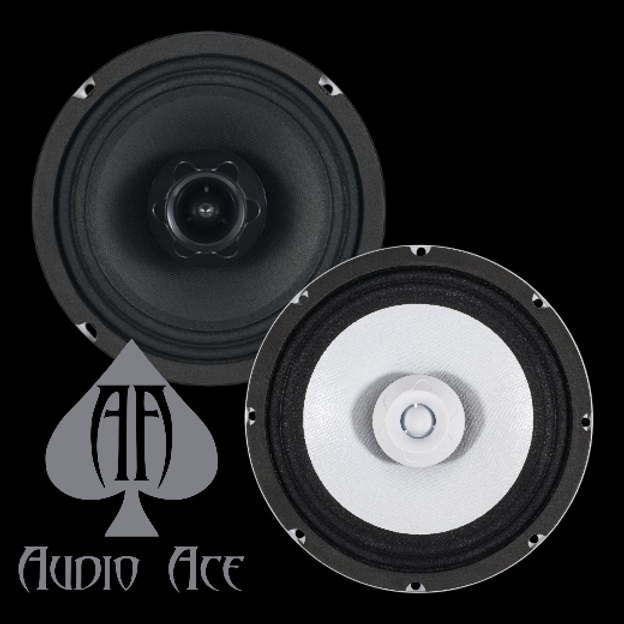

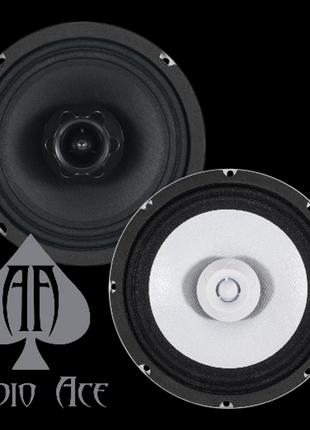

The new Audio Ace Diamond X8 is a high-efficiency coaxial speaker that blends the powerful mid-range response of a Pro Audio driver with the clarity of an integrated tweeter for a full and vibrant sound. Conservatively rated at 180W RMS, this 8-inch coaxial speaker is designed for maximum acoustic output, boasting a high 98 dB sensitivity (SPL). It features a 1.52-inch voice coil and a substantial 34.3 Oz motor within a custom-tooled basket bearing the Audio Ace logo. With a wide frequency range of 80 Hz to 20 kHz and a 4 Ohm impedance, the Diamond X8 is a premium option for those seeking high-volume performance across the entire audible spectrum. Available in Black or White options.
| AUDIO ACE DIAMOND X8 COAXIAL MID RANGE SPECIFICATIONS |
| Type |
Coaxial Mid Range Loudspeaker |
| Size |
8 Inches |
| RMS Power Handling |
180 Watts |
| Nominal Impedance |
4 Ohm |
| Voice Coil |
1.52 Inches |
| Motor Weight |
34.3 Oz |
| Sensitivity |
98 dB |
| Frequency Range |
80 - 20k Hz |
| Maximum Excursion (Xmax) |
1.75 |
| Mounting Depth |
3 5/8 Inches |
| Overall Diameter |
8 1/4 Inches |
| Available Colors |
Black or White |

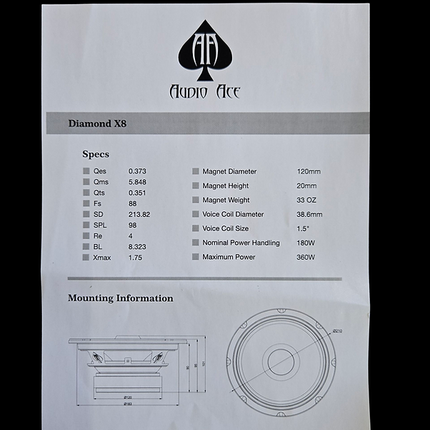

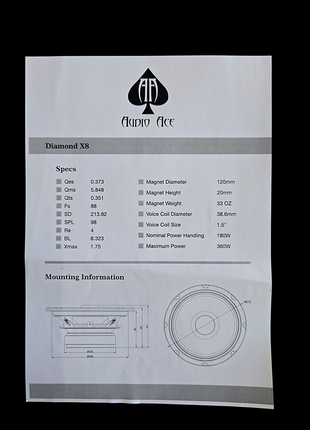

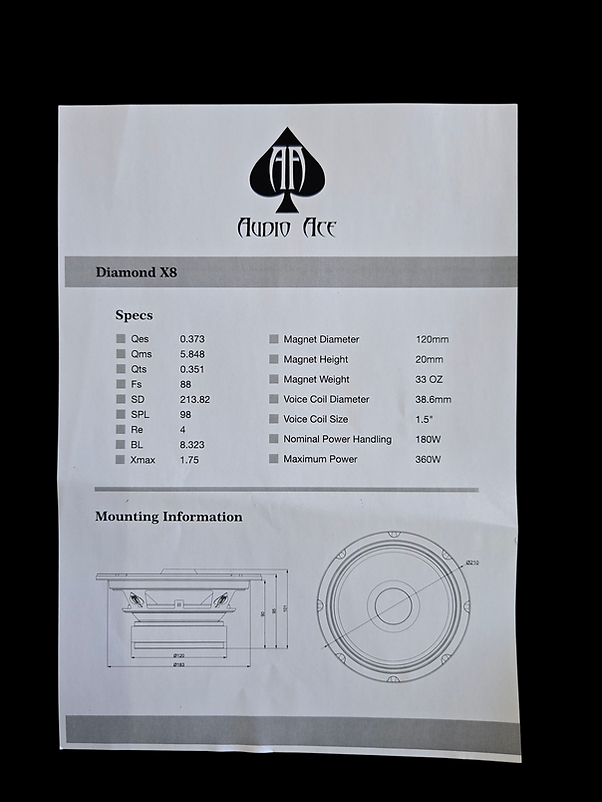

| THIELE-SMALL PARAMETERS |
| Sensitivity (SPL) |
98 dB |
| Electrical Q (Qes) |
0.373 |
| Mechanical Q (Qms) |
5.848 |
| Total Q (Qts) |
0.351 |
| Resonance Frequency (Fs) |
88 Hz |
| Effective Piston Area (SD) |
213.82 |
| DC Resistance (Re) |
4 Ohms |
| BL Factor (BL) |
8.323 |
