Description
Product Overview: High-Sensitivity Pro Audio Performance

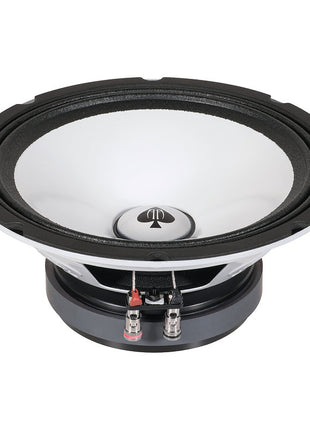

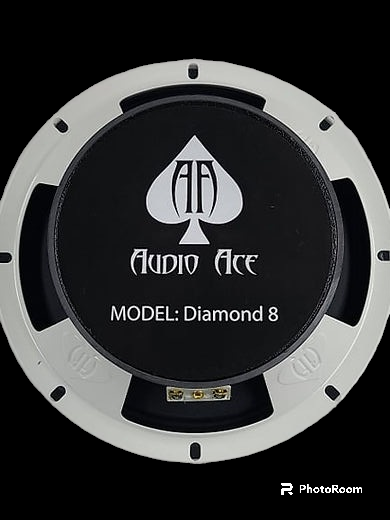

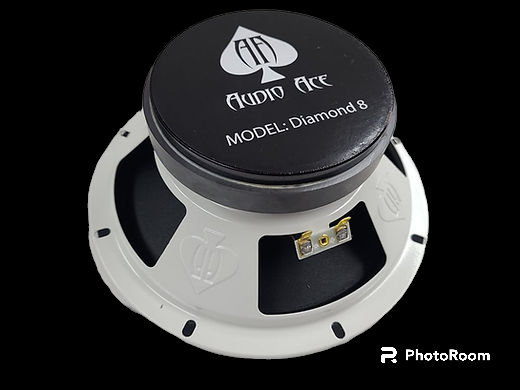

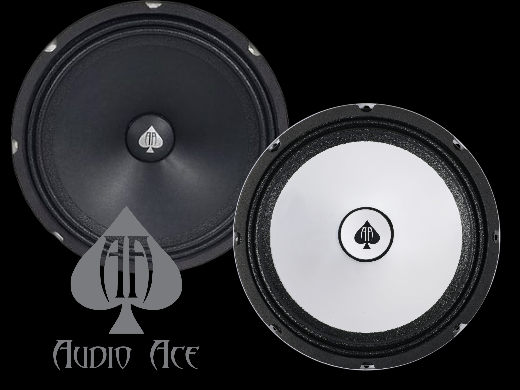

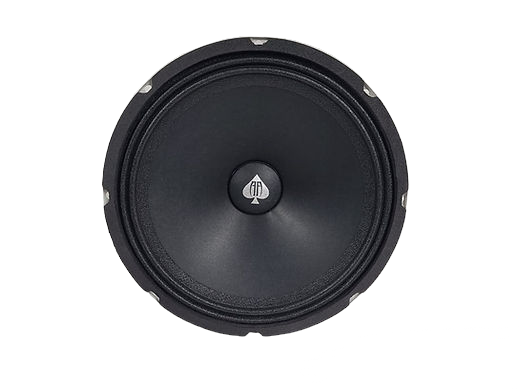

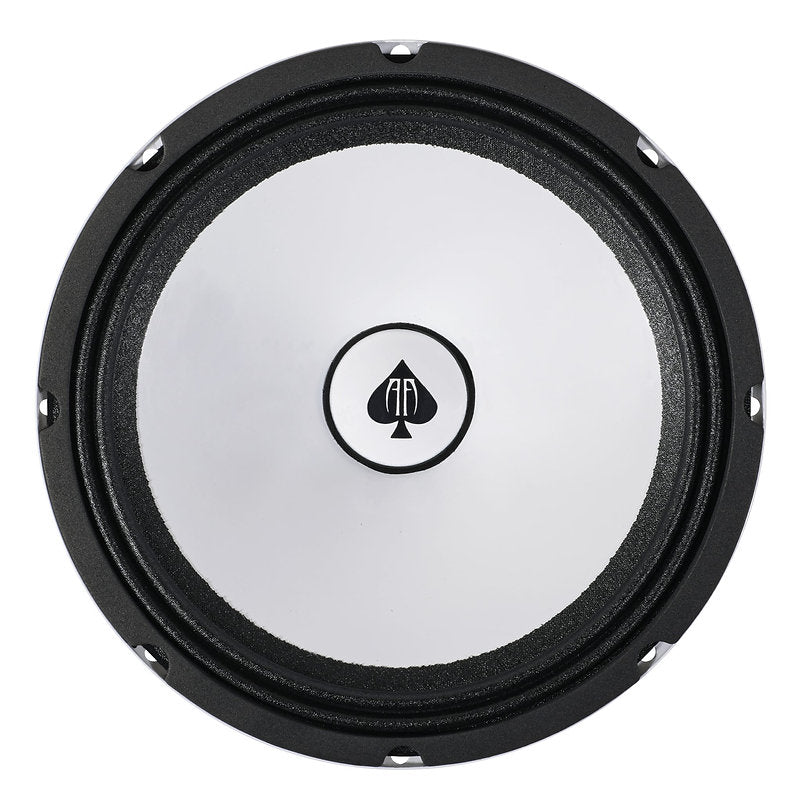

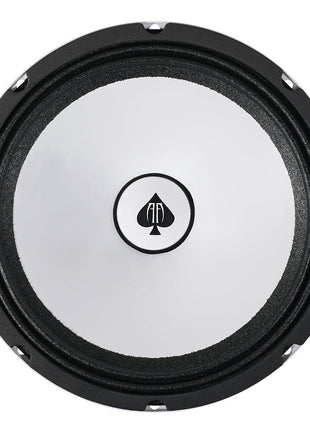

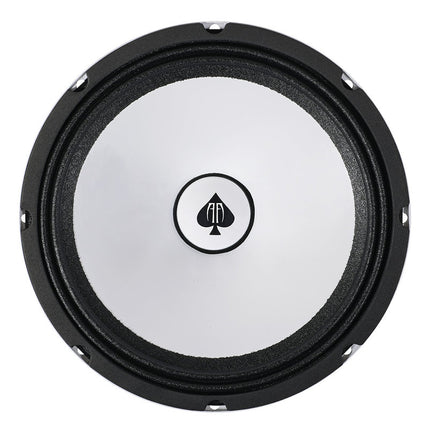

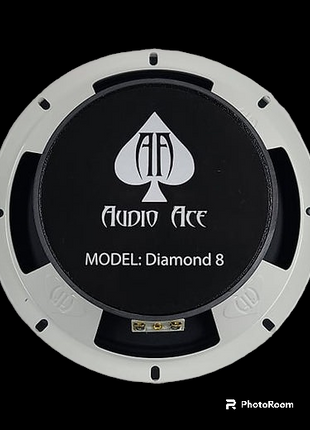

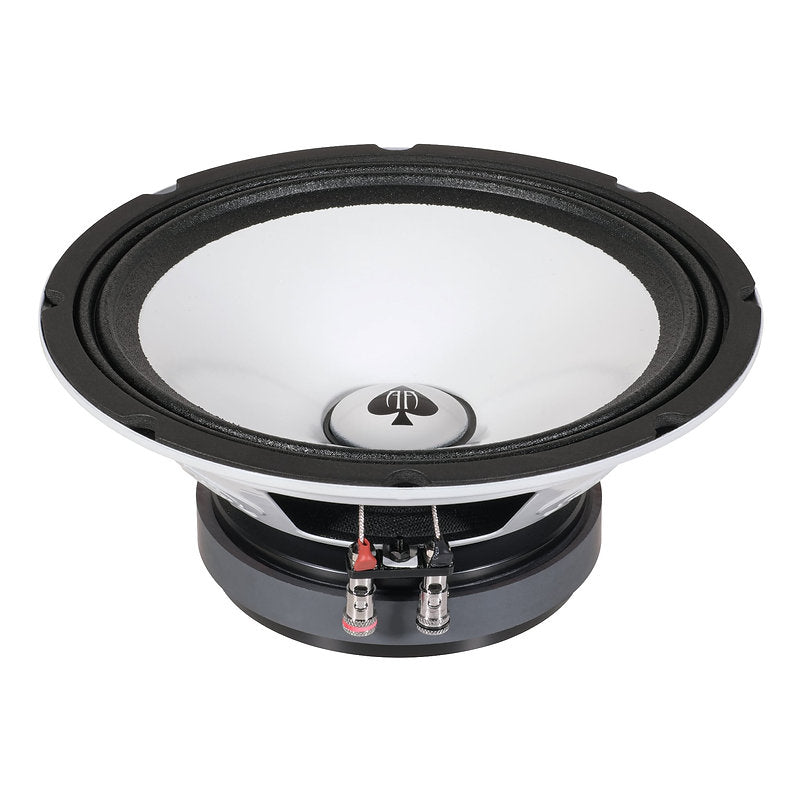

The Audio Ace Diamond 8" mid-range driver is designed to deliver the high-volume characteristics of a professional audio speaker within a car audio environment. This 8-inch driver is conservatively rated at 180W RMS and is built to play louder than most mid-range speakers in its class, boasting a high 94 dB sensitivity. It features a 1.52-inch voice coil, a 26 Oz magnet motor, and a custom-tooled basket with the Audio Ace logo, ensuring durability and style. With a frequency range of 80 Hz to 13 kHz and a nominal 4 Ohm impedance, the Diamond 8" provides a powerful and clear mid-frequency anchor for your system.
| AUDIO ACE DIAMOND 8" MID RANGE SPECIFICATIONS |
| Size |
8 Inches |
| RMS Power Handling |
180 Watts |
| Nominal Impedance |
4 Ohm |
| Voice Coil |
1.52 Inch |
| Magnet Weight |
26 Oz |
| Sensitivity |
94 dB |
| Frequency Range |
80 - 13k Hz |
| Mounting Depth |
3 1/4 Inches |
| Overall Diameter |
8 1/4 Inches |
| Maximum Excursion (Xmax) |
1.75 |

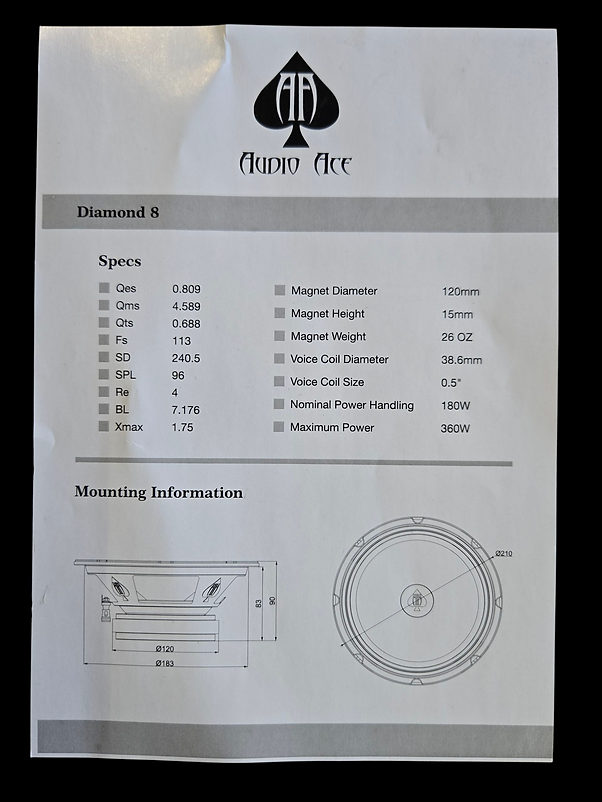

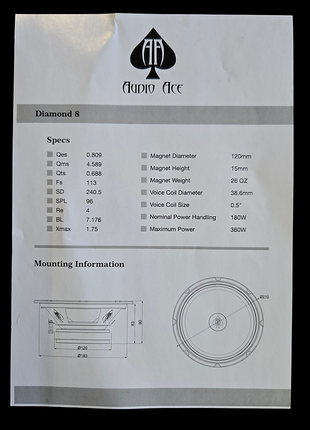

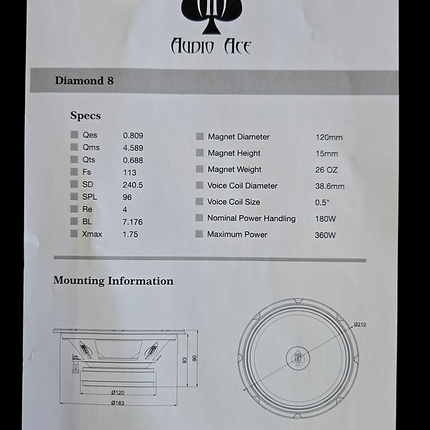

| THIELE-SMALL PARAMETERS |
| Sensitivity (SPL) |
96 dB |
| Electrical Q (Qes) |
0.809 |
| Mechanical Q (Qms) |
4.589 |
| Total Q (Qts) |
0.688 |
| Resonance Frequency (Fs) |
113 Hz |
| Effective Piston Area (SD) |
240.5 |
| DC Resistance (Re) |
4 Ohms |
| BL Factor (BL) |
7.176 |
