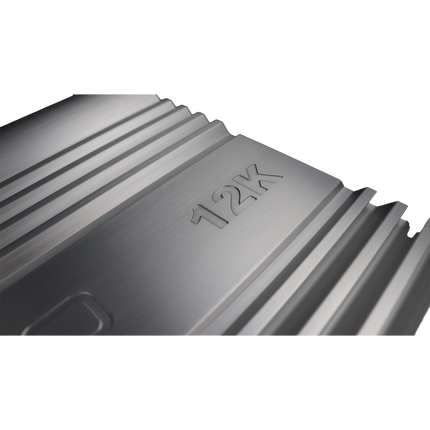

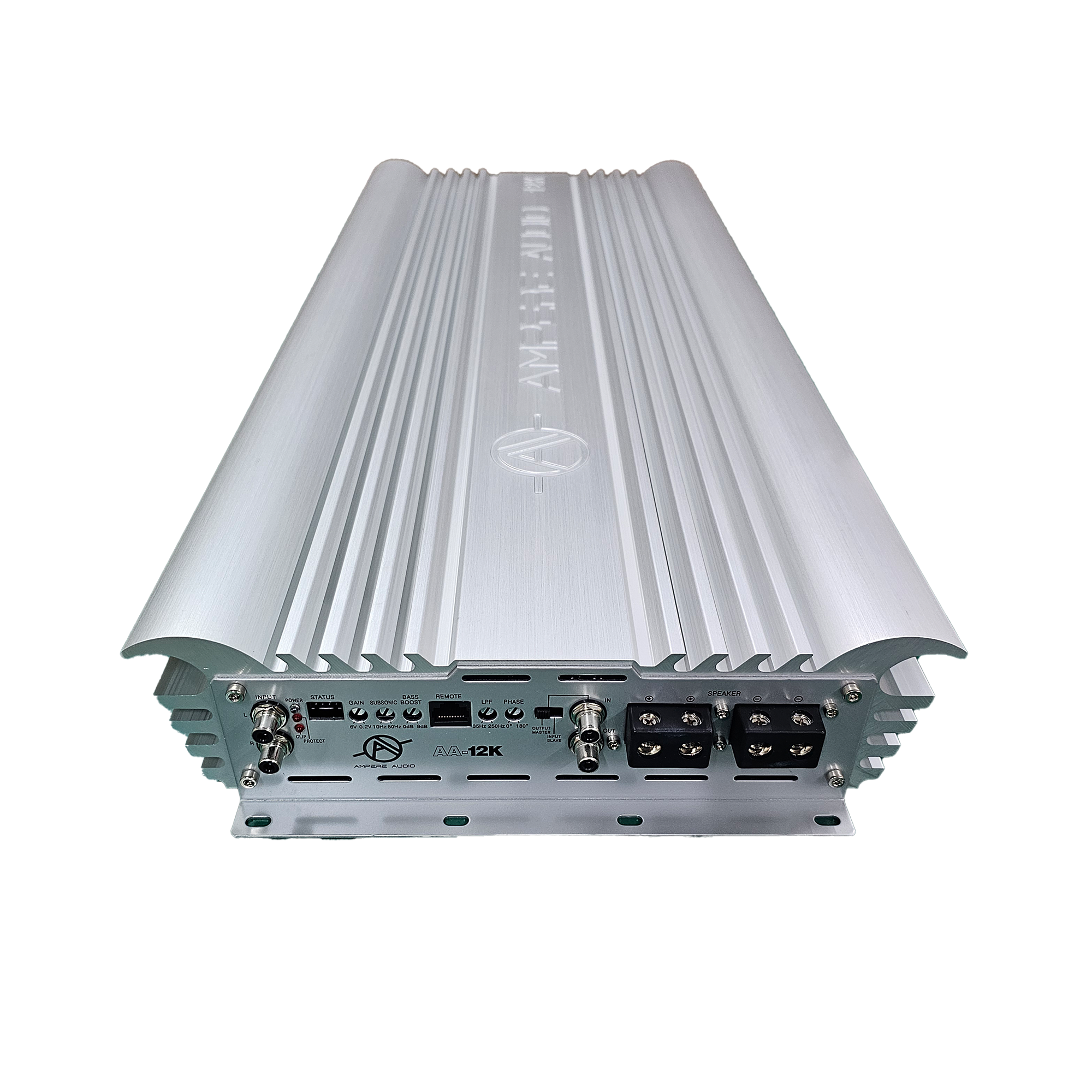

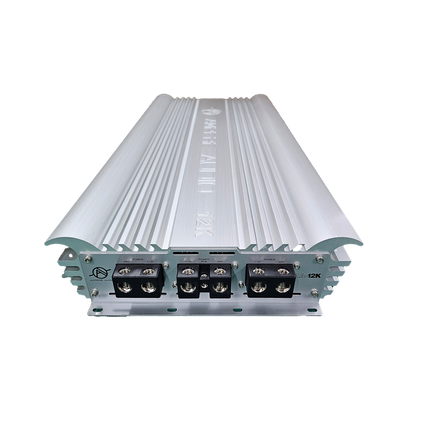

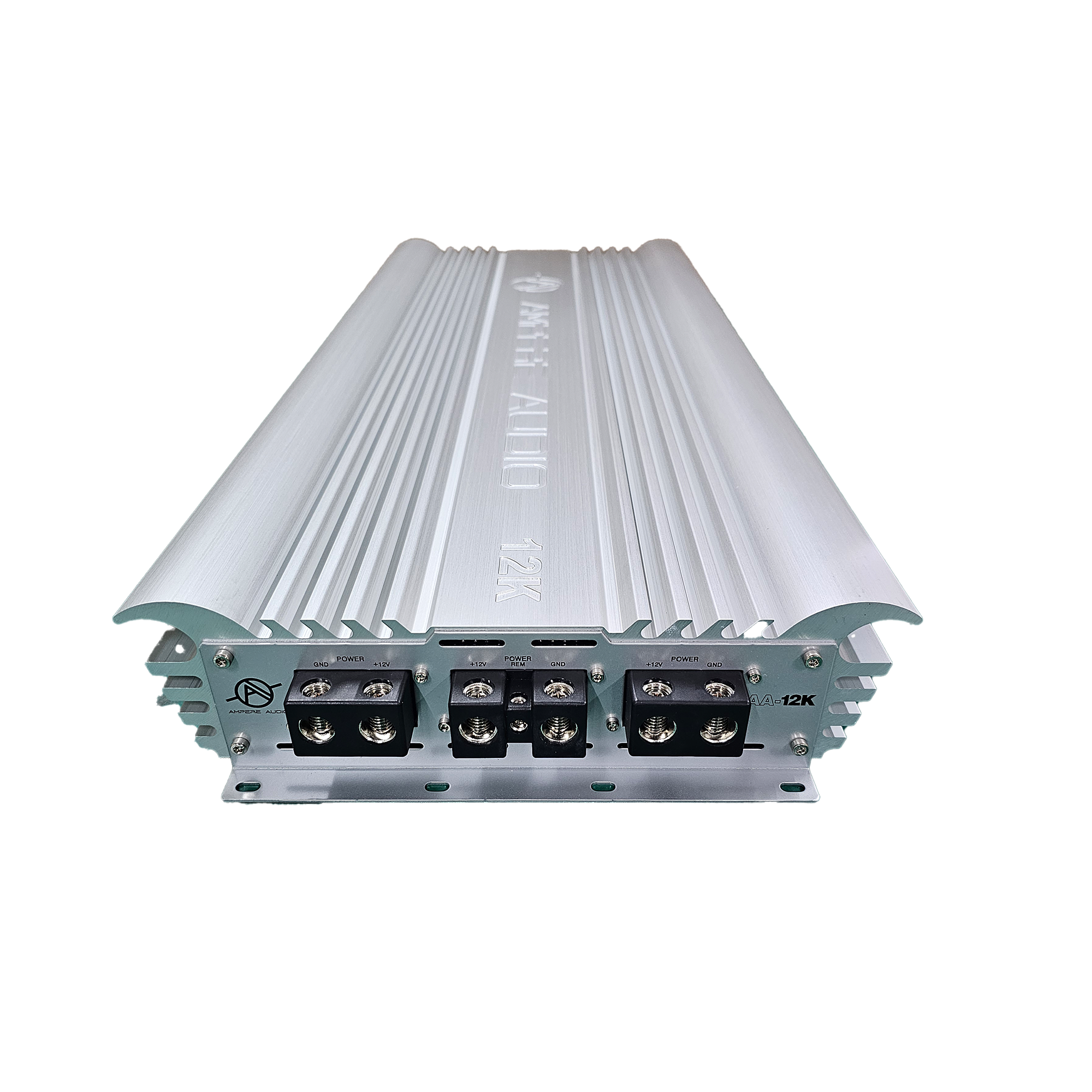

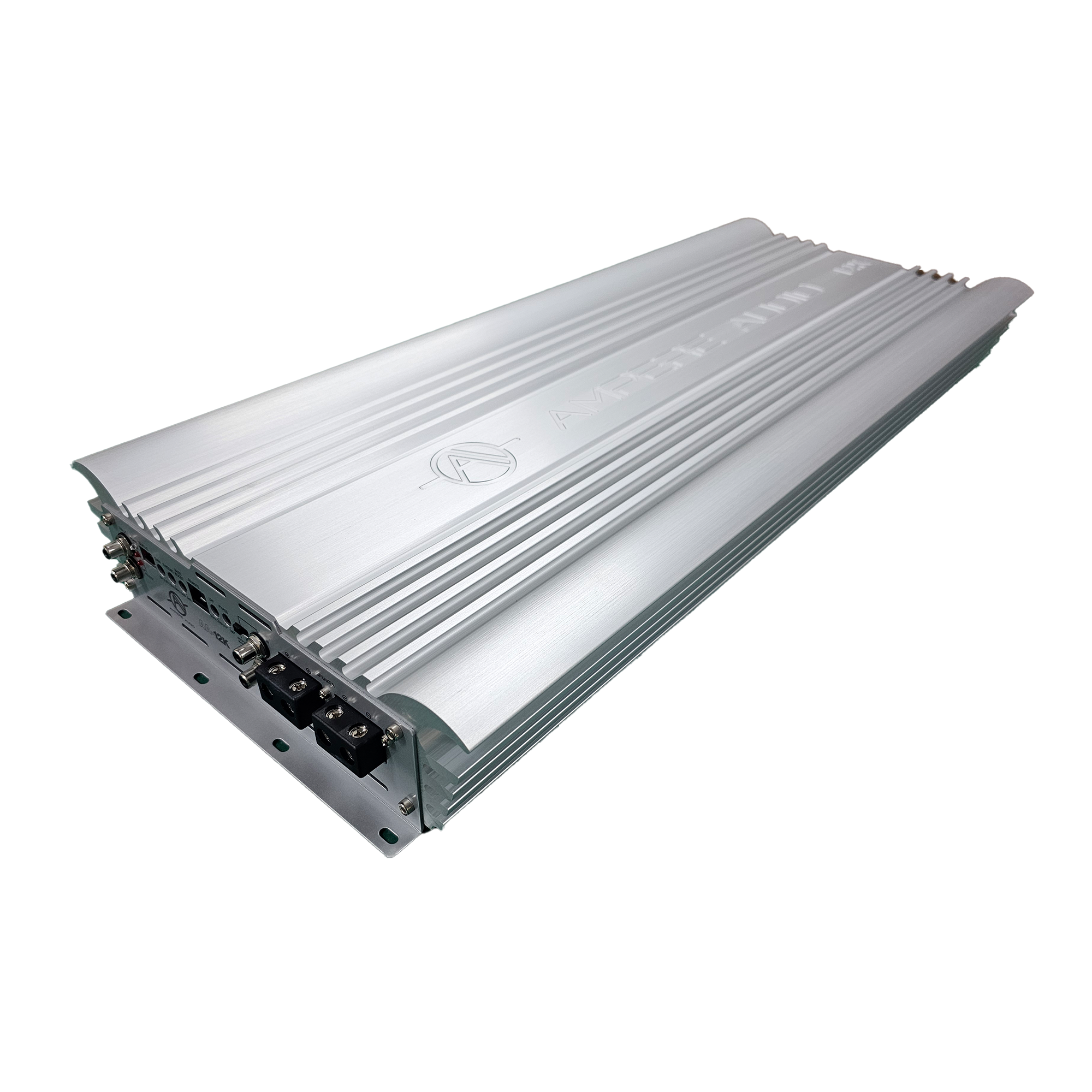

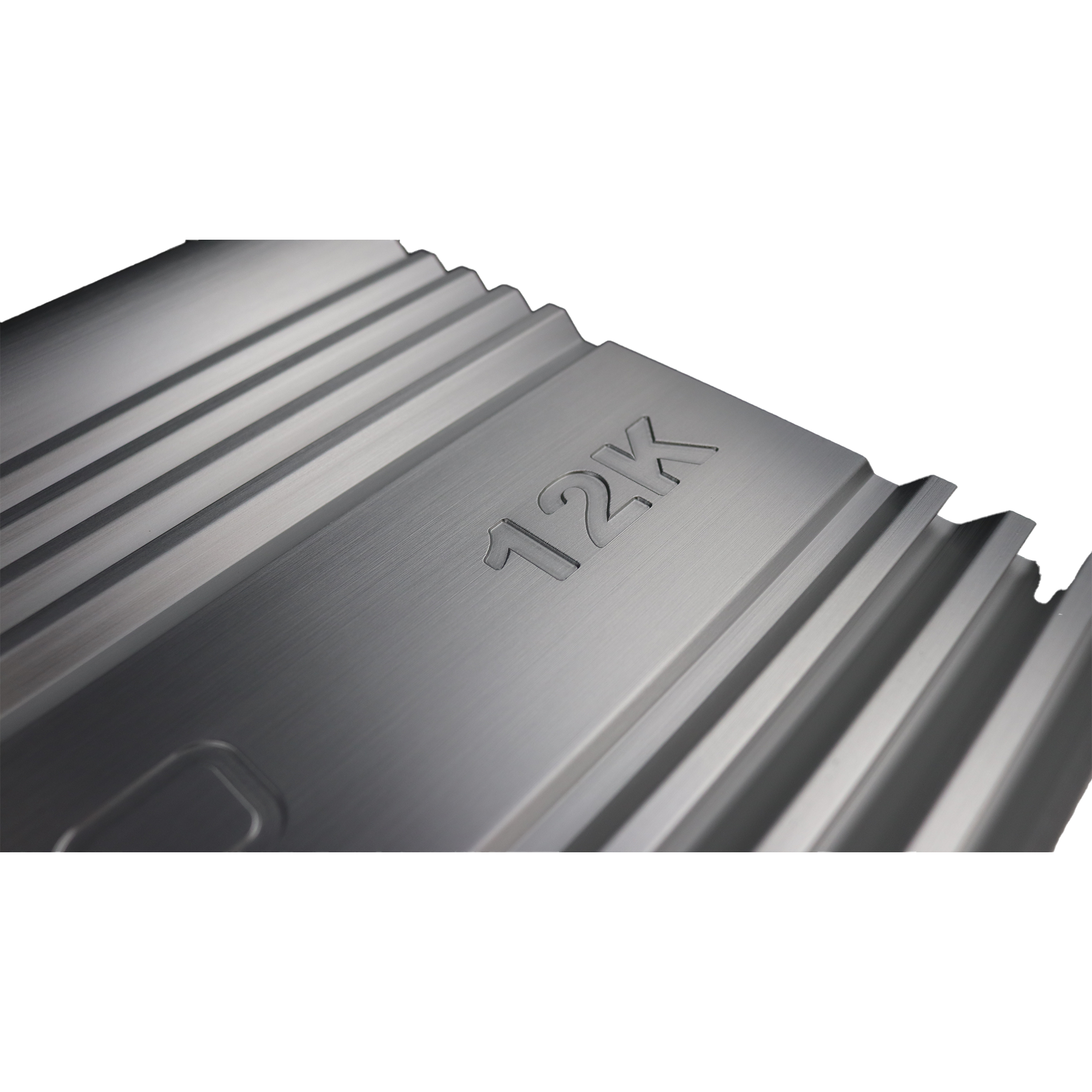

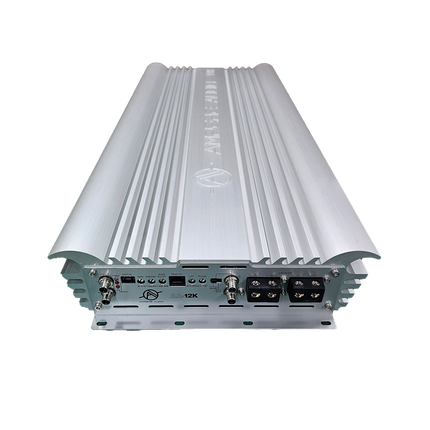

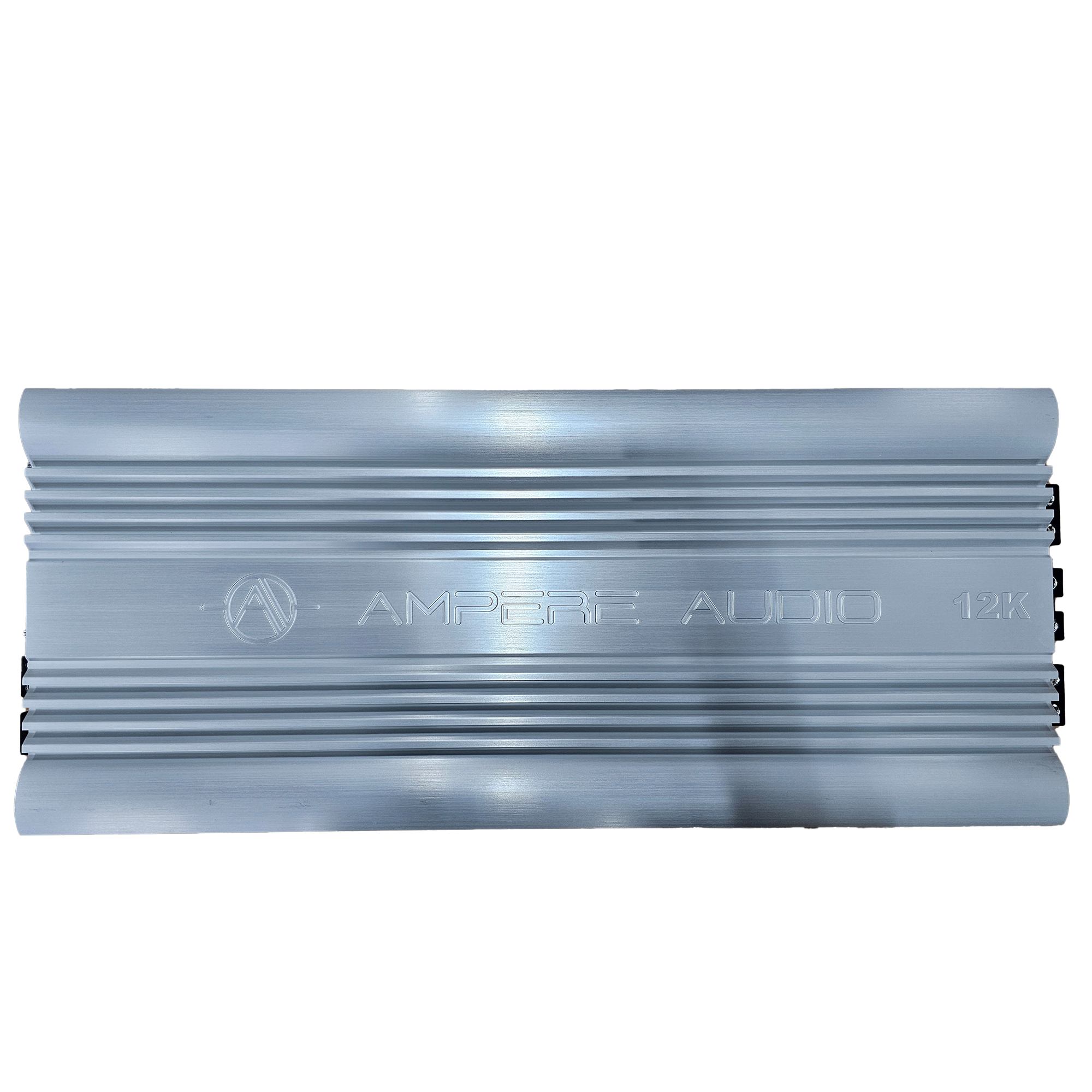

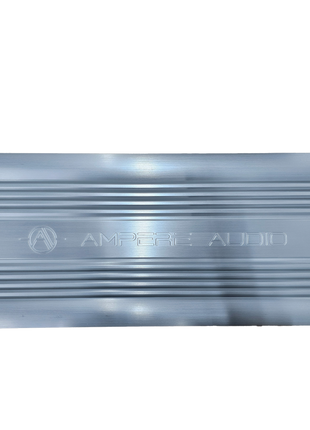

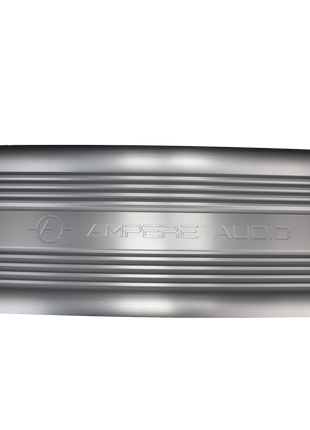

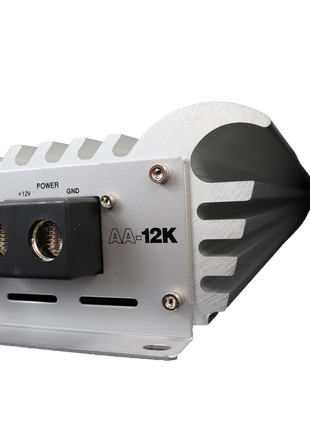

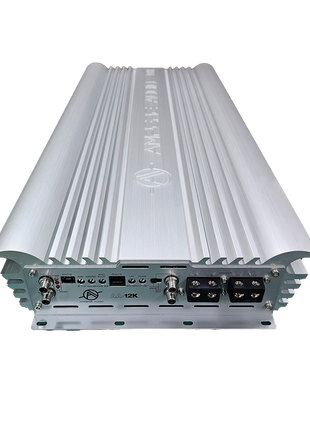

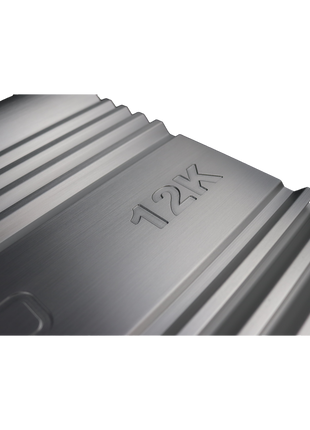

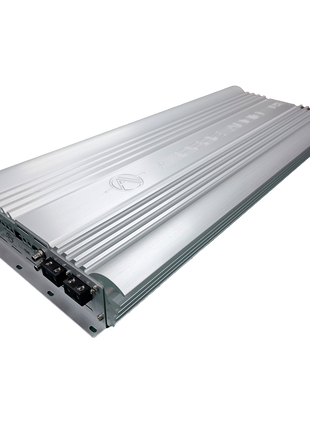

Ampere Audio AA-12K | 12,000W Class D Mono Block Amplifier
Power. Precision. Domination.
Meet the AA-12K — Ampere Audio’s flagship digital monoblock amplifier built for those who demand nothing less than total control and raw output. Whether you’re competing, demoing, or just living loud, the AA-12K delivers uncompromising performance with brutal force and unwavering clarity.

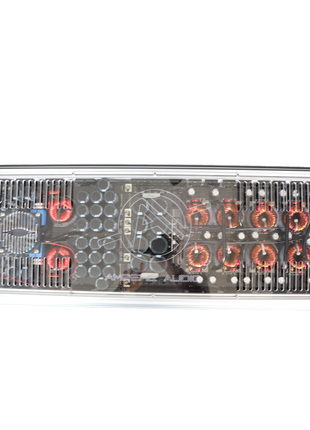

Designed with hardcore bassheads and audiophiles in mind, this beast pushes up to 12,000 watts RMS at 1 ohm — and a staggering 24,000 watts when strapped. Built with advanced Class D technology, a dual MOSFET PWM power supply, and elite-grade efficiency, the AA-12K is engineered to dominate the lanes, flex hard in demos, and outperform anything in its class.
But this amp isn’t just about brute strength — it’s also about smart control. With a wired remote that displays voltage, temperature, and clipping, plus independent crossovers and adjustable phase, the AA-12K gives you precise command over your soundstage. This is power that listens.
Technical Specifications:
Power Output (RMS @ 14.4V):
- 1 Ohm Mono: 12,000W
- 2 Ohm Mono: 7,000W
- 4 Ohm Mono: 4,000W
- 2 Ohm Strapped (Linked): 24,000W
General:
- Class D Digital Monoblock Design
- Dual MOSFET PWM Power Supply
- Efficiency: > 97% (at 4 Ohms)
- Input Sensitivity: 6V – 0.2V
- Frequency Response: 15Hz – 264Hz
- Signal-to-Noise Ratio: 91 dB
- Damping Factor: > 400
- THD: < 0.1%
- Working Voltage: 9V – 16.5V

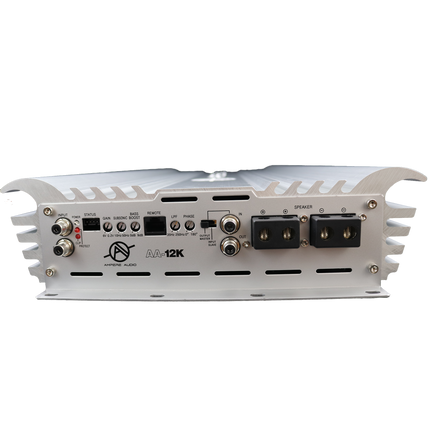

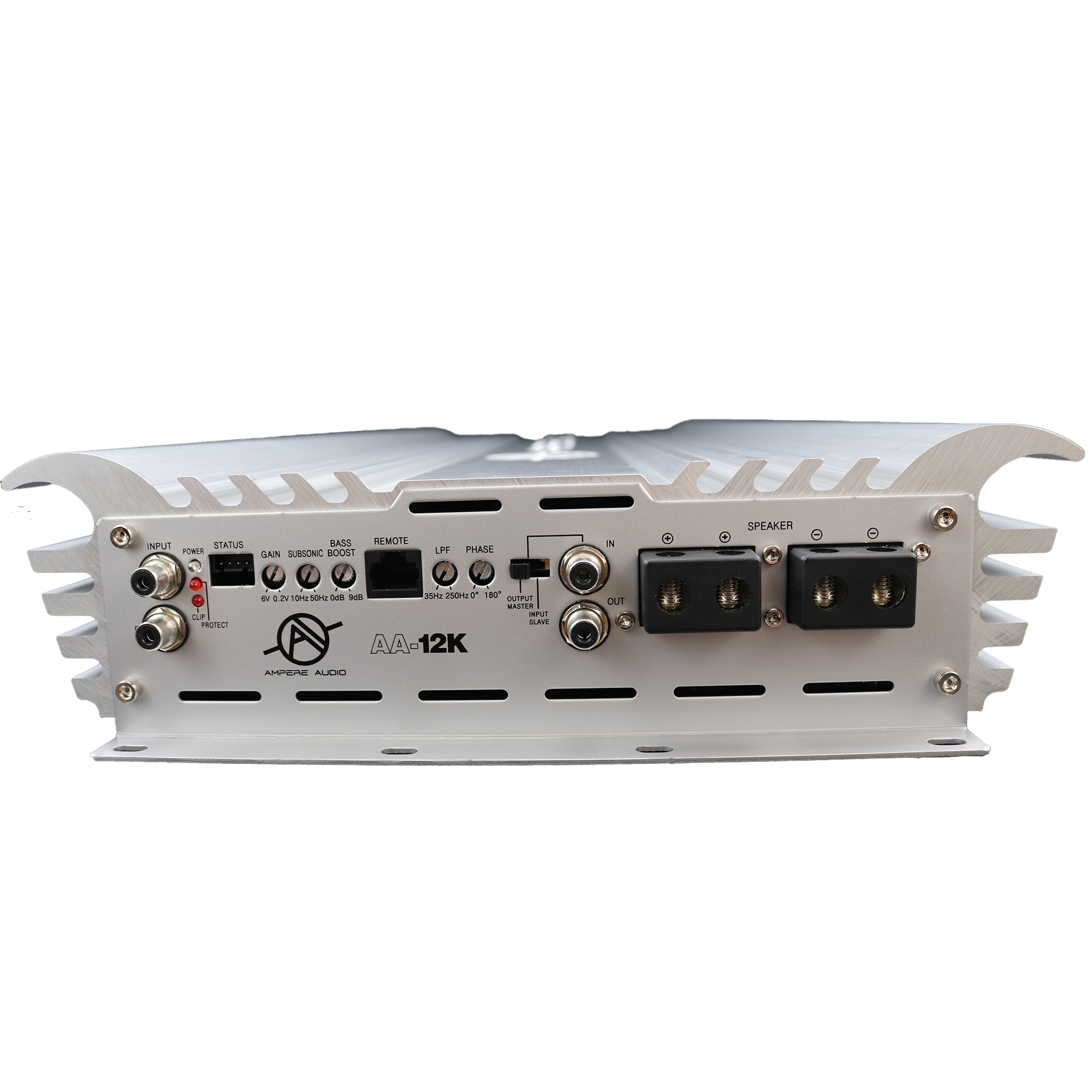

Controls & Filters:
- Low Pass Filter: 35Hz – 250Hz (24 dB/Oct)
- Subsonic Filter: 10Hz – 50Hz (24 dB/Oct)
- Bass Boost: 0 – 9 dB @ 45Hz
- Phase Shift: 0 – 180°

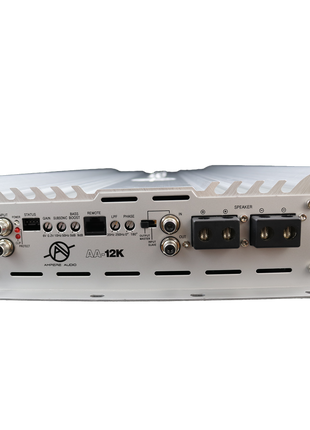

Connectivity & Extras:
- RCA Inputs/Outputs (for Master/Slave Linking)

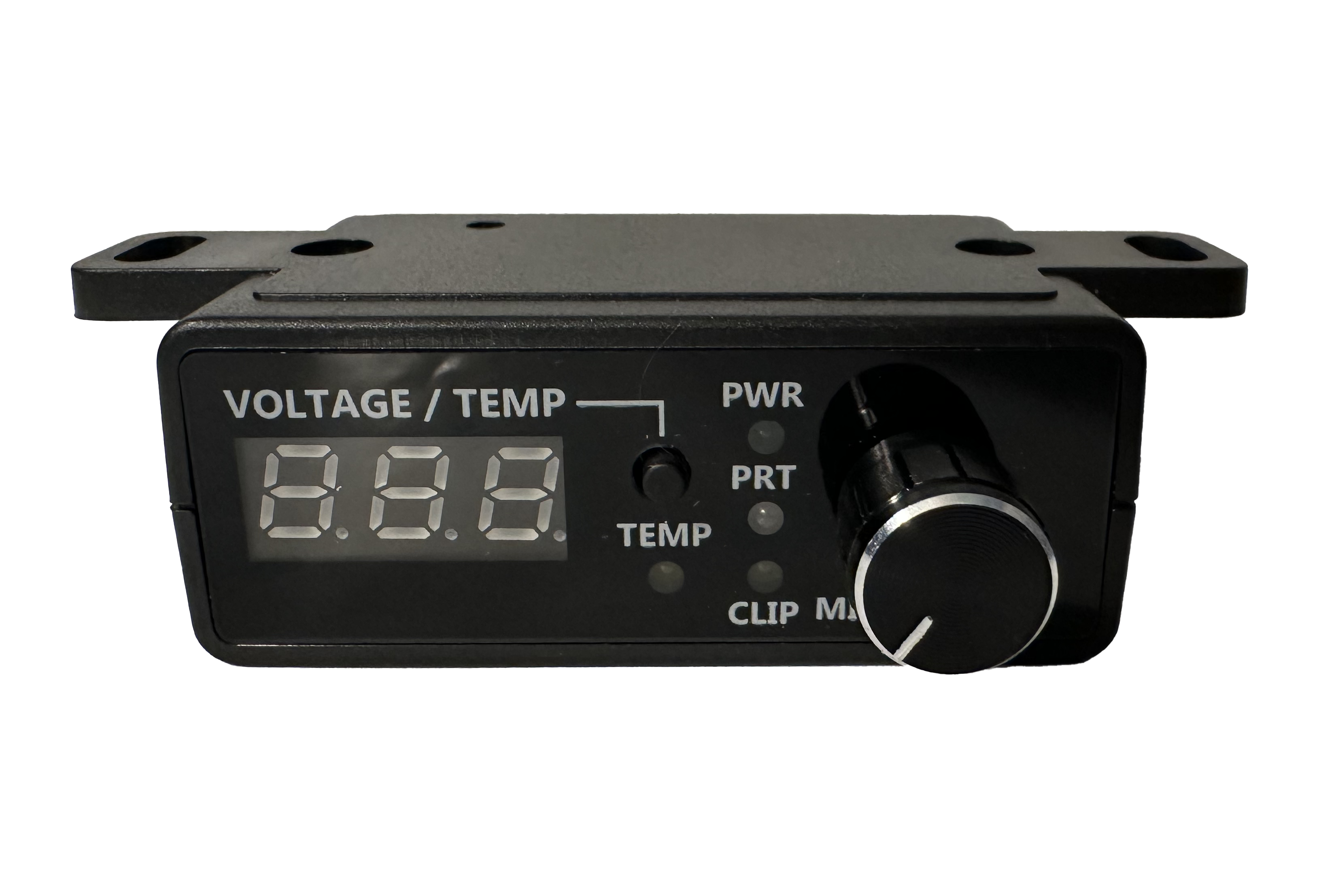

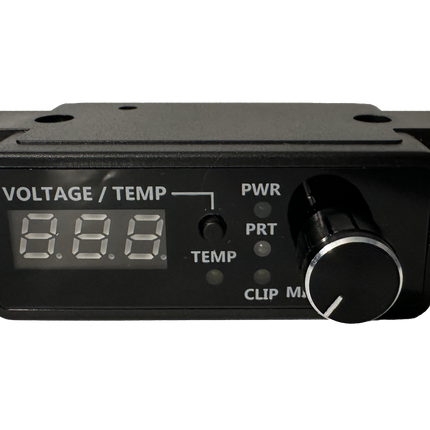

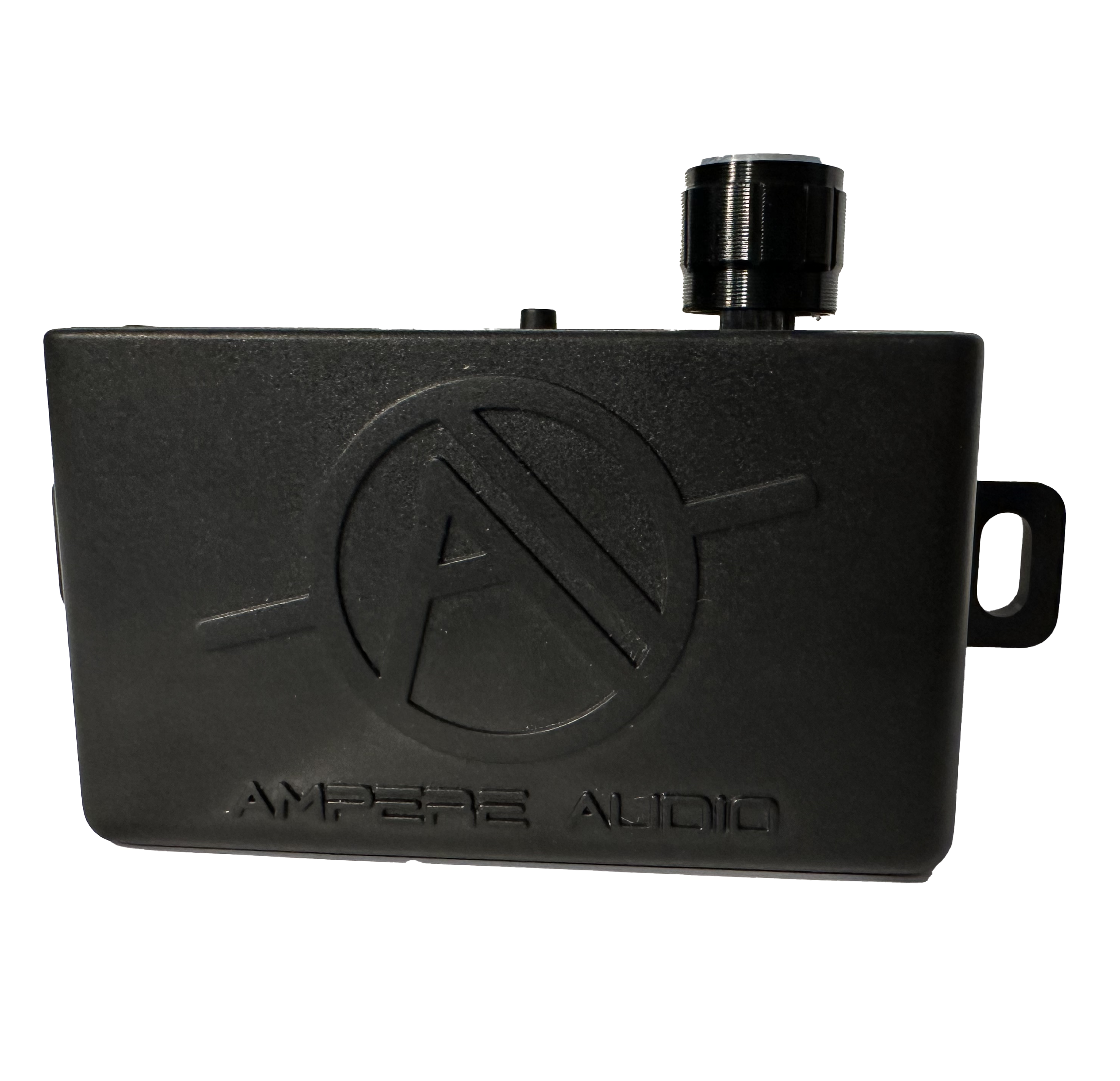

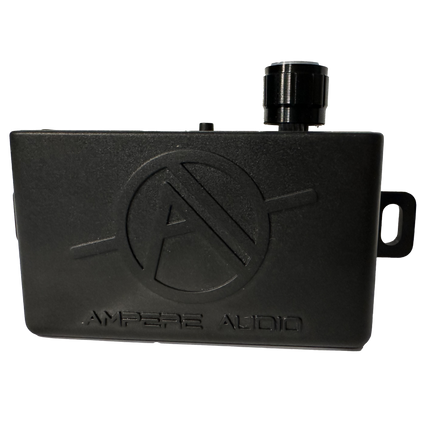

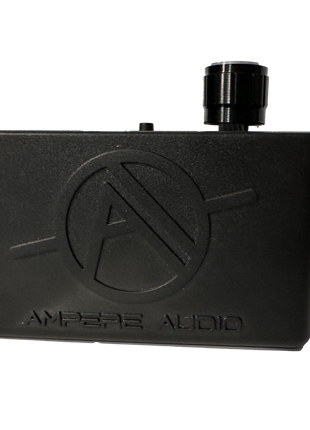

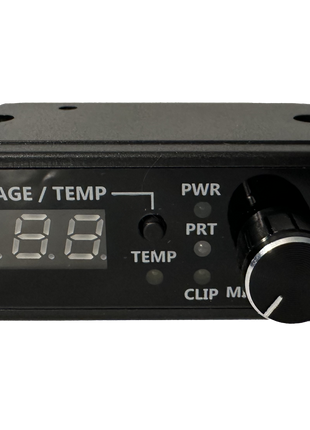

- Wired Remote Control with:
- Voltage Display
- Temperature Display
- Clipping Indicator
Protection Features:
- Thermal
- Voltage
- Speaker Short
- DC Offset
Fuse Rating:
- 1000A (External – not built-in)
Dimensions:
- 27.55" (L) x 11.82" (W) x 3.06" (H)
